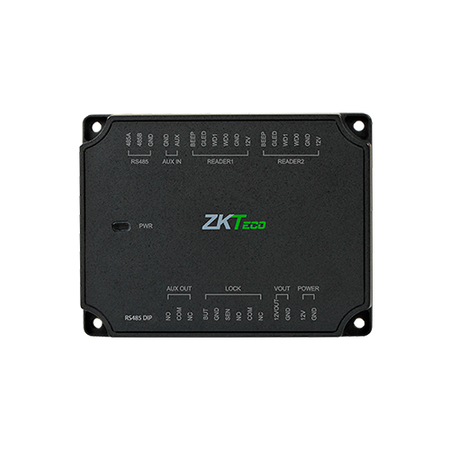

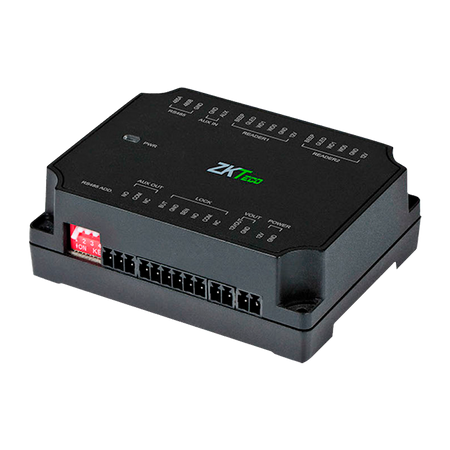

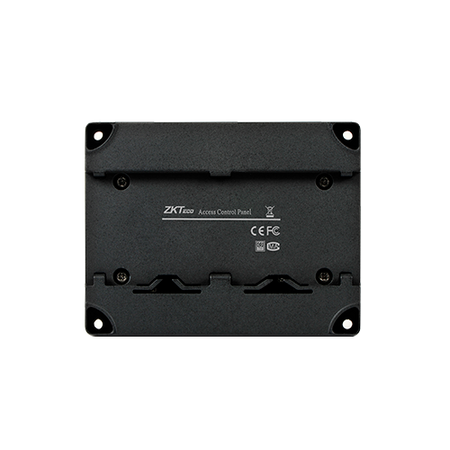

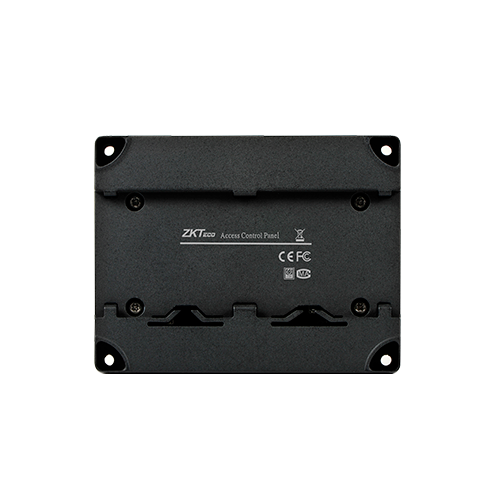

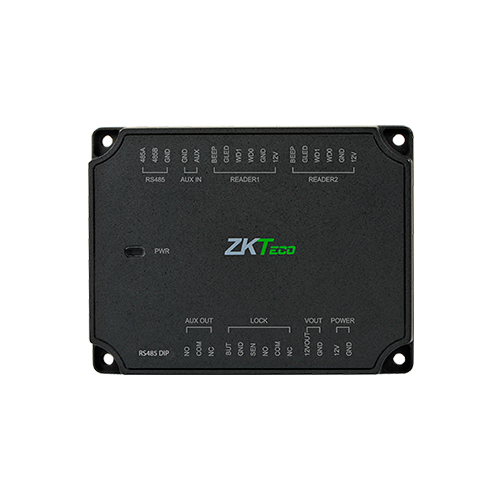

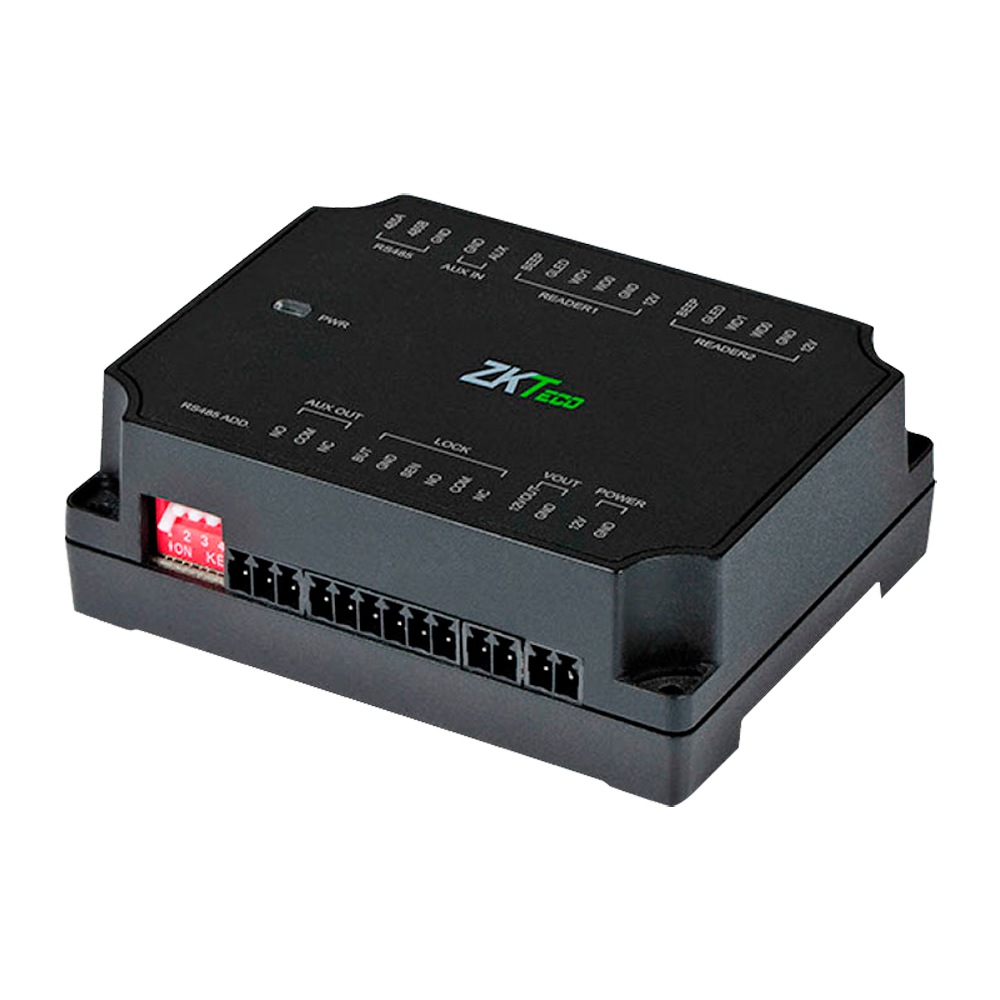

ZKTeco Extender access controller
Regular price
€83,01
Final price
Regular price
-6%
€88,00
Sale price
€83,01
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Extender access controller - Card or password access - RS485 communication - 2 Wiegand readers - Relay output for 1 door - ZK-C2-260 master controller required
📋 SPECIFICATIONS:
• Brand: ZKTeco
• Model: ACC-SRB-DM10
• Identification modes: Card and/or password
• Proximity card: EM RFID (125 kHz) / MF (13.56 MHz)
• Communication: RS485 | Wiegand
• Outputs: 1 x relay output, 1 x auxiliary output, RS485 for communication with C2-260
• Inputs: 1 x door sensor, 1 x exit button, Wiegand 26/34 (up to 2 readers), 1 x auxiliary input
• Software: ZKBio CVSecurity with C2-260 controller

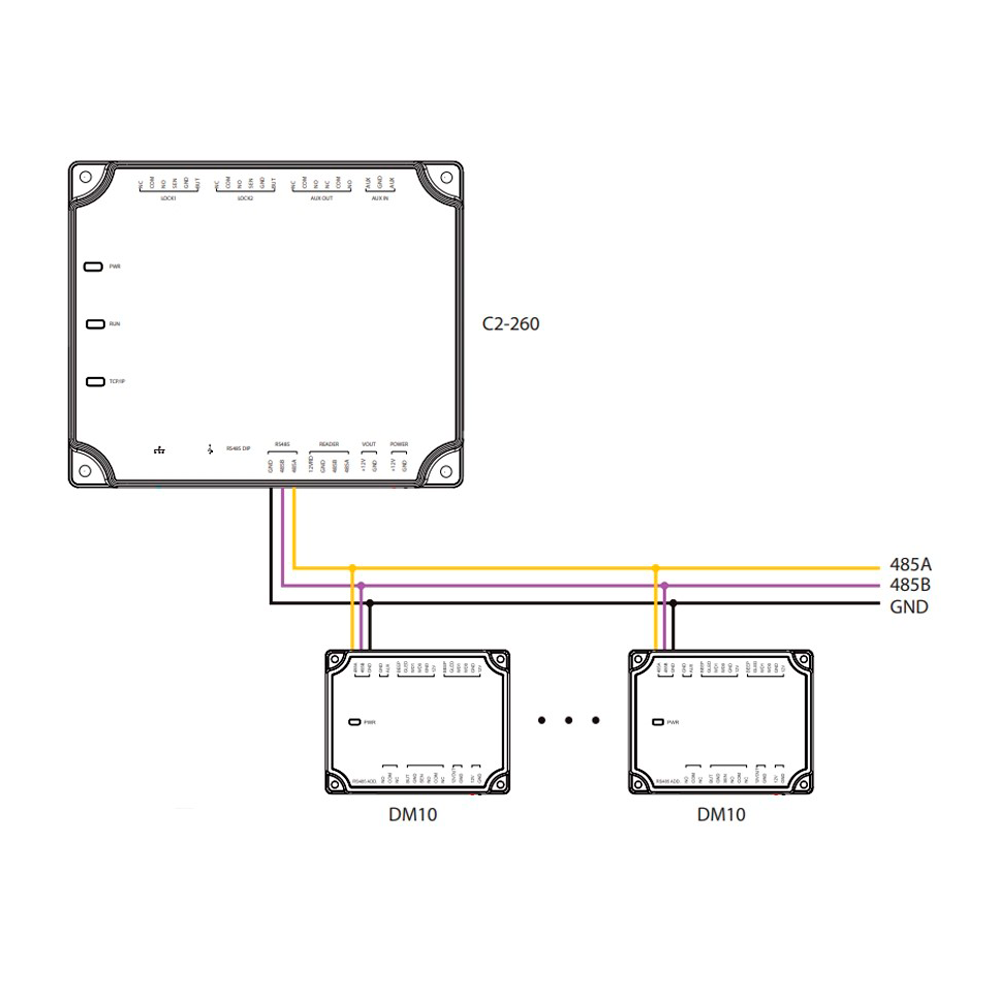

• Secondary controllers: 8 ZK-SRB-DM10 secondary controllers for each ZK-C2-260
• Power supply: DC 12V / 3 A max. | Locks not powered by the controller
• Operating temp.: -10º C ~ +50 ºC
• Dimensions: 91 (H) x 72 (W) x 33 (D) mm
📦 INCLUDED:
• ZKTeco access controller• Mounting hardware• User manual
| Model | ACC-SRB-DM10 |
|---|---|
| Identification modes | Card and/or password |
| Proximity card | EM RFID (125 kHz) / MF (13.56 MHz) |
| Communication | RS485 | Wiegand |
| Outputs | 1 x relay output, 1 x auxiliary output, RS485 for communication with C2-260 |
| Inputs | 1 x door sensor, 1 x exit button, Wiegand 26/34 (up to 2 readers), 1 x auxiliary input |
| Software | ZKBio CVSecurity with C2-260 controller |
| Secondary controllers | 8 ZK-SRB-DM10 secondary controllers per each ZK-C2-260 |
| Power supply | DC 12V / 3 A max. | Locks not powered by the controller |
| Operating temp. | -10º C ~ +50 ºC |
| Dimensions | 91 (H) x 72 (W) x 33 (D) mm |
