ZKTeco bidirectional tripod turnstile | Compact design
Regular price
€1.457,27
Final price
Regular price
-5%
€1.534,00
Sale price
€1.457,27
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

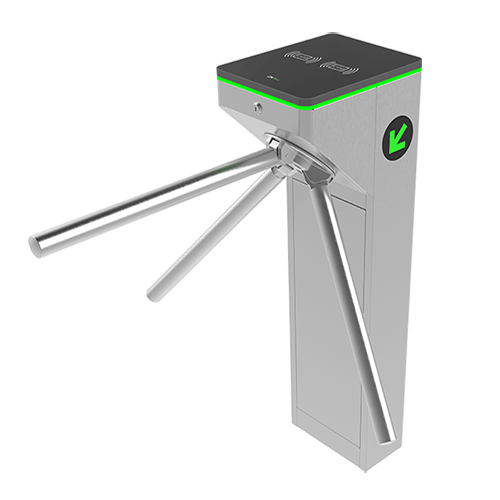

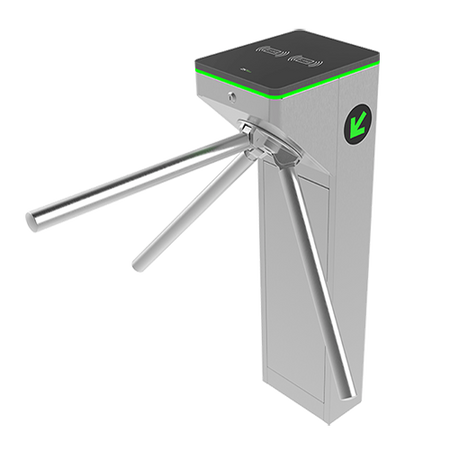

Bi-directional access gate - 3 rotating arms | Compact design - Schedules, alarms, and opening modes - Passage width 550 mm | Adjustable force - Made of SUS304 stainless steel - Compatible with third-party systems
📋 SPECIFICATIONS:
• Brand: ZKTeco
• Model: TS-MTS1000N
• Controller: Turnstile control board compatible with any Access Control system
• LED indicator: Turnstile status LED indicator
• Arm movements: Mechanical arm rotation (user-pushed)
• Emergency mode: Emergency arm drop in case of power loss
• Security: 3 arms / Anti-tailgating security; Mechanical actuation force adjustment system
• Compatibility: Integrates with any third-party Plug & Play Access Control system / Universal RFID reader covers
• Configuration modes: One or two directions of travel / Free passage in one direction and Access Control in the opposite direction configured mechanically
• Manufacturing material: SUS304 stainless steel and tempered glass top cover
• Power supply: AC 110/220 V; Consumption: 10 W (standby), 40 W (unlocked)
• Operating temp.: -28 ºC ~ +60 ºC
• Lane width: 550 mm
• Passage dimensions: 550 (W) x 250 (D) mm
• Dimensions: 950 (H) x 320 (W) x 250 (D) mm
• Weight: 35 kg
• Protection: Indoor
📦 INCLUDED:
• ZKTeco tripod turnstile• Mounting hardware• User manual• Security keys
| Model | TS-MTS1000N |
|---|---|
| Controller | Turnstile control board compatible with any Access Control system |
| LED Indicator | Turnstile status LED indicator |
| Arm movement | Mechanical arm rotation (user-pushed) |
| Emergency mode | Automatic arm drop in case of power loss |
| Security | 3 arms / Anti-tailgating security / Mechanical drive force adjustment system |
| Compatibility | Integrates with any third-party Plug & Play Access Control system / Universal RFID reader covers |
| Configuration mode | Single or dual direction / Free passage in one direction and Access Control in the opposite direction, mechanically configured |
| Manufacturing material | SUS304 stainless steel and tempered glass top cover |
| Power supply | AC 110/220 V Consumption: 10 W (standby), 40 W (unlocked) |
| Operating temp. | -28 ºC ~ +60 ºC |
| Lane width | 550 mm |
| Passage dimensions | 550 (W) x 250 (D) mm |
| Dimensions | 950 (H) x 320 (W) x 250 (D) mm |
| Weight | 35 kg |
| Protection | Indoor |
- User manual Link
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
