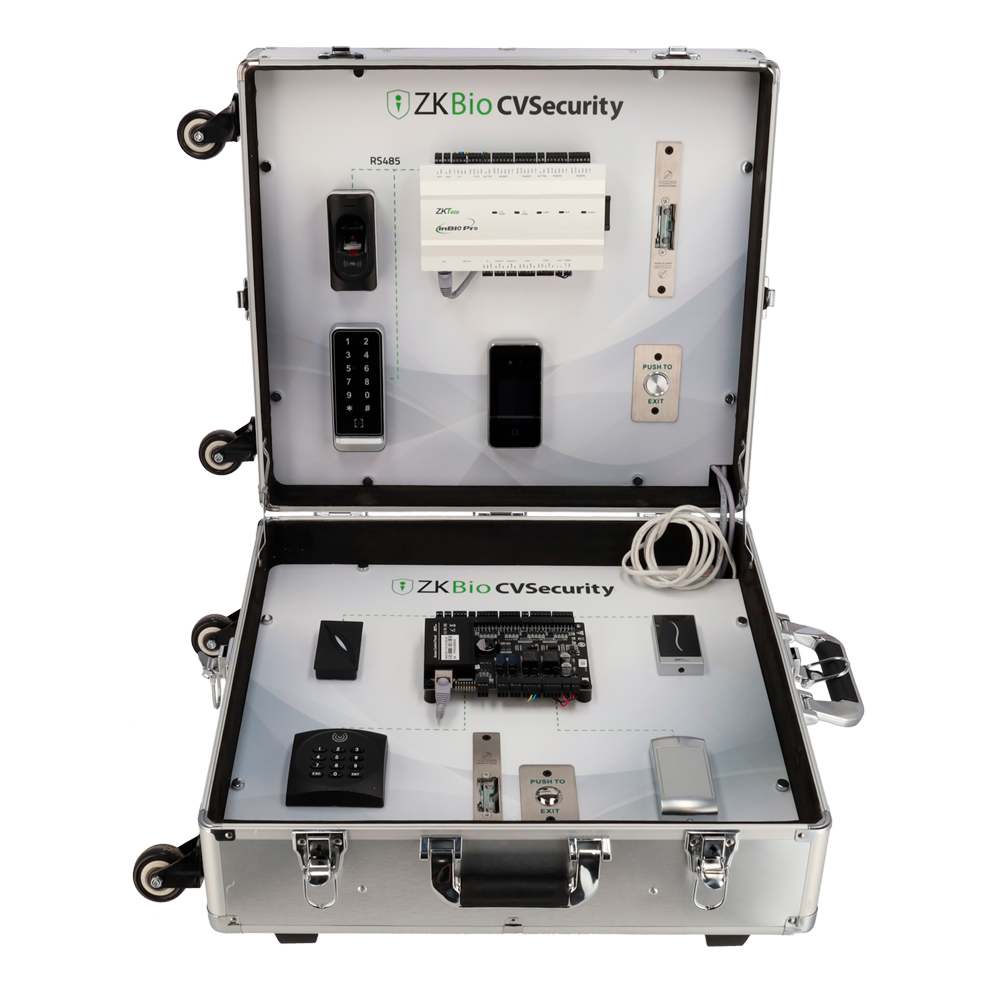

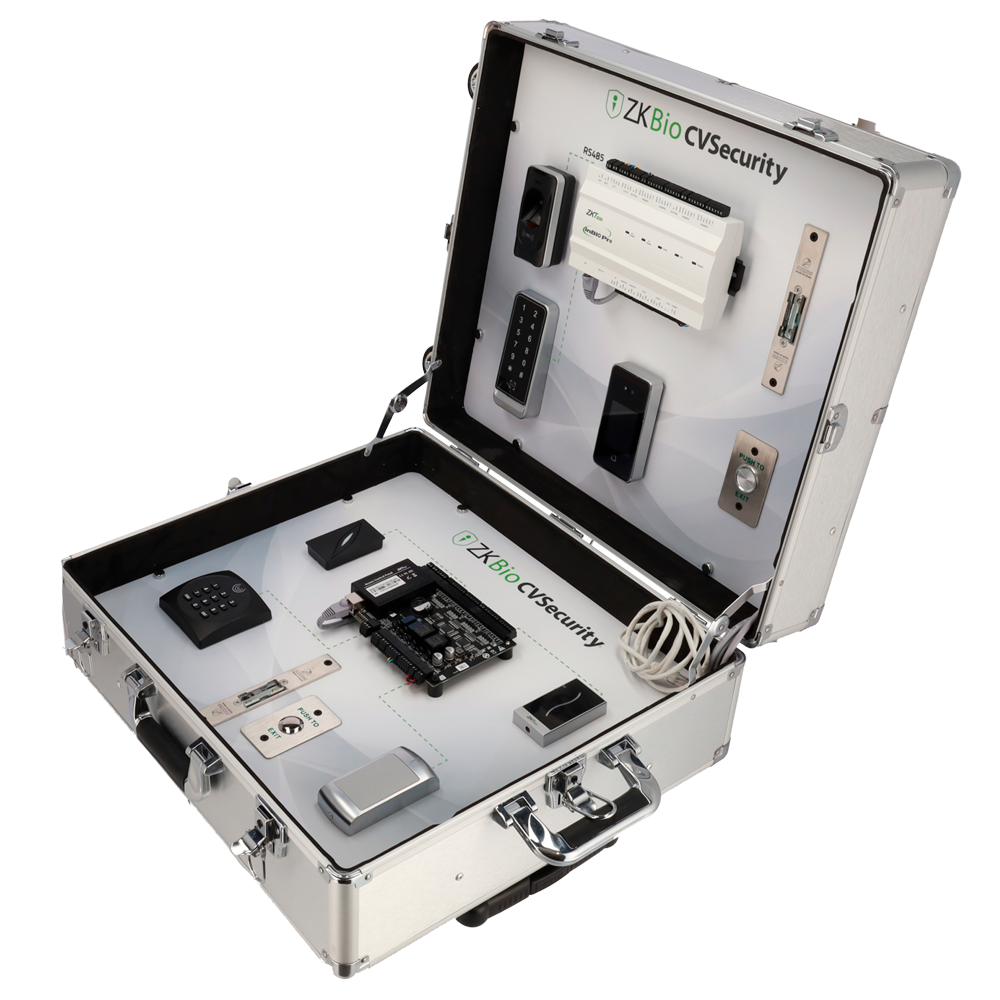

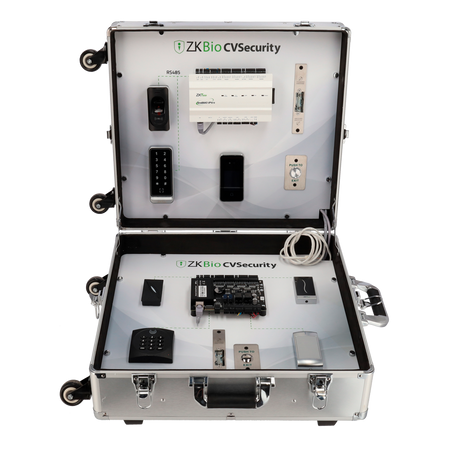

ZKTeco Access Control Solution Demo Kit

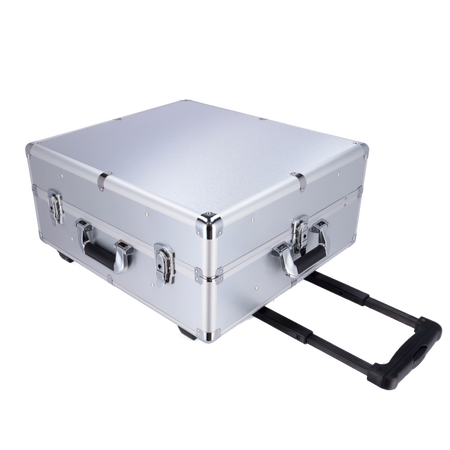

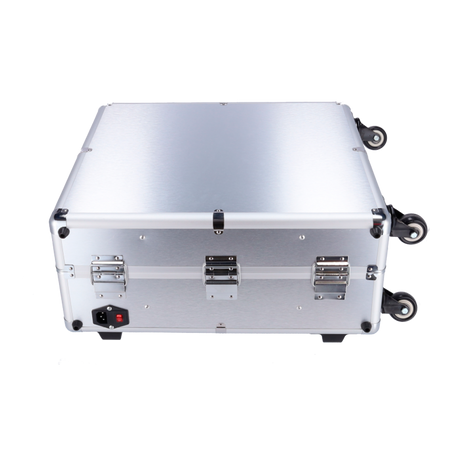

Demo Kit - Access Control Solution - Switch for Internet connection - Free license ZK-BIOCV-5-5APP-PROMO - Plug & Play - Case: 500 (W) x 450 (H) x 200 (D) mm

📋 SPECIFICATIONS:

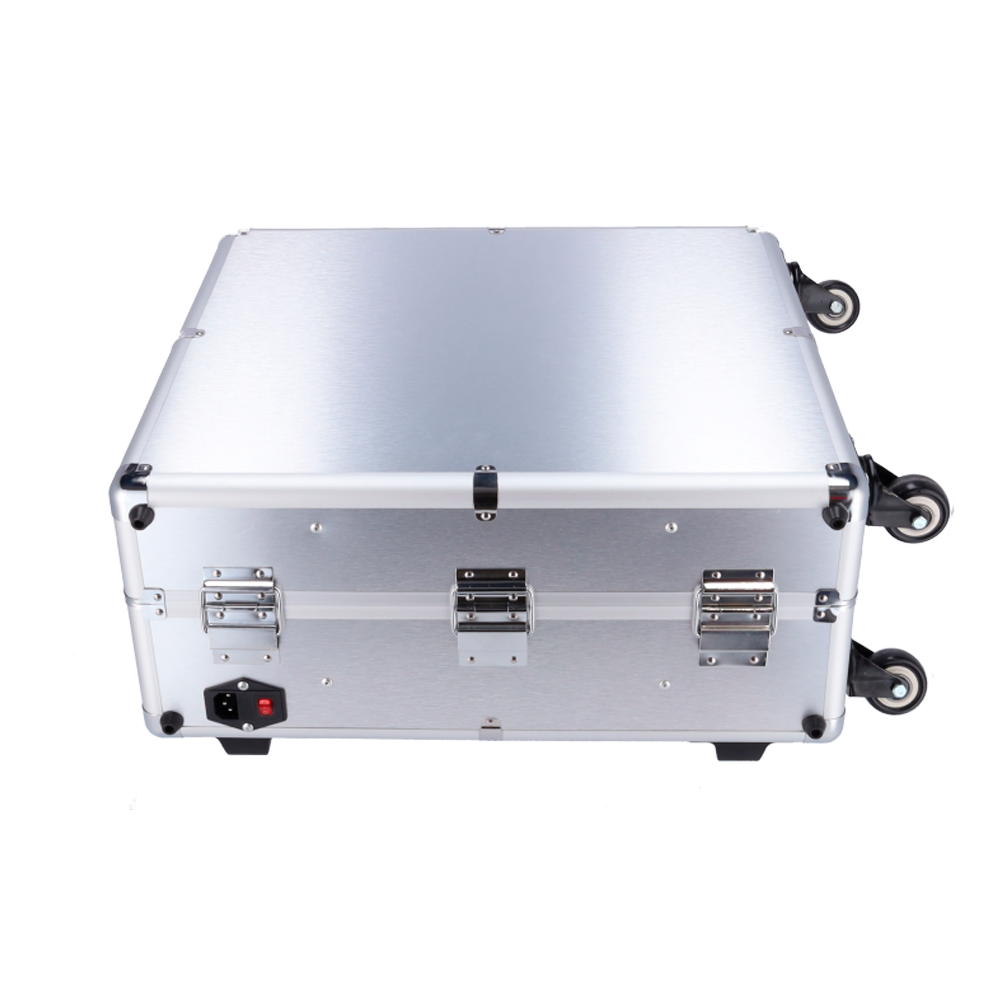

• Dimensions: 500 (W) x 450 (H) x 200 (D) mm
• Material: Aluminum
• Weight: 13 kg
• Contact: 3A / DC 36V
• Output contact: NO/NC/COM
• Material: Stainless steel
• Relative humidity: 0 - 95%
• Operating temp.: 10 ºC ~ +55 ºC
• Dimensions: 86 (W) x 50 (H) x 29 (D) mm
• Weight: 180 g
• Contact: 1A / DC 12V
• Output contact: NO/COM
• Material: Stainless steel
• Relative humidity: 0 - 99%
• Protection: IP68
• Operating temp.: -20 ºC ~ +50 ºC
• Dimensions: 86 (W) x 50 (H) x 20 (D) mm
• Weight: 180 g
• Brand: ZKTeco
• Model: ACC-ER-FR1200N-1
• Sensor: ZK Optical Sensor
• Sensor resolution: 500DPI
• Activation sensor: Auto-activation by infrared
• Algorithm: ZK Finger 10.0
• Verification time: < 1 sec
• Card reading distance: Up to 10 cm
• Verification time: < 300 ms
• Identification modes: Fingerprint and card (RFID EM 125 kHz)
• Outputs: RS485
• Compatibility: ZKTeco ZK-INBIO PRO controller
• Power supply: DC 12 V / 70 mA max.
• Protection rating: Suitable for outdoor IP65
• Operating temp.: 0 ºC ~ +45 ºC
• Dimensions: 50 (H) x 102 (W) x 37 (D) mm
• Weight: 160 g
• Brand: ZKTeco
• Model: ACC-ER-KR612E
• Reading distance: Up to 10 cm
• Verification time: < 300 ms
• Identification modes: Card (RFID EM 125 kHz) and keypad
• Outputs: Wiegand OUT 26/34 bit | PIN 8 bit
• Compatibility: ZKTeco ZK-C3 PRO, ZK-INBIO PRO and ATLAS Series controllers
• Power supply: DC 6 ~ 14 V / 70 mA max.
• Protection rating: Suitable for outdoor IP64
• Operating temp.: -20 ºC ~ +65 ºC
• Dimensions: 86 (H) x 86 (W) x 20 (D) mm
• Weight: 50 g
• Brand: ZKTeco
• Model: ACC-ER-KR310
• Reading distance: Up to 1 cm
• Verification time: < 300 ms
• Identification modes: Card (RFID EM 125 kHz and MF 13.56 MHz)
• Outputs: Wiegand OUT 34 bit
• Compatibility: ZKTeco ZK-C3 PRO, ZK-INBIO PRO and ATLAS Series controllers
• Power supply: DC 6 ~ 14 V / 70 mA max.
• Protection rating: Suitable for outdoor IP65
• Operating temp.: -20 ºC ~ +65 ºC
• Dimensions: 42.8 (H) x 77.5 (W) x 16.5 (D) mm
• Weight: 50 g
• Brand: Dorcas
• Model: DR-99NDF-TOP/YSX
• Mounting: Recessed
• Opening mode: Fail Secure (NO)
• Functions: Free passage lever and adjustable radial latch; Cover with anti-jamming system and latch guide (no need to make cuts in the front panel or door)
• Holding force: 330 kg
• Power supply: AC/DC 10-24 V / 500 mA max.
• Material: Stainless steel
• Dimensions: 25.2 (H) x 160 (W) x 28.5 (D) mm
• Weight: 400 g
• Brand: ZKTeco
• Model: ACC-ER-QR600-VK-1
• Identification modes: QR code, card (RFID EM 125 kHz) and PIN
• Special functions: Compatible with dynamic QR codes; Function supported by RS485 on ZK-INBIOx60PRO controllers; Function supported by Wiegand on ZK-ATLAS-x60 controllers
• Sensor: QR, Data Matrix, PDF417, GS1 Databar, Code 128 / EAN128,; UPC / EAN, Codabar, Code 39
• Reading distance: Cards: ≤ 4 cm; QR: ≤ 5 cm
• Outputs: RS485, Wiegand 26/32/34/66
• Compatibility: ZKTeco ZK-C3 PRO, ZK-INBIO PRO and ATLAS Series controllers
• Special functions: Configuration via DEMO software; Connection to PC via USB
• Power supply: DC 12 V
• Protection rating: Suitable for outdoor IP65
• Material: Metal
• Operating temp.: -20 ºC ~ +60 ºC
• Dimensions: 58 (H) x 138 (W) x 16 (D) mm
• Brand: ZKTeco
• Model: GL-C3-PRO200
• Hardware CPU: 32bit MIPS CPU
• Capacity: Up to 30,000 cards
• Logs: 100,000 logs
• Identification modes: Card, QR and/or password
• Proximity card: RFID EM 125 kHz and MF 13.56 MHz
• PC communication: TCP/IP and RS485
• Baud rate: 9,600 bps, 19,200 bps, 38,400 bps (recommended) and 57,600 bps
• Outputs: 2 x relay output, 2 x auxiliary outputs, 1 x DC 12 V
• Inputs: 4 x Wiegand 26/34, 2 x door sensor, 2 x exit button, 2 x auxiliary, 1 x RS485
• Software: Access Control Software: ZKBioCVSecurity
• Advanced functions: Multi-door interlocking, anti-passback, multi-card, first card opening and capacity control
• Power supply: DC 12 V / 1.5 A max.
• Operating temp.: 0 ºC ~ +55 ºC
• Dimensions: 160 (H) x 106 (W) mm
• Weight: 360 g
• Brand: ZKTeco
• Model: GL-INBIO-PRO260
• Hardware CPU: 32bit 1.2GHz CPU
• Capacity: Up to 60,000 cards and 20,000 fingerprints
• Logs: 100,000 logs
• Identification modes: Facial recognition, fingerprint, card, dynamic QR and/or password
• Proximity card: RFID EM 125 kHz and MF 13.56 MHz
• PC communication: TCP/IP and RS485
• Baud rate: 9,600 bps, 19,200 bps, 38,400 bps (recommended) and 57,600 bps
• Outputs: 2 x relay output, 2 x auxiliary outputs, 1 x DC 12 V
• Inputs: 4 x Wiegand 26/34, 1 x RS485/OSDP (up to 4 readers), 2 x door sensor, 2 x exit button, 2 x auxiliary; OSDP version: 2.1.7
• Software: Access Soft.: ZKBioCV
• Advanced functions: Multi-door interlocking, anti-passback, multi-card, first card opening and capacity control
• Power supply: DC 9.6 ~ 14.4 V / 1.5 A max.
• Operating temp.: 0 ºC ~ +55 ºC
• Dimensions: 185 (H) x 106 (W) mm
• Weight: 890 g
• Brand: ZKTeco
• Model: PROID10-B-WG-1 (Black)
• Reading distance: Up to 3.5 cm
• Verification time: < 300 ms
• Identification modes: Card (RFID EM 125 kHz)
• Outputs: Wiegand OUT 26/34 bit
• Compatibility: ZKTeco ZK-C3 PRO, ZK-INBIO PRO and ATLAS Series controllers
• Power supply: DC 7 ~ 13 V / 80 mA max.
• Material: ABS and satin black PC
• Protection rating: Suitable for outdoor IP65
• Operating temp.: -20 ºC ~ +65 ºC
• Dimensions: 44 (H) x 80.5 (W) x 15 (D) mm
• Weight: 70 g
• Brand: ZKTeco
• Model: ACC-MR1010
• Reading distance: 2 ~ 6 cm
• Verification time: < 300 ms
• Identification modes: Card (RFID EM 125 kHz and MF 13.56 MHz)
• Outputs: Wiegand OUT 26/34 bit
• Compatibility: ZKTeco ZK-C3 PRO, ZK-INBIO PRO and ATLAS Series controllers
• Power supply: DC 9 ~ 24 V / 50 mA max.
• Protection rating: Suitable for outdoor IP66; Vandal-proof IK10
• Operating temp.: -40 ºC ~ +60 ºC
• Dimensions: 49 (H) x 105 (W) x 21 (D) mm
• Weight: 240 g
• Brand: ZKTeco
• Model: SOF-BIOCV-5-5APP
• Door capacity: For 5 doors
• Users: 30,000 users
• Operating system: Server: Windows 7/8/10/11 32Bit and 64Bit | Windows Server 2008/2012/2016/2019; Browser access from MAC or Windows
• Communication: TCP/IP and WiFi
• Communication protocols: Push SDK and Pull SDK; Compatible with ZK-C3 and ZK-INBIO series controllers and with AI facial recognition and standalone terminals
• Database: PostgreSQL
• Architecture: Server/Browser
• Access Control module functions: Device management: controllers, stand-alone and readers; Schedule and access level management; Standard functions: interlocked doors, anti-passback, multi-card and first card opening; Advanced functions: global linkages, global interlocked doors, global anti-passback, capacity control and user availability; Real-time monitoring and virtual map; Viewing and exporting logs and reports
• Available languages: German, Russian, Italian, Portuguese (Brazilian), French, Japanese, Spanish, Arabic, Chinese, English, Polish, Romanian, Turkish
• Range: ZKLicense
• Brand: ZKTeco
• Model: VL-SPEEDFACE-V3L-LITE-RF-1-W
• CPU: 1GHz Dual Core CPU, Memory 256MB RAM 512MB Flash
• Camera: 1 Mp with dual facial recognition sensor; White LED light
• Verification time: < 1 sec
• Capacity: Up to 3,000 cards and 500 faces
• Logs: 200,000 logs
• Identification modes: Facial recognition, card, PIN and/or combinations
• Proximity card: RFID EM 125 kHz
• Screen: 2.4" color touch TFT
• Communication: TCP/IP and WiFi
• Integrated controller: Door sensor, button and relay
• Software: Access Control Software: ZKBioCVSecurity; Attendance Software: ZKBioTime 8.0
• Power supply: DC 12 V / 1.5 A max.
• Protection rating: Outdoor IP65
• Operating temp.: -5 ºC ~ +45 ºC
• Dimensions: 58 (H) x 117 (W) x 17 (D) mm
• Weight: 400 g

📦 INCLUDED:

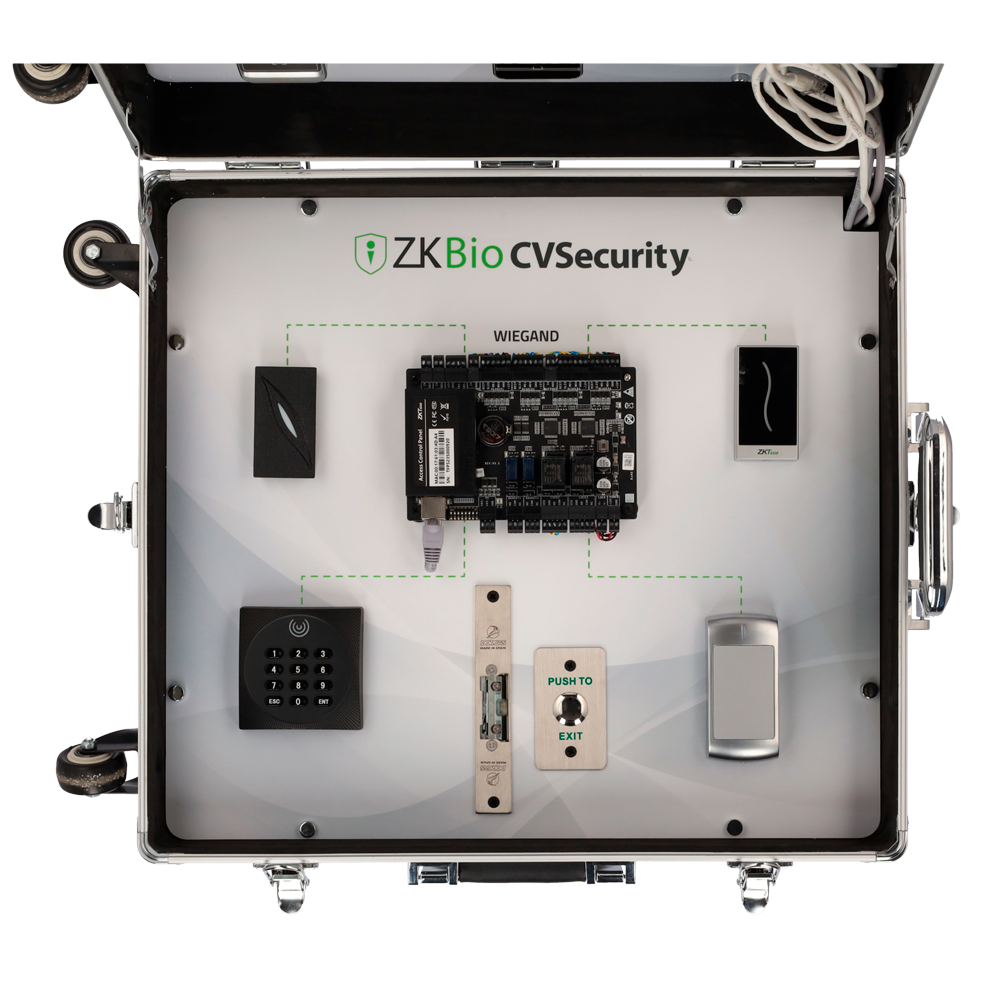

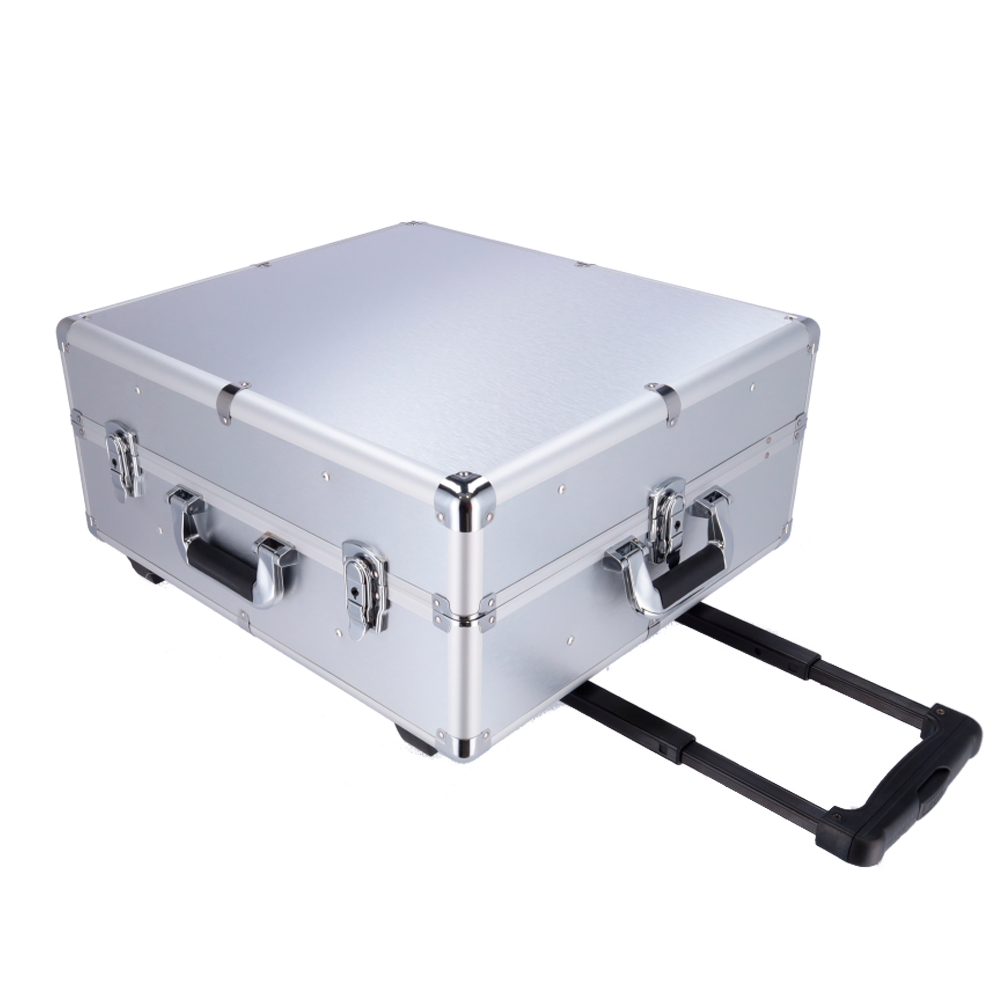

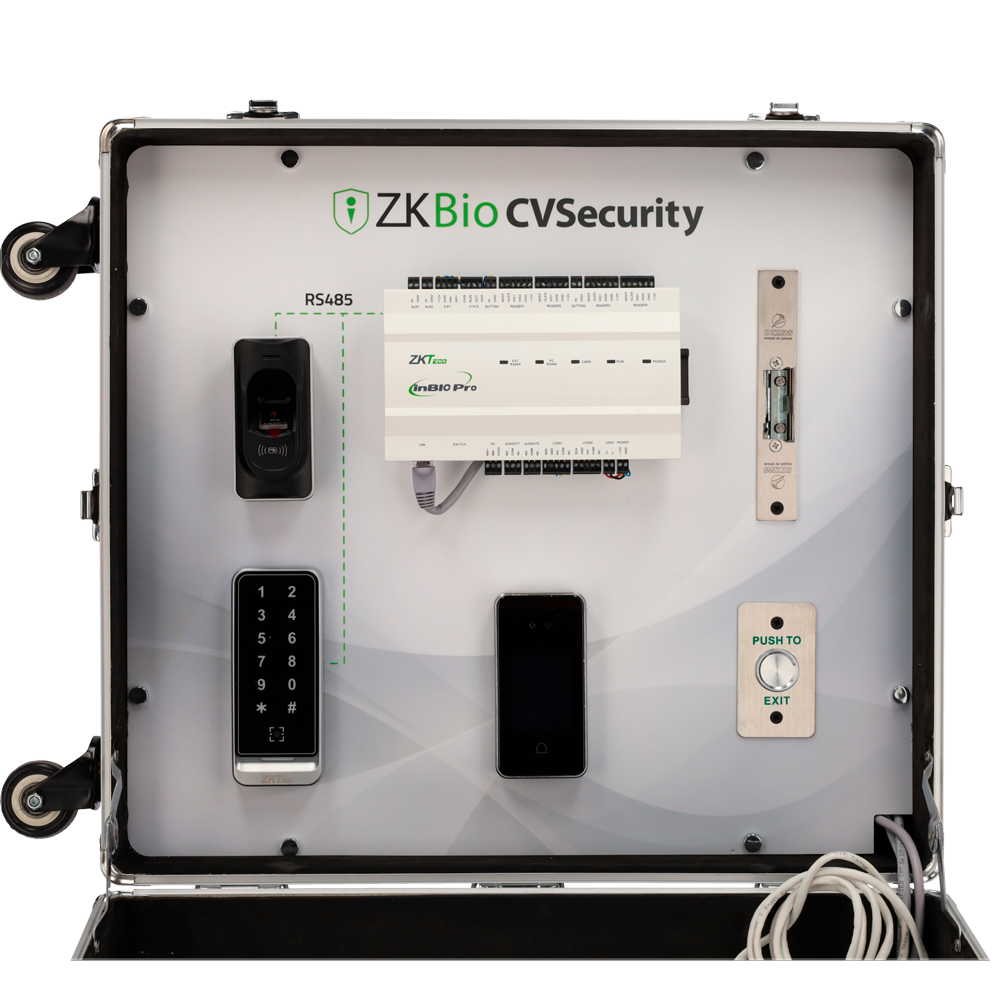

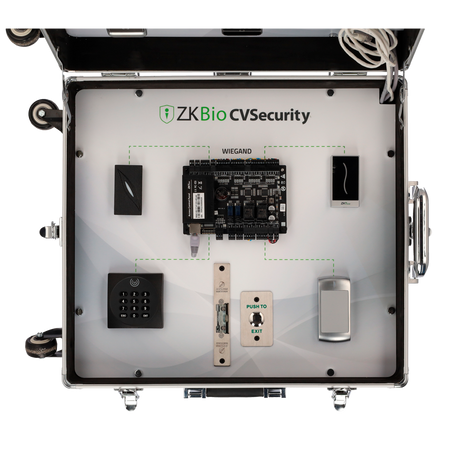

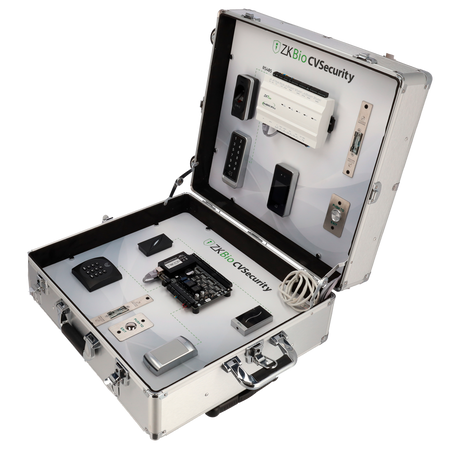

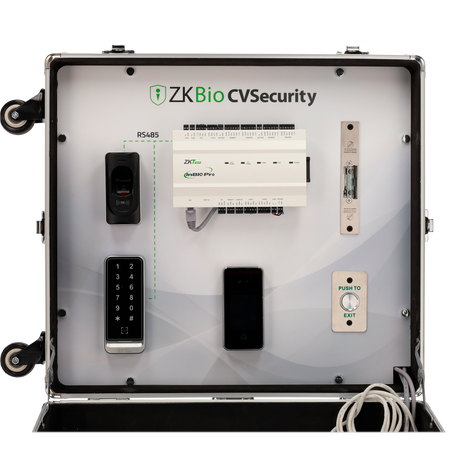

• Case with wheels ZKTeco• C3 PRO controller• INBIO PRO controller• V3L Lite standalone terminal• 3 x Card reader• PIN and card reader• Fingerprint and card reader• QR and card reader• 2 x Electric door opener• 2 x Exit button• Switch• ZKBio CVSecurity license
