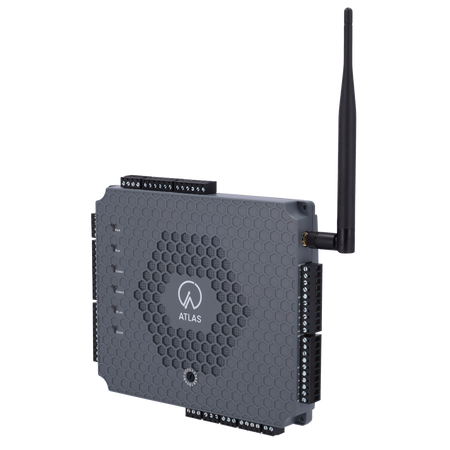

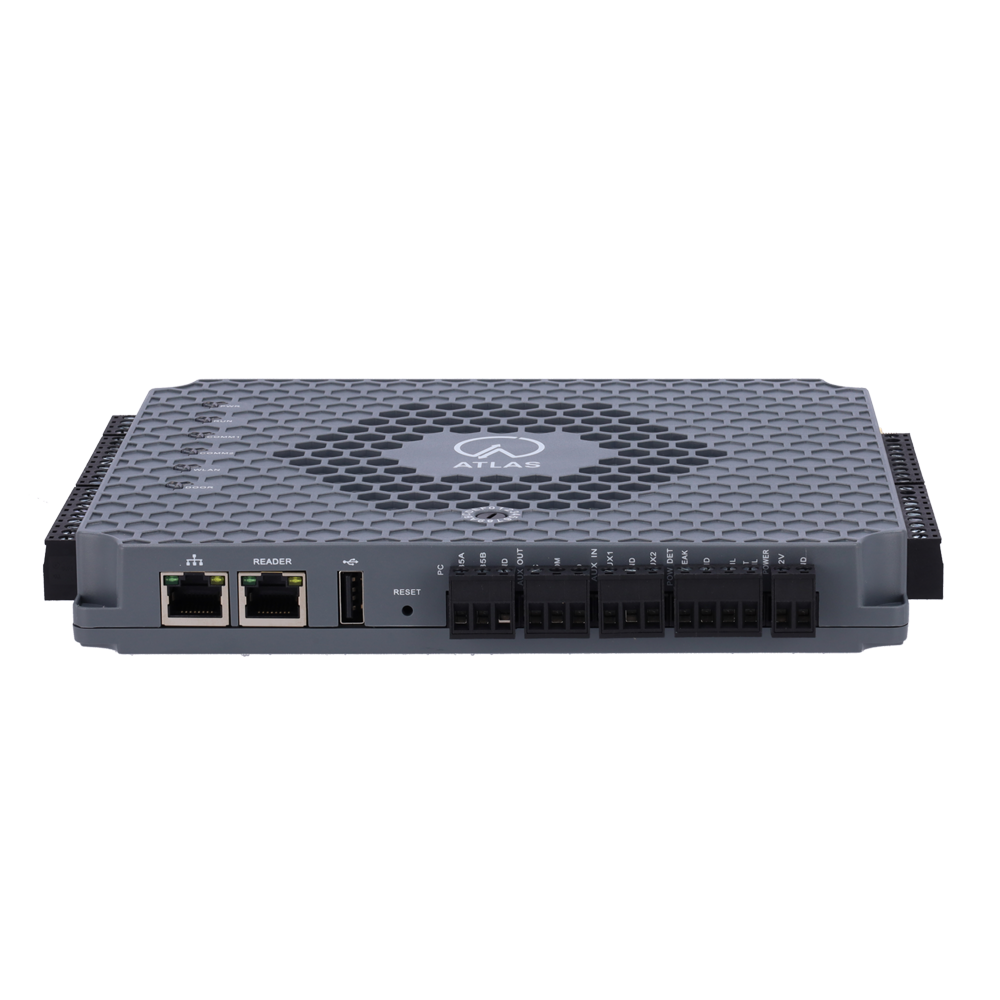

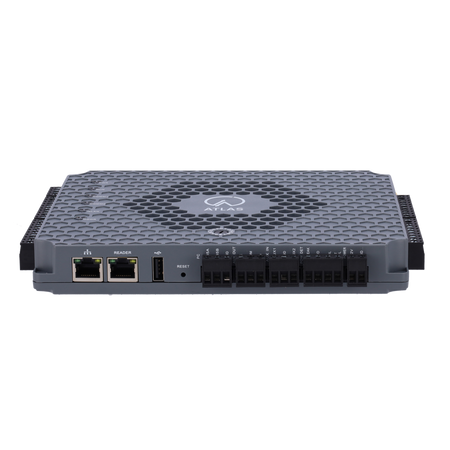

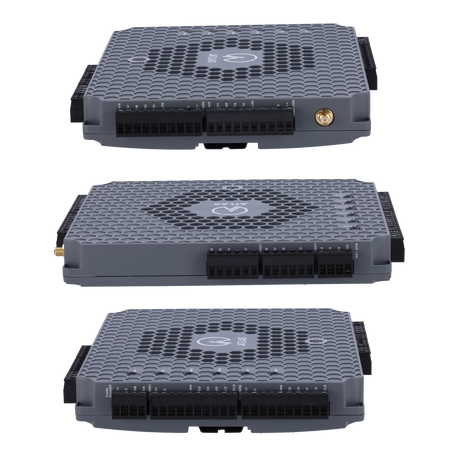

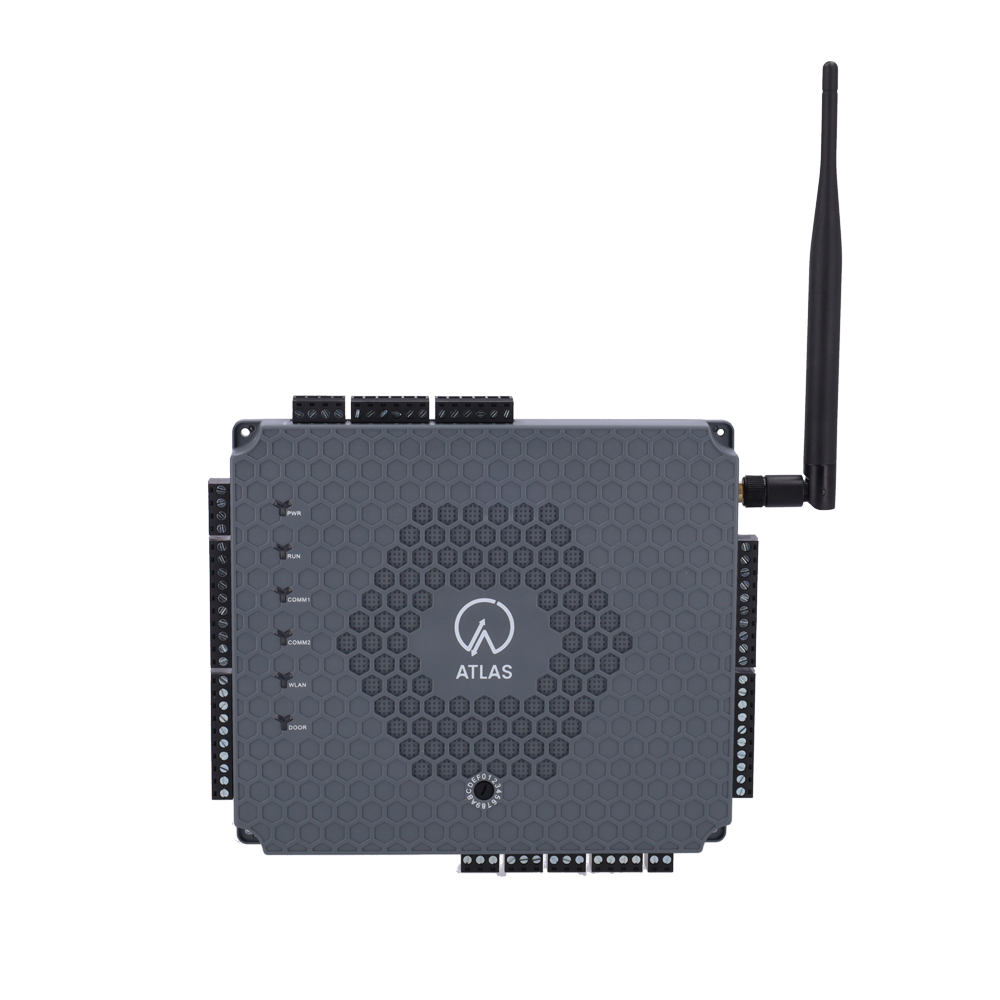

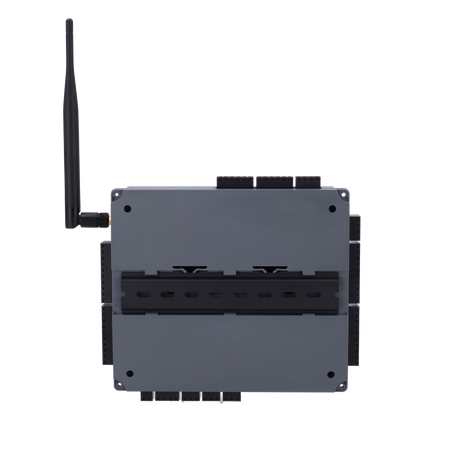

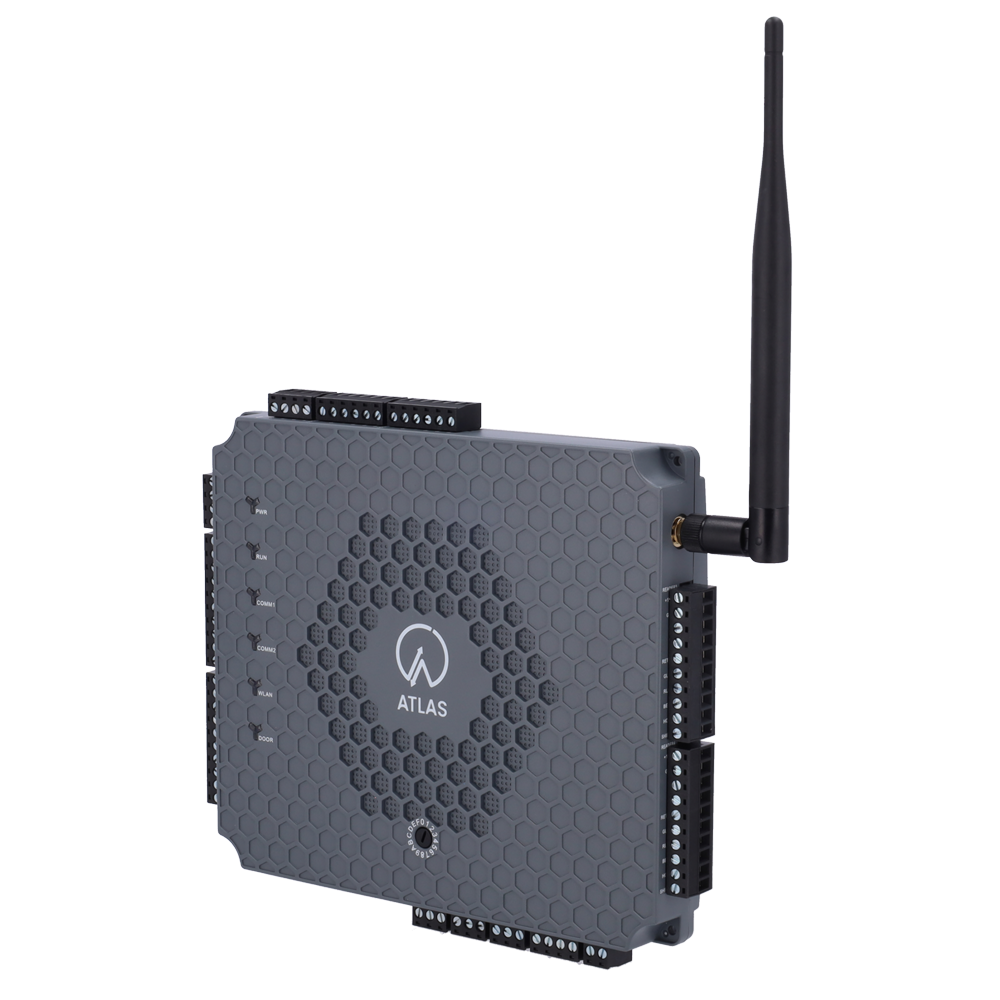

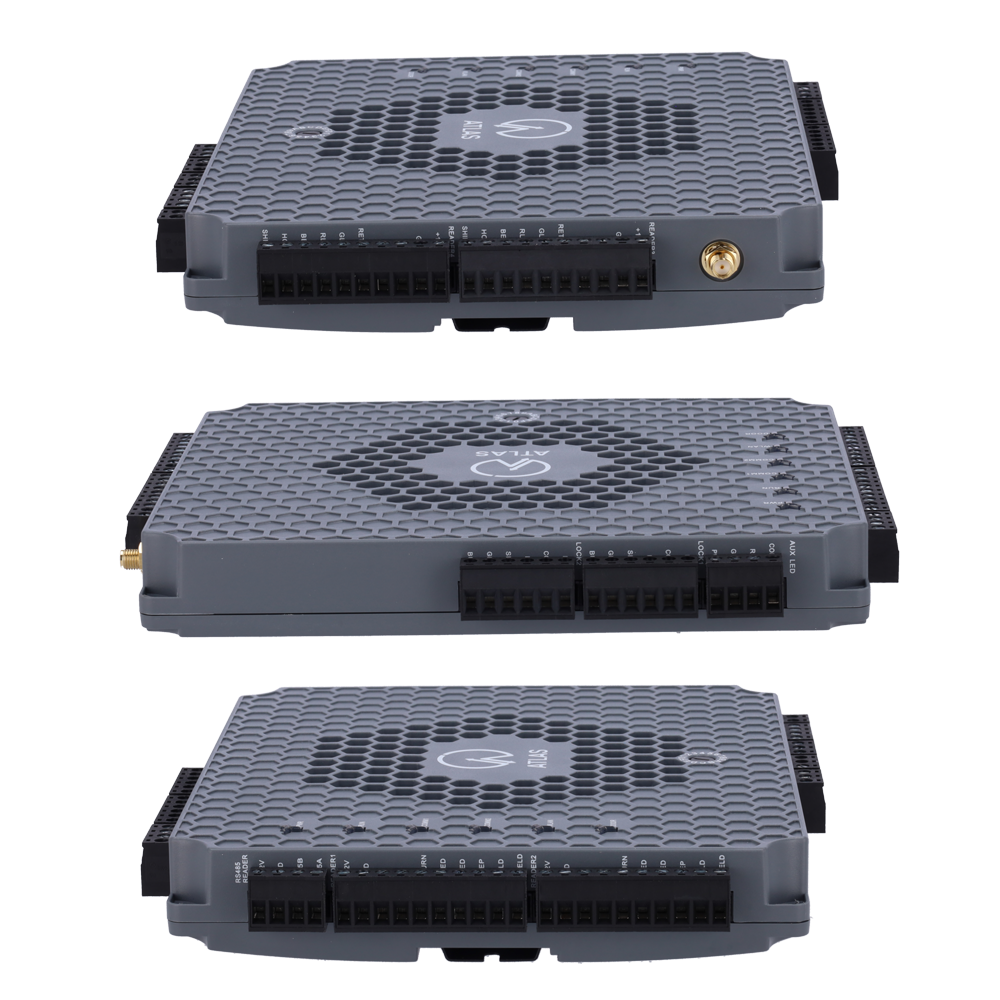

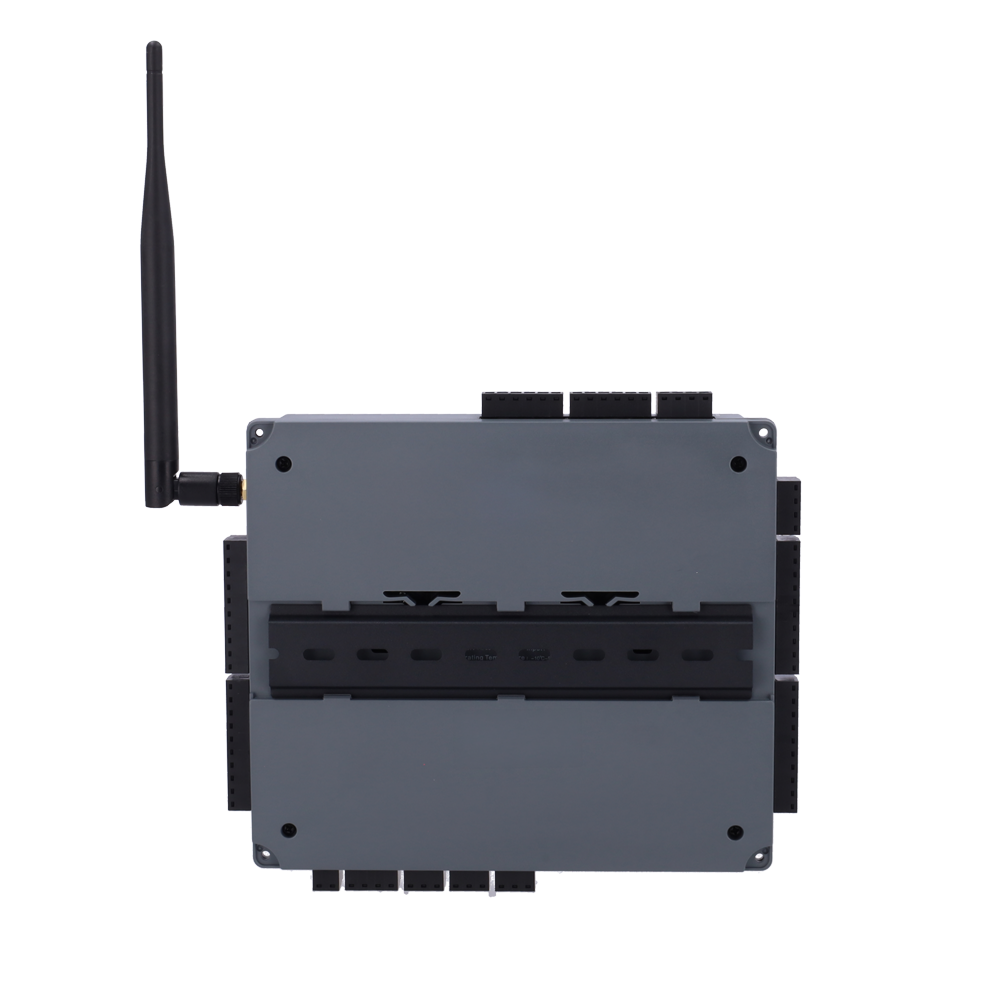

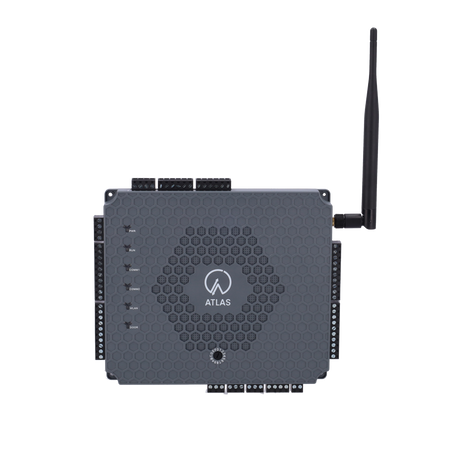

ZKTeco Multi-identification access controller - 4 readers via Wiegand | 4 readers via OSDP
ZKTeco Multi-identification access controller - 4 readers via Wiegand | 4 readers via OSDP
Regular price
€530,33
Final price
Regular price
-6%
€566,00
Sale price
€530,33
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Multi-identification access controller - Fingerprint, card, dynamic QR or PIN - TCP/IP and WiFi communication - 4 readers via Wiegand | 4 readers via OSDP - Relay output for 2 doors | PoE - Integrated ATLAS Software and Cloud | Mobile APP
📋 SPECIFICATIONS:
• Brand: ZKTeco
• Model: CON-ATLAS-260-C
• Capacity: Up to 5,000 users with 10 fingerprints each or 5,000 cards/passwords
• Events: 10,000 logs
• Identification modes: Fingerprint, card, dynamic QR and/or password
• Proximity card: RFID EM 125 kHz and MF 13.56 MHz
• Communication: TCP/IP, Wi-Fi and RS485
• Baud rate: 9,600 bps for RS485
• Outputs: 2 x relay outputs, 1 x auxiliary output

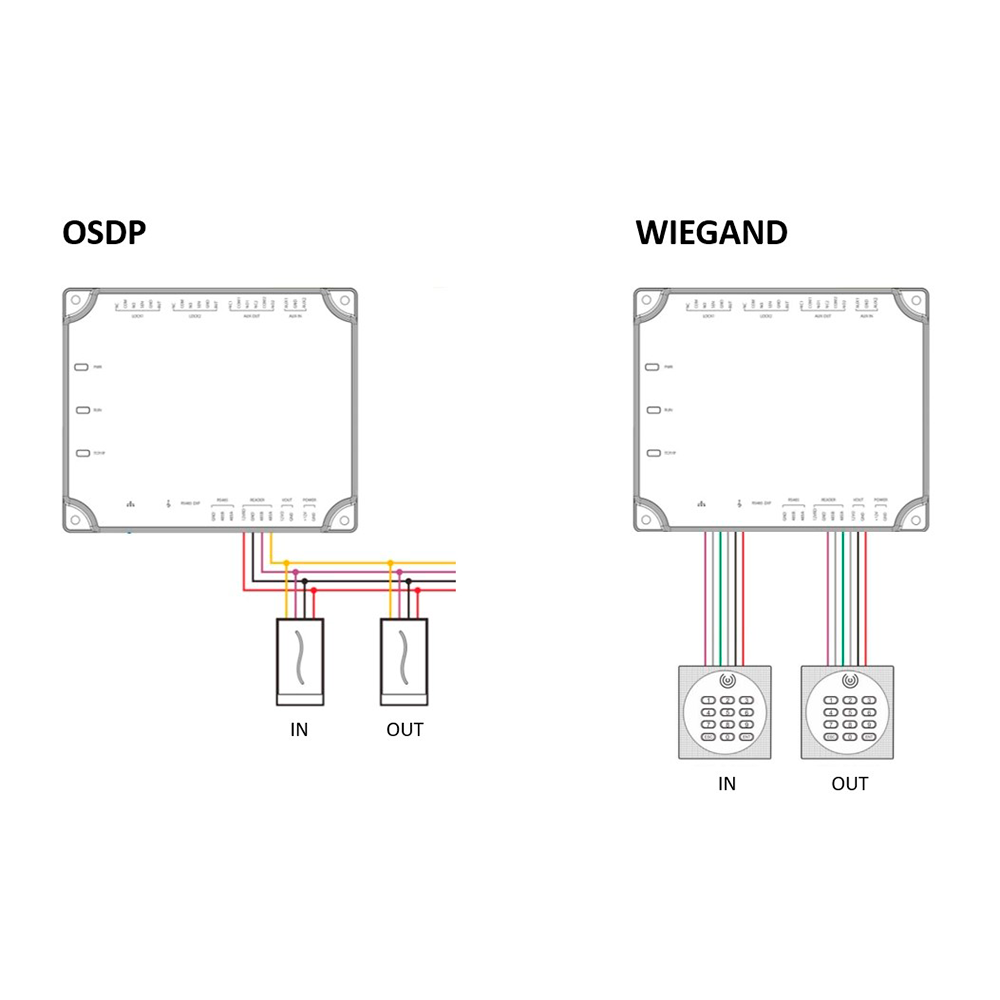

• Inputs: 4 x Wiegand 26/34/37/50, 1 x RS485/OSDP (up to 4 readers), 2 x door sensor, 2 x exit button, 2 x auxiliary
• Advanced functions: Anti-passback, first card opening and multi-card opening
• Software: Integrated ATLAS Series with browser access (free); ATLAS Cloud with browser access
• Languages: English, German, Spanish, French, Italian, Portuguese, Polish, Turkish, Romanian, Norwegian, Czech
• Secondary controllers: Connection of up to 20 secondary controllers via IP with management of up to 84 doors
• Compatible browsers: Google Chrome, Mozilla Firefox, Microsoft Edge
• Mobile App: Administrator: ZK ATLAS (user management, events, alarms and remote opening); User: ATLAS Key (dynamic QR)
• Power supply: DC 12 V / 3 A max.; Standard PoE | Locks not powered by the controller
• Operating temp.: 0 ºC ~ +55 ºC
• Dimensions: 197 (H) x 171 (W) x 30 (D) mm
📦 INCLUDED:
• ZKTeco access controller
• Mounting material
• User manual
| Model | CON-ATLAS-260-C |
|---|---|
| Capacity | Up to 5,000 users with 10 fingerprints each or 5,000 cards/passwords |
| Logs | 10,000 logs |
| Identification methods | Fingerprint, card, dynamic QR and/or password |
| Proximity card | RFID EM 125 kHz and MF 13.56 MHz |
| Communication | TCP/IP, WiFi and RS485 |
| Baud rate | 9,600 bps for RS485 |
| Outputs | 2 x relay output, 1 x auxiliary output |
| Inputs | 4 x Wiegand 26/34/37/50, 1 x RS485/OSDP (up to 4 readers), 2 x door sensor, 2 x exit button, 2 x auxiliary |
| Advanced functions | Anti-passback, first-card opening and multi-card opening |
| Software | Integrated ATLAS Series with browser access (free) ATLAS Cloud with browser access |
| Languages | English, German, Spanish, French, Italian, Portuguese, Polish, Turkish, Romanian, Norwegian, Czech |
| Secondary controllers | Connection of up to 20 secondary controllers via IP with the management of a maximum of 84 doors |
| Compatible browsers | Google Chrome, Mozilla Firefox, Microsoft Edge |
| Mobile App | Administrator: ZK ATLAS (user, event, alarm and remote opening management) User: ATLAS Key (dynamic QR) |
| Power supply | 12 V DC / 3 A max. standard PoE | Locks not powered by controller |
| Operating temp. | 0 ºC ~ +55 ºC |
| Dimensions | 197 (H) x 171 (W) x 30 (D) mm |
