YF-500CS
YF-500CS

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

Elettricity

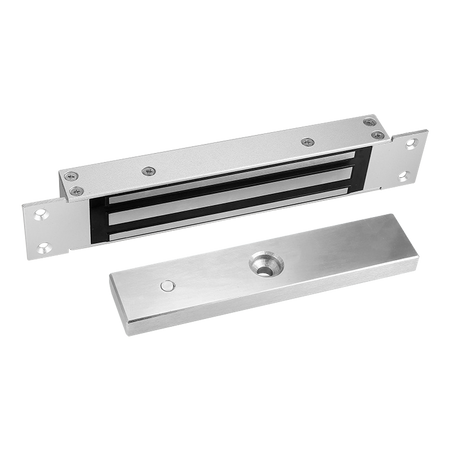

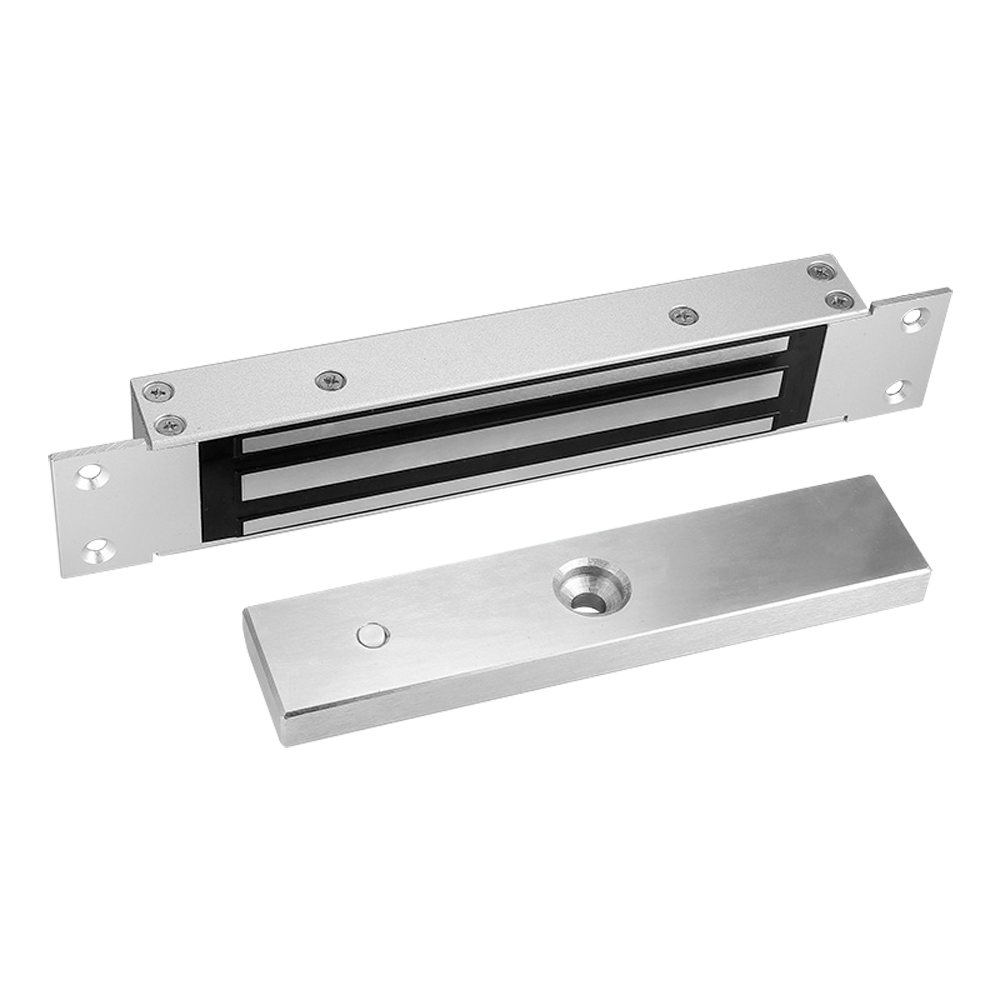

Electromagnetic lock - For single door - Holding force 500 kg - Status sensor

SKU: YF-500CS
(0)
In stock
Usually shipped within 24 hours
€85,32 Final price
-7% €92,00 €85,32 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Electromagnetic lock - For single door - Holding force 500 kg - Fail Safe mode (NC) - Flush mount - Status sensor

📋 SPECIFICATIONS:
• Model: YF-500CS
• Door type: Single: 1 swing door
• Opening mode: Fail Safe / Reverse (NC)
• Holding force: 500 kg
• Signaling: NO/NC/COM contact output for door status
• Power supply: DC 12 V / 660 mA max. or DC 24 V / 330 mA max.
• Mounting: Flush mount
• Protection: Indoor
• Material: Aluminum
• Operating temp.: -10 ºC ~ +55 ºC
• Dimensions: Lock: 265 (H) x 75 (W) x 39 (D) mm; Armature plate: 180 (H) x 38 (W) x 13 (D) mm

📦 INCLUDED:
• Electromagnetic lock• Armature plate• Installation material• User manual
Model YF-500CS
Door type Single: 1 swing door
Opening mode Fail Safe (NC)
Holding force 500 kg
Signal NO/NC/COM contact output for door status
Power supply DC 12 V / 660 mA max. or DC 24 V / 330 mA max.
Mounting Recessed
Protection Indoor
Material Aluminum
Operating temp. -10 ºC ~ +55 ºC
Dimensions Magnet: 265 (H) x 75 (W) x 39 (D) mm Armature plate: 180 (H) x 38 (W) x 13 (D) mm
