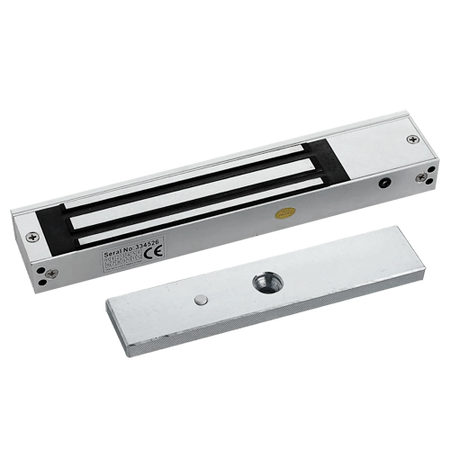

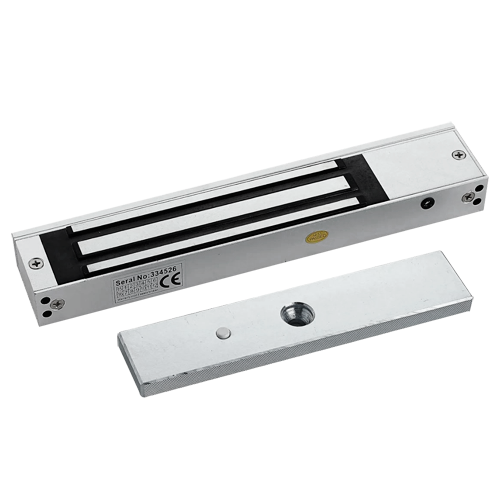

YF-180AS
YF-180AS

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

Elettricity

Electromagnetic lock - For single door - Holding force 180 kg

SKU: YF-180AS
(0)
In stock
Usually shipped within 24 hours
€36,90 Final price
-3% €38,00 €36,90 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Electromagnetic lock - For single door - Holding force 180 kg - Fail Safe (NC) opening mode - Wall mounting - LED and status sensor

📋 SPECIFICATIONS:
• Model: YF-180AS
• Door type: Single: 1 swing door
• Opening mode: Fail Safe / Reverse (NC)
• Holding force: 180 kg
• Signaling: Door status LED; NO/NC/COM contact output for door lock status
• Power supply: DC 12 V / 260 mA max. or DC 24 V / 130 mA max.
• Mounting: Surface
• Protection: Indoor
• Material: Aluminum
• Operating temp.: -10 ºC ~ +55 ºC
• Dimensions: Lock: 170 (H) x 38 (W) x 22.5 (D) mm; Armature plate: 130 (H) x 33 (W) x 9 (D) mm
• Range: EasyAccess

📦 INCLUDED:
• Electromagnetic lock• Armature plate• Mounting plate• Installation material• User manual
Model YF-180AS
Door type Simple: 1 swing door
Opening mode Fail Safe / Reverse (NC)
Holding force 180 kg
Signaling Door status LED, NO/NC/COM contact output for door lock status
Power supply DC 12 V / 260 mA max. or DC 24 V / 130 mA max.
Mounting Surface
Protection Indoor
Material Aluminum
Operating temp. -10 ºC ~ +55 ºC
Dimensions Magnet: 170 (H) x 38 (W) x 22.5 (D) mm Armature plate: 130 (H) x 33 (W) x 9 (D) mm
Range EasyAccess
