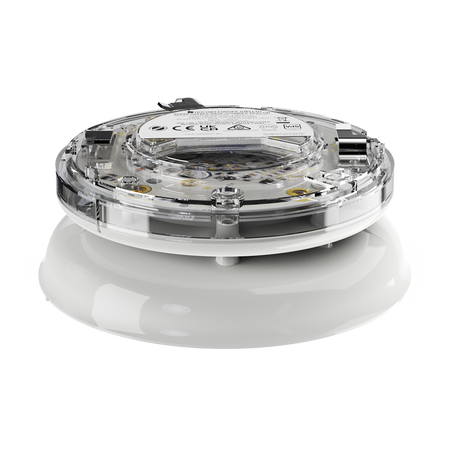

Base for Hochiki smart analog sounder/beacon
Base for Hochiki smart analog sounder/beacon
Regular price
€120,70
Final price
Regular price
-6%
€128,86
Sale price
€120,70
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Base for smart analog sounder/beacon - Loop powered - Supports ESP sensors - Single loop address - Sounder/beacon can operate independently - White color
📋 SPECIFICATIONS:
• Reference: YBO-BSB2-RL
• Operating voltage: 17 - 41 VDC
• Low power mode: 110 μA (typical)
• Standby current: 250 μA (typical)
• Sounder current (typical): 0.8 mA (50 dB(A) at 1 m) ~ 16 mA (98 dB(A) at 1 m)
• Additional current when indicator is active: + 7 mA
• Audio output at 1 m: 50 ~ 98 dB(A) (±2 dB(A)) at 24 VDC or higher (compliant with EN54-3)
• Number of tones: 51
• Tone frequency range: 300 ~ 2850 Hz
• Approved temperature range: -25 °C to + 70 °C
• Recommended temperature range: -10 °C to + 50 °C
• Recommended storage temperature range: -30 °C to + 70 °C
• Maximum humidity: 95 %RH non-condensing (at 40 °C)
• Case color / material / Lens material: White / PC ABS / Translucent PC
• IP rating: IP21
• Weight (g) / Dimensions (mm): 124 / Ø 113 x H 43
• Base mounting holes (mm): 48 ~ 74
• Atmospheric pressure range: No restrictions indicated
📦 INCLUDED:
• Type A smart addressable analog sounder/beacon base
| Reference | YBO-BSB2-RL |
|---|---|
| Operating voltage | 17 - 41 VDC |
| Low power mode | 110 μA (typical) |
| Standby current | 250 μA (typical) |
| Sound output current (typical) | 0.8 mA (50 dB(A) at 1 m) ~ 16 mA (98 dB(A) at 1 m) |
| Additional current when indicator is active | + 7 mA |
| Sound output at 1 m | 50 ~ 98 dB(A) (±2 dB(A)) at 24 VDC or higher (compliant with EN54-3) |
| Number of tones | 51 |
| Tone frequency range | 300 ~ 2850 Hz |
| Approved temperature range | -25 °C to + 70 °C |
| Recommended temperature range | -10 °C to + 50 °C |
| Recommended storage temperature range | -30 °C to + 70 °C |
| Maximum humidity | 95 %RH Non-condensing (at 40 °C) |
| Enclosure color / Enclosure material / Lens material | White / PC ABS / Translucent PC |
| IP rating | IP21 |
| Weight (g) / Dimensions (mm) | 124 / Ø 113 x H 43 |
| Base fixing centers (mm) | 48 ~ 74 |
| Atmospheric pressure range | No restriction indicated |
