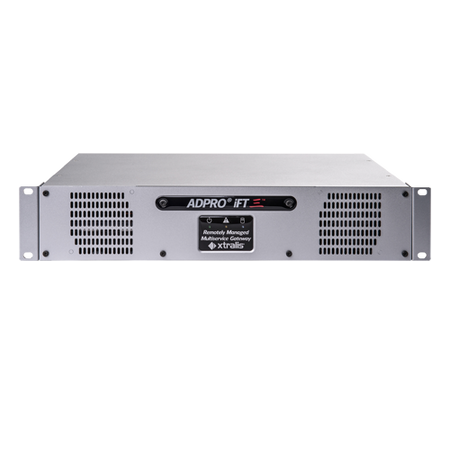

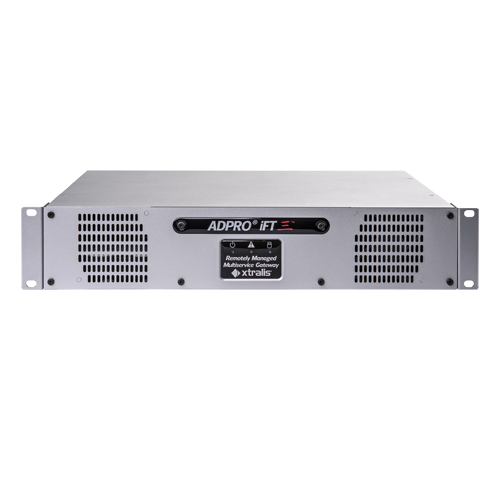

XTRALIS ADPRO iFT-E 32IP - 2 x 6TB HD
XTRALIS ADPRO iFT-E 32IP - 2 x 6TB HD
Regular price
€7.440,82
Final price
Regular price
-6%
€7.898,00
Sale price
€7.440,82
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
XTRALIS ADPRO iFT-E 32IP - 2 x 6TB HD - 20I/8O - 20I/8O Alarms - Includes 32 IP video channels - Scalable: up to 32 IP cameras and up to 32 analysis channels (32:32 view) - 2 x 6TB hard disks - LoiterTrace and IntrusionTrace licenses NOT included - i-LIDS certification
📋 SPECIFICATIONS:
• Operating system: ADPRO® XO™ Security Operating System, Linux-based
• Video input: 1–32 IP Cameras
• Video output: XGA – multi-view matrix
• Video compression: H.264/H.265 (H.265 supported by ONVIF Profile S/T controllers, Hikvision, and generic)
• Video resolution: Up to HD/MP resolution (camera dependent)
• Frames per second: Full HD @25/30 fps – MPixel: fps depend on the camera
• Bandwidth capacity: 32 x 5 Mbps
• Bandwidth management: Configurable constant or variable bitrate / Configurable bandwidth limiter
• Audio input: Integrated audio input supported (camera dependent)
• Audio output: Standard: 1 line output. Optional: up to 1 per camera via audio switcher. Audio output on IP cameras (camera dependent) with ONVIF Profile S/T controller
• Control input: 20 inputs on the box (monitored) + 20 inputs (monitored) with USB XO I/O interface module + 128 with Net I/O module with PoE
• Relay outputs: 8 outputs in the housing (SPDT) + 8 outputs (SPDT) with USB XO I/O interface module + 128 outputs (SPDT) with Net I/O module with PoE
• Web server: XO client - integrated web client application (ActiveX)
• Ethernet: 2 x 100/1000BASE-T, auto-sensing, full duplex, RJ45
• Recording type: Scheduled/ Detection/ Event
• IP camera integration: Specific driver based on brand, generic, or with ONVIF Profile S/T driver (Camera dependent)
• Management: Web client interface (XO client), ADPRO VideoCentral Platinum, third-party software (SDK available), and iTrace App for iOS/Android
• Power supply: 100–240 VAC, 50/60 Hz
• Operating temperature: 5–40 °C
• Humidity: 20-93% relative humidity, non-condensing
• Hard disk capacity: Max. 4 x 10 TB SATA hard disks. RAID 1 compatibility (min. 2 identical HDs)
• Warranty: 2 years
• Dimensions (W x H x D): 441 x 88 x 305 mm
• Video analytics: Basic Video Motion Detection (VMD), camera sabotage detection; Up to 32 IntrusionTrace™ and LoiterTrace™ analysis channels (datasheets available separately)
• Mobile app: iTrace, iPIR
📦 INCLUDED:
• Adpro iFT-E unit• Power cable• 19" rack mount adapter
| Operating system | ADPRO® XO™ Security Operating System, Linux-based |
|---|---|
| Video input | 1–32 IP cameras |
| Video output | XGA – multi-matrix views |
| Video compression | H.264/H.265 (H.265 supported by ONVIF Profile S/T, Hikvision and generic controllers) |
| Video resolution | Resolution up to HD/MP (camera dependent) |
| Frames per second | Full HD @25/30 fps – MPixel: fps dependent on camera |
| Bandwidth capacity | 32 x 5 Mbps |
| Bandwidth management | Configurable constant or variable bitrate / Configurable bandwidth limiter |
| Audio input | Integrated audio input supported (camera dependent) |
| Audio output | Standard: 1 line output. Optional: up to 1 per camera via audio switcher. Audio output on IP cameras (camera dependent) with ONVIF Profile S/T controller |
| Control input | 20 inputs in box (monitored) + 20 inputs (monitored) with XO I/O USB interface module + 128 with Net I/O module with PoE |
| Relay outputs | 8 outputs in chassis (SPDT) + 8 outputs (SPDT) with XO I/O USB interface module + 128 outputs (SPDT) with Net I/O module with PoE |
| Web server | XO client - integrated web client application (ActiveX) |
| Ethernet | 2 x 100/1000BASE-T, auto-sensing, full duplex, RJ45 |
| Recording type | Time/Detection/Event |
| IP camera integration | Brand-specific driver, generic or via ONVIF Profile S/T driver (camera dependent) |
| Management | Web client interface (XO client), ADPRO VideoCentral Platinum, third-party software (SDK available) and iTrace App for iOS/Android |
| Power supply | 100–240 VAC, 50/60 Hz |
| Operating temperature | 5–40 °C |
| Humidity | 20-93% relative humidity, non-condensing |
| Hard disk capacity | Max. 4 x 10 TB SATA hard disks. RAID 1 support (min. 2 identical HDs) |
| Warranty | 2 years |
| Dimensions (W x H x D) | 441 x 88 x 305 mm |
| Video analytics | Basic video motion detection (VMD), camera tamper detection. Up to 32 channels of IntrusionTrace™ and LoiterTrace™ analytics (datasheets available separately) |
| Mobile app | iTrace, iPIR |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
