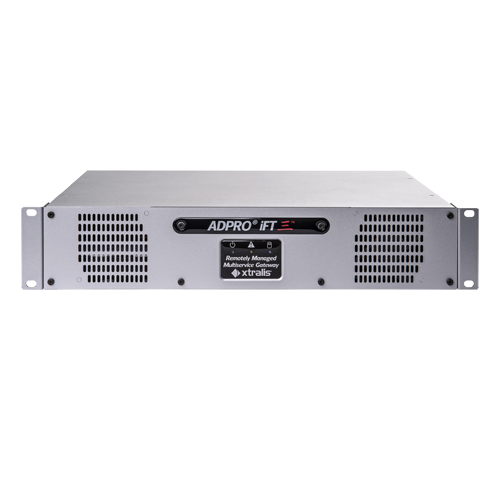

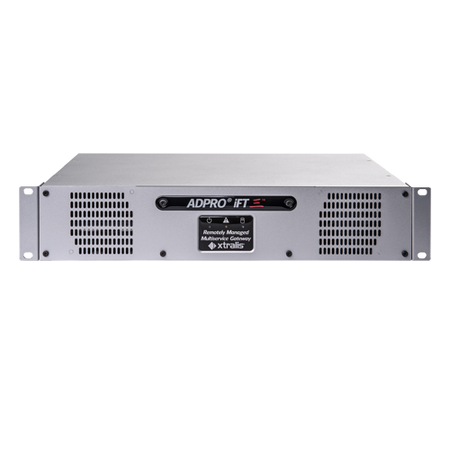

XTRALIS ADPRO iFT-E 32IP - 6TB HDD
XTRALIS ADPRO iFT-E 32IP - 6TB HDD
Regular price
€7.101,86
Final price
Regular price
-7%
€7.600,00
Sale price
€7.101,86
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
XTRALIS ADPRO iFT-E 32IP - 6TB HDD - 20I/8O - 20I/8O Alarms - Includes 32 IP video channels - Scalable: up to 32 IP cameras and up to 32 analysis channels (32:32 view) - 6TB hard disk - LoiterTrace and IntrusionTrace licenses NOT included - i-LIDS certified
📋 SPECIFICATIONS:
• Operating system: ADPRO® XO™ Security Operating System, Linux-based
• Video input: 1–32 IP cameras
• Video output: XGA – matrix multi-view
• Video compression: H.264/H.265 (H.265 supported by ONVIF profile S/T, Hikvision, and generic controllers)
• Video resolution: Up to HD/MP resolution (camera-dependent)
• Frames per second: Full HD @25/30 fps – MPixel: fps depend on the camera
• Bandwidth capacity: 32 x 5 Mbps
• Bandwidth management: Configurable constant or variable bitrate / Configurable bandwidth limiter
• Audio input: Integrated audio input supported (camera-dependent)
• Audio output: Standard: 1 line output. Optional: up to 1 per camera via audio switcher. Audio output on IP cameras (camera-dependent) with ONVIF Profile S/T controller
• Control input: 20 inputs in box (monitored) + 20 inputs (monitored) with XO I/O USB interface module + 128 with Net I/O module with PoE
• Relay outputs: 8 outputs in enclosure (SPDT) + 8 outputs (SPDT) with XO I/O USB interface module + 128 outputs (SPDT) with Net I/O module with PoE
• Web server: XO client - integrated web client application (ActiveX)
• Ethernet: 2 x 100/1000BASE-T, auto-sensing, full duplex, RJ45
• Recording type: Scheduled/ Detection/ Event
• IP camera integration: Brand-specific driver, generic, or with ONVIF Profile S/T driver (Camera-dependent)
• Management: Web client interface (XO client), ADPRO VideoCentral Platinum, third-party software (SDK available), and iTrace App for iOS/Android
• Power supply: 100–240 VAC, 50/60 Hz
• Operating temperature: 5–40 °C
• Humidity: 20-93% relative humidity, non-condensing
• Hard disk capacity: Max. 4 x 10TB SATA hard disks. RAID 1 support (min. 2 identical HDs)
• Warranty: 2 years
• Dimensions (W x H x L): 441 x 88 x 305 mm
• Video analytics: Basic video motion detection (VMD), camera sabotage detection; Up to 32 channels of IntrusionTrace™ and LoiterTrace™ analytics (data sheets available separately)
• Mobile app: iTrace, iPIR
📦 INCLUDED:
• Adpro iFT-E unit• Power cable• 19" rack mount adapter
| Operating system | ADPRO® XO™ Security Operating System, Linux-based |
|---|---|
| Video input | 1–32 IP cameras |
| Video output | XGA – multi-view matrix |
| Video compression | H.264/H.265 (H.265 supported by ONVIF profile S/T, Hikvision, and generic controllers) |
| Video resolution | Resolution up to HD/MP (depends on camera) |
| Frames per second | Full HD @25/30 ips – MPixel: ips depends on camera |
| Bandwidth capacity | 32 x 5 Mbps |
| Bandwidth management | Configurable constant or variable bitrate / Configurable bandwidth limiter |
| Audio input | Integrated audio input supported (depends on camera) |
| Audio output | Standard: 1 line output. Optional: up to 1 per camera via audio switcher. Audio output on IP cameras (depends on camera) with ONVIF Profile S/T controller |
| Control input | 20 inputs in box (monitored) + 20 inputs (monitored) with XO I/O USB interface module + 128 with Net I/O module with PoE |
| Relay outputs | 8 outputs in the housing (SPDT) + 8 outputs (SPDT) with XO I/O USB interface module + 128 outputs (SPDT) with the Net I/O module with PoE |
| Web server | XO client - integrated web client application (ActiveX) |
| Ethernet | 2 x 100/1000BASE-T, auto-sensing, full duplex, RJ45 |
| Recording type | Schedule/ Detection/ Event |
| IP camera integration | Specific driver based on brand, generic, or with ONVIF Profile S/T driver (depends on camera) |
| Management | Web client interface (XO client), ADPRO VideoCentral Platinum, third-party software (SDK available), and iTrace App for iOS/Android |
| Power supply | 100–240 VAC, 50/60 Hz |
| Operating temperature | 5–40 °C |
| Humidity | 20-93% relative humidity, non-condensing |
| Hard disk capacity | Max. 4 x 10 TB SATA hard disks. Compatibility with RAID 1 (min. 2 identical HDs) |
| Warranty | 2 years |
| Dimensions (WxHxD) | 441 x 88 x 305 mm |
| Video analytics | Basic video motion detection (VMD), camera sabotage detection. Up to 32 channels of IntrusionTrace™ and LoiterTrace™ analytics (data sheets available separately) |
| Mobile App | iTrace, iPIR |
