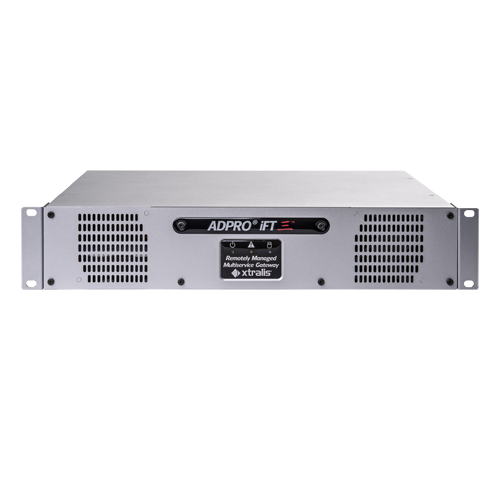

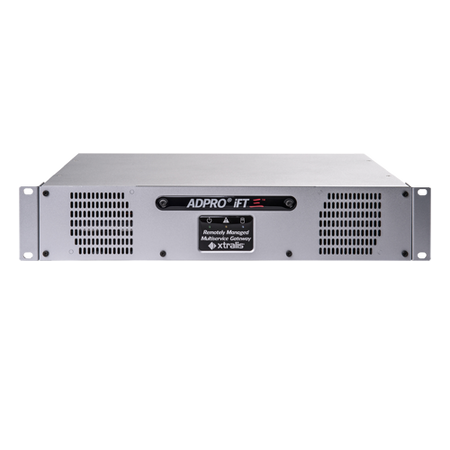

XTRALIS-ADPRO iFT 16IP 10TB HDD
XTRALIS-ADPRO iFT 16IP 10TB HDD
Regular price
€3.320,35
Final price
Regular price
-6%
€3.540,00
Sale price
€3.320,35
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
XTRALIS-ADPRO iFT 16IP - 10TB HDD - 20I/8O - 20I/8O Alarms - Includes 16 IP video channels - Up to 32 IP channels reaching 16 IP channels with 16 video analytics channels - 10TB hard drive - LoiterTrace and IntrusionTrace licenses NOT included
📋 SPECIFICATIONS:
• Operating system: ADPRO® XO™ Security Operating System, Linux-based
• Video input: 1–32 IP cameras (for optimal performance, disable monitor output when using more than 16 IP cameras)
• Video output: XGA – multi-matrix views
• Video compression: H.264/H.265 (H.265 supported by ONVIF profile S/T, Hikvision, and generic controllers)
• Video resolution: Resolution up to HD/MP (camera dependent)
• Images/second: Full HD @25/30 fps – MPixel: fps depend on the camera
• Bandwidth capacity: 32 x 5 Mbps
• Bandwidth management: Configurable Constant or Variable Bitrate / Configurable bandwidth limiter
• Audio input: Integrated audio input supported (camera dependent)
• Audio output: Standard: 1 line out. Optional: up to 1 per camera via audio switcher. Audio out on IP cameras (camera dependent) with ONVIF Profile S/T controller
• Control input: 20 inputs in box (monitored) + 20 inputs (monitored) with USB XO I/O interface module + 128 with Net I/O module with PoE
• Relay outputs: 8 outputs in chassis (SPDT) + 8 outputs (SPDT) with USB XO I/O interface module + 128 outputs (SPDT) with Net I/O module with PoE
• Web server: XO client - integrated web client application (ActiveX)
• Ethernet: 2 x 100/1000BASE-T, auto-sensing, full duplex, RJ45
• Recording type: Schedule/ Detection/ Event
• IP camera integration: Brand-specific driver, generic, or with ONVIF Profile S/T driver (Camera dependent)
• Management: Web client interface (XO client), ADPRO VideoCentral Platinum, third-party vendor software (SDK available), and iTrace App for iOS/Android
• Power supply: 100–240 VAC, 50/60 Hz
• Operating temperature: 5–40 °C
• Humidity: 20-93% relative humidity, non-condensing
• Hard disk capacity: Max. 4 x 10 TB SATA hard disks. RAID 1 support (min. 2 identical HDs)
• Warranty: 2 years
• Dimensions (W x H x L): 441 x 88 x 305 mm
• Video analytics: Basic Video Motion Detection (VMD), camera sabotage detection; Up to 16 channels of IntrusionTrace™ and LoiterTrace™ analytics (datasheets available separately)
• Mobile App: iTrace, iPIR
📦 INCLUDED:
• Adpro iFT unit• Power cable• 19" rack mount adapter
| Operating system | ADPRO® XO™ Security Operating System, Linux-based |
|---|---|
| Video input | 1–32 IP cameras (for optimal performance, disable monitor output when using more than 16 IP cameras) |
| Video output | XGA – multi-matrix views |
| Video compression | H.264/H.265 (H.265 supported by ONVIF Profile S/T, Hikvision and generic controllers) |
| Video resolution | Up to HD/MP resolution (depends on camera) |
| Frames per second | Full HD @25/30 fps – MPixel: fps depend on camera |
| Bandwidth capacity | 32 x 5 Mbps |
| Bandwidth management | Configurable constant or variable bitrate / Configurable bandwidth limiter |
| Audio input | Integrated audio input supported (depends on camera) |
| Audio output | Standard: 1 line output. Optional: up to 1 per camera via audio switcher. Audio output on IP cameras (depends on camera) with ONVIF Profile S/T controller |
| Control input | 20 inputs in box (monitored) + 20 inputs (monitored) with XO I/O USB interface module + 128 with Net I/O module with PoE |
| Relay outputs | 8 outputs in chassis (SPDT) + 8 outputs (SPDT) with XO I/O USB interface module + 128 outputs (SPDT) with Net I/O module with PoE |
| Web server | XO client - integrated web client application (ActiveX) |
| Ethernet | 2 x 100/1000BASE-T, auto-detect, full duplex, RJ45 |
| Recording type | Schedule/ Detection/ Event |
| IP camera integration | Specific driver based on brand, generic, or with ONVIF Profile S/T driver (depends on camera) |
| Management | Web client interface (XO client), ADPRO VideoCentral Platinum, third-party software (SDK available), and iTrace App for iOS/Android |
| Power supply | 100–240 VAC, 50/60 Hz |
| Operating temperature | 5–40 °C |
| Humidity | 20-93% relative humidity, non-condensing |
| Hard disk capacity | Max. 4 x 10 TB SATA hard disks. RAID 1 support (min. 2 identical HDs) |
| Warranty | 2 years |
| Dimensions (W x H x D) | 441 x 88 x 305 mm |
| Video analytics | Basic Video Motion Detection (VMD), camera sabotage detection. Up to 16 channels of IntrusionTrace™ and LoiterTrace™ analytics (datasheets available separately) |
| Mobile app | iTrace, iPIR |
