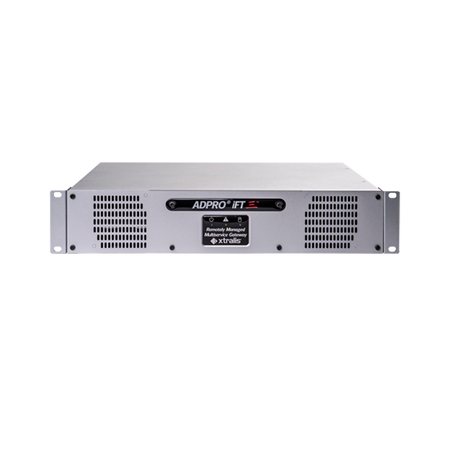

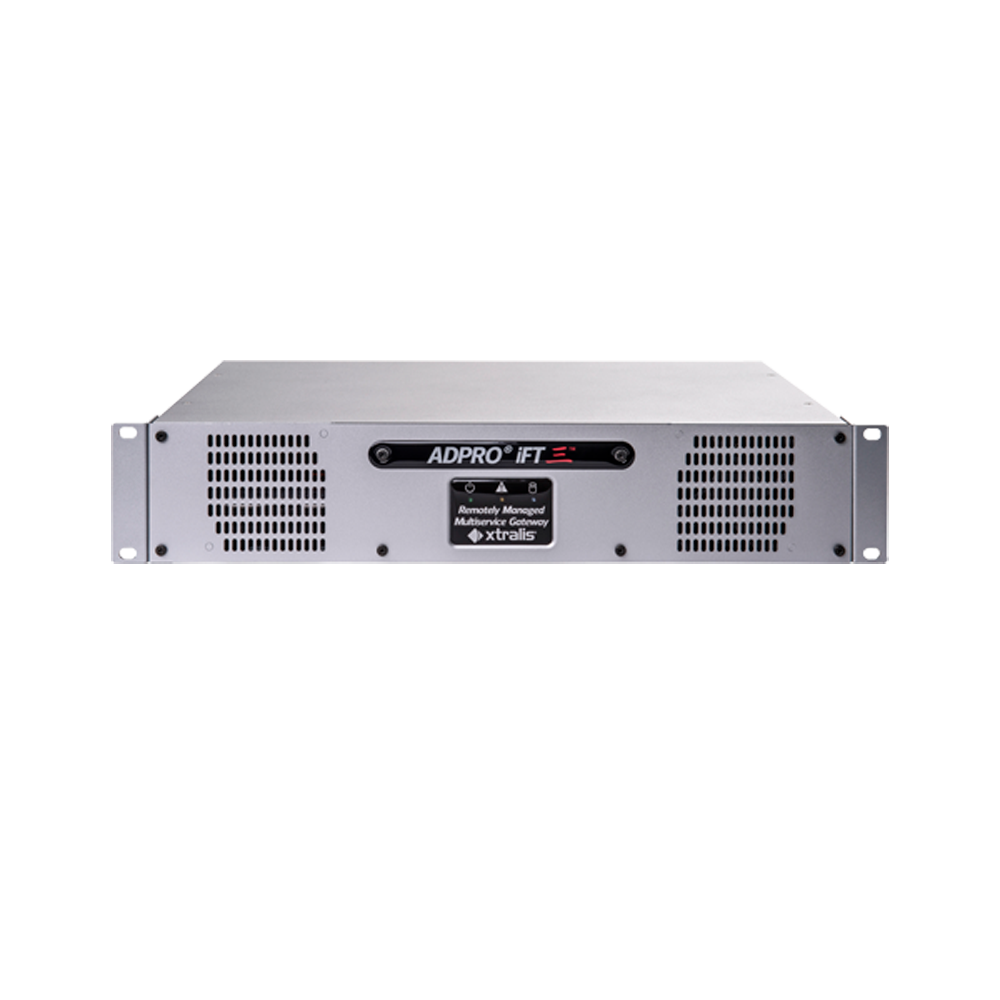

XTRALIS-ADPRO iFT 16IP 4TB HDD
XTRALIS-ADPRO iFT 16IP 4TB HDD
Regular price
€3.071,33
Final price
Regular price
-6%
€3.260,00
Sale price
€3.071,33
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
XTRALIS-ADPRO iFT 16IP - 4TB HDD - 20I/8O - 20I/8O Alarms - Includes 16 IP video channels - Up to 32 IP channels, reaching 16 IP channels with 16 video analytics channels - 4TB Hard disk - LoiterTrace and IntrusionTrace licenses NOT included - i-LIDS certification
📋 SPECIFICATIONS:
• Operating system: ADPRO® XO™ Security Operating System, Linux-based
• Video input: 1–32 IP Cameras (for optimal performance, disable monitor output when using more than 16 IP cameras)
• Video output: XGA – matrix multi-views
• Video compression: H.264/H.265 (H.265 supported by ONVIF profile S/T, Hikvision, and generic controllers)
• Video resolution: Up to HD/MP resolution (camera dependent)
• Frames per second: Full HD @25/30 ips – MPixel: ips dependent on the camera
• Bandwidth capacity: 32 x 5 Mbps
• Bandwidth management: Configurable Constant or Variable Bitrate / Configurable bandwidth limiter
• Audio input: Integrated audio input supported (camera dependent)
• Audio output: Standard: 1 line output. Optional: up to 1 per camera via audio switcher. Audio output on IP cameras (camera dependent) with ONVIF Profile S/T controller
• Control input: 20 inputs in the box (monitored) + 20 inputs (monitored) with USB XO I/O interface module + 128 with Net I/O module with PoE
• Relay outputs: 8 outputs in the housing (SPDT) + 8 outputs (SPDT) with USB XO I/O interface module + 128 outputs (SPDT) with Net I/O module with PoE
• Web server: XO client - integrated web client application (ActiveX)
• Ethernet: 2 x 100/1000BASE-T, auto-sensing, full duplex, RJ45
• Recording type: Schedule/ Detection/ Event
• IP camera integration: Specific driver based on brand, generic, or with ONVIF Profile S/T driver (Camera dependent)
• Management: Web client interface (XO client), ADPRO VideoCentral Platinum, third-party software (SDK available), and iTrace App for iOS/Android
• Power supply: 100–240 VAC, 50/60 Hz
• Operating temperature: 5–40 °C
• Humidity: 20-93% relative humidity, non-condensing
• Hard disk capacity: Max. 4 x 10 TB SATA hard disks. RAID 1 compatibility (min. 2 identical HDs)
• Warranty: 2 years
• Dimensions (W x H x D): 441 x 88 x 305 mm
• Video analytics: Basic video motion detection (VMD), camera tamper detection; Up to 16 channels of IntrusionTrace™ and LoiterTrace™ analytics (data sheets available separately)
• Mobile app: iTrace, iPIR
📦 INCLUDED:
• Adpro iFT unit• Power cable• 19" rack mount adapter
| Operating system | ADPRO® XO™ Security operating system, Linux-based |
|---|---|
| Video input | 1–32 IP cameras (for optimal performance, disable monitor output when using more than 16 IP cameras) |
| Video output | XGA – multi-view matrix |
| Video compression | H.264/H.265 (H.265 supported by ONVIF Profile S/T, Hikvision and generic controllers) |
| Video resolution | Up to HD/MP resolution (depends on the camera) |
| Frames per second | Full HD @25/30 fps – MPixel: fps depend on the camera |
| Bandwidth capacity | 32 x 5 Mbps |
| Bandwidth management | Configurable constant or variable bitrate / Configurable bandwidth limiter |
| Audio input | Integrated audio input supported (depends on the camera) |
| Audio output | Standard: 1 line output. Optional: up to 1 per camera via audio switcher. Audio output on IP cameras (depends on the camera) with ONVIF Profile S/T controllers |
| Control input | 20 inputs in box (monitored) + 20 inputs (monitored) with XO I/O USB interface module + 128 with Net I/O module with PoE |
| Relay outputs | 8 outputs in housing (SPDT) + 8 outputs (SPDT) with XO I/O USB interface module + 128 outputs (SPDT) with Net I/O module with PoE |
| Web server | XO client - integrated web client application (ActiveX) |
| Ethernet | 2 x 100/1000BASE-T, auto-detect, full duplex, RJ45 |
| Recording type | Schedule/ Detection/ Event |
| IP camera integration | Specific driver based on brand, generic or with ONVIF Profile S/T driver (Depends on the camera) |
| Management | Web client interface (XO client), ADPRO VideoCentral Platinum, third-party software (SDK available) and iTrace App for iOS/Android |
| Power supply | 100–240 VAC, 50/60 Hz |
| Operating temperature | 5–40 °C |
| Humidity | 20-93% relative humidity, non-condensing |
| Hard disk capacity | Max. 4 x 10 TB SATA hard disks. RAID 1 compatibility (min. 2 identical HDs) |
| Warranty | 2 years |
| Dimensions (W x H x D) | 441 x 88 x 305 mm |
| Video analytics | Basic motion detection (VMD), camera sabotage detection. Up to 16 channels of IntrusionTrace™ and LoiterTrace™ analytics (datasheets available separately) |
| Mobile app | iTrace, iPIR |
