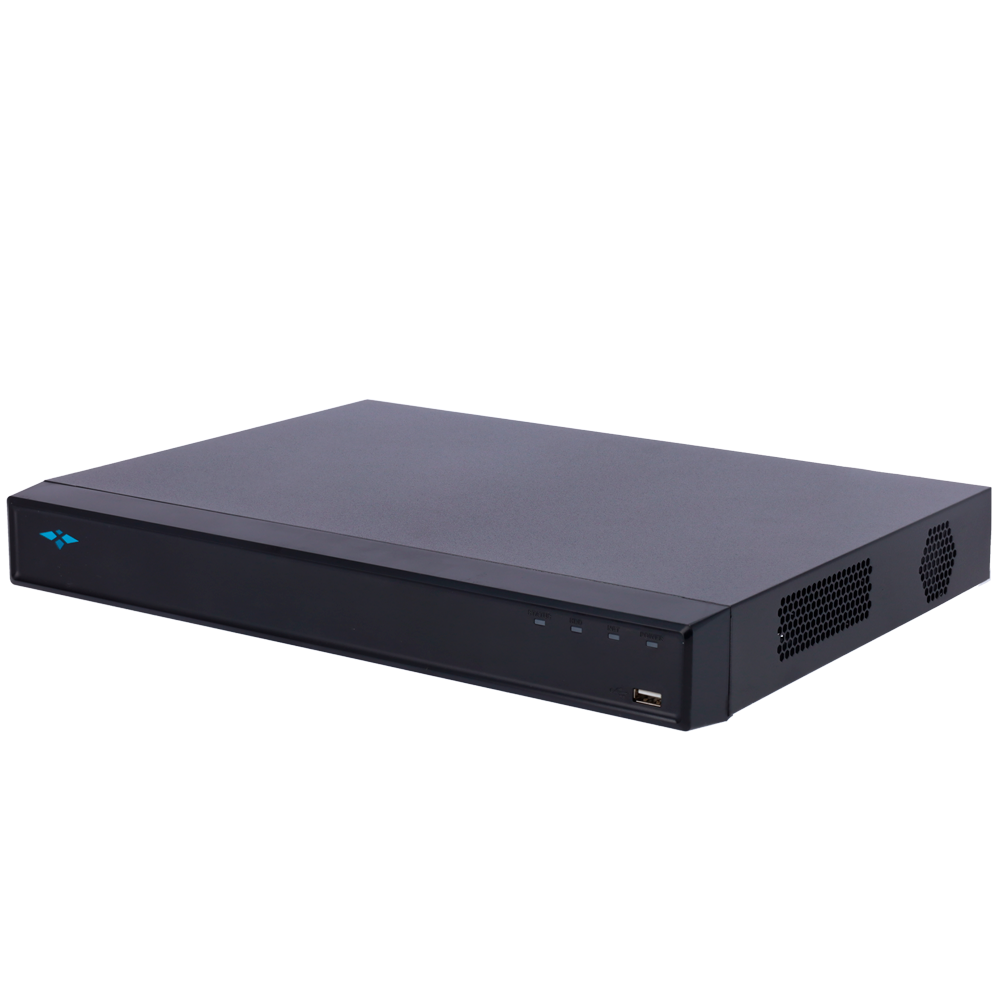

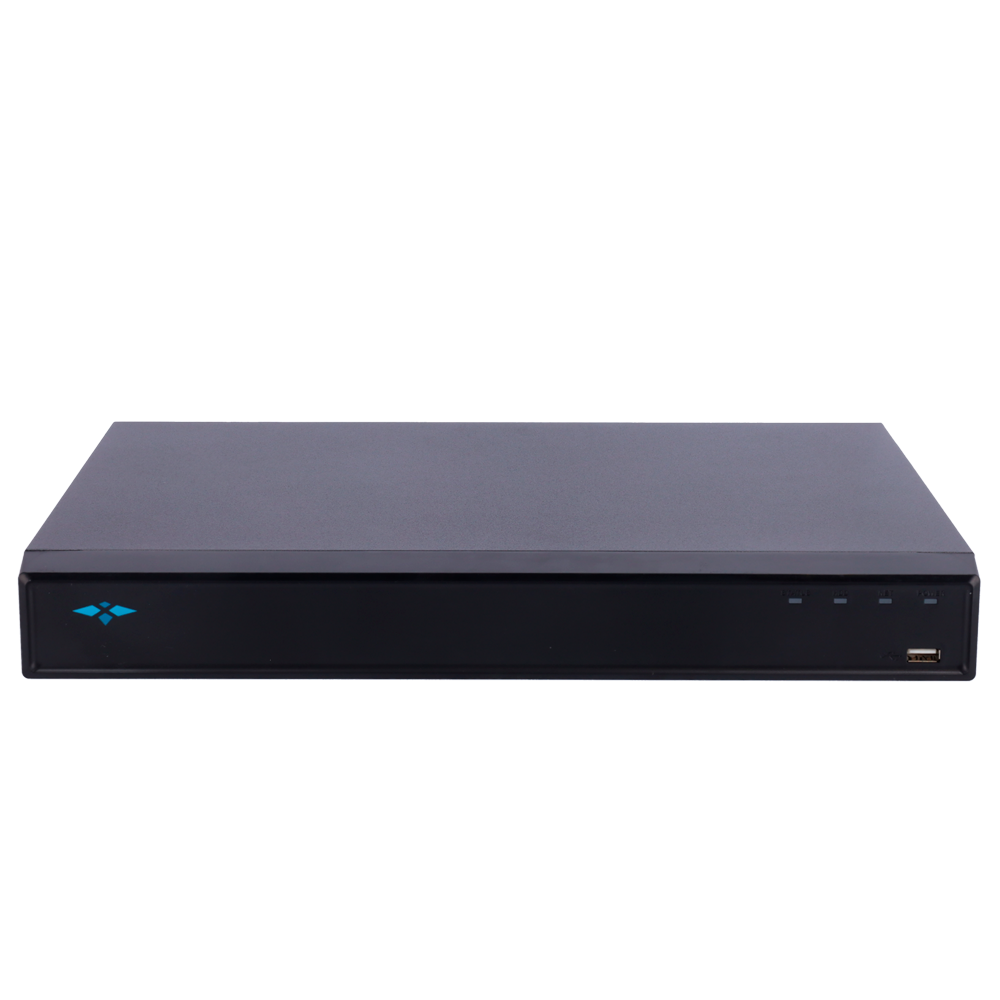

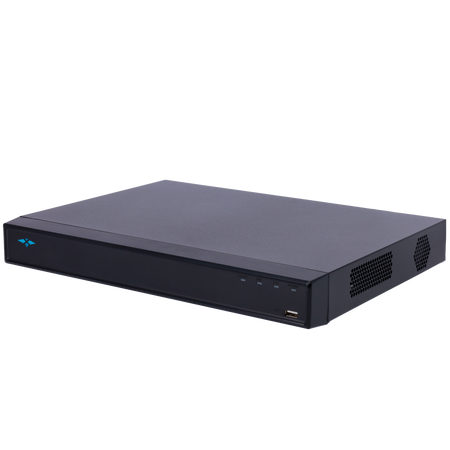

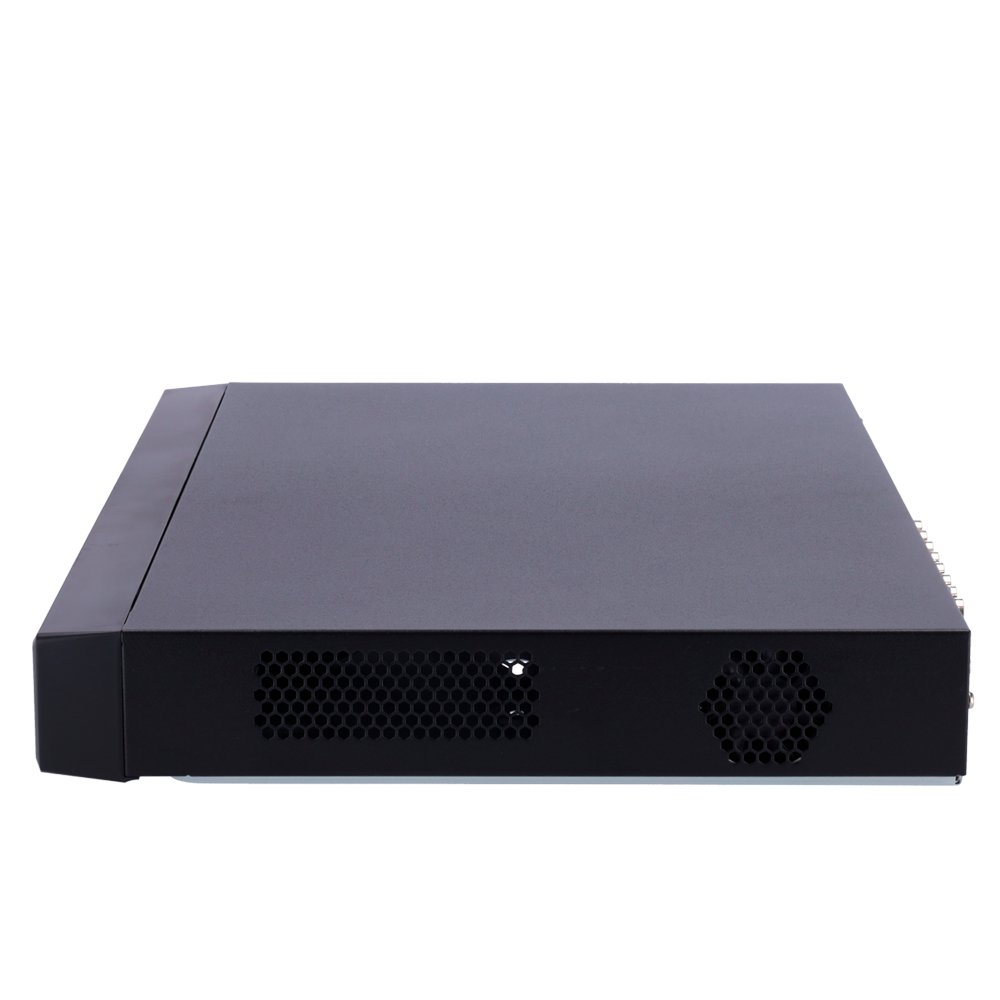

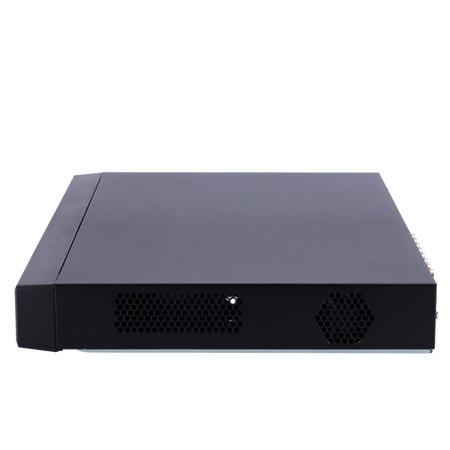

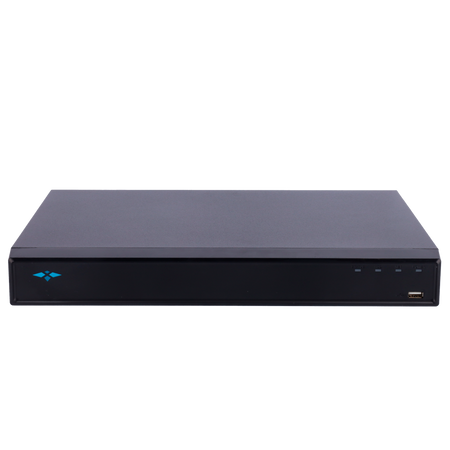

X-Security 5-in-1 Video Recorder - 16 CH HDTVI/HDCVI/AHD/CVBS (4K) + 16 IP (8Mpx) - Audio over coaxial
X-Security 5-in-1 Video Recorder - 16 CH HDTVI/HDCVI/AHD/CVBS (4K) + 16 IP (8Mpx) - Audio over coaxial
Regular price
€634,10
Final price
Regular price
-8%
€690,00
Sale price
€634,10
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
X-Security 5-in-1 Video Recorder - 16 CH HDTVI/HDCVI/AHD/CVBS (4K) + 16 IP (8Mpx) - Audio over coaxial - 4K resolution (7FPS) - 2 CH Face recognition - 8 CH Human and vehicle recognition
📋 SPECIFICATIONS:
• Brand: X-Security
• Video format: HDTVI / HDCVI / AHD / CVBS / IP
• Video inputs: 16 BNC channels (HDTVI / HDCVI / AHD / CVBS)
• Hybrid configuration: Up to 32 IP channels (8Mpx), replacing all BNC channels
• Video output: 1 HDMI Full HD, 1 VGA
• Video/audio compression: H.265+/H.265/H.264+/H.264
• Display resolution: HDMI: 4K, 1920×1080, 1280×1024, 1280×720; VGA: 1920×1080, 1280×1024, 1280×720
• Total bandwidth: 128 Mbps
• Encoding: All channels: 4K(1 fps–7 fps); 6MP(1 fps–10 fps); 5MP(1 fps–12 fps); 4K-N, 4MP/3MP(1 fps–15 fps); 4M-N/1080P/720P/960H/D1/CIF (1 fps–25/30 fps)
• Dual-Stream encoding: 960H (1 fps–15 fps); D1/CIF(1 fps–25/30 fps)
• Multi-function: Pentaplex: Live, recording, playback, backup, and remote access
• Audio inputs: 16 BNC, 8 RCA channels
• Audio outputs: 1 RCA channel
• Two-way audio: Reusing the audio input/output
• Alarms: Not available
• Video analysis: IVS: Line crossing | Area intrusion | Abandoned object | Face detection; IP mode, face recognition, and IVS cannot be enabled simultaneously
• Face recognition: Up to 2 analog channels of real-time face comparison
• Intelligent motion detection: Up to 8 channels capable of classifying targets between people and vehicles
• Recording method: Manual, scheduled, motion detection, alarm
• Backup: USB/Network
• Internal storage: 2 SATA 3.5" HDDs up to 16 TB (not included)
• Communication: RS485 (PTZ) / 2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet)
• Remote access: Browser (ActiveX), Smartphone App, or PSS software
• Power supply: DC 12V / 2A
• Dimensions / Weight: 55 (H) x 325 (W) x 256.6 (D) mm / 1.2 Kg
📦 INCLUDED:
• X-Security 5-in-1 video recorder• Mouse• 12VDC power adapter
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
|---|---|
| Video inputs | 16 BNC channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Up to 32 IP channels (8Mpx), replacing all BNC channels |
| Video output | 1 HDMI Full HD, 1 VGA |
| Video/audio compression | H.265+/H.265/H.264+/H.264 |
| Display resolution | HDMI: 4K, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 |
| Total bandwidth | 128 Mbps |
| Encoding | All channels: 4K(1 fps–7 fps); 6MP(1 fps–10 fps); 5MP(1 fps–12 fps); 4K-N, 4MP/3MP(1 fps–15 fps); 4M-N/1080P/720P/960H/D1/CIF (1 fps–25/30 fps) |
| Dual-Stream encoding | 960H (1 fps–15 fps); D1/CIF(1 fps–25/30 fps) |
| Multifunction | Pentaplex: Live, recording, playback, backup and remote access |
| Audio inputs | 16 BNC, 8 RCA channels |
| Audio outputs | 1 RCA channel |
| Two-way audio | Reusing audio input/output |
| Alarms | Not available |
| Video analysis | IVS: Line crossing | area intrusion | abandoned object | face detection. IP mode, face recognition, and IVS cannot be enabled simultaneously |
| Face recognition | Up to 2 analog channels for live face comparison |
| Smart motion detection | Up to 8 channels capable of classifying targets between people and vehicles |
| Recording method | Manual, scheduled, motion detection, alarm |
| Backup | USB/Network |
| Internal storage | 2 SATA 3.5" HDDs up to 16 TB (not included) |
| Communication | RS485 (PTZ) / 2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet) |
| Remote access | Browser (ActiveX), smartphone app or PSS software |
| Power supply | DC 12V / 2A |
| Dimensions / Weight | 55 (H) x 325 (W) x 256.6 (D) mm / 1.2 Kg |
