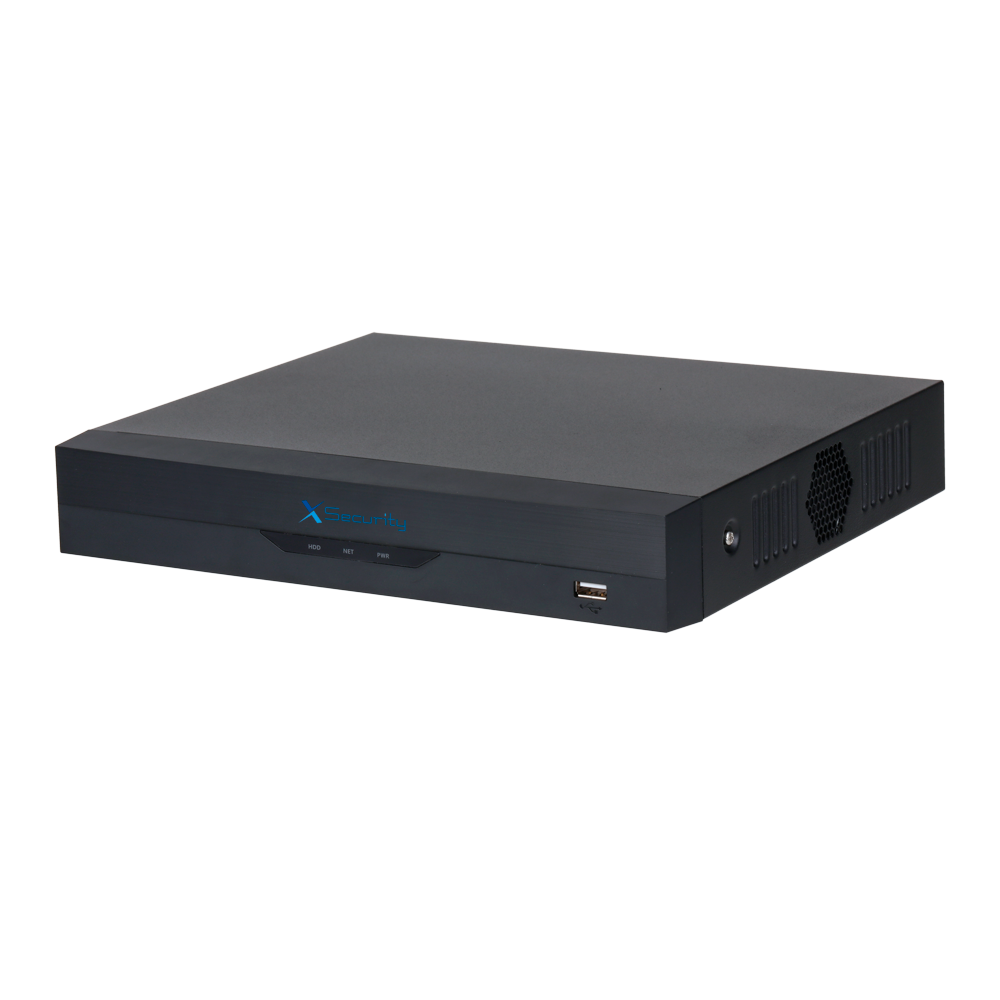

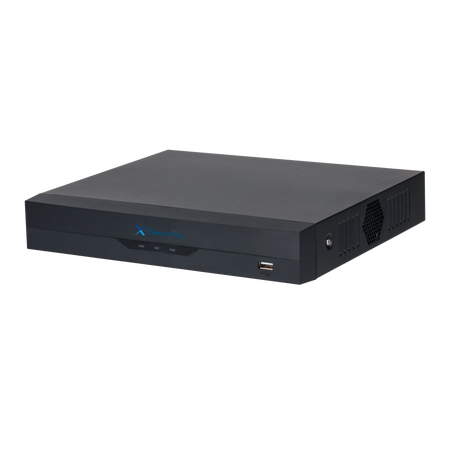

X-Security 5-in-1 Video Recorder - 8 analog CH (5 Mpx) / 8+4 IP CH (6 Mpx)

X-Security 5-in-1 video recorder - 8 analog CH (5 Mpx) / 8+4 IP CH (6 Mpx) - Audio over coaxial - HDMI | VGA | Space for 1 HDD - AcuPick | Face recognition | SMD Plus - WizSense | Perimeter protection

📋 SPECIFICATIONS:
• Brand: X-Security
• Video format: HDTVI / HDCVI / AHD / CVBS / IP
• Video inputs: 8 BNC channels (HDTVI / HDCVI / AHD / CVBS)
• Hybrid configuration: Up to 12 IP channels (6 Mpx), replacing all BNC channels
• Video output: 1 HDMI 1080p, 1 VGA
• Video compression: H.265+ / H.265 / H.264+ / H.264
• Dual-Stream: Yes
• Video Bit Rate: 32 kbps–6144 kbps
• Display resolution: HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720; VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
• Total bandwidth: 32 Mbps
• Recording resolution: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30 fps
• Main Stream: Coding improvement disabled:; Channels 1-2 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps);; Channels 1-2 4M-N/1080p@(1 fps–30 fps), others 4M-N/1080p@(1 fps–15 fps);; 1080N/720p/960H/D1/CIF@(1 fps–30 fps); Coding improvement enabled:; 4-ch 5M-N@(1 fps-25 fps);(4 of these channels can be converted to 5MP@6 fps); 4-ch 4M-N/1080p@(1 fps–25 fps);; 1080N/720p/960H/D1/CIF@(1 fps–30 fps);; *When coding optimization is enabled, Video Quality Analytics, Scene Change, Face Recognition, Face Detection, Perimeter Protection, and AcuPick cannot be used.
• Sub Stream: Coding improvement disabled: D1/CIF@(1 fps–15 fps); Coding improvement enabled: D1/CIF@(1 fps–15 fps);; Sub stream: D1/CIF@(1 fps–15 fps);; *When coding optimization is enabled, Video Quality Analytics, Scene Change, Face Recognition, Face Detection, Perimeter Protection, and AcuPick cannot be used.
• Multi-function: Pentaplex: Live, recording, playback, backup, and remote access
• Two-way audio: Coaxial: 4 BNC channels; Reusing audio input/output
• Audio inputs: 1 RCA channel; 8 BNC channels (audio over coaxial)
• Audio outputs: 1 RCA channel
• Audio compression: G.711a; G.711u; PCM
• Video Bit Rate: 32 kbps–6144 kbps
• Audio Bit Rate: 64 kbps
• Alarm IN/OUT: Not available
• AcuPick: Up to 2 channels
• Face Detection: 2 channels (up to 8 face images for each channel); 6 attributes
• Perimeter Protection: Up to 4 analog channels supporting Tripwire and AI-based intrusion detection
• Video analysis: IVS: Face detection / Person and vehicle recognition / Tripwire / Intrusion
• Face recognition: Up to 2 analog channels of live face comparison; Up to 10 face databases with 20,000 images
• Intelligent motion detection: Up to 8 analog channels capable of distinguishing between people and vehicles (SMD Plus) or 12 channels (SMD)
• AI Video Quality Analytics: 8 Channels
• Scene Change: 1 Channel
• Recording method: Manual, scheduled, motion detection, alarm
• Backup: USB/Network
• Internal memory: 1 SATA 3.5" HDD up to 16 TB (not included)
• Communication: RS485 (PTZ) / 2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet)
• Remote access: Browser (ActiveX), smartphone App, or PSS software
• Power supply: DC 12V / 2A
• Operating temperature: –10 ~ +55 °C
• Dimensions / Weight: 47.6 (W) x 260 (D) x 237.8 (H) mm / 1.17 kg

📦 INCLUDED:
• 5-in-1 X-Security video recorder• Mouse
