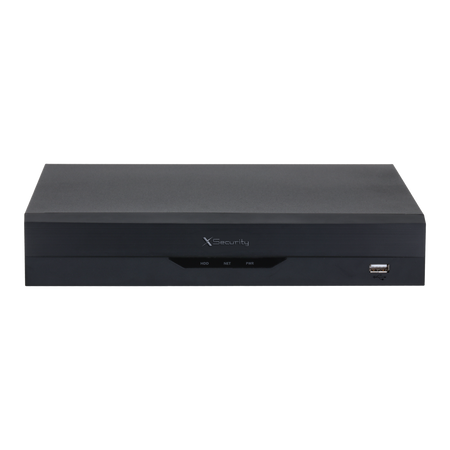

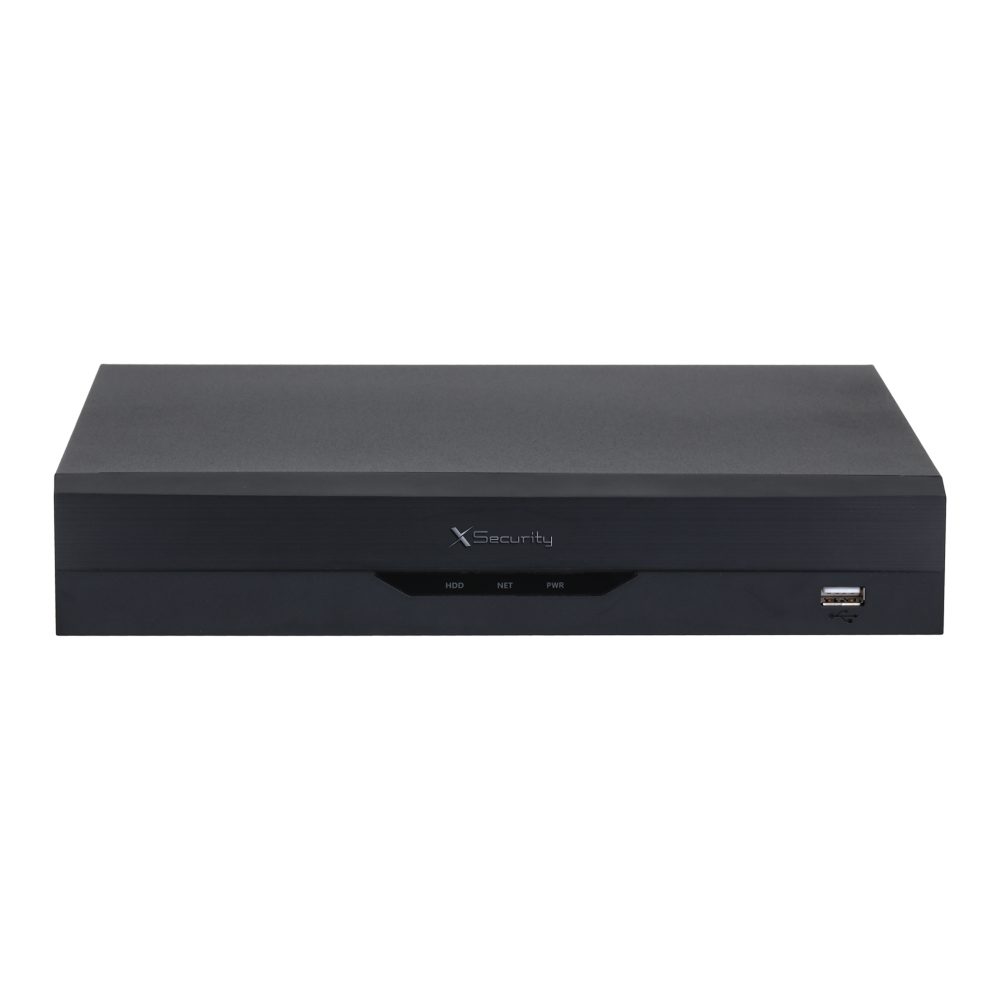

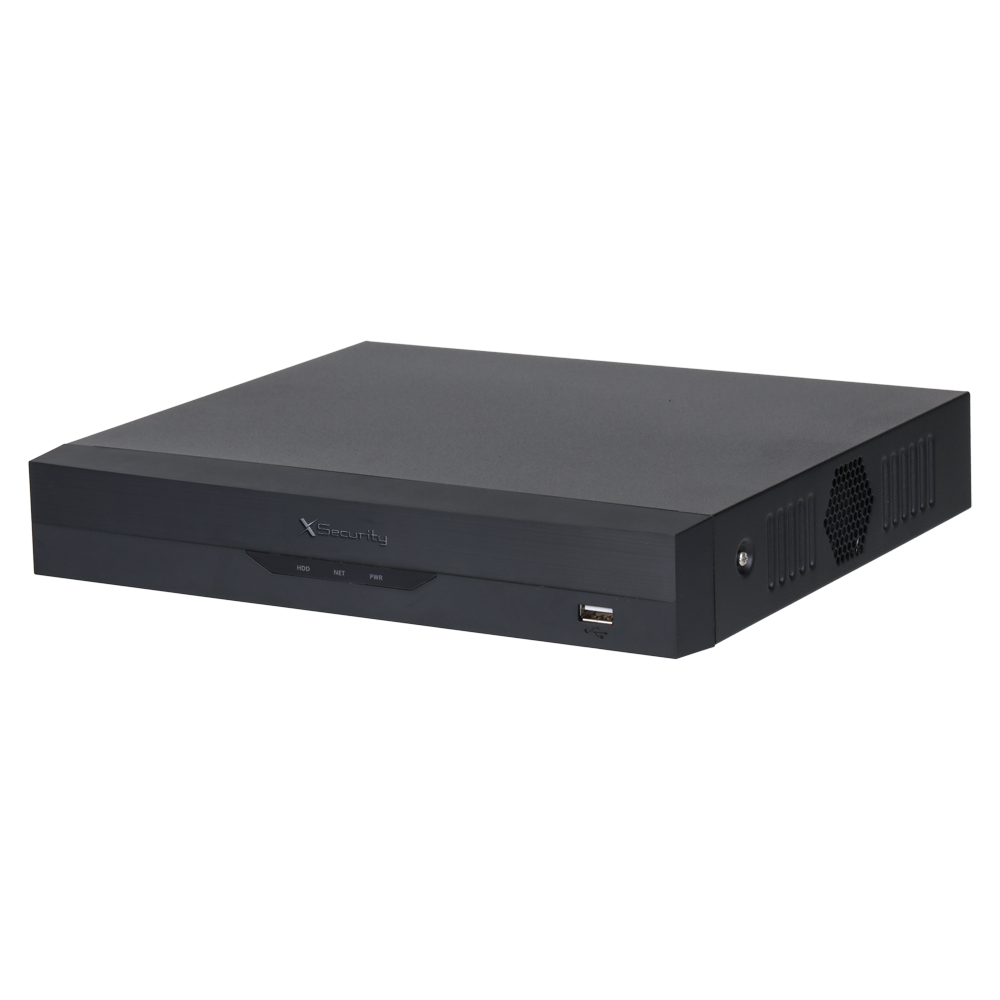

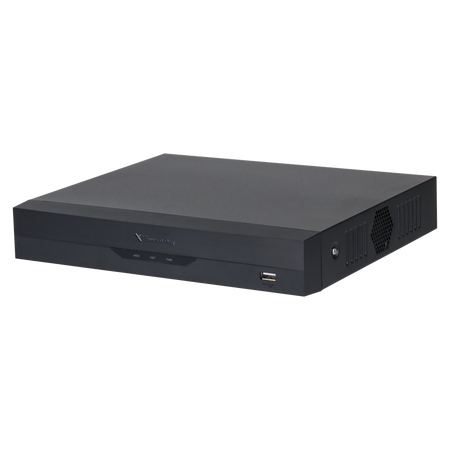

X-Security 5-in-1 video recorder - 8 analog CH / 8+8 IP CH

X-Security 5-in-1 video recorder - 8 Analog CH / 8+8 IP CH - Audio over coax - 4K recording resolution - AcuPick | Face recognition | SMD Plus - WizSense | Perimeter protection | EPTZ | POS

📋 SPECIFICATIONS:
• Brand: X-Security
• Video format: HDTVI / HDCVI / AHD / CVBS / IP

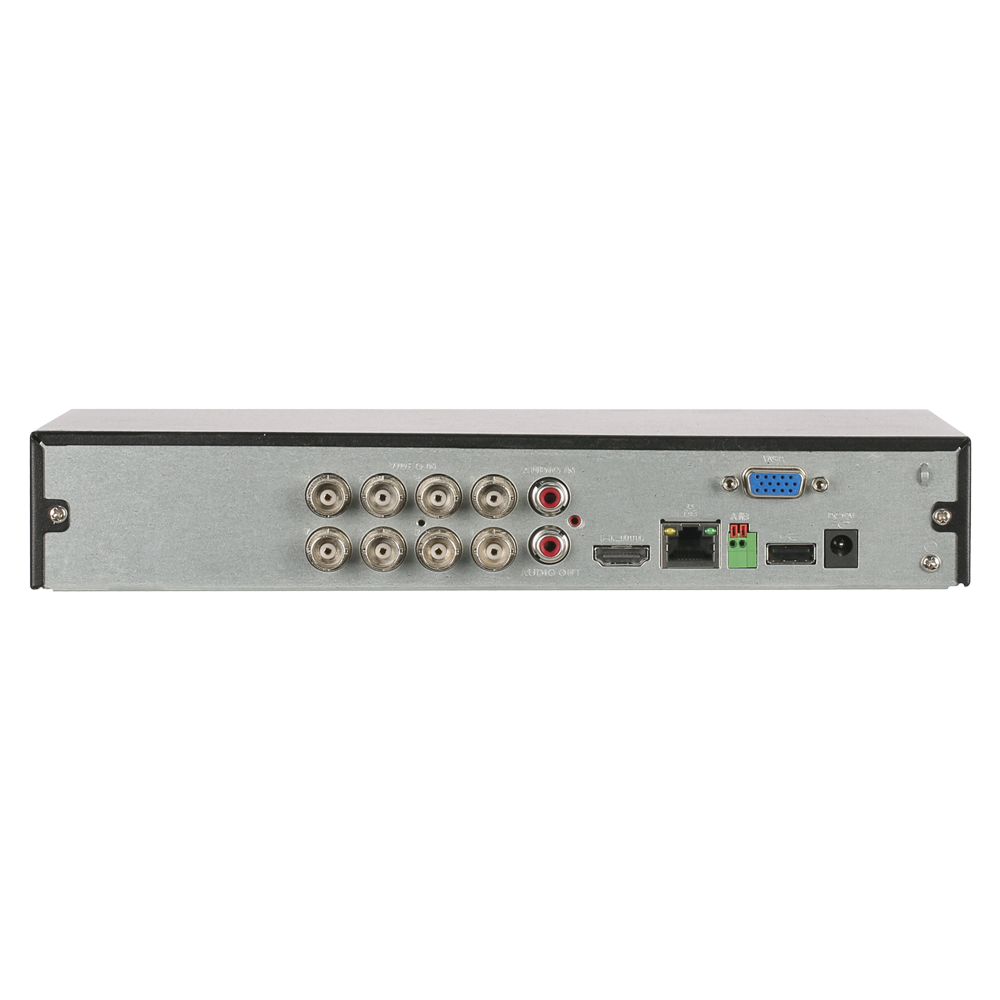

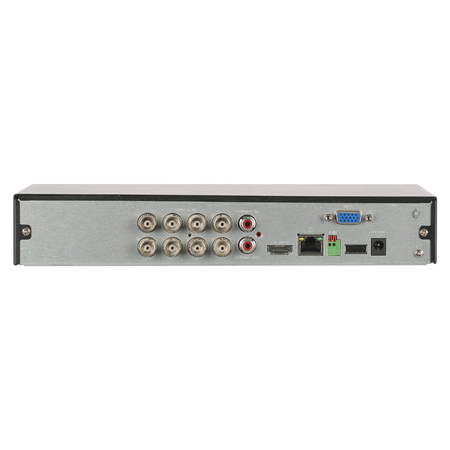

• Video inputs: 8 BNC channels (HDTVI / HDCVI / AHD / CVBS)
• Hybrid configuration: Up to 16 IP channels (8 Mpx), by replacing all BNC channels
• Video output: 1 HDMI 1080p, 1 VGA
• Video compression: H.265+ / H.265 / H.264+ / H.264
• Dual-Stream: Yes
• Video Bit Rate: 32 kbps–6144 kbps
• Display resolution: HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
• Total bandwidth: 128 Mbps
• Recording resolution: 8 MP / 6 MP / 5 MP / 4K-N, 4MP, 3 MP / 4M-N or 1080P or 720P or 960H or D1 or CIF
• Main Stream: Coding enhancement disabled:; First channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps);; First channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps);; First channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps);; First channel 4 MP/3 MP@(1 fps–25/30 fps), others 4 MP/3 MP@(1 fps–15 fps);; 4K@(1 fps–8 fps); 4K-N/5 MP@(1 fps-15 fps); 1080p/720p/960H/D1/CIF@(1 fps–25/30 fps); Coding enhancement enabled:; First and fifth channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps);; First and fifth channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps);; First and fifth channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps);; First and fifth channel 4 MP/3 MP@(1 fps–25/30 fps), others 4 MP/3 MP@(1 fps–15 fps);; 4K/6 MP@(1 fps–10 fps); 4K-N/5 MP@(1 fps-15 fps);; 1080p/720p/960H/D1/CIF@(1 fps–25/30 fps)
• Secondary Stream: Coding enhancement disabled: 960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps); Coding enhancement enabled: 960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps)
• Multifunction: Pentaplex: Live, recording, playback, backup and remote access
• Bidirectional audio: Coaxial: 4 BNC channels; Reusing audio input/output
• Audio inputs: 1 RCA channel; 4 BNC channels (audio over coax)
• Audio outputs: 1 RCA channel
• Audio compression: G.711a; G.711u; PCM
• Audio Bit Rate: 64 kbps
• Alarm IN/OUT: Not available
• AcuPick: 8 channels
• Perimeter protection: Up to 4 analog channels supporting Tripwire and intrusion detection via AI
• Video analysis: IVS: Face detection / Person and vehicle recognition / Tripwire / Intrusion
• Face detection: 4 channels (up to 12 face images per channel); 6 attributes
• Privacy masking: 1 Channel
• Face recognition: 4 channels; Up to 10 face databases with 20,000 images
• Smart motion detection: Up to 4 analog channels capable of distinguishing between people and vehicles (SMD Plus) or 8 channels (SMD)
• AI Video Quality Analytics: 8 channels; Supports detection of brightness level, dominant color, blur, overexposure, contrast level, and black and white.
• Scene changing: 1 channel
• Irregular Black Block Masking: 1 channel
• EPTZ by Recorder: 1 channel
• POS: Yes
• Recording method: Manual, scheduled, motion detection, alarm
• Backup: USB/Network
• Internal storage: 1 SATA 3.5" HDD up to 16 TB (not included)
• Communication: RS485 (PTZ) / 2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet)
• Remote access: Browser (ActiveX), smartphone App or PSS software
• Power supply: DC 12V / 2A
• Operating temperature: –10 ~ +55 °C
• Dimensions / Weight: 47.6 (H) x 260 (W) x 237.8 (D) mm / 1.23 Kg

📦 INCLUDED:
• X-Security 5-in-1 video recorder• Mouse
