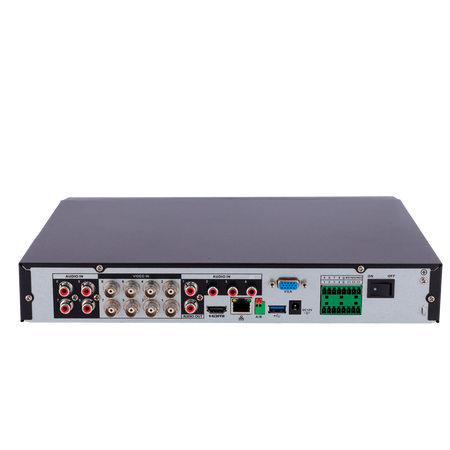

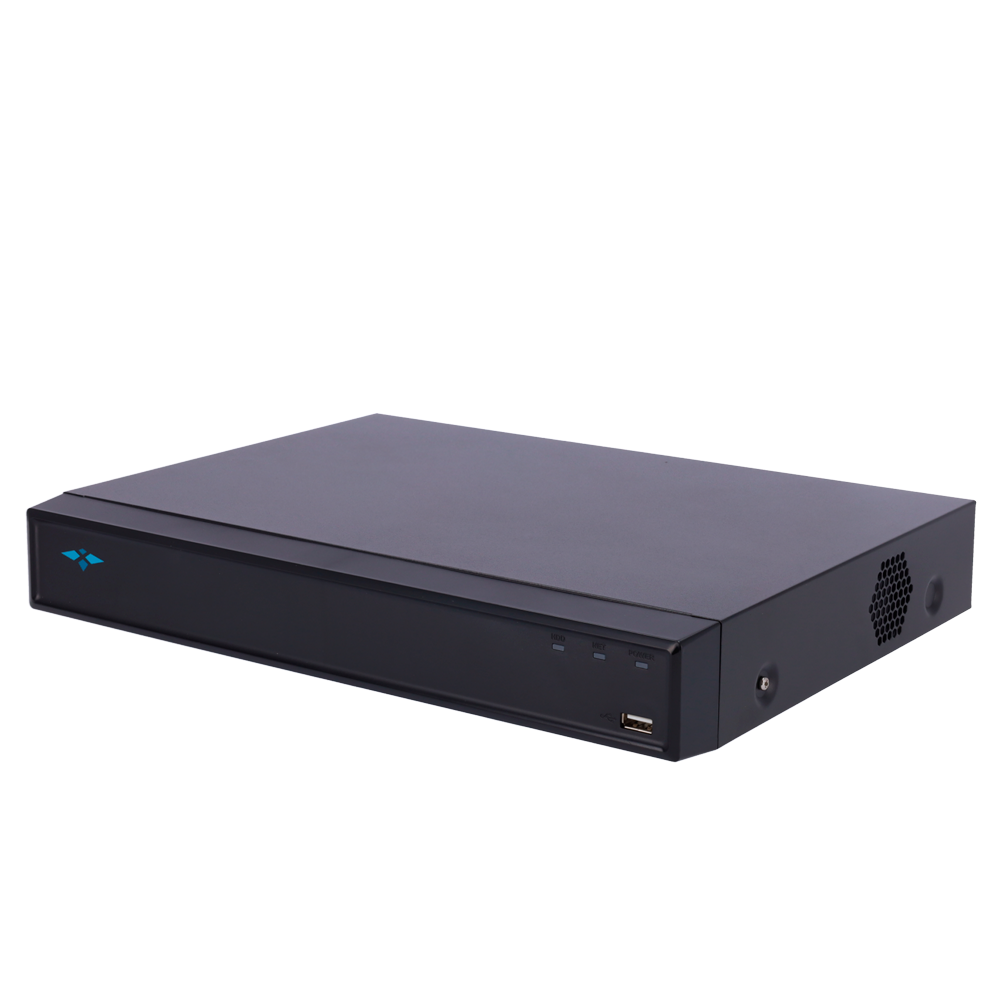

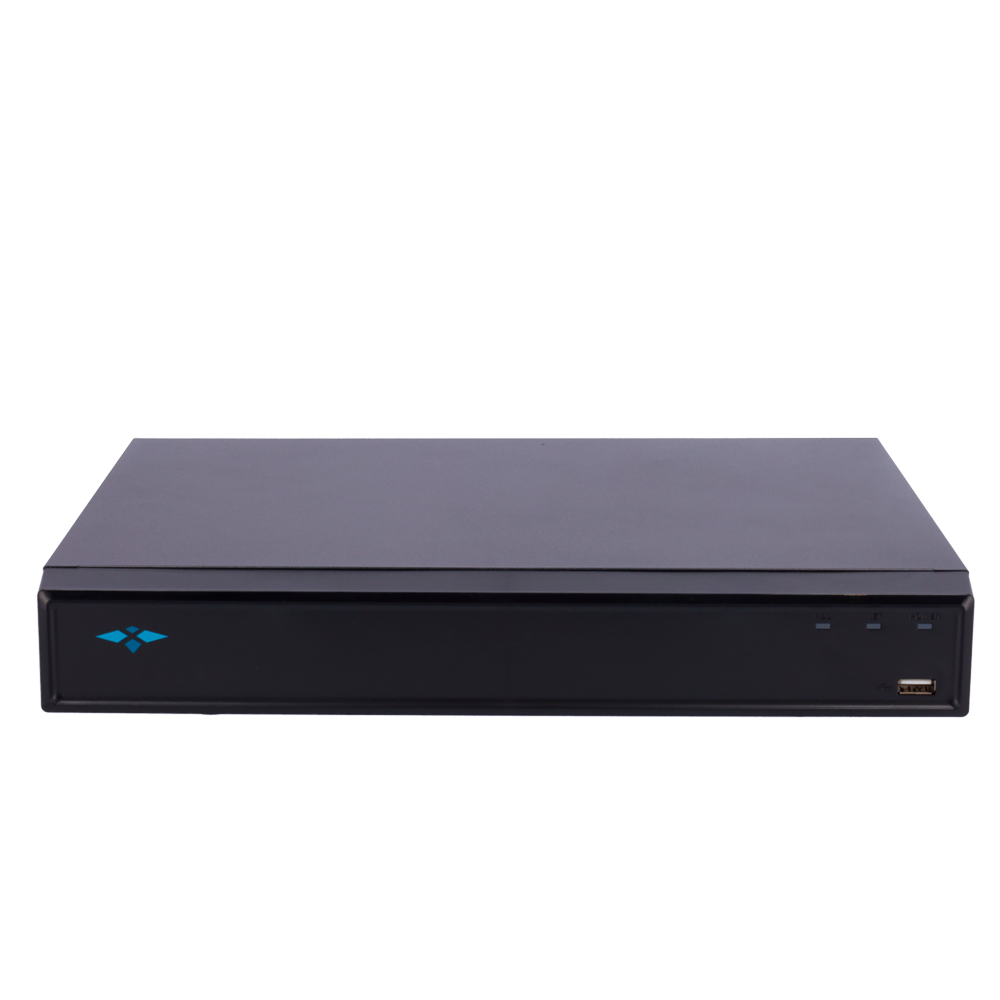

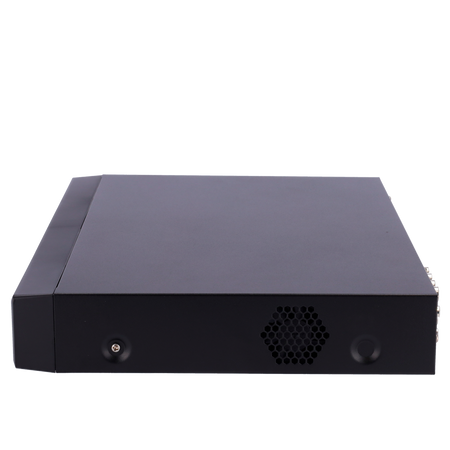

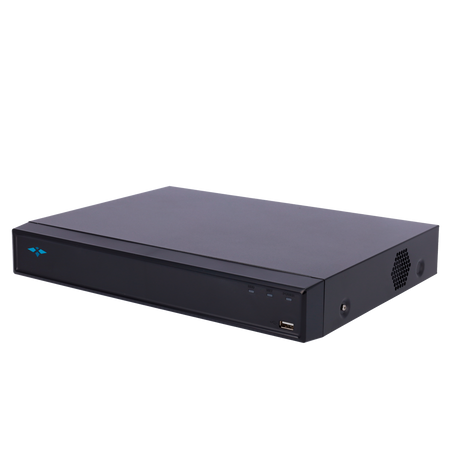

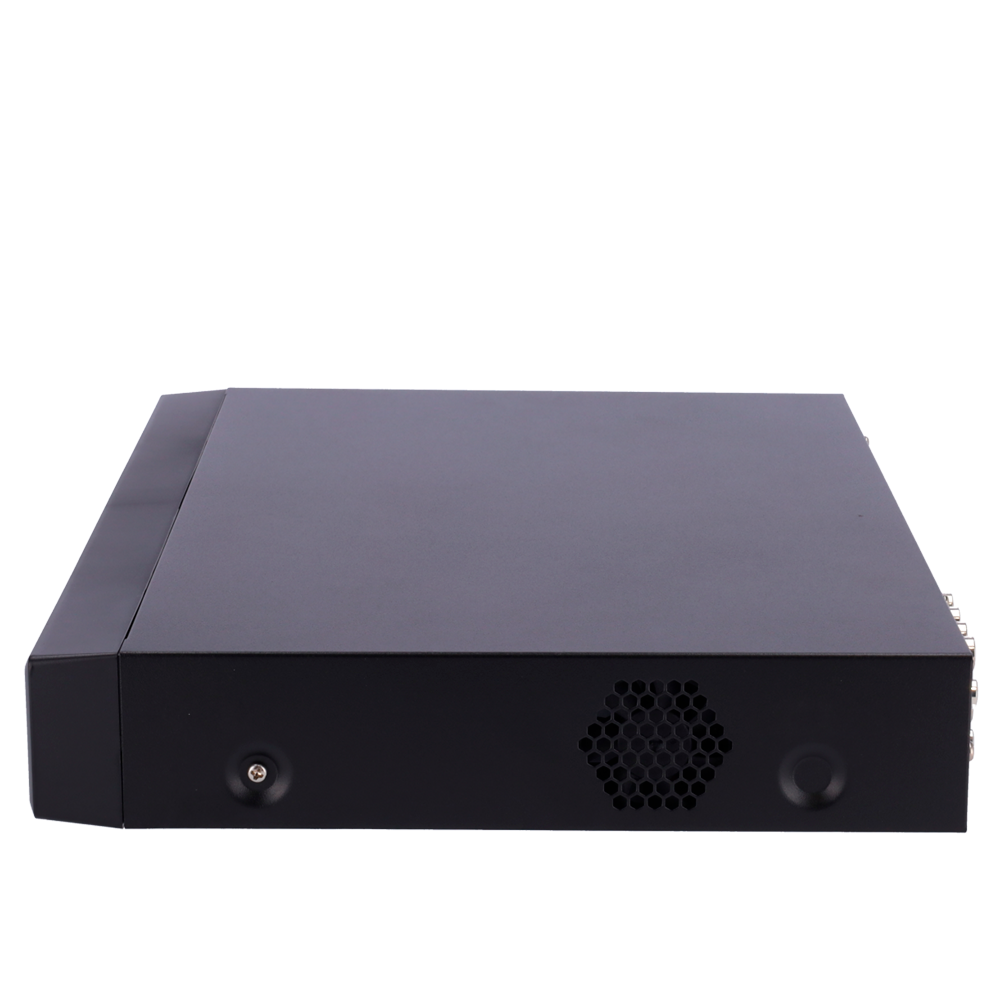

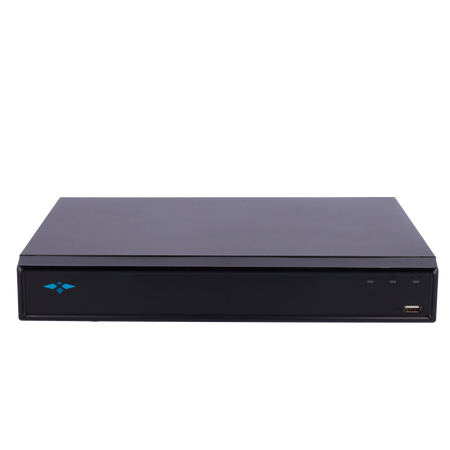

X-Security 5-in-1 Video Recorder - 8 CH HDTVI/HDCVI/AHD/CVBS (4K) + 8 IP (8Mpx) - Alarms | Audio over coaxial - 4K resolution (7FPS) - 2 CH Face recognition - 8 CH Human and vehicle recognition
📋 SPECIFICATIONS:
• Brand: X-Security
• Video format: HDTVI / HDCVI / AHD / CVBS / IP
• Video inputs: 8 BNC channels (HDTVI / HDCVI / AHD / CVBS)
• Hybrid configuration: Up to 16 IP channels (8Mpx), replacing all BNC channels
• Video output: 1 HDMI Full HD, 1 VGA
• Video/audio compression: H.265+/H.265/H.264+/H.264
• Display resolution: HDMI: 4K, 1920×1080, 1280×1024, 1280×720; VGA: 1920×1080, 1280×1024, 1280×720
• Total bandwidth: 128 Mbps
• Encoding: All channels: 4K(1 fps–7 fps); 6MP(1 fps–10 fps); 5MP(1 fps–12 fps); 4K-N, 4MP/3MP(1 fps–15 fps); 4M-N/1080P/720P/960H/D1/CIF (1 fps–25/30 fps)
• Dual-Stream encoding: 960H (1 fps–15 fps); D1/CIF(1 fps–25/30 fps)
• Multifunction: Pentaplex: Live, recording, playback, backup and remote access
• Audio inputs: 8 BNC, 8 RCA channels
• Audio outputs: 1 RCA channel
• Two-way audio: Reusing audio input/output
• Alarms: 8 inputs / 3 relays
• Video analysis: IVS: Line crossing | Area intrusion | Abandoned object | Face detection; IP mode, face recognition and IVS cannot be enabled simultaneously
• Face recognition: Up to 2 analog channels for real-time face comparison
• Intelligent motion detection: Up to 8 channels capable of classifying targets between people and vehicles
• Recording method: Manual, scheduled, motion detection, alarm
• Backup: USB/Network
• Internal storage: 1 SATA 3.5" HDD up to 16 TB (not included)
• Communication: RS485 (PTZ) / 2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet)
• Remote access: Browser (ActiveX), Smartphone App or PSS software
• Power supply: DC 12V / 2A
• Dimensions / Weight: 55 (H) x 325 (W) x 256.6 (D) mm / 1.2 kg
📦 INCLUDED:
• X-Security 5-in-1 video recorder • Mouse • 12VDC power adapter
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
|---|---|
| Video inputs | 8 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Up to 16 IP Channels (8Mpx), replacing all BNC channels |
| Video output | 1 HDMI Full HD, 1 VGA |
| Video/audio compression | H.265+/H.265/H.264+/H.264 |
| Display resolution | HDMI: 4K, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 |
| Total bandwidth | 128 Mbps |
| Encoding | All channels: 4K(1 fps–7 fps); 6MP(1 fps–10 fps); 5MP(1 fps–12 fps); 4K-N, 4MP/3MP(1 fps–15 fps); 4M-N/1080P/720P/960H/D1/CIF (1 fps–25/30 fps) |
| Dual-Stream encoding | 960H (1 fps–15 fps); D1/CIF(1 fps–25/30 fps) |
| Multifunction | Pentaplex: Live, recording, playback, backup and remote access |
| Audio inputs | 8 BNC, 8 RCA Channels |
| Audio outputs | 1 RCA Channel |
| Two-way audio | Reusing audio input/output |
| Alarms | 8 input / 3 relay |
| Video analysis | IVS: Line crossing | area intrusion | abandoned object | face detection IP mode, face recognition and IVS cannot be activated simultaneously |
| Face recognition | Up to 2 analog channels for real-time face comparison |
| Intelligent motion detection | Up to 8 channels capable of classifying targets as people or vehicles |
| Recording method | Manual, scheduled, motion detection, alarm |
| Backup | USB/Network |
| Internal memory | 1 SATA 3.5" HDD up to 16 TB (not included) |
| Communication | RS485 (PTZ) / 2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet) |
| Remote access | Browser (ActiveX), smartphone app or PSS software |
| Power supply | DC 12V / 2A |
| Dimensions / Weight | 55 (H) x 325 (W) x 256.6 (D) mm / 1.2 kg |
