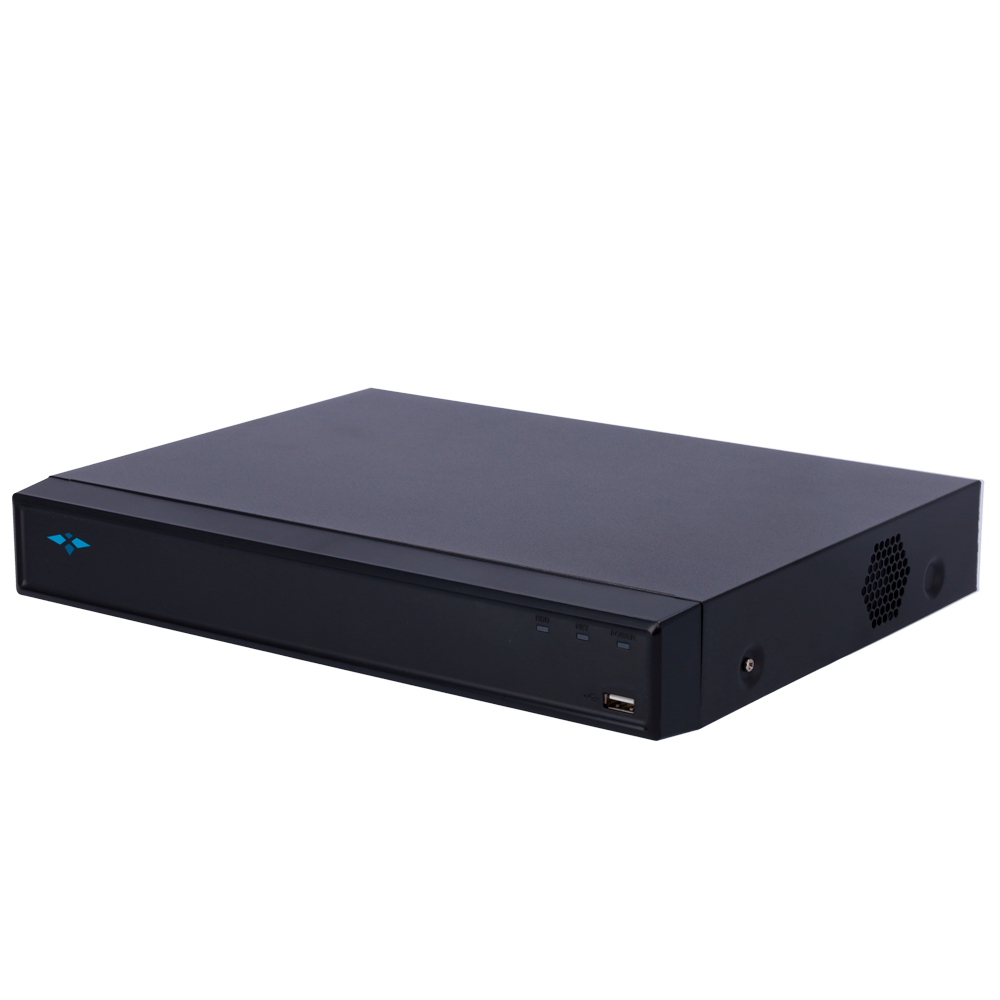

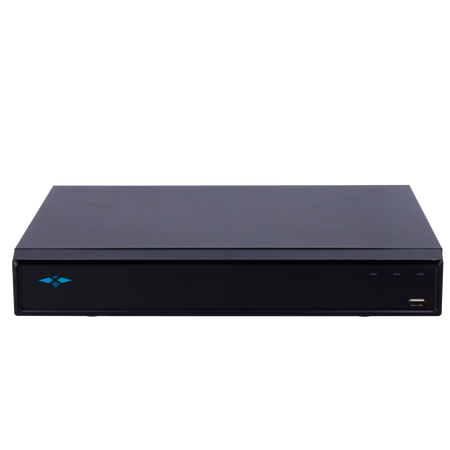

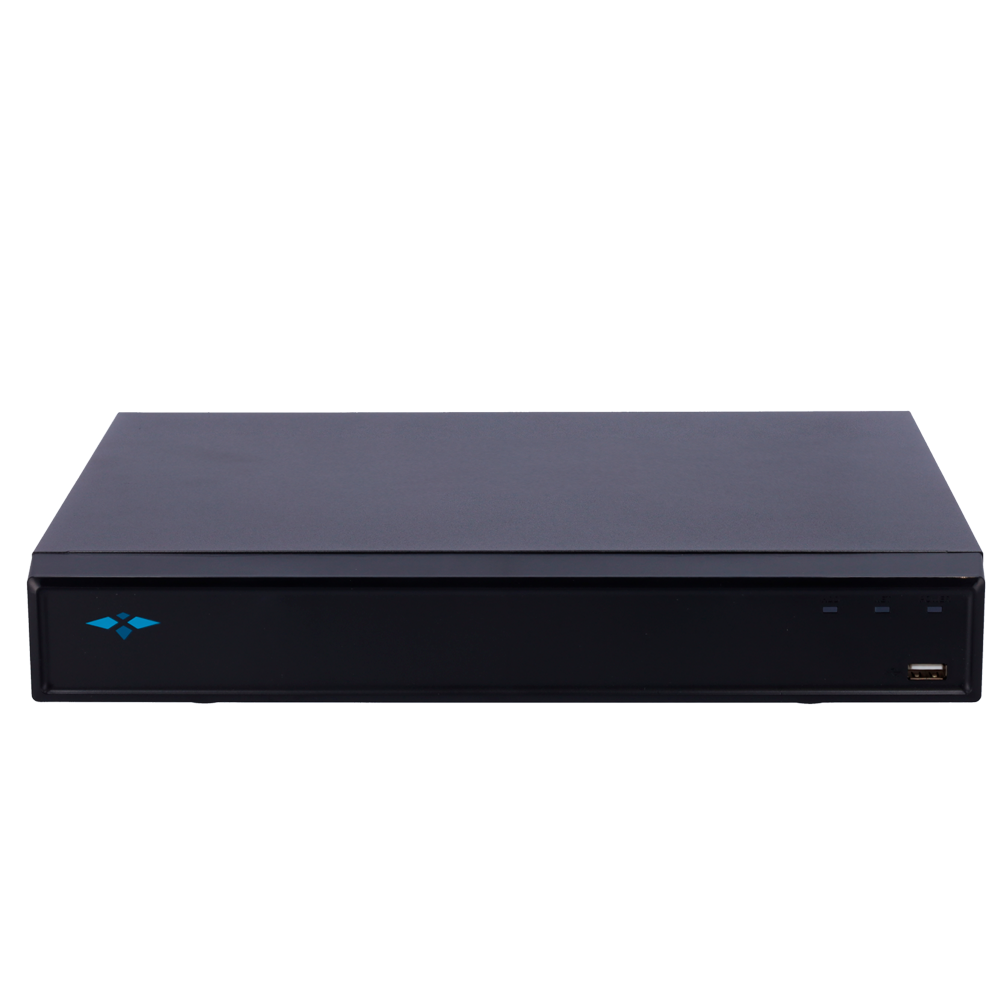

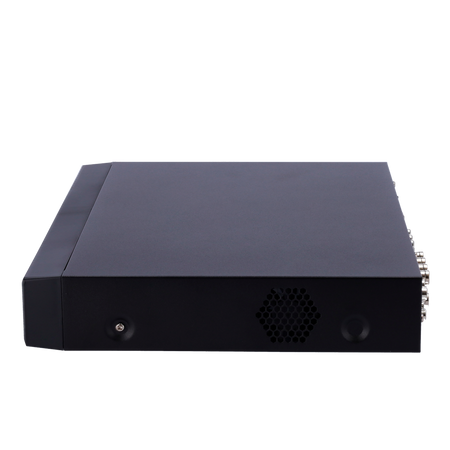

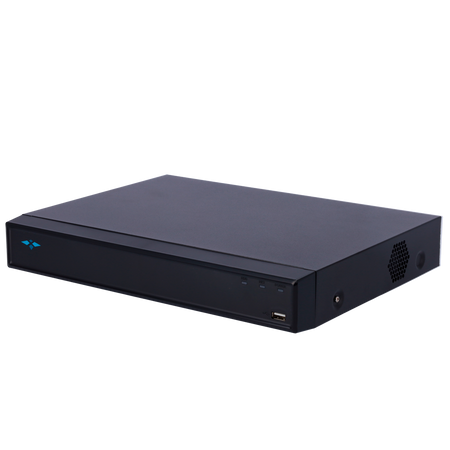

X-Security 5-in-1 Video Recorder - 8 CH HDTVI/HDCVI/AHD/CVBS (5Mpx) + 4 IP (6Mpx)
X-Security 5-in-1 Video Recorder - 8 CH HDTVI/HDCVI/AHD/CVBS (5Mpx) + 4 IP (6Mpx)
Regular price
€242,11
Final price
Regular price
-10%
€270,00
Sale price
€242,11
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
5-in-1 X-Security Video Recorder - 8 CH HDTVI/HDCVI/AHD/CVBS (5Mpx) + 4 IP (6Mpx) - Audio over coaxial | Alarm - Recorder resolution 5M-N (10FPS) - 1 CH Face recognition - 8 CH Human and vehicle recognition
📋 SPECIFICATIONS:
• Brand: X-Security
• Video format: HDTVI / HDCVI / AHD / CVBS / IP
• Video inputs: 8 BNC Channels (HDTVI / HDCVI / AHD / CVBS)
• Hybrid configuration: Up to 12 IP Channels (6Mpx), replacing all BNC channels
• Video output: 1 HDMI 1080p, 1 VGA
• Video/audio compression: H.265+/H.265/H.264+/H.264
• Display resolution: 1920x1080, 1280x1024, 1280x720
• Total bandwidth: 64 Mbps
• Recording resolution: 5 M-N, 4 M-N, 1080p, 1080N, 720p, 960H, D1, CIF
• Main stream: 5M-N(10 FPS); 4M-N/1080p(15 FPS); 1080N / 720p / 960H / D1 / CIF (25/30 FPS)
• Secondary stream: D1 / CIF (1~15 FPS)
• Multifunction: Pentaplex: Live, recording, playback, backup and remote access
• Audio inputs: 8 RCA Channels / 8 BNC Channels (Audio over coaxial)
• Audio outputs: 1 RCA Channel
• Two-way audio: Reusing audio input/output
• Alarm IN/OUT: 8 IN / 3 Relay
• Video analytics: IVS: Line crossing | Area intrusion | Abandoned object | Face detection; IP mode, face recognition and IVS cannot be activated simultaneously
• Face recognition: Up to 1 analog channel for real-time face comparison
• Intelligent motion detection: Up to 8 channels capable of classifying targets between people and vehicles
• Recording method: Manual, scheduled, motion detection, alarm
• Backup: USB/Network
• Internal storage: 1 SATA 3.5" HDD up to 16 TB (not included)
• Communication: RS485 (PTZ) / 2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet)
• Remote access: Browser (ActiveX), Smartphone App or PSS software
• Power supply: DC 12V / 2A
• Dimensions / Weight: 55 (H) x 325 (W) x 257 (D) mm / 1.2 Kg
📦 INCLUDED:
• 5-in-1 X-Security Video Recorder • Mouse • 12VDC Power supply
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
|---|---|
| Video inputs | 8 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Up to 12 IP Channels (6Mpx), replacing all BNC channels |
| Video output | 1 HDMI 1080p, 1 VGA |
| Video/audio compression | H.265+/H.265/H.264+/H.264 |
| Display resolution | 1920x1080, 1280x1024, 1280x720 |
| Total bandwidth | 64 Mbps |
| Recording resolution | 5 M-N, 4 M-N, 1080p, 1080N, 720p, 960H, D1, CIF |
| Main Stream | 5M-N(10 FPS); 4M-N/1080p(15 FPS); 1080N / 720p / 960H / D1 / CIF (25/30 FPS) |
| Secondary Stream | D1 / CIF (1~15 FPS) |
| Multifunction | Pentaplex: Live, recording, playback, backup and remote access |
| Audio inputs | 8 RCA Channel / 8 BNC Channel (Audio over Coaxial) |
| Audio outputs | 1 RCA Channel |
| Bidirectional audio | Reusing the audio input/output |
| Alarm IN/OUT | 8 IN/ 3 Relay |
| Video analysis | IVS: Crossing lines | Area intrusion | Abandoned object | Face detection IP mode, face recognition and IVS cannot be activated simultaneously |
| Face recognition | Up to 1 analog channel for live face comparison |
| Intelligent motion detection | Up to 8 channels capable of classifying targets between people and vehicles |
| Recording method | Manual, scheduled, motion detection, alarm |
| Backup | USB/Network |
| Internal memory | 1 SATA 3.5" HDD up to 16 TB (not included) |
| Communication | RS485 (PTZ) / 2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet) |
| Remote access | Browser (ActiveX), Smartphone App or PSS software |
| Power supply | DC 12V / 2A |
| Dimensions / Weight | 55 (H) x 325 (W) x 257 (D) mm / 1.2 Kg |
- User manual Link
