XS-XVR3116-SM
XS-XVR3116-SM

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

X-SECURITY

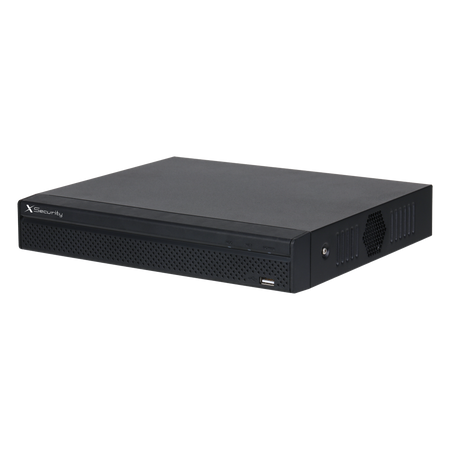

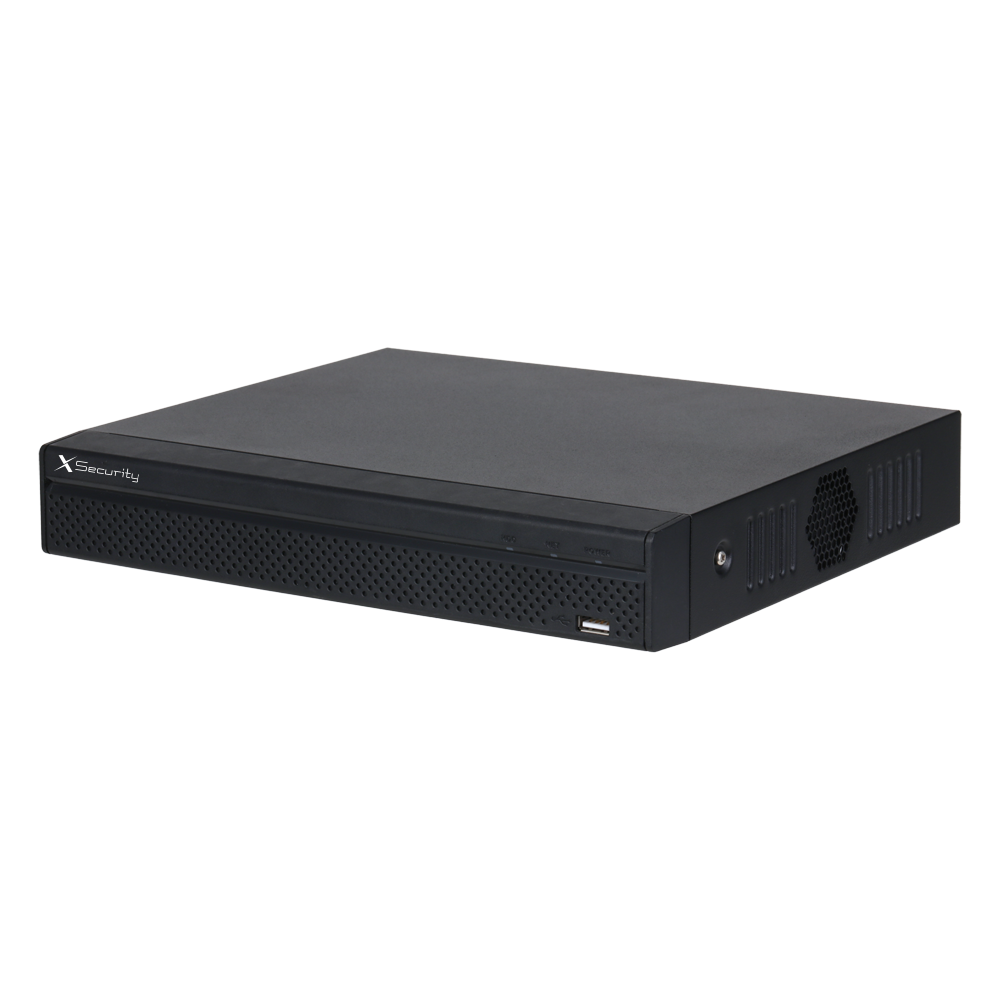

X-Security 5-in-1 Video Recorder - 16 CH HDTVI/HDCVI/AHD/CVBS + 2 IP

SKU: XS-XVR3116-SM
(0)
In stock
Usually shipped within 24 hours
€242,11 Final price
-6% €258,00 €242,11 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

5-in-1 X-Security Video Recorder - 16 CH HDTVI/HDCVI/AHD/CVBS + 2 IP - Maximum resolution 1080p - Audio over coaxial - Advanced motion detection SMD - 1 HDD

📋 SPECIFICATIONS:
• Brand: X-Security
• Video format: HDTVI / HDCVI / AHD / CVBS / IP
• Video inputs: 16 BNC channels (HDTVI / HDCVI / AHD / CVBS)
• Hybrid configuration: Up to 18 IP channels (6 Mpx), by replacing all BNC channels
• Video/audio compression: H.265+/H.265/H.264+/H.264
• Video input resolution: CVI: 1080p at 25/30 fps; 720p at 25/30 fps.; TVI: 1080p at 25/30 fps; 720p at 25/30 fps.; AHD: 1080p at 25/30 fps; 720p at 25/30 fps.
• Video output: 1 HDMI Full HD, 1 VGA
• Display resolution: HDMI: 1920×1080, 1280×1024, 1280×720; VGA: 1920×1080, 1280×1024, 1280×720
• Total bandwidth: 64 Mbps
• Encoding: Main stream:; Channel 1: 1080N/720p@(1 fps–25/30 fps); Other channels: 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps); Sub stream: CIF@(1 fps–7 fps)
• Video bitrate: 32 kbps–4096 kbps
• Multi-function: Pentaplex: Live, recording, playback, backup and remote access
• Audio inputs: 16 BNC (audio over coaxial); 1 RCA channel
• Audio outputs: 1 RCA channel
• Two-way audio: Reusing the audio input/output
• Audio compression: G.711a; G.711u; PCM
• Audio bitrate: 64 kbps
• SMD (Advanced motion detection): Advanced motion detection based on pixel variation produced by people and vehicles, reducing false alarms; For NVR: Up to 16 channels; For IP camera with SMD: All channels
• Recording mode: Manual, scheduled, motion detection, alarm
• Backup: USB / Network
• Internal storage: 1 HDD SATA 3.5" up to 16 TB (not included)
• Communication: RS485 (PTZ); 1 x USB 2.0 (front), 1 x USB 2.0 (rear); RJ45 10/100 (Ethernet)
• Remote access: Browser (ActiveX), smartphone app or PSS software
• Operating temperature: –10 °C ~+55 °C
• Power supply: DC 12V / 2 A / <10 W (without HDD)
• Dimensions: 47.6 (H) x 260 (W) x 237.8 (D) mm
• Weight: 1.13 kg

📦 INCLUDED:
• 5-in-1 X-Security recorder • Mouse • 12VDC power adapter
Video format HDTVI / HDCVI / AHD / CVBS / IP
Video inputs 16 BNC channels (HDTVI / HDCVI / AHD / CVBS)
Hybrid configuration Up to 18 IP channels (6 Mpx), replacing all BNC channels
Video/audio compression H.265+/H.265/H.264+/H.264
Video input resolution CVI: 1080p at 25/30 fps; 720p at 25/30 fps. TVI: 1080p at 25/30 fps; 720p at 25/30 fps. AHD: 1080p at 25/30 fps; 720p at 25/30 fps.
Video output 1 HDMI Full HD, 1 VGA
Display resolution HDMI: 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720
Total bandwidth 64 Mbps
Encoding Main stream: Channel 1: 1080N/720p@(1 fps–25/30 fps) Other channels: 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps) Sub stream: CIF@(1 fps–7 fps)
Video bitrate 32 kbps–4096 kbps
Multifunction Pentaplex: Live, recording, playback, backup and remote access
Audio inputs 16 BNC (audio over coaxial) 1 RCA channel
Audio outputs 1 RCA channel
Two-way audio Reusing audio input/output
Audio compression G.711a; G.711u; PCM
Audio bitrate 64 kbps
SMD (Smart Motion Detection) Advanced motion detection based on pixel variation caused by people and vehicles, which reduces false alarms For NVR: Up to 16 CH For IP camera with SMD: All channels
Recording method Manual, scheduled, motion detection, alarm
Backup USB / Network
Internal memory 1 SATA 3.5" HDD up to 16 TB (not included)
Communication RS485 (PTZ) 1 x USB 2.0 (front), 1 x USB 2.0 (back) RJ45 10/100 (Ethernet)
Remote access Browser (ActiveX), smartphone app or PSS software
Operating temperature –10 °C ~+55 °C
Power supply DC 12V / 2 A / &lt;10 W (without HDD)
Dimensions 47.6 (H) x 260 (W) x 237.8 (D) mm
Weight 1.13 kg
