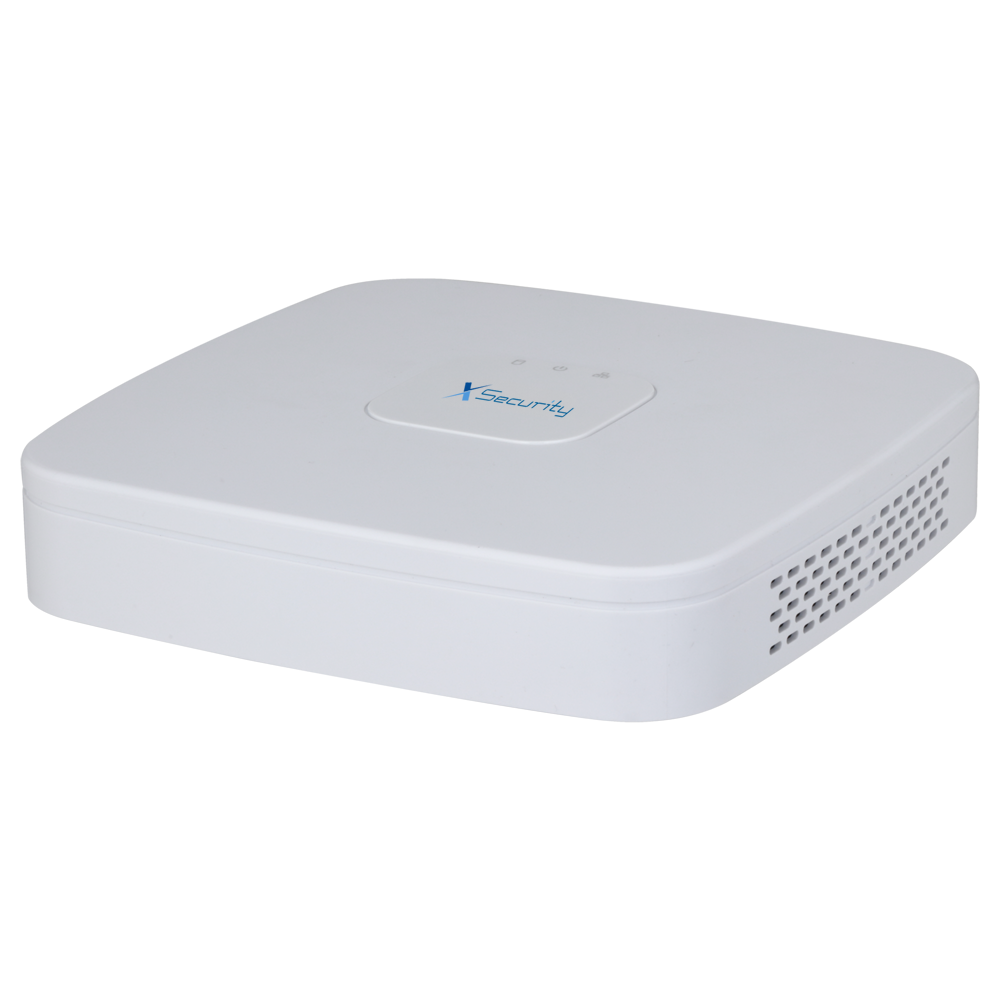

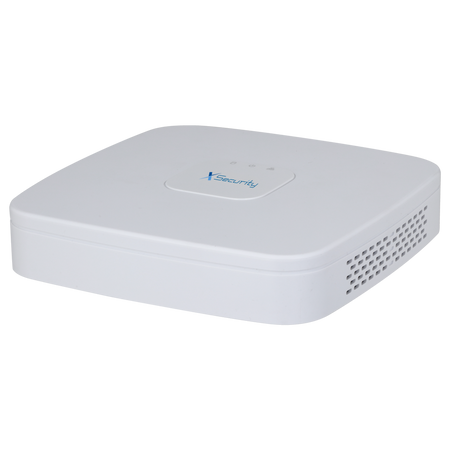

X-Security 5-in-1 Video Recorder - 8 CH HDTVI / HDCVI / AHD / CVBS / 8+2 IP

5-in-1 X-Security Video Recorder - 8 CH HDTVI / HDCVI / AHD / CVBS / 8+2 IP - 1080N/720P | H.265+ - Audio All-over-Coax - Full HD HDMI and VGA output - Supports 1 HDD | Activated/Deactivated | SMD Plus

📋 SPECIFICATIONS:
• Brand: X-Security
• Video format: HDTVI / HDCVI / AHD / CVBS / IP
• Video inputs: 8 BNC channels (HDTVI / HDCVI / AHD / CVBS)
• Hybrid configuration: Up to 10 IP channels (6 Mpx), replacing all BNC channels
• Video output: 1 Full HD HDMI, 1 VGA
• Video compression: H.265+/H.265/H.264+/H.264
• Video Bit Rate: 32 kbps–4096 kbps
• Recording resolution: 1080N / 720p / 960H / D1 / CIF
• Display resolution: 1920×1080, 1280×1024, 1280×720
• Multi-screen display: Without IP extension: 1/4/8/9; With IP extension: 1/4/8/9/16
• Third-party camera access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
• Bandwidth: 32 Mbps
• Main Stream: Channel 1: 1080N/720p@(1 fps–25/30 fps); Other channels: 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps)
• Sub Stream: CIF@(1 fps–7 fps)
• Audio inputs: 1 RCA Channel; 8 BNC Channels (audio over coaxial)
• Audio outputs: 1 RCA channel
• Two-way audio: Reusing audio input/output
• Audio compression: G.711A, G.711U; PCM
• Audio Bit Rate: 64 kbps
• Alarms: Not available
• Multifunction: Pentaplex: Live, recording, playback, backup, and remote access
• Smart functions: Alarm / audio / upgrade via coaxial (All-over-Coax); Activated/Deactivated; Smart dual illumination via coaxial cable
• Smart motion detection: For video recorder: 8 channels; Human and vehicle detection, reduction of false alarms caused by leaves, rain, and brightness variations; For camera: 10 channels
• Irregular Black Block Masking: 1 Channel
• Advanced functions: WizSense: false alarm filter for motion detection and smart encoding
• Recording modes: Manual, scheduled, motion detection
• Backup: USB (Memory, HDD, CD-RW, DVR-RW) / Network
• Internal storage: 1 SATA HDD up to 16 TB (not included)
• Communication: 2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet)
• Remote access: Browser (ActiveX), Smartphone App, or PSS software
• Interoperability: ONVIF (T, S, G), CGI, SDK
• Power supply: DC 12 V / 1.5 A / <7 W (without HDD)
• Operating temperature: –10 ~ +55 °C
• Dimensions / Weight: 45.8 (H) x 211.3 (W) x 204.6 (D) mm / 520 g
• Color: White

📦 INCLUDED:
• 5-in-1 X-Security Recorder• Mouse
