XS-XVR3104TM-HV
XS-XVR3104TM-HV

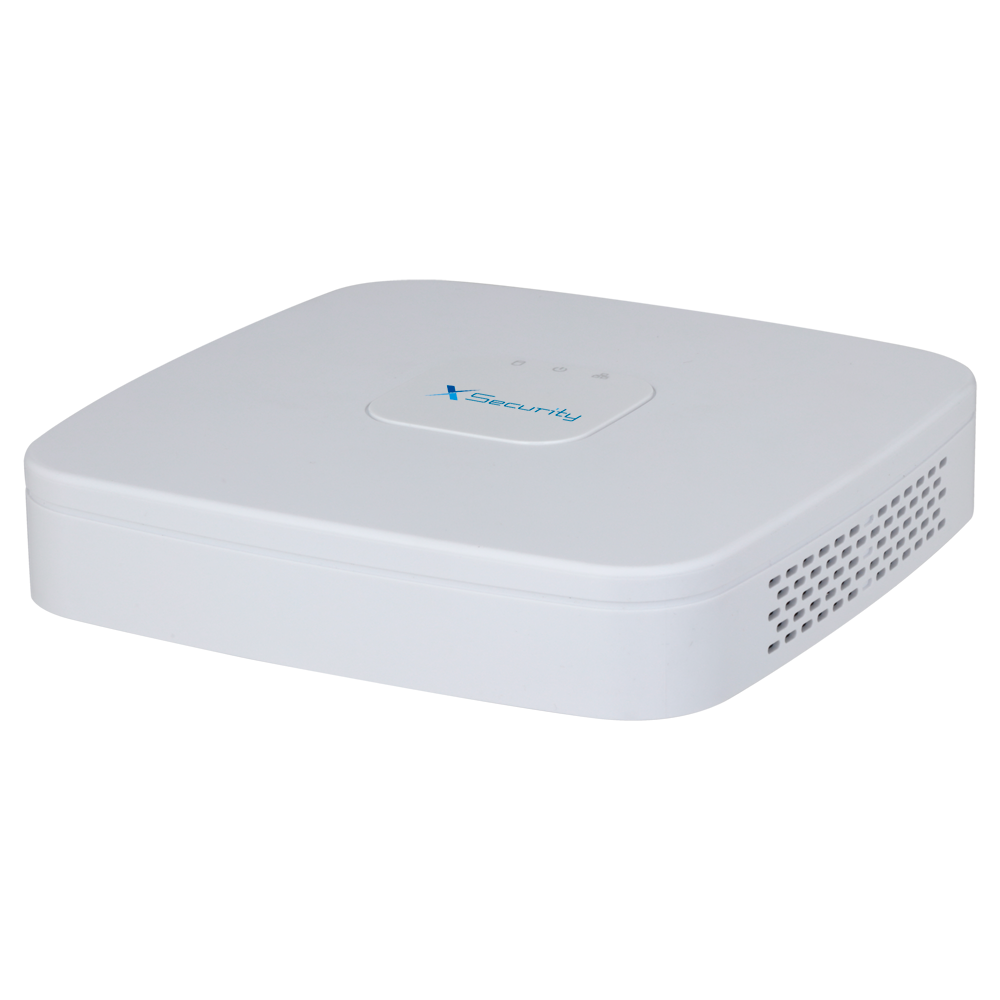

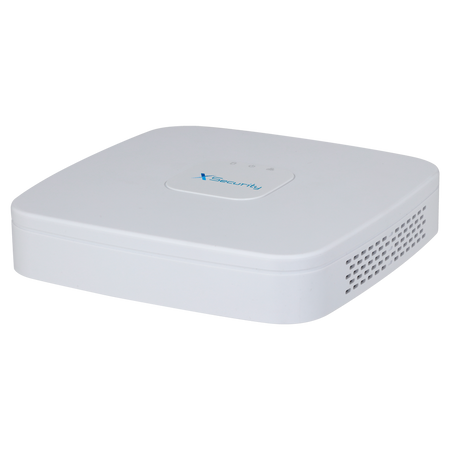

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

X-SECURITY

X-Security 5-in-1 Video Recorder - 4 CH HDTVI / HDCVI / AHD / CVBS / 4+1 IP

SKU: XS-XVR3104TM-HV
(0)
In stock
Usually shipped within 24 hours
€99,14 Final price
-8% €108,00 €99,14 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

X-Security 5-in-1 Video Recorder - 4 CH HDTVI / HDCVI / AHD / CVBS / 4+1 IP - 1080N/720P (1~25/30 FPS) | H.265+ - Two-way audio via coaxial cable - Full HD HDMI and VGA output | SMD Plus | WizSense - Smart dual illumination via coaxial cable

📋 SPECIFICATIONS:
• Brand: X-Security
• Video format: HDTVI / HDCVI / AHD / CVBS / IP
• Video inputs: 4 BNC channels (HDTVI / HDCVI / AHD / CVBS)
• Hybrid configuration: Up to 5 IP channels (4 Mpx), replacing all BNC channels
• Video output: 1 Full HD HDMI, 1 VGA
• Video compression: H.265+/H.265/H.264+/H.264
• Video Bit Rate: 32 kbps–4096 kbps
• Display resolution: 1920×1080, 1280×1024, 1280×720
• Recording resolution: 1080N / 720p / 960H / D1 / CIF
• Bandwidth: 32 Mbps
• Main Stream: 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps)
• Secondary Stream: CIF@(1~15 fps)
• Audio inputs: 1 RCA channel
• Audio outputs: 1 RCA channel
• Two-way audio: Reusing the audio input/output
• Audio compression: G.711A, G.711U; PCM
• Audio Bit Rate: 64 kbps
• Multifunction: Pentaplex: Live, recording, playback, backup, and remote access
• Smart features: Alarm / audio / upgrade over coaxial (All-over-Coax); Enabled/Disabled; Smart dual illumination via coaxial cable; Smart motion detection
• Advanced features: WizSense: false alarm filter for motion detection and smart coding
• Alarms: Not available
• Recording method: Manual, scheduled, motion detection
• Backup: USB (Memory, HDD, CD-RW, DVR-RW) / Network
• Internal storage: 1 SATA HDD up to 16TB (not included)
• Communication: 2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet)
• Remote access: Browser (ActiveX), Smartphone App, or PSS software
• Interoperability: ONVIF (T, S, G), CGI, SDK
• Power supply: DC 12 V / 1.5 A
• Operating temperature: –10 ~ +55 °C
• Dimensions / Weight: 45.8 (W) x 211.3 (H) x 204.6 (D) mm / 480 g
• Color: White

📦 INCLUDED:
• X-Security 5-in-1 video recorder• Mouse
Video format HDTVI / HDCVI / AHD / CVBS / IP
Video inputs 4 BNC channels (HDTVI / HDCVI / AHD / CVBS)
Hybrid configuration Up to 5 IP channels (4 Mpx), replacing all BNC channels
Video output 1 HDMI Full HD, 1 VGA
Video compression H.265+/H.265/H.264+/H.264
Video bit rate 32 kbps–4096 kbps
Display resolution 1920×1080, 1280×1024, 1280×720
Recording resolution 1080N / 720p / 960H / D1 / CIF
Bandwidth 32 Mbps
Main stream 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps)
Secondary stream CIF@(1~15 fps)
Audio inputs 1 RCA channel
Audio outputs 1 RCA channel
Two-way audio Reusing the audio input/output
Audio compression G.711A, G.711U; PCM
Audio bit rate 64 kbps
Multifunction Pentaplex: Live, recording, playback, backup, and remote access
Intelligent functions Alarm / audio / update over coaxial (All-over-Coax) Enabled/Disabled Smart dual illumination via coaxial cable Intelligent motion detection
Advanced functions WizSense: False alarm filter for motion detection and intelligent encoding
Alarms Not available
Recording method Manual, scheduled, motion detection
Backup USB (Flash drive, HDD, CD-RW, DVR-RW) / Network
Internal memory 1 SATA HDD up to 16TB (not included)
Communication 2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet)
Remote access Browser (ActiveX), smartphone App, or PSS software
Interoperability ONVIF (T, S, G), CGI, SDK
Power supply DC 12 V / 1.5 A
Operating temperature –10 ~ +55 °C
Dimensions / Weight 45.8 (W) x 211.3 (H) x 204.6 (D) mm / 480 g
Color White

Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.

For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.

The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
