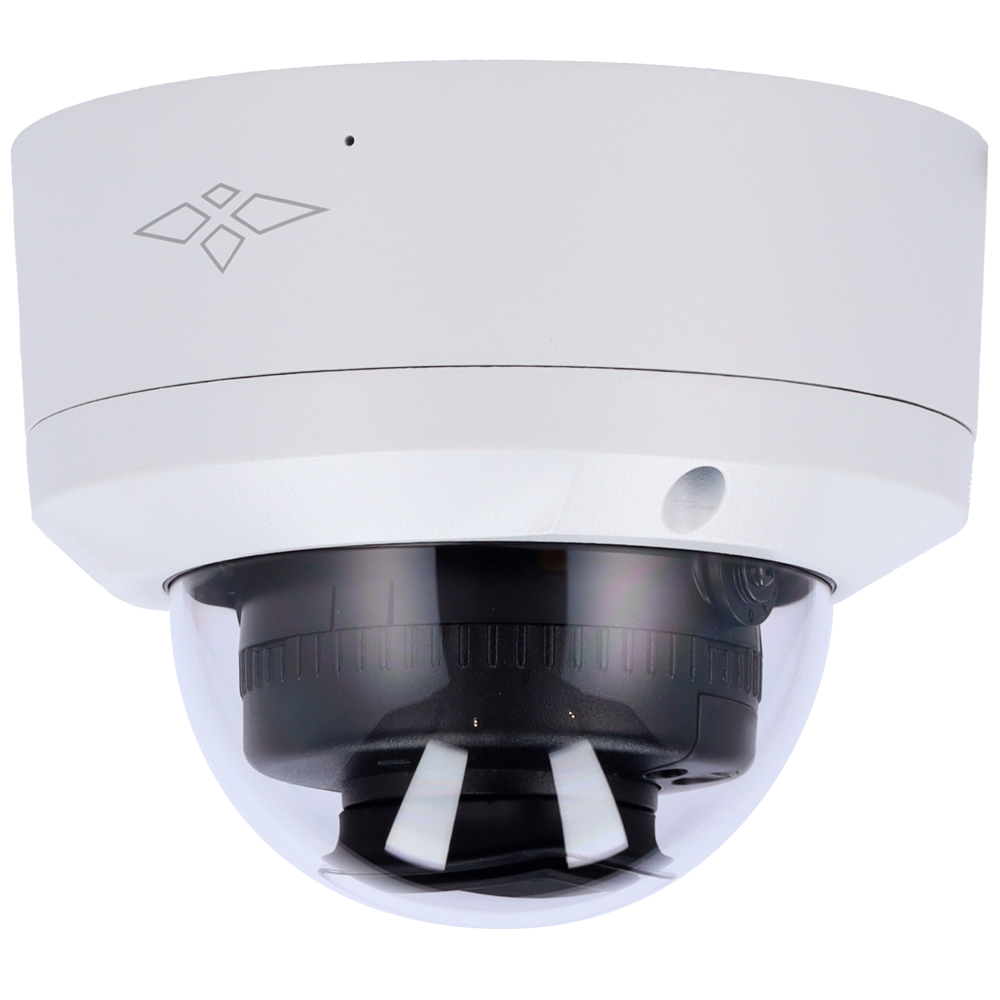

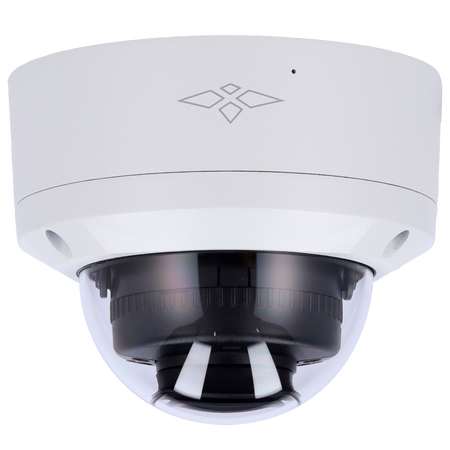

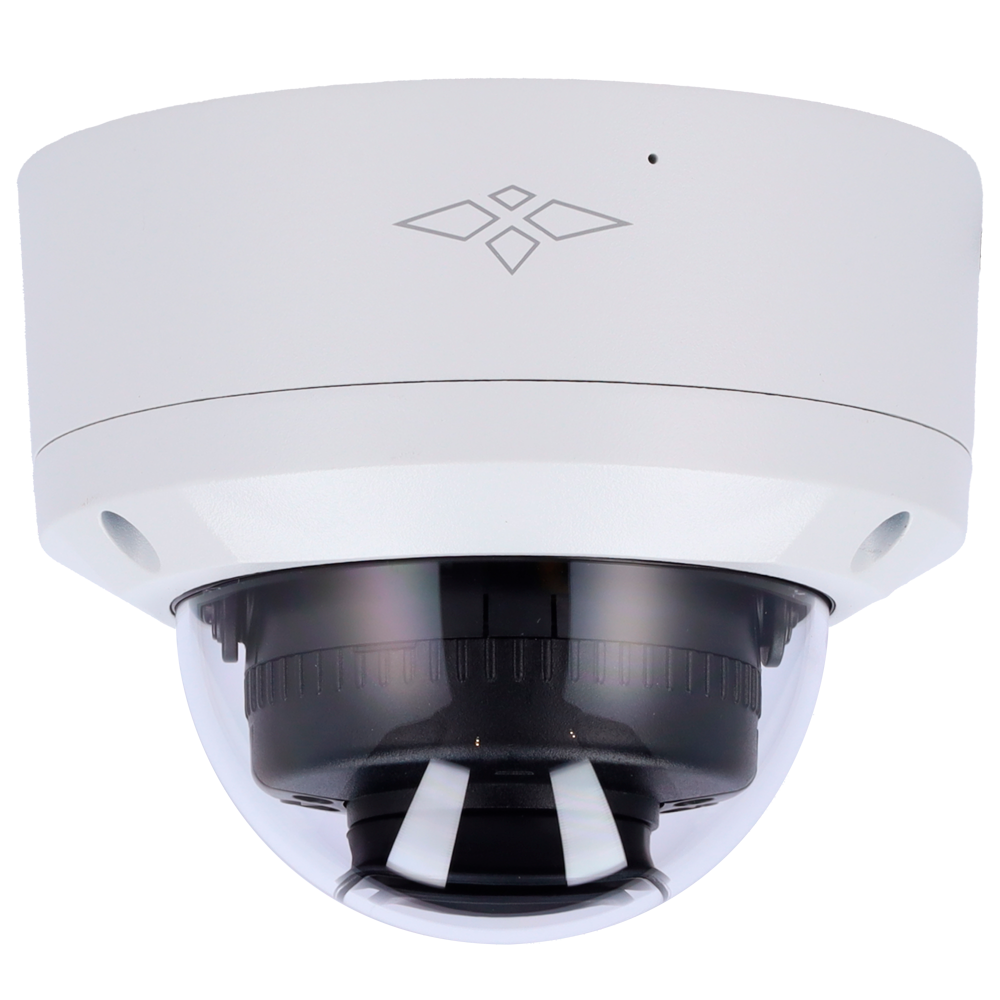

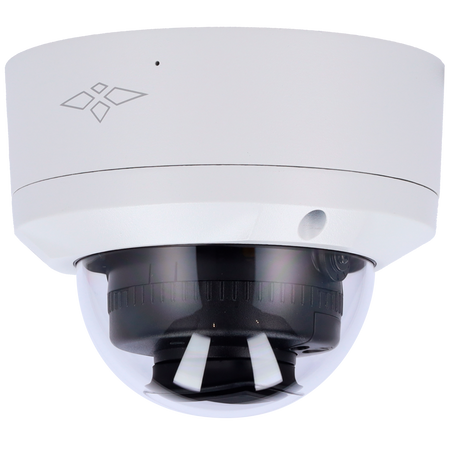

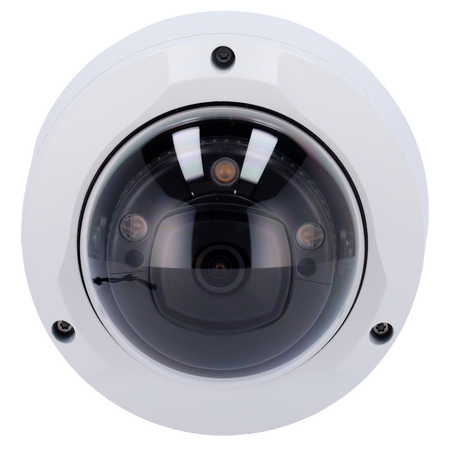

X-Security EASY series Dome camera - 4-in-1 output - 5 MP resolution (2880x1620) - 2.8 mm lens - Dual Light 40 m range | Built-in microphone - IP67 | IK10 | Audio over coaxial (CVI)
📋 SPECIFICATIONS:
• Brand: X-Security
• Series: EASY
• Image sensor: 5 MPx Progressive CMOS
• Maximum resolution: 5 MP (2880x1620)
• Resolution: CVI: 5Mpx (25~30 fps), 4Mpx (25~30 fps), 1080p (25~30 fps); TVI: 4Mpx (25~30 fps); AHD: 4Mpx (25~30 fps); CVBS: PAL/NTSC
• Lens: 2.8 mm
• Field of View (FOV): H: 112º, V: 58º, D: 136º
• DORI: 63.8 m (D), 25.5 m (O), 12.8 m (R), 6.4 m (I)
• Lens adjustment: 3-axis
• Minimum illumination: 0.001 Lux @(F1.0, AGC ON); 0 lux with dual light

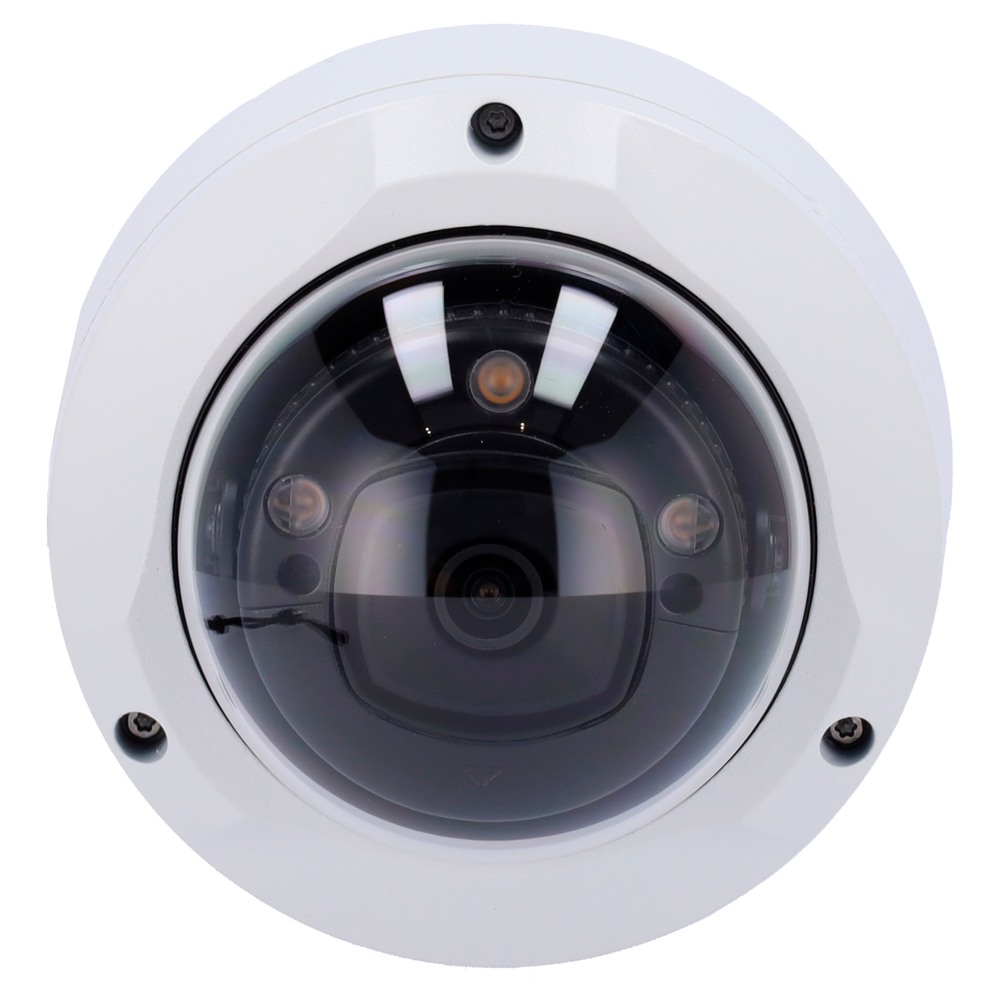

• Supplementary lighting: Dual Light (IR + white light) 40 m range
• Day / Night: ICR mechanical filter
• Electronic shutter: 1/3~1/100000 s

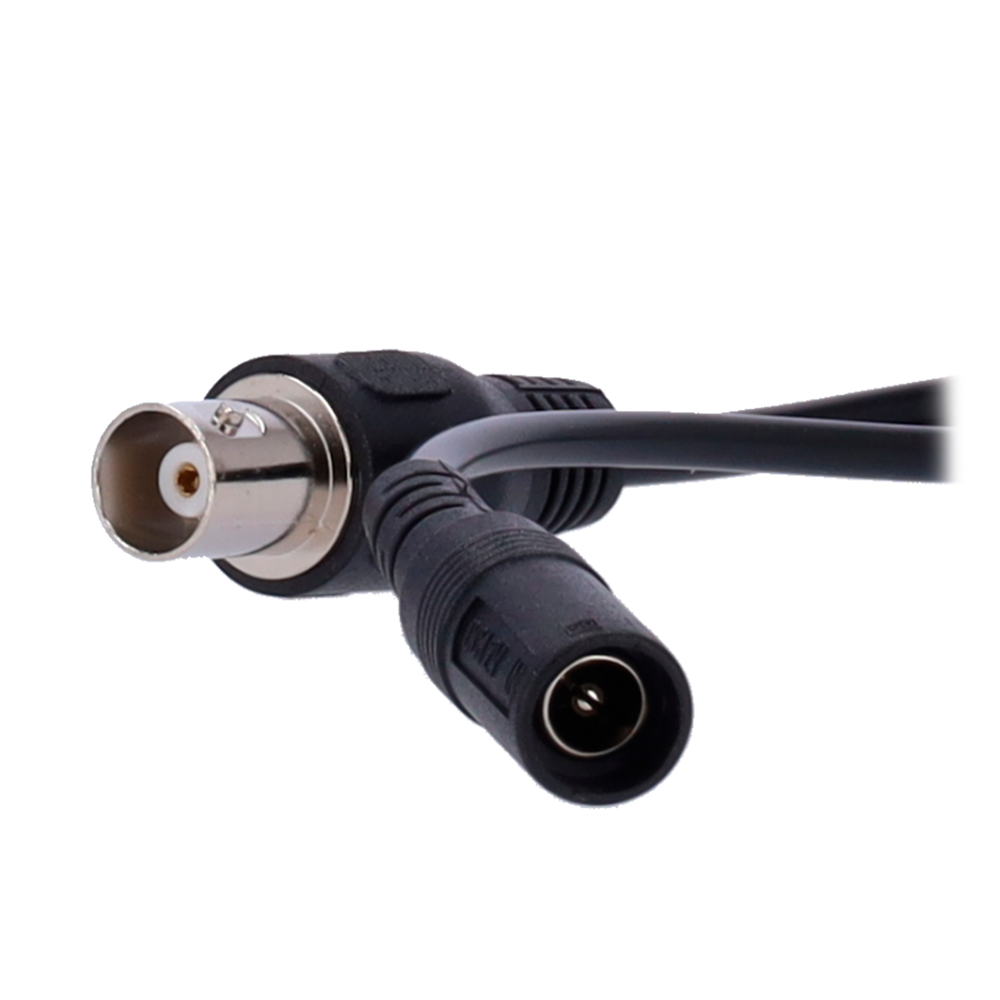

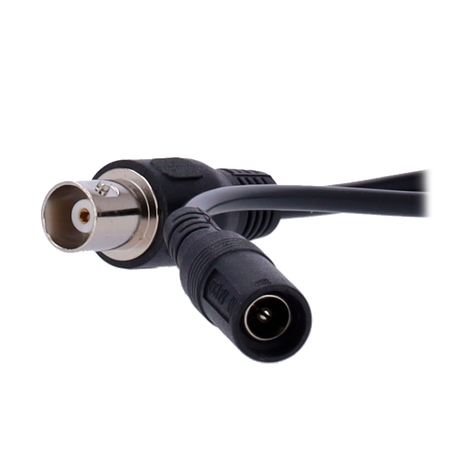

• Video output: 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS
• Video output switching: Via switch
• Basic functions: OSD menu
• Image enhancements: WDR (120 dB), 3D-DNR, Smart Light, BLC, HLC, AWB, AGC, Privacy Masking, Mirror
• Audio: Built-in microphone; Audio over coaxial cable with CVI technology
• Power supply: DC 12 V / 6.4 W max.
• Protection rating: Waterproof IP67, vandal-proof IK10; Surge protection
• Material: Metal
• Operating temp.: -40º C ~ +60º C
• Dimensions: Ø 126 mm x 100 mm (H)

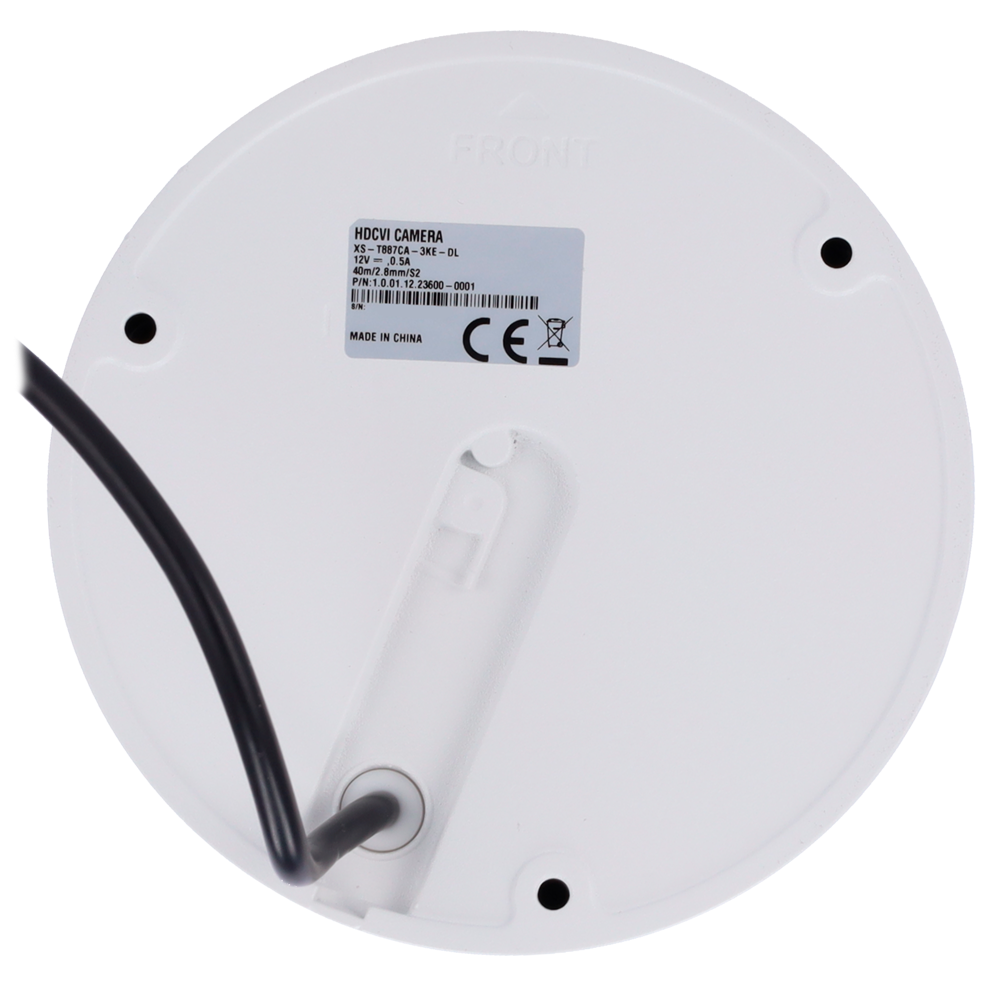

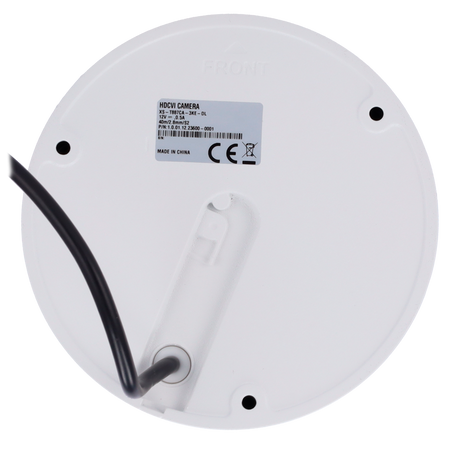

• Base dimensions: Ø base 126 mm / Ø between screws 110 mm / 3 screws
• Weight: 590 g
📦 INCLUDED:
• 4-in-1 Dome camera X-SECURITY• 3 wall plugs and 3 mounting screws• Installation template• User manual
| Range | EASY |
|---|---|
| Optical sensor | 5 MPx Progressive CMOS |
| Maximum resolution | 5 Mp (2880x1620) |
| Resolution | CVI: 5Mpx (25~30 fps), 4Mpx (25~30 fps), 1080p (25~30 fps) TVI: 4Mpx (25~30 fps) AHD: 4Mpx (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Field of view (FOV) | H: 112º, V: 58º, D: 136º |
| DORI | 63.8 m (D), 25.5 m (O), 12.8 m (R), 6.4 m (I) |
| Lens positioning | 3-axis |
| Minimum illumination | 0.001 Lux @(F1.0, AGC ON) 0 lux with dual light |
| Supplementary lighting | Dual Light (IR + white light) range 40 m |
| Day / Night | Mechanical ICR filter |
| Electronic Shutter | 1/3~1/100000 s |
| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via switch |
| Basic functions | OSD menu |
| Image enhancements | WDR (120 dB), 3D-DNR, Smart Light, BLC, HLC, AWB, AGC, Privacy Masking, Mirror effect |
| Audio | Built-in microphone, audio over coaxial cable with CVI technology |
| Power supply | DC 12 V / 6.4 W max. |
| Protection degree | Waterproof IP67, Vandal-proof IK10, Surge protection |
| Material | Metal |
| Operating temp. | -40º C ~ +60º C |
| Dimensions | Ø 126 mm x 100 mm (H) |
| Base dimensions | Ø base 126 mm / Ø between screws 110 mm / 3 screws |
| Weight | 590 g |
