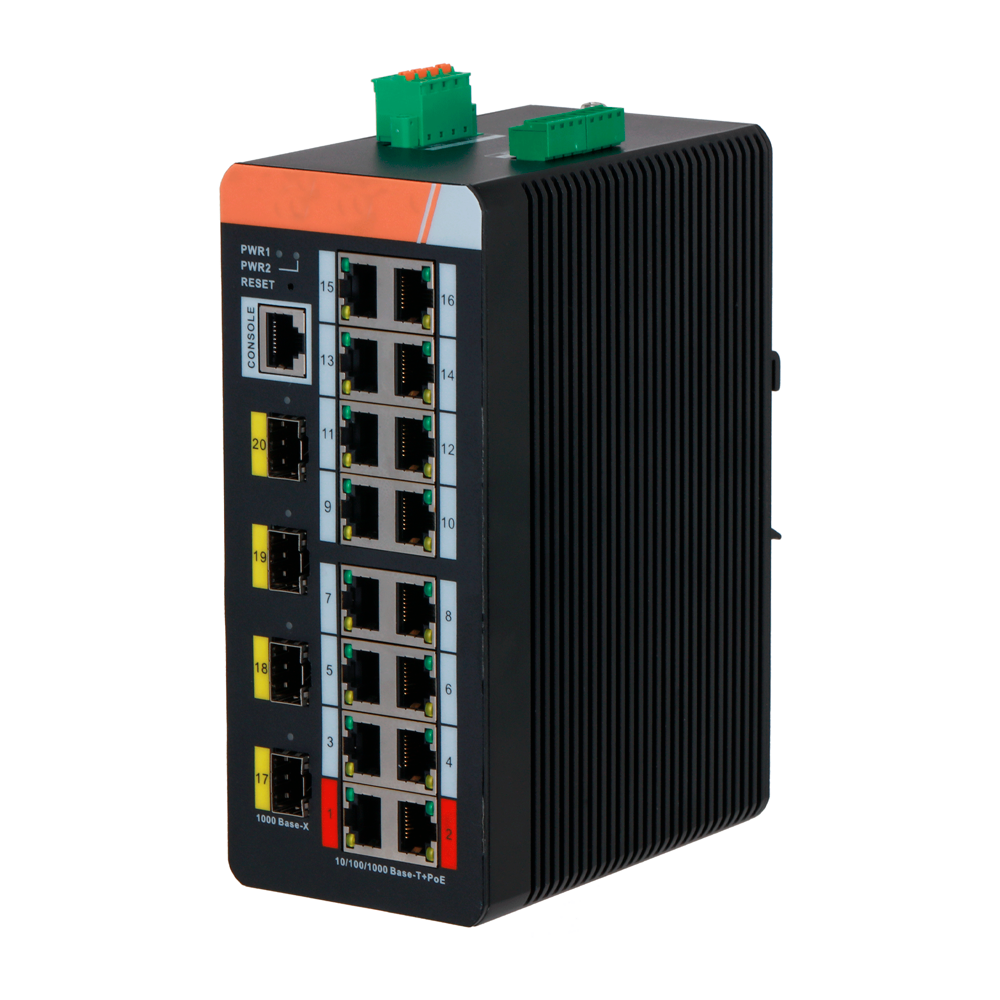

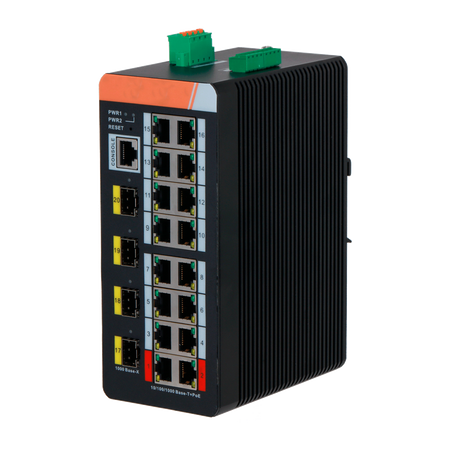

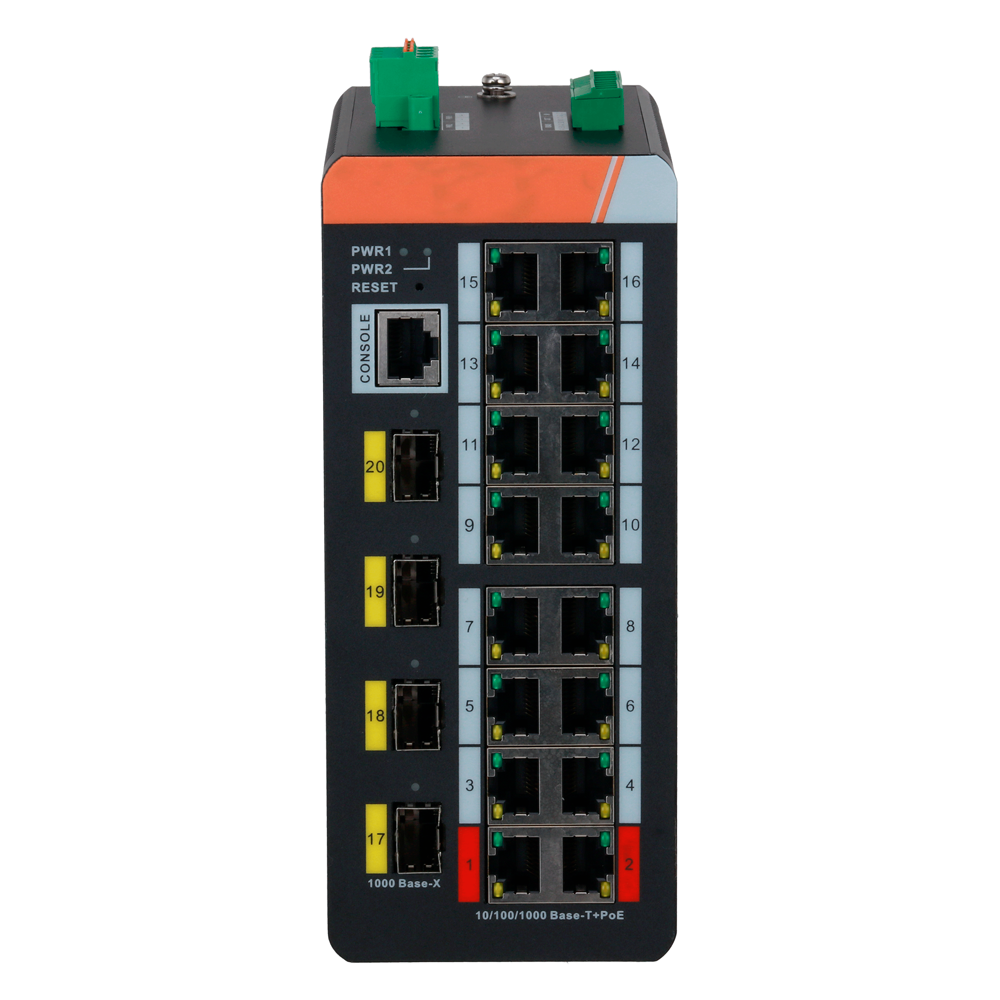

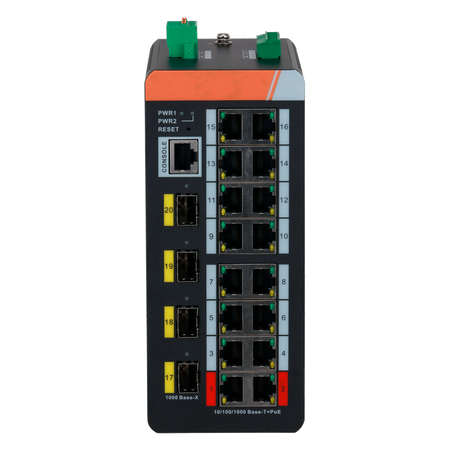

X-Security Industrial L2 Managed Switch - 20 total ports (16 PoE GE / 4 1G SFP Uplink)

X-Security Industrial L2 Managed Switch - 20 total ports (16 PoE GE / 4 Uplink 1G SFP) - Ultra-high power PoE++ supply up to 90W - High availability with ERPS ring support - Extreme thermal tolerance from -40°C to +75°C - Advanced local management via web interface

📋 SPECIFICATIONS:
• Brand: X-Security
• Product category: Industrial-grade Layer 2 perimeter access managed switch
• Copper PoE interfaces: 16 × 10/100/1000 Mbps RJ-45 Gigabit compatible with perimeter intelligent distribution
• Uplink Fiber interfaces: 4 × 1000 Mbps SFP (independent logical slots for optical fiber)
• Supported PoE standards: Native IEEE 802.3af (PoE), IEEE 802.3at (PoE+), Hi-PoE, and IEEE 802.3bt (PoE++)
• PoE port distribution: Ports 1 and 2: Support PoE++ up to 90 W / Ports 3 to 16: Support PoE+ up to 30 W
• Net PoE power: 240 W of total electrical budget assignable dynamically
• PoE power pins: Power distribution via cables: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
• Long-range transmission: Supported natively on its copper interfaces (up to 250 meters at 10 Mbps)
• PoE range at 250 meters: Load capacity up to 40 W of stable injection power with Cat5e/Cat6 cable
• Switching capacity: 56 Gbps
• Packet Forwarding rate: 29.76 Mpps
• Internal packet buffer: 4.1 Mbit of dynamic buffer memory for peak mitigation
• MAC address table: 8000 logical entries (with self-learning and automatic aging)
• VLAN network segmentation: Integrated support for up to 4094 logical groups based on IEEE 802.1Q VLAN
• Virtual interfaces (VLAN): Support for up to 10 logical network interfaces
• L2 IP table capacity: Up to 512 entries in the dynamic ARP table (Dynamic ARP)
• Communication standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad
• Flow control mechanisms: Support for IEEE 802.3x Flow Control based on PAUSE frames (full-duplex)
• Link Aggregation: Advanced support for manual link aggregation (Static link aggregation) and static LACP
• Port Mirroring technology: Integrated support for interface mirroring in a multiple-to-one configuration
• Multicast services: IGMP Snooping for optimization and efficient distribution of IP video streams
• Basic IP services: DHCP Server, DHCP Client, and advanced DHCP-Snooping functions
• L2 network resilience: Support for Spanning Tree (STP/RSTP), loop protection, and ERPS ring protocol
• Cybersecurity ecosystem: IEEE 802.1x port-based network access control, ACL lists, and credential management
• Intelligent PoE functions: PoE power consumption management and autonomous PoE Watchdog engine
• Logical management interfaces: Web (HTTP and HTTPS protocols), Telnet, command interface (CLI), and standard SNMP v1/v2c/v3 protocol
• Housing material: High-mechanical-strength shielded metal housing (Metal Casing)
• Corrosion type: Structural resistance and tolerance certified for saline environments (Salt tolerance)
• Dissipation mechanism: Completely passive fanless design, based on a natural thermal convection system

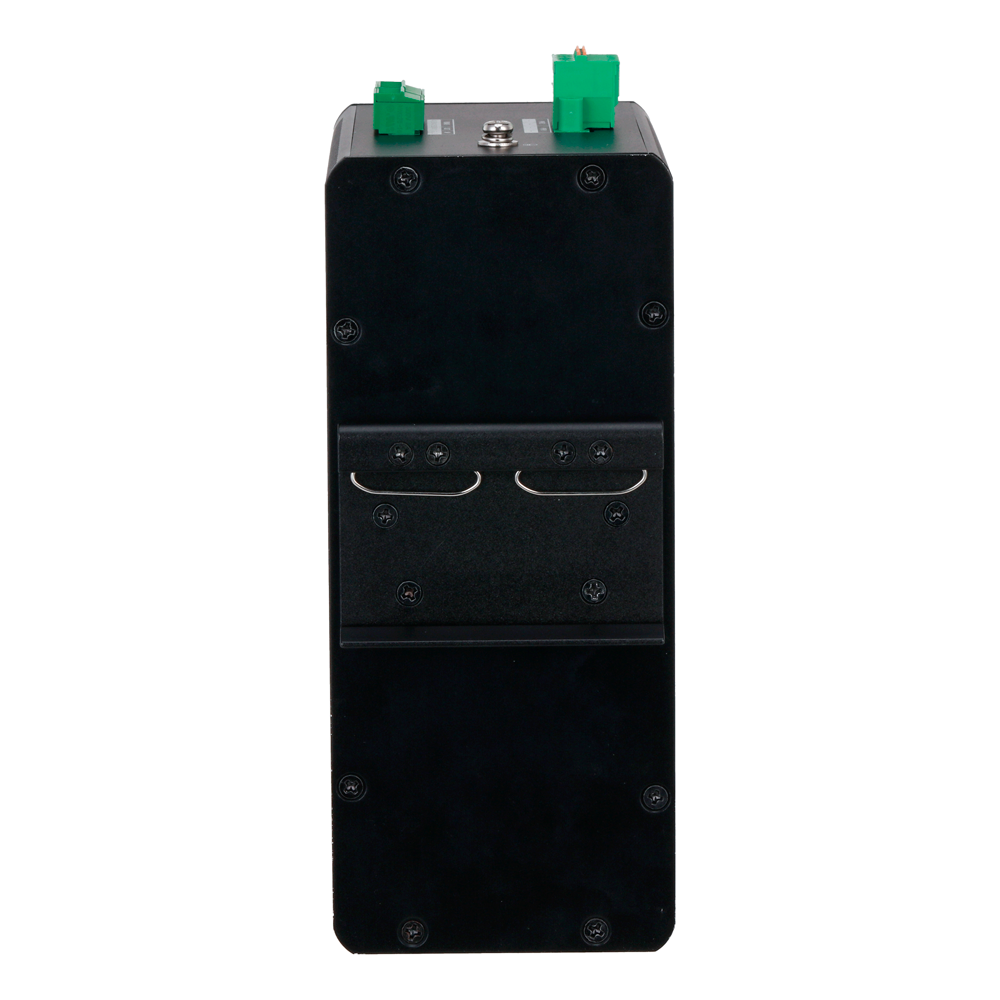

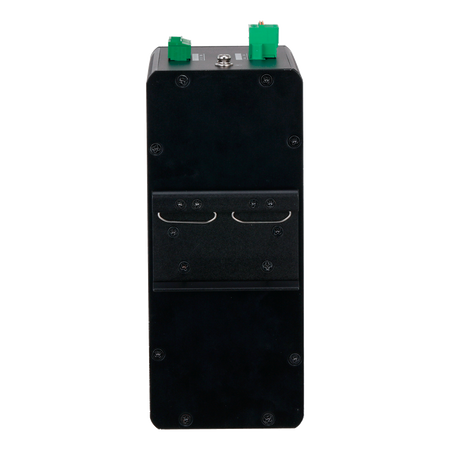

• Installation options: Standard DIN-rail mount for telecommunications or desktop installation
• Physical interface buttons: 1 × console debug port, 1 × software reset button
• Jumbo Frame size: 10 kByte maximum frame length supported for heavy traffic
• Hardware reliability: MTBF of 467,125.73 hours of continuous operation in harsh industrial environments
• Lightning protection: ESD Contact discharge: 6 kV / Air discharge: 8 kV
• Surge protection: Service interfaces (Telecom): ±6 kV in common mode / Power connector: ±4 kV common and ±2 kV differential
• Power input: External industrial terminal block for 53 V DC fixed voltage input
• Electrical power consumption: Base device consumption (Idling): ≤ 6 W / Absolute maximum consumption at full PoE load: 240 W
• Operating temperature: -40 °C to +75 °C (-40 °F to +167 °F), ideal for outdoor cabinets exposed to the weather
• Cooling system: Passive natural convection design (Fanless)
• Operating humidity: 5% to 95% RH (non-condensing in internal electronic circuits)
• Switch dimensions (L×W×H): 125.4 mm × 75.0 mm × 175.0 mm (slim vertical design to optimize space on the rail)
• Device net weight: 1.35 kg (2.98 lb)

📦 INCLUDED:
• 1x Industrial L2 Switch XS-SWI2016HIPOE-MGF-240-DIN
• 1x Kit of screw accessories for structural installations
• 1x Quick start guide and user manual
