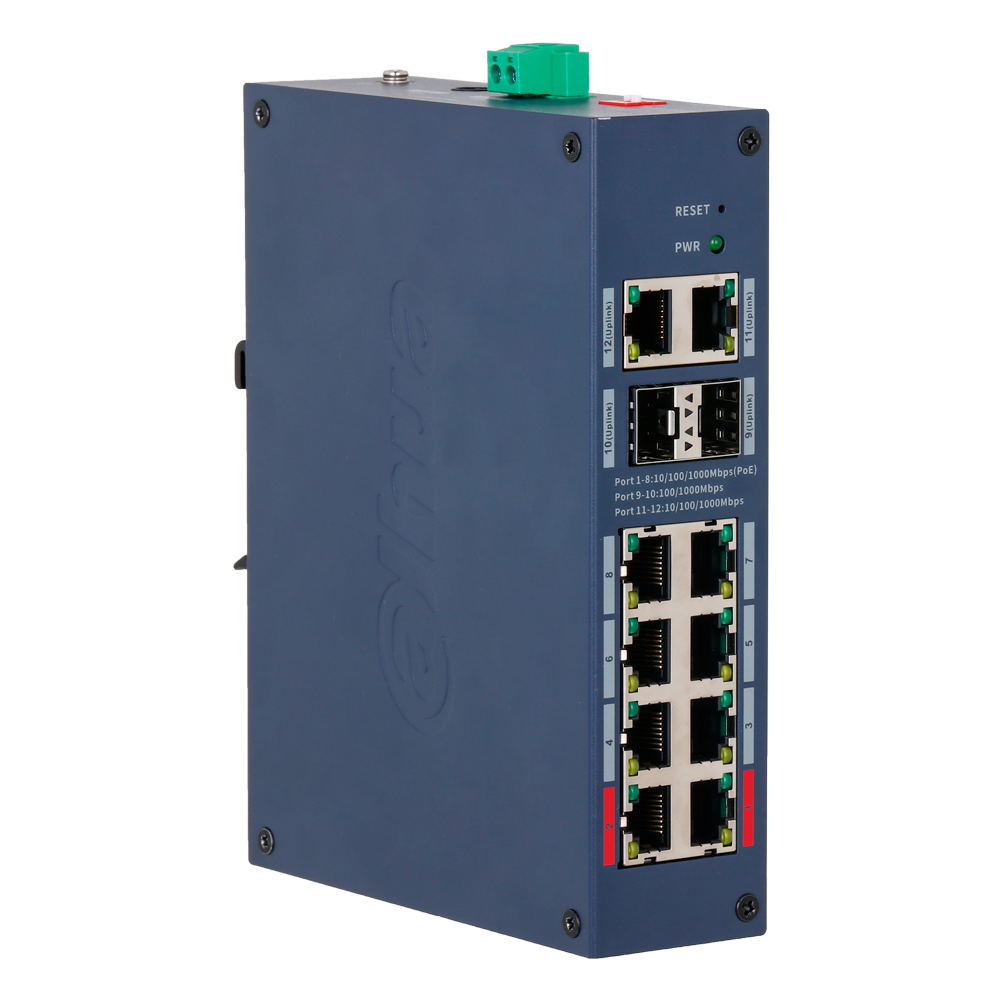

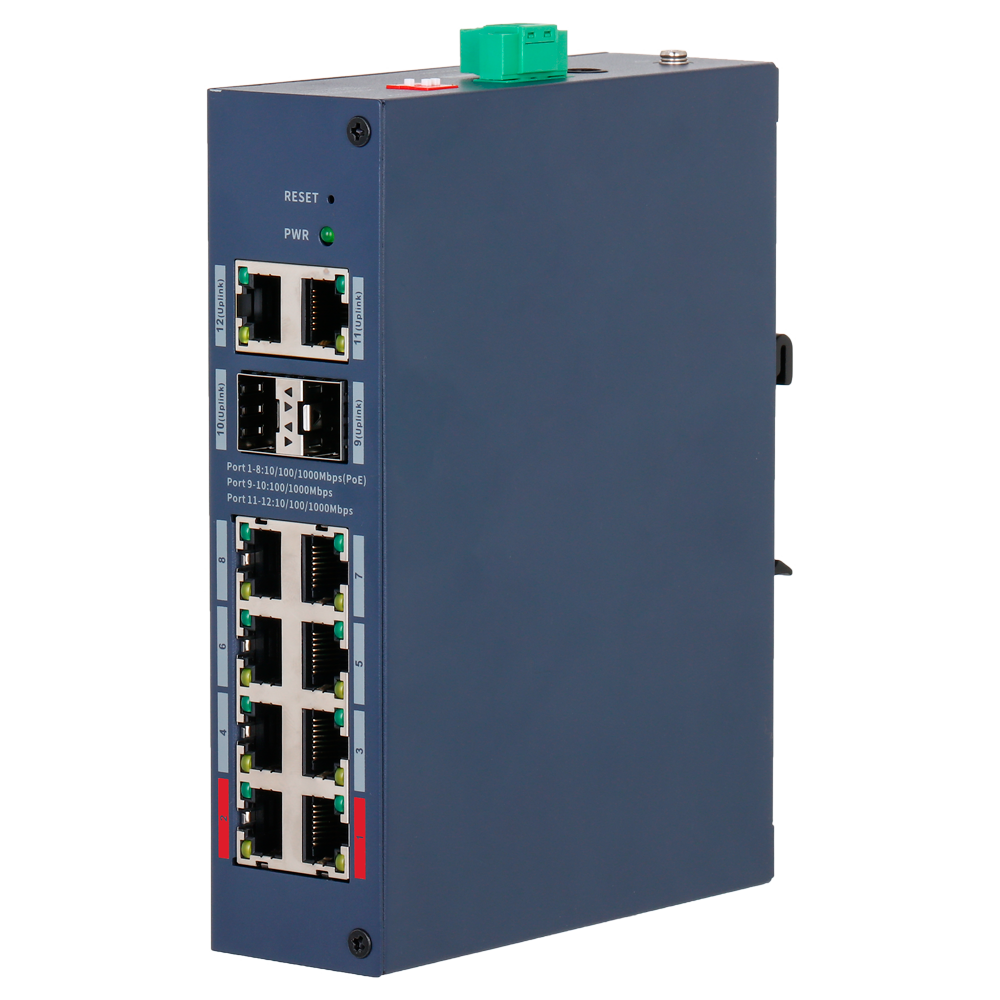

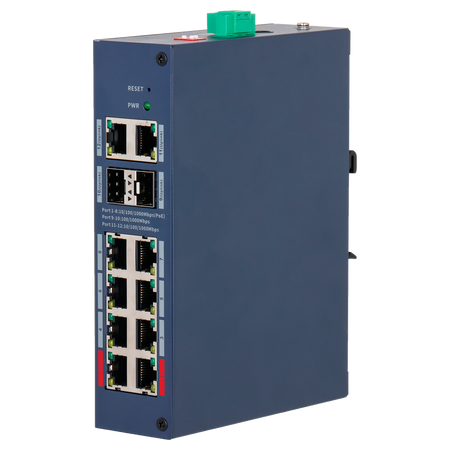

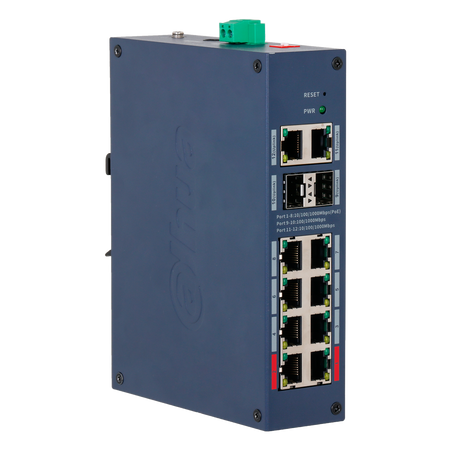

X-Security Hardened L2 Managed Switch - 12 Total Ports (8 PoE / 2 GE / 2 SFP)

X-Security Hardened L2 Managed Switch - 12 Total ports (8 PoE / 2 GE / 2 SFP) - Ultra-high power PoE++ supply up to 90W - High availability with PoE Watchdog engine - Operating temperature range from -30°C to +65°C - Advanced local management via web interface

📋 SPECIFICATIONS:
• Brand: X-Security
• Product category: Reinforced industrial-grade perimeter managed switch (Layer 2)

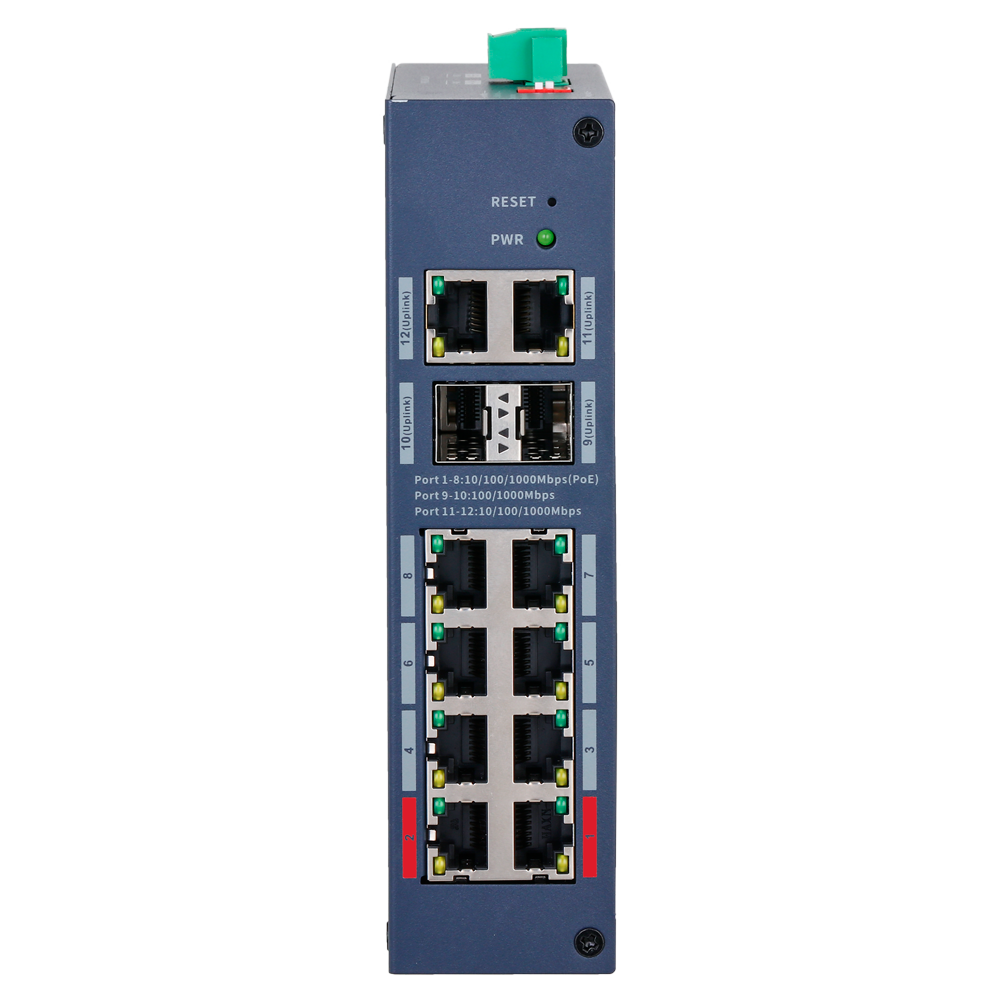

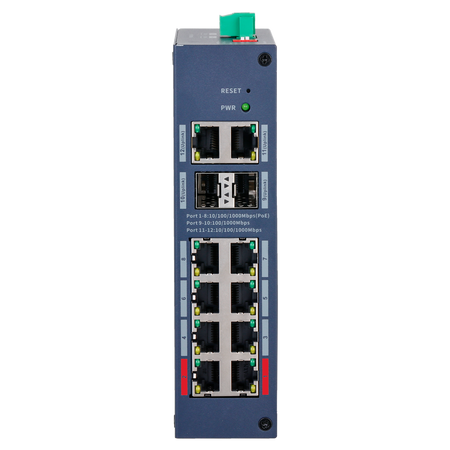

• Copper PoE interfaces: 8 × 10/100/1000 Mbps RJ-45 Gigabit compatible with intelligent perimeter distribution
• Uplink copper interfaces: 2 × 10/100/1000 Mbps RJ-45 Gigabit data ports for independent uplink connections
• Fiber Uplink interfaces: 2 × 100/1000 Mbps SFP (independent logical slots for optical fiber)
• Supported PoE standards: Native IEEE 802.3af (PoE), IEEE 802.3at (PoE+), Hi-PoE, and IEEE 802.3bt (PoE++)
• PoE port distribution: Ports 1 and 2: Support PoE++ up to 90 W / Ports 3 to 8: Support PoE+ up to 30 W
• Net PoE power: 110 W of total power budget dynamically assignable
• PoE power pins: Power distribution via cables: 1, 2, 4, 5 (V+) and 3, 6, 7, 8 (V-)

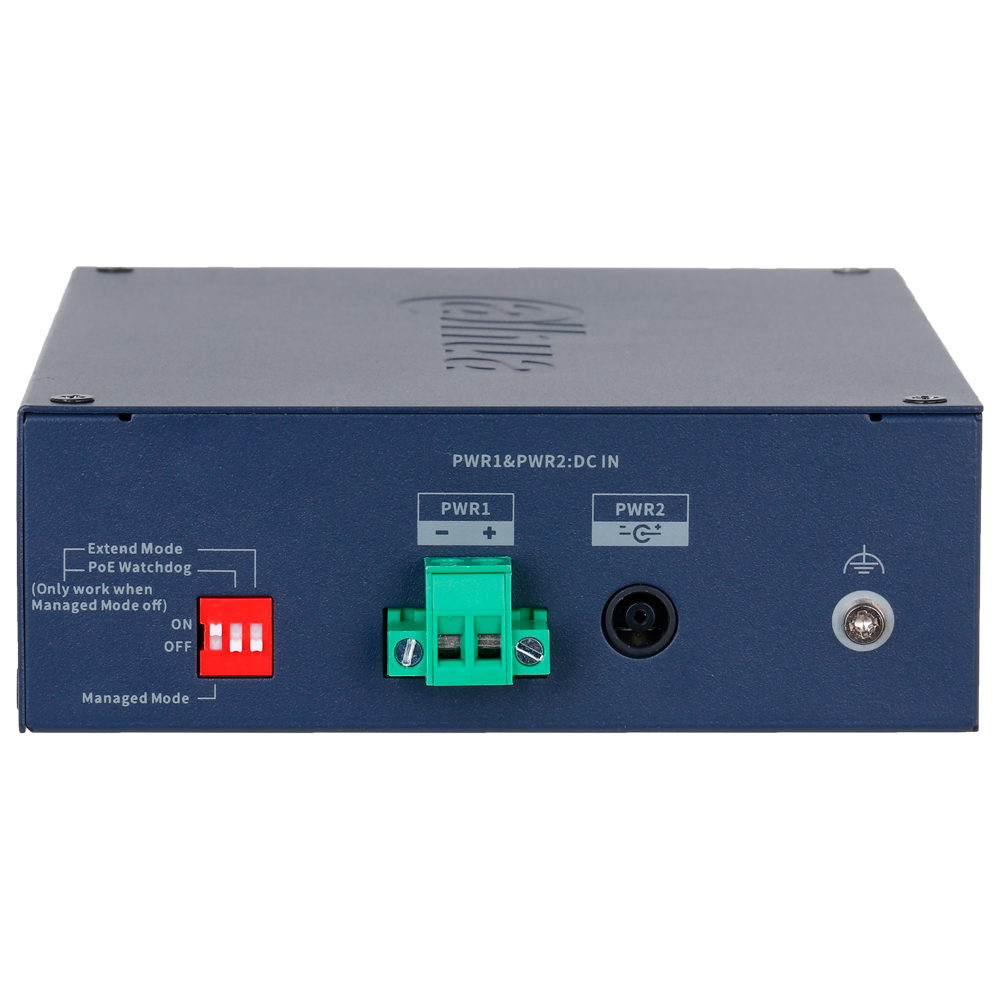

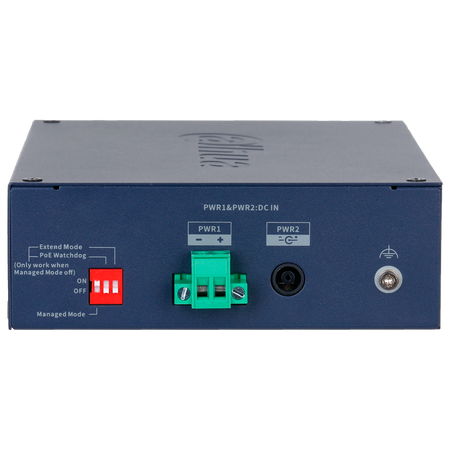

• Hardware modes (DIP Switch): Managed mode (local or remote Web) / Extend mode (250m at 10 Mbps) / PoE Watchdog (automatic reboot)
• Long-range transmission: Supported natively on copper ports 1 to 8 (up to 250 meters with Cat5e cable)
• Switching capacity: 24 Gbps
• Packet Forwarding Rate: 17.856 Mpps
• Internal packet buffer: 8.4 Mbit dynamic buffer memory for peak mitigation
• MAC address table: 8000 enterprise entries (with auto-learning and auto-aging function)
• L2 IP table capacity: Up to 10 entries in the dynamic ARP table
• VLAN network segmentation: Built-in support for up to 32 logical groups based on Port-based VLAN
• Communication standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3ad
• Flow control mechanisms: Native support for IEEE 802.3x Flow Control (interface flow control)
• Network mitigation and control: Unknown unicast packet suppression, multicast and broadcast storm control, auto-loop detection
• Link Aggregation: Advanced support for manual range link aggregation (Static Aggregation)
• Mirror technology: Local Port Mirroring support for traffic and interface analysis
• Intelligent PoE functions: PoE power consumption management, per-port power on/off, Green PoE, overload shutdown
• Cybersecurity ecosystem: Port isolation mechanism, IP/Port/MAC binding, MAC+Port binding, credential-based control
• Management platforms: Web Management local management environment, LLDP protocol, DHCP Client
• Housing material: High mechanical strength iron casing
• Physical protection ratings: IP30 dust ingress protection and IK06 mechanical impact protection
• Dissipation mechanism: Completely passive fanless design, based on a natural thermal convection system

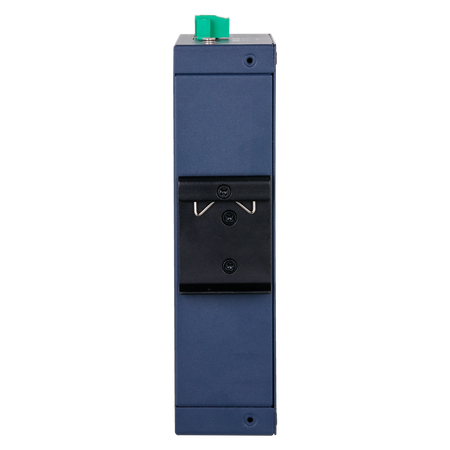

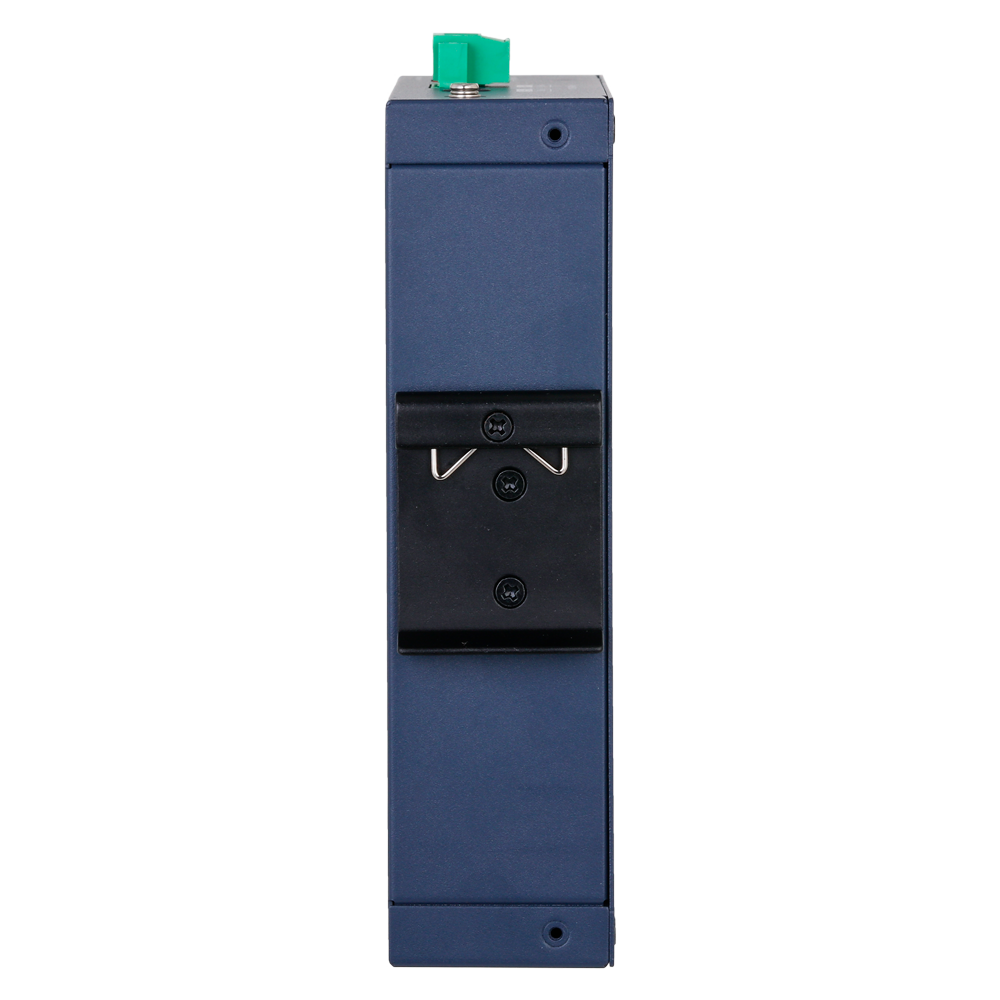

• Installation options: Standard DIN rail mount for telecommunications or desktop installation
• Physical interface buttons: 1 × Software Reset button integrated into the panel, log recording and history system
• Hardware reliability: MTBF of 810,020 hours of continuous operation in harsh industrial environments
• Jumbo Frame size: 12288 maximum allowable frame length in bytes for heavy traffic
• Lightning protection: ESD Contact electrostatic discharge: 6 kV / Air discharge: 8 kV
• Surge protection: Service interfaces (Telecom): ±4 kV in common mode and ±2 kV in differential mode
• Power Input: Dual external input (terminal block and DC connector): 48-57 VDC (rated current: 2.5 A to 2.1 A)
• Electricity consumption: Base standby consumption (Idling): 2 W / Absolute maximum consumption at full PoE load: 117.2 W
• Operating temperature: From –30 °C to +65 °C (–22 °F to +149 °F), ideal for outdoor cabinets exposed to weather
• Operating humidity: 10% to 90% RH (non-condensing in internal electronic circuits)
• Switch dimensions (L×W×H): 171.8 mm × 139.4 mm × 42 mm (Narrow vertical format to optimize space in the rack)
• Net device weight: 0.66 kg (1.46 lb)

📦 INCLUDED:
• 1x XS-SWI1208HIPOE-MGF-110-DIN Industrial L2 Switch
• 1x External power supply
• 1x Compatible AC power cable
• 1x Industrial terminal block
• 1x Quick start guide and user manual
• 1x Legal and regulatory compliance information document
