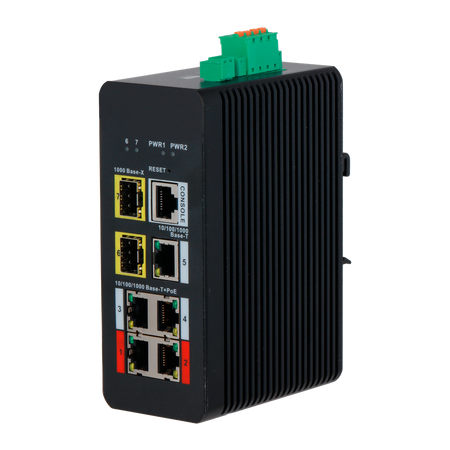

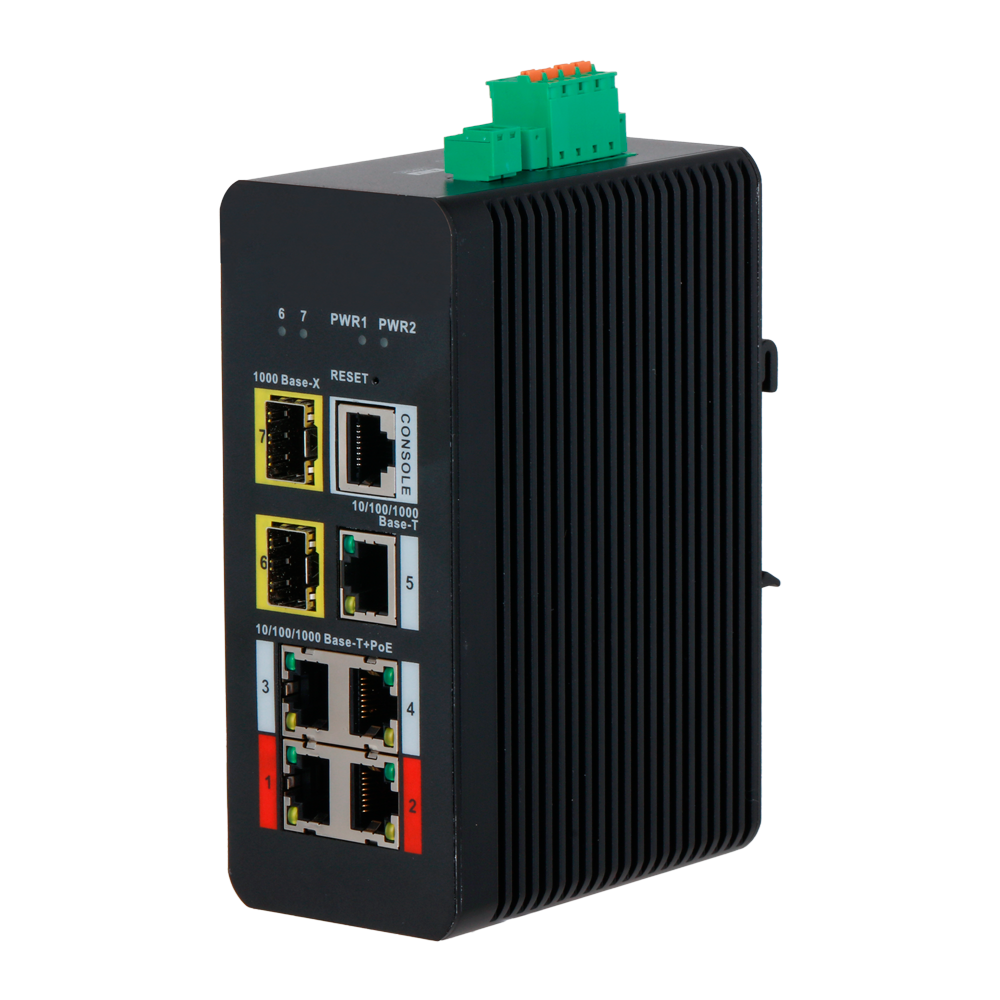

X-Security Industrial L2 Managed Switch - 7 Total Ports (4 PoE GE / 1 GE / 2 SFP)

X-Security Industrial L2 Managed Switch - 7 Total ports (4 PoE GE / 1 GE / 2 SFP) - Ultra-high power PoE++ supply up to 90W - High availability with ERPS ring support - Extreme thermal tolerance from -40°C to +75°C - Advanced local management via web interface

📋 SPECIFICATIONS:
• Brand: X-Security
• Product category: Industrial-grade Layer 2 managed perimeter access switch

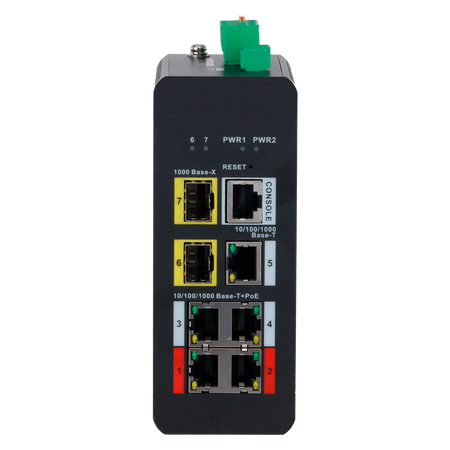

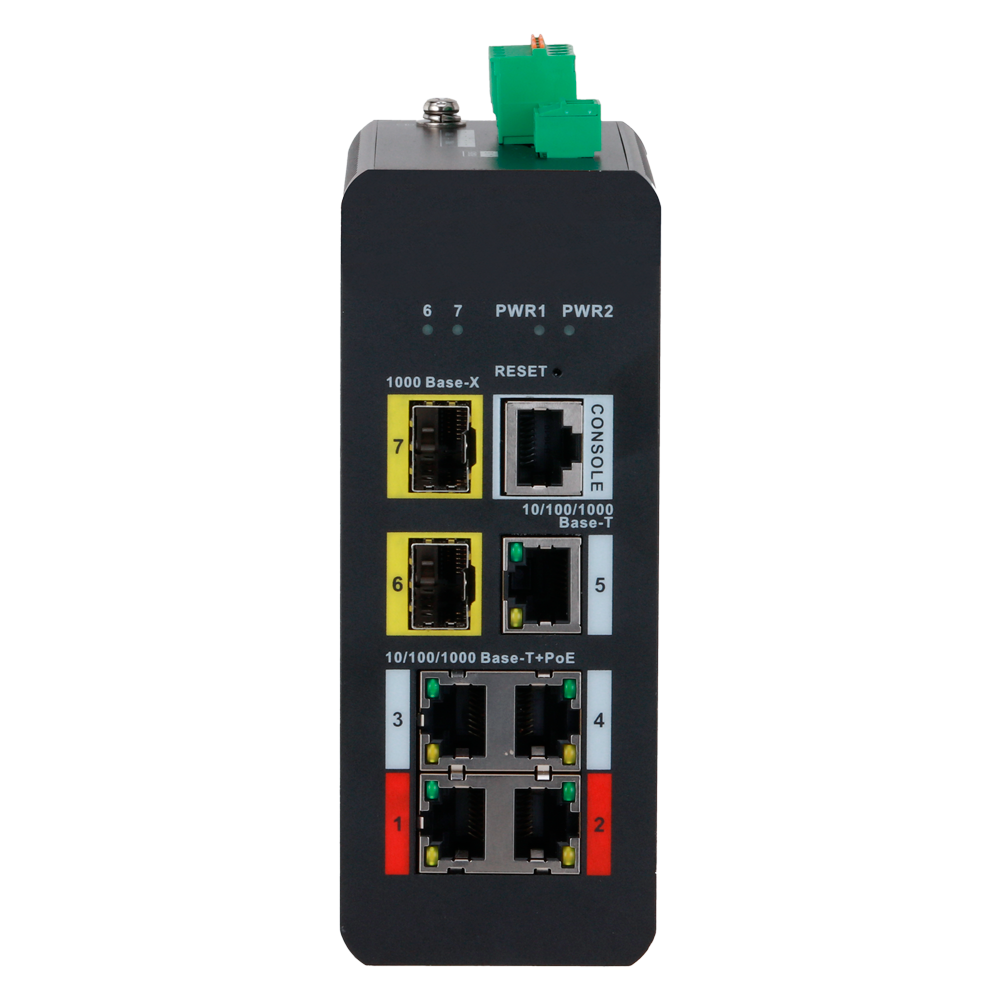

• Fixed copper interfaces: 5 × 10/100/1000 Mbps RJ-45 Gigabit (ports 1 to 4 with PoE support)
• Fiber Uplink interfaces: 2 × 1000 Mbps SFP (independent logical slots for optical fiber)
• Supported PoE standards: Native IEEE 802.3af (PoE), IEEE 802.3at (PoE+), Hi-PoE, and IEEE 802.3bt (PoE++)
• PoE port distribution: Ports 1 and 2: Support PoE++ up to 90 W / Ports 3 and 4: Support PoE+ up to 30 W
• Net PoE power: 120 W total power budget dynamically assignable
• PoE power pins: Power distribution via cables: 1, 2, 4, 5 (V+) and 3, 6, 7, 8 (V-)
• Long-range transmission: Supported natively on its copper interfaces (up to 250 meters at 10 Mbps)
• PoE range at 250 meters: Load capacity up to 40 W stable power injection with Cat5e/Cat6 cable
• Switching capacity: 14 Gbps
• Packet Forwarding Rate: 10.42 Mpps
• Internal packet buffer: 4.1 Mbit dynamic buffer memory for peak mitigation
• MAC address table: 8000 logical entries (with self-learning and automatic aging)
• VLAN network segmentation: Integrated support for up to 4094 logical groups based on IEEE 802.1Q VLAN
• Virtual interfaces (VLAN): Support for up to 10 logical network interfaces
• L2 IP table capacity: Up to 512 entries in the dynamic ARP table (Dynamic ARP)
• Communication standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad
• Flow control mechanisms: Support for IEEE 802.3x Flow Control based on PAUSE frames (full-duplex)
• Link Aggregation: Advanced support for static link aggregation and static LACP
• Port Mirroring technology: Integrated support for interface mirroring in multiple-to-one configuration
• Multicast services: IGMP Snooping for optimization and efficient distribution of IP video streams
• Basic IP services: Integrated DHCP client for automatic address assignment
• L2 network resilience: Spanning Tree (STP/RSTP) support, loop protection, and ERPS ring protocol
• Cybersecurity ecosystem: IEEE 802.1x port-based network access control and user management via credentials
• Smart PoE functions: PoE power consumption management and autonomous PoE Watchdog engine
• Logical management interfaces: Web (HTTP and HTTPS protocols), Telnet, command-line interface (CLI), and standard SNMP v1/v2c/v3 protocols
• Casing material: High mechanical strength shielded metal housing (Metal Casing)
• Corrosion type: Resistance and structural tolerance certified for saline environments (Salt tolerance)
• Dissipation mechanism: Completely passive fanless design based on a natural thermal convection system

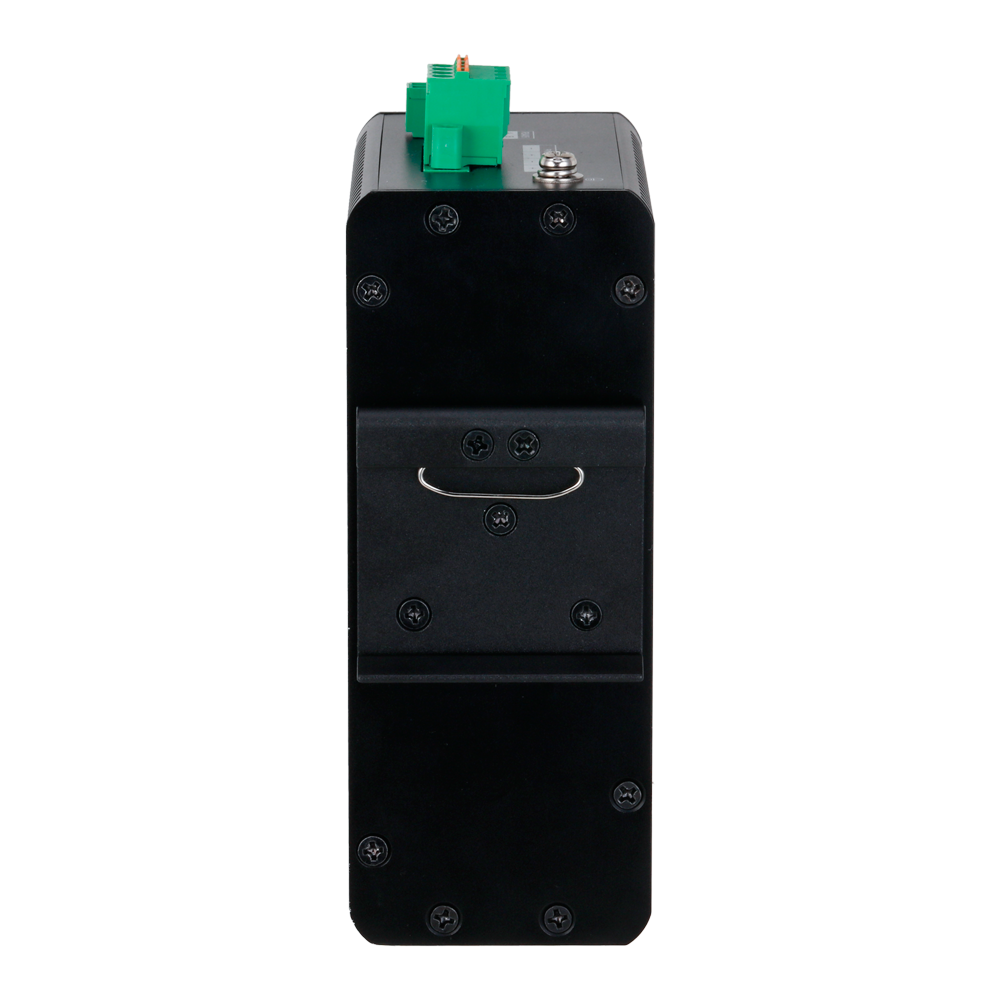

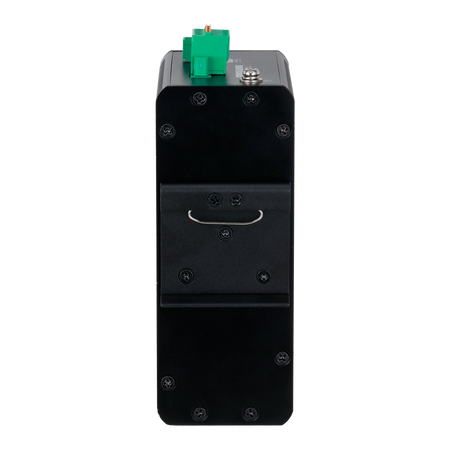

• Installation options: DIN-rail mount (telecom standard) or desktop installation
• Physical interface buttons: 1 × console debug port, 1 × software reset button
• Jumbo Frame size: 10K bytes maximum frame length supported for heavy traffic
• Hardware reliability: MTBF of 1,068,152.05 hours of continuous operation in harsh industrial environments
• Lightning protection: ESD Contact discharge: 6 kV / Air discharge: 8 kV
• Surge protection: Service interfaces (Telecom): ±6 kV in common mode / Power connector: ±4 kV common and ±2 kV differential
• Power input: External industrial terminal block for fixed 53 V DC voltage input
• Power consumption: Device base consumption (Idling): ≤ 6 W / Absolute maximum consumption at full PoE load: 120 W
• Operating temperature: From –40 °C to +75 °C (–40 °F to +167 °F), ideal for outdoor cabinets exposed to the elements
• Cooling system: Passive natural convection design (Fanless)
• Operating humidity: 5% to 95% RH (non-condensing on internal electronic circuits)
• Switch dimensions (L×W×H): 94.4 mm × 53.5 mm × 135 mm (narrow vertical design to optimize rail space)
• Device net weight: 0.65 kg (1.43 lb)

📦 INCLUDED:
• 1x XS-SWI0704HIPOE-MGF-120-DIN industrial L2 switch• 1x Screw accessory kit for structural installations• 1x Quick start guide and user manual
