Managed L2 switch with 8x RJ45 and 2x Uplink X-Security

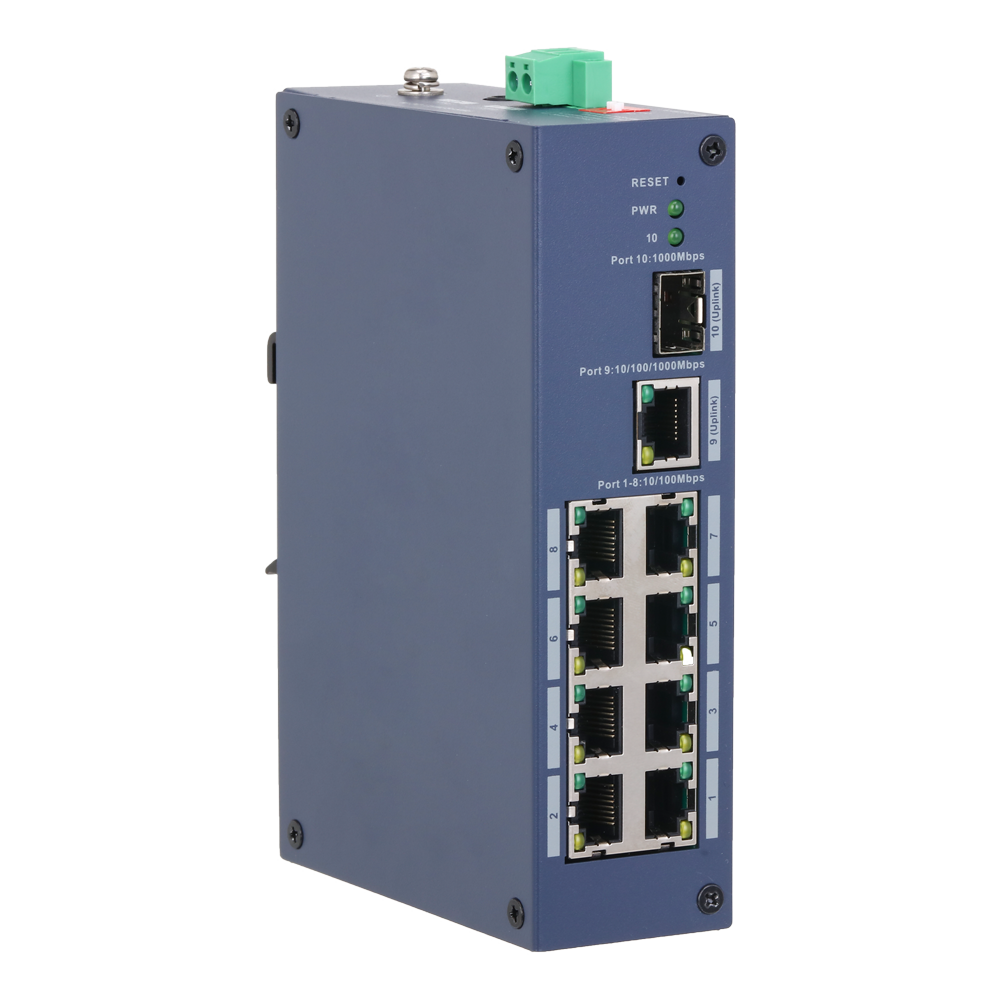

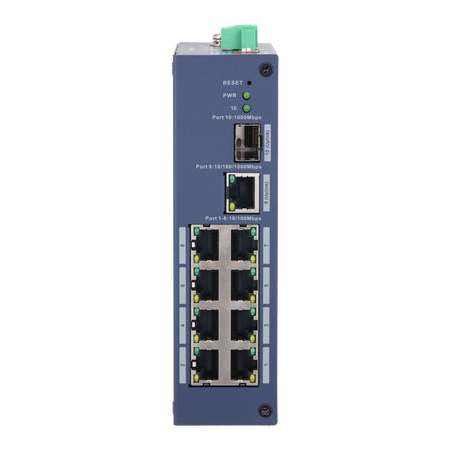

Managed L2 switch with 8x RJ45 and 2x Uplink X-Security
Regular price
€106,07
Final price
Regular price
-9%
€116,00
Sale price
€106,07
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

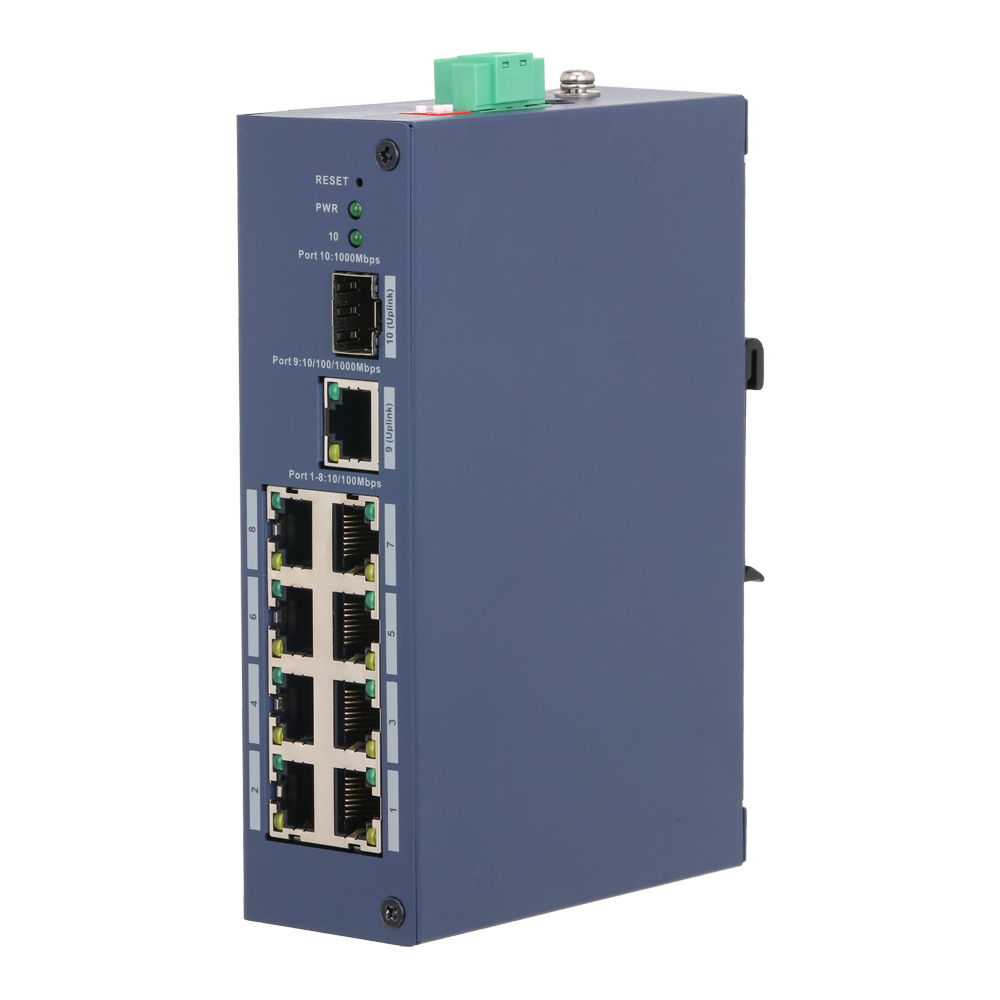

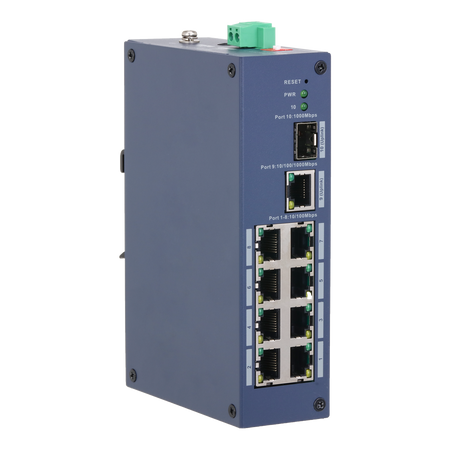

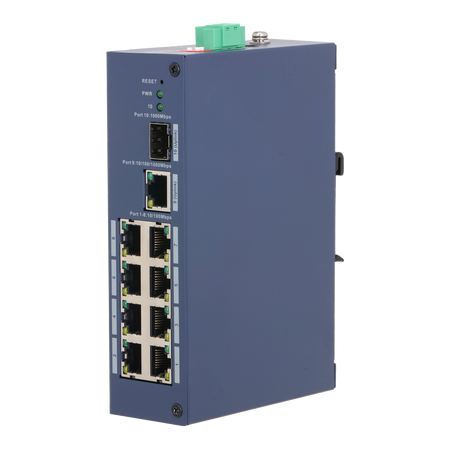

Managed L2 switch with 8x RJ45 and 2x Uplink - 8 local network ports at 10/100 Mbps - Dual uplink: 1x Gigabit RJ45 and 1x Gigabit SFP - Dual management via web interface and cloud - Physical port isolation via hardware - Managed or Plug&Play mode
📋 SPECIFICATIONS:
• Product category: Industrial managed Layer 2 (L2) switch

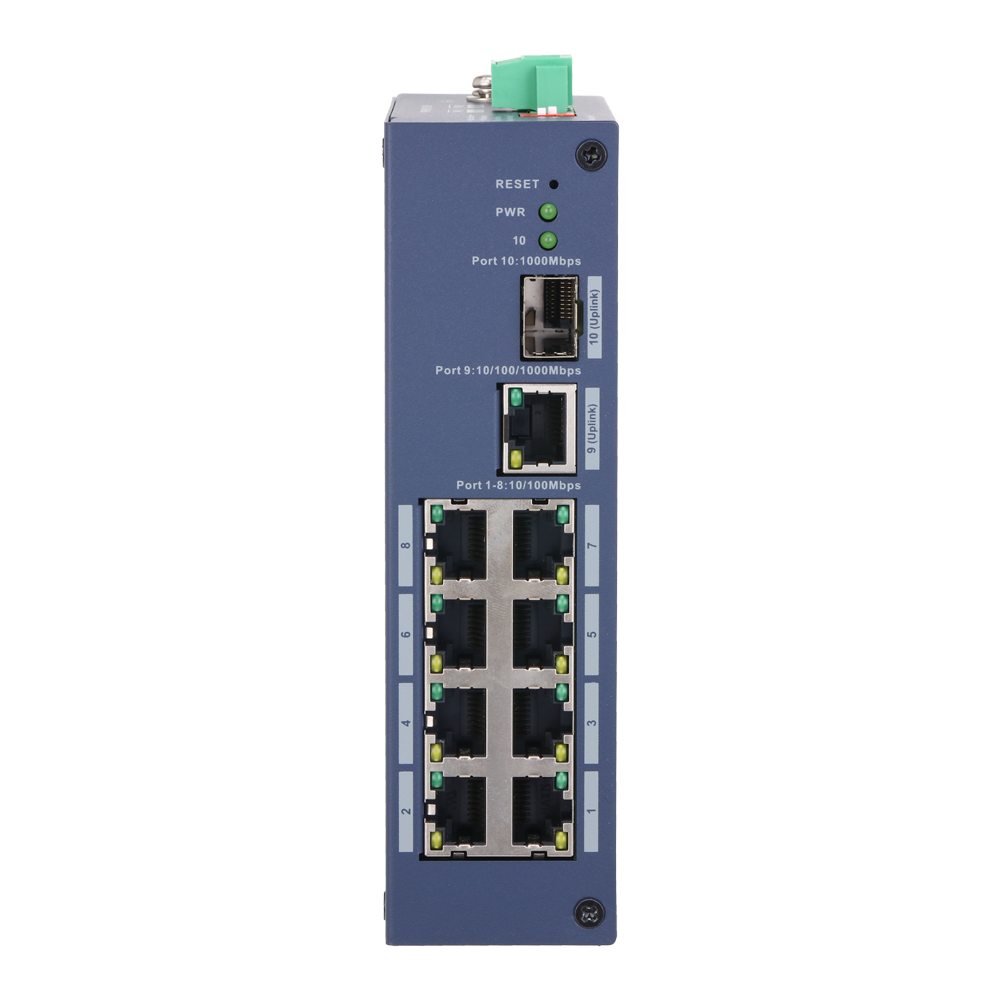

• Access interfaces: 8 × RJ-45 10/100 Mbps (Ports 1 to 8)
• Uplink interfaces: 1 × RJ-45 10/100/1000 Mbps + 1 × 1000 Mbps modular SFP slot
• Network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
• Switching capacity: 5.6 Gbps internal switching matrix
• Data transmission speed: 4.17 Mpps (Packet Forwarding Rate)
• MAC address table: 8000 independent logical entries
• Internal data buffer: 4 Mbit packet buffer memory
• Jumbo Frame size: Supports large frames up to 9216 bytes
• Network segmentation: Support for port-based VLANs up to 32 networks
• Port features: IEEE 802.3x flow control and unknown unicast suppression
• Layer 2 security: Hardware-level port isolation, storm control, and self-loop detection
• Mirroring functions: Local port mirroring with N:1 replication schemes
• HW DIP settings: DIP 1: Managed/Unmanaged Mode / DIP 2: Port Isolation (1-8 isolated) / DIP 3: Storm Control
• Device management: Local web administration, cloud management, logs, and error alerts
• Recovery tools: 1 × Physical factory reset button
• Structure and materials: Shielded housing made entirely of iron
• Protection ratings: Industrial IP30 rating and IK06 mechanical resistance grade
• Electrostatic protection: Air discharge: 8 kV / Contact discharge: 6 kV
• Lightning protection: Common mode: 4 kV / Differential mode: 2 kV

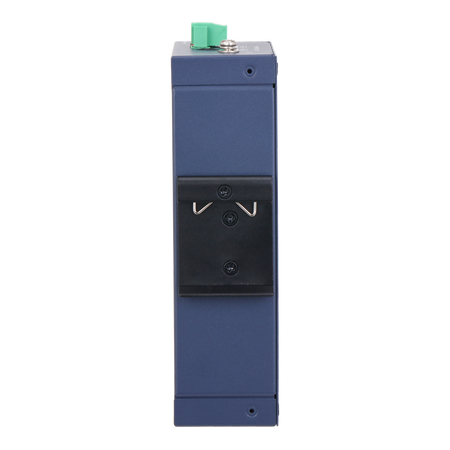

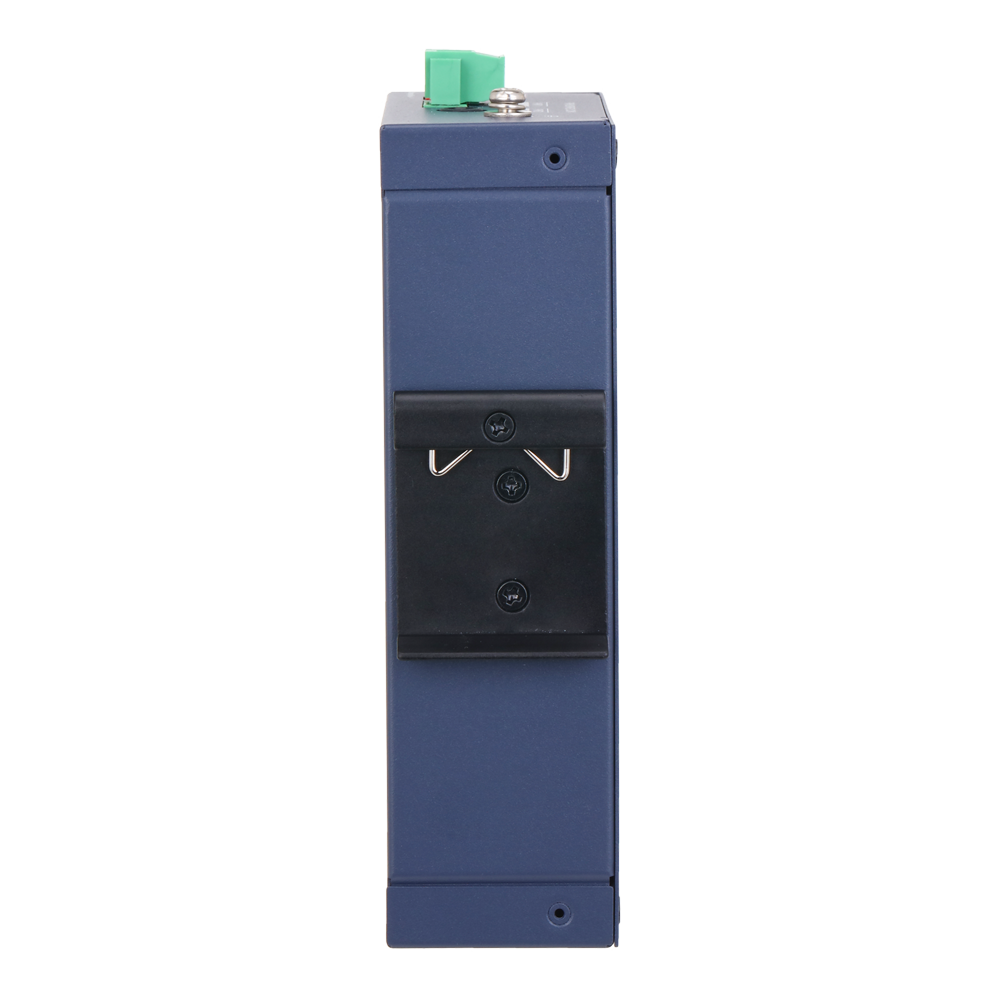

• Installation options: Dual support for DIN rail mount or desktop mount
• Hardware reliability: Ultra-high MTBF of 1,998,124.96 hours of continuous operation
• Power input: Dual external power supply (Terminal Block and DC jack): 12 VDC, 1 A
• Net power consumption: Idling: 1.2 W / Full load: 2.9 W
• International certifications: Strict compliance with CE regulations
• Operating temperature: Operating range from –30 °C to +65 °C
• Cooling system: Passive natural convection design (Fanless)
• Operating humidity: 10% to 90% RH (non-condensing)
• Chassis dimensions: 154.4 mm × 110.4 mm × 42 mm (Length × Width × Height)
• Net weight of device: 0.4 kg (0.88 lb) / Gross weight with packaging: 0.67 kg (1.48 lb)
📦 INCLUDED:
• 1x XS-SW4GE1GE1SFP-MGD Managed L2 Industrial Switch • 1x Power adapter • 1x Terminal Block • 1x User manual and quick setup guide
| Product Category | Layer 2 managed industrial switch (L2 Managed Switch) |
|---|---|
| Access Interfaces | 8 × RJ-45 10/100 Mbps (Ports 1 to 8) |
| Uplink Interfaces | 1 × RJ-45 10/100/1000 Mbps + 1 × 1000 Mbps SFP modular slot |
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z |
| Switching Capacity | 5.6 Gbps internal switching fabric |
| Data Transmission Rate | 4.17 Mpps (Packet Forwarding Rate) |
| MAC Address Table | 8000 independent logical entries |
| Internal Data Buffer | 4 Mbit packet buffer memory |
| Jumbo Frame Size | Supports large frames up to 9216 bytes |
| Network Segmentation | Port-based VLAN support for up to 32 networks |
| Port Features | IEEE 802.3x flow control and unknown unicast suppression |
| Layer 2 Security | Hardware-level port isolation, storm control, and loop detection (Self-loop) |
| Mirroring Functions | Local port mirroring with N:1 replication schemes |
| HW DIP Settings | DIP 1: Managed/Unmanaged Mode / DIP 2: Port Isolation (1-8 isolated) / DIP 3: Storm Control |
| Device Management | Local web administration, cloud management, logs, and error alerts |
| Reset Tools | 1 × physical factory reset button |
| Structure and Materials | Fully shielded iron housing |
| Protection Ratings | IP30 industrial rating and IK06 mechanical resistance grade |
| Electrostatic Protection | Air discharge: 8 kV / Contact discharge: 6 kV |
| Lightning Protection | Common mode: 4 kV / Differential mode: 2 kV |
| Installation Options | Dual support for DIN rail mounting or desktop mounting |
| Hardware Reliability | Ultra-high MTBF of 1,998,124.96 hours of continuous operation |
| Power Input | Dual external power supply (terminal block and DC jack): 12 VDC, 1 A |
| Net Power Consumption | Idling: 1.2 W / Full load: 2.9 W |
| International Certifications | Strict compliance with CE regulations |
| Operating Temperature | Operating range from –30 °C to +65 °C |
| Cooling System | Passive natural convection design (Fanless) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Chassis Dimensions | 154.4 mm × 110.4 mm × 42 mm (Length × Width × Height) |
| Net Weight | 0.4 kg (0.88 lb) / Gross weight with packaging: 0.67 kg (1.48 lb) |
