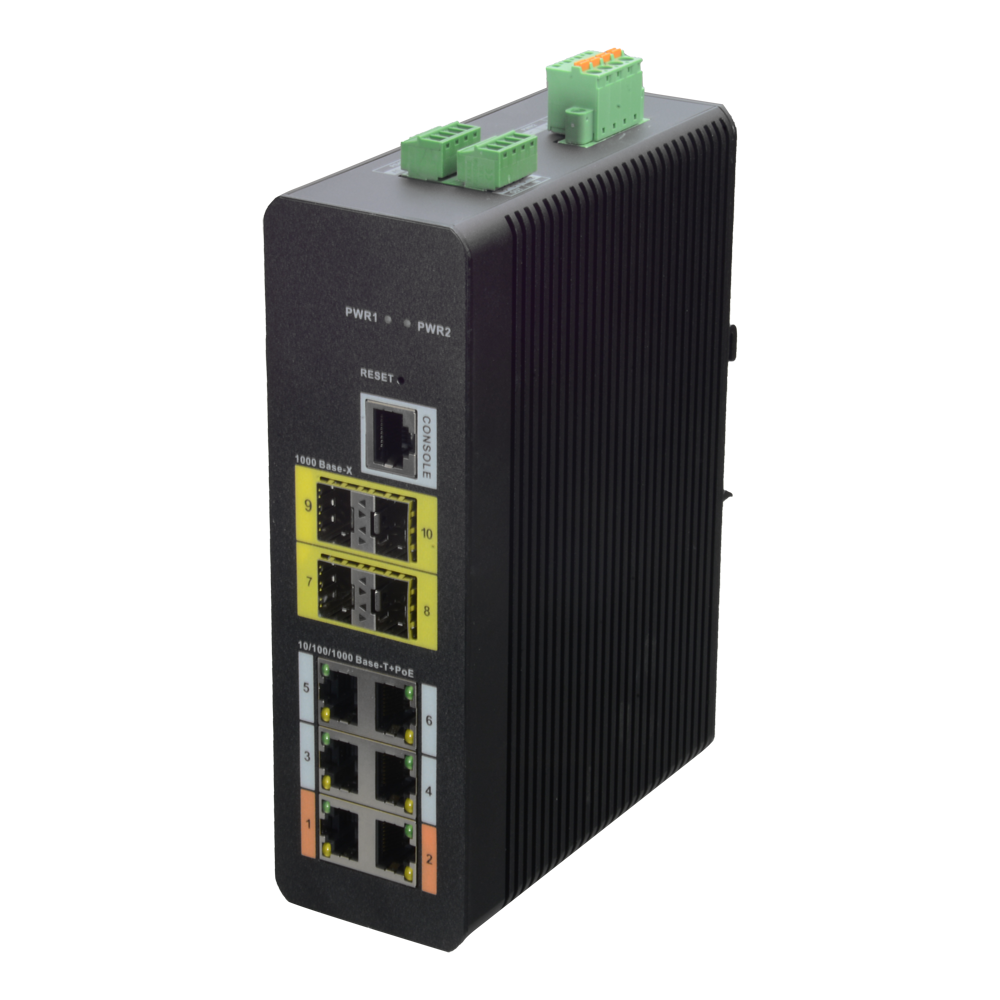

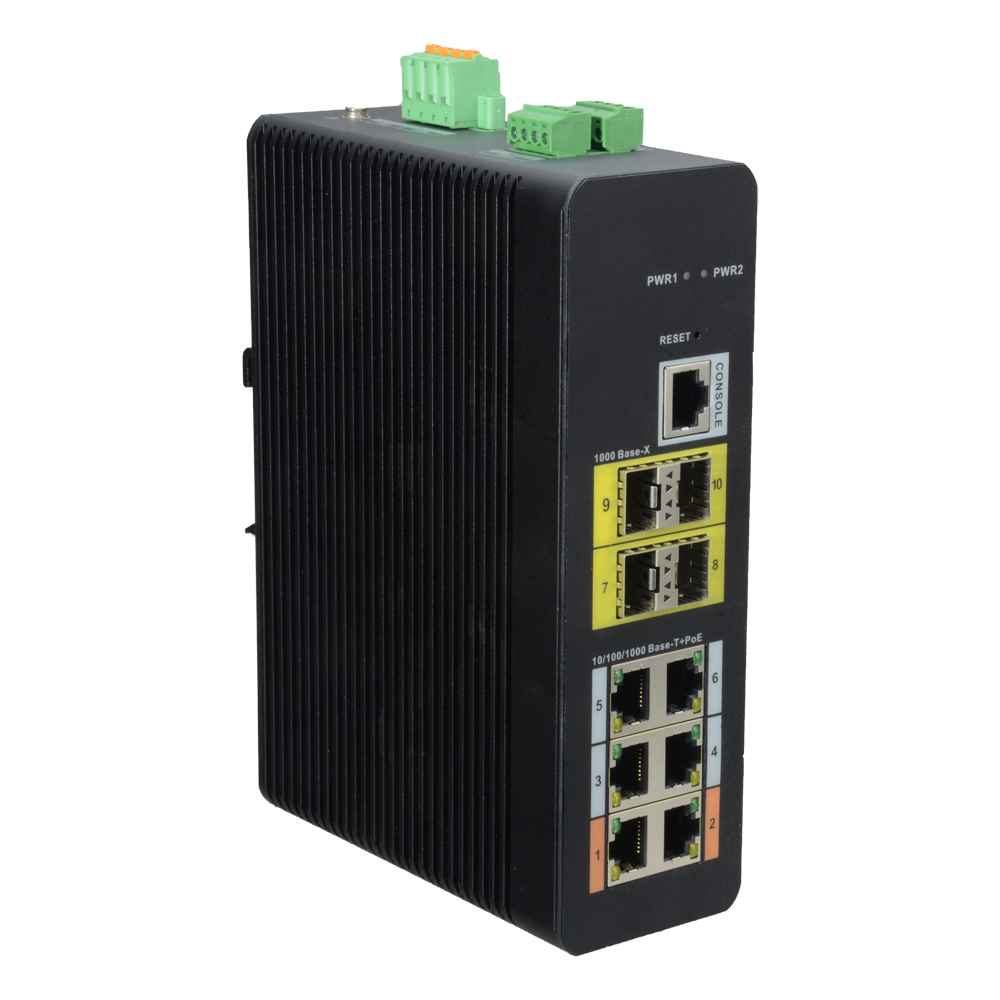

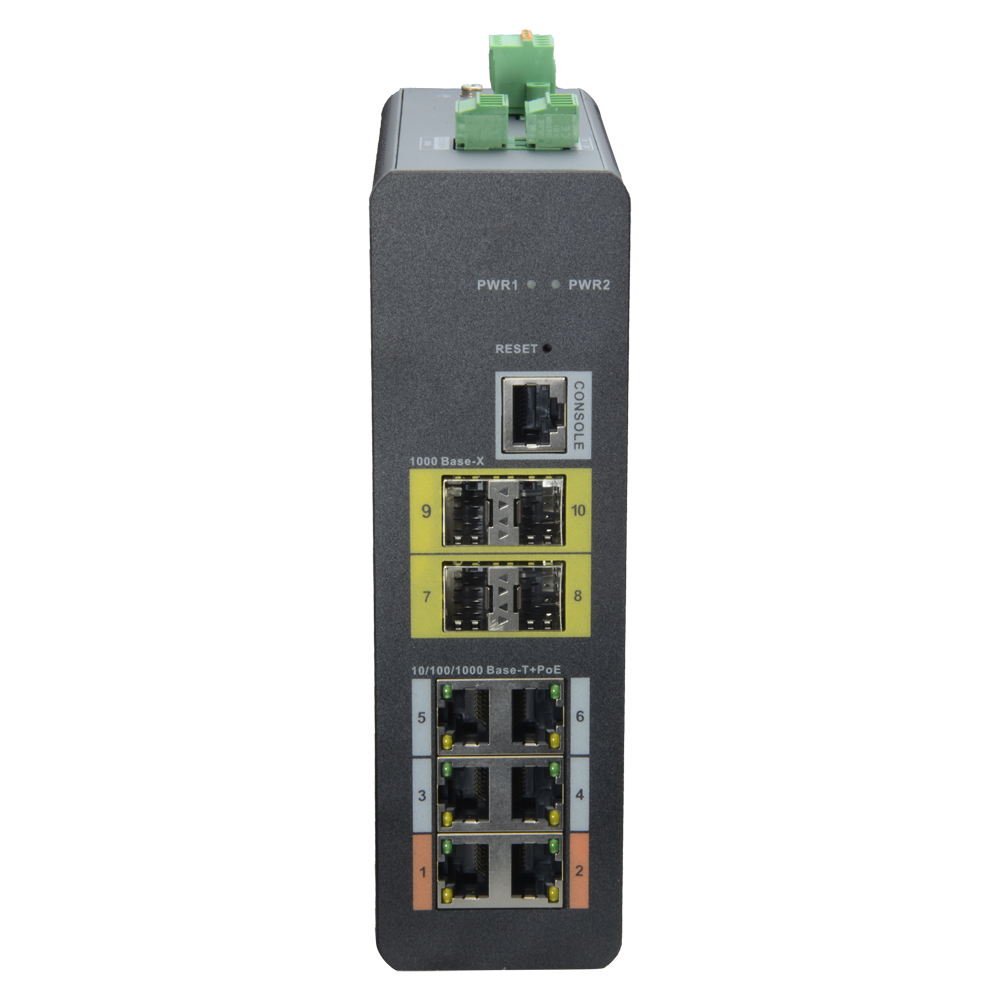

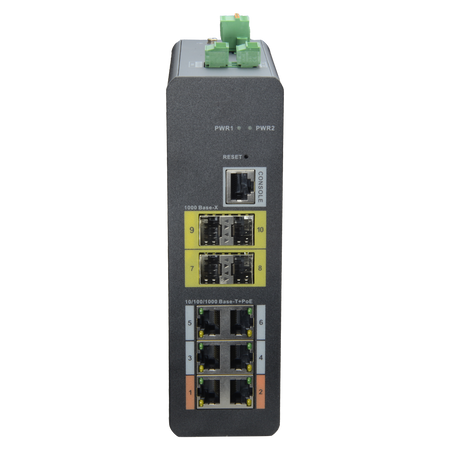

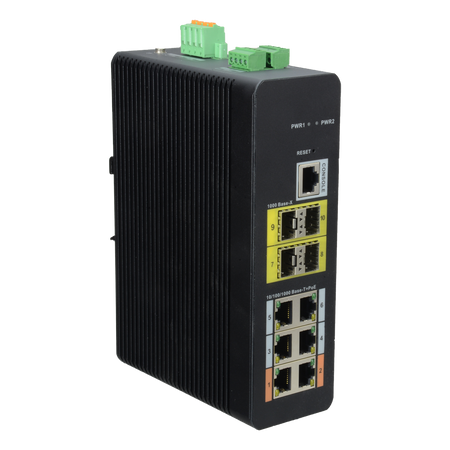

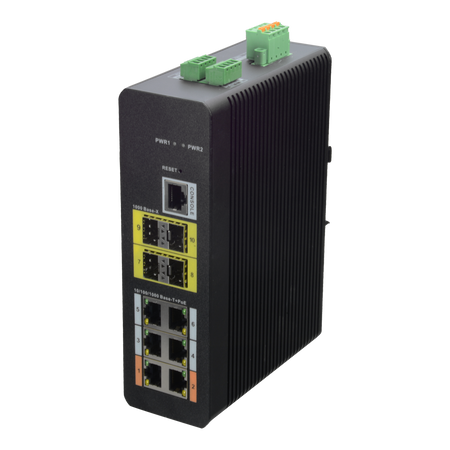

X-Security Industrial L2 Managed Switch - 10 total ports (6 PoE GE / 4 Uplink 1G SFP)

X-Security Industrial L2 Managed Switch - 10 total ports (6 PoE GE / 4 Uplink 1G SFP) - Ultra-high power PoE++ supply up to 90W - High availability with ERPS ring support - Extreme thermal tolerance from -40°C to +75°C - Advanced local management via web interface

📋 SPECIFICATIONS:
• Brand: X-Security
• Product category: Industrial-grade edge access managed switch (Layer 2 / Version V2.0)
• Copper PoE interfaces: 6 × 10/100/1000 Mbps RJ-45 Gigabit compatible with intelligent edge distribution
• Fiber Uplink interfaces: 4 × 1000 Mbps SFP (independent logic slots for fiber optic)
• Supported PoE standards: Native IEEE 802.3af (PoE), IEEE 802.3at (PoE+), Hi-PoE, and IEEE 802.3bt (PoE++)
• PoE port distribution: Ports 1 and 2: Support PoE++ up to 90 W / Ports 3 to 6: Support PoE+ up to 30 W
• Net PoE power: 120 W total electrical budget dynamically assignable
• PoE power pins: Power distribution via cables: 1, 2, 4, 5 (V+) and 3, 6, 7, 8 (V-)
• Hardware modes (DIP Switch): Managed mode (Web local) / Extend mode (250m at 10 Mbps) / PoE Watchdog (Auto-restart)
• Long-range transmission: Natively supported on copper ports 1 to 6 (up to 250 meters with Cat5e/Cat6 cable)
• PoE range at 250 meters: Load capacity up to 40 W of stable power, maintaining 10 Mbps bandwidth
• Switching capacity: 28 Gbps
• Packet Forwarding Rate: 14.88 Mpps
• Internal packet buffer: 4 Mb dynamic buffer memory for peak mitigation
• MAC address table: 8000 enterprise entries (with auto-learning and auto-aging function)
• VLAN network segmentation: Integrated support for up to 4094 logical groups based on IEEE 802.1Q VLAN
• Communication standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad
• Flow control mechanisms: Native support for full-duplex flow control based on PAUSE frames and back pressure
• Link Aggregation: Advanced support for manual link aggregation (Static link aggregation) and static LACP
• Port Mirroring technology: Integrated support for multiple-to-one interface mirroring
• L2 network resilience: Spanning Tree support (STP/RSTP/MSTP), loop protection, and ERPS ring protocol
• Integrated IP services: DHCP server, DHCP client, and advanced DHCP-snooping functions
• Cybersecurity ecosystem: IP source guard, static/dynamic/per-VLAN ARP verification, 802.1x access control, port isolation
• Access control lists: Hardware ACL modules for advanced filtering and edge security rules
• Quality of Service (QoS): 8 output queues per port, classification based on CoS/DPL/PCP/DEI and DSCP, port shaping, port tag remarking
• Intelligent PoE functions: PoE power consumption management, per-port power on/off, overload shutdown, Green PoE
• Logical management interfaces: Web (HTTP and HTTPS protocols), Telnet, command-line interface (CLI), SSH, RMON, and SNMP v1/v2c/v3
• Management platforms: Web local management environment, Syslog server, and LLDP protocol
• Housing material: Shielded metal casing with high mechanical resistance (Full metal design / Iron)
• Physical protection ratings: IP30 dust protection and IK06 mechanical impact protection
• Dissipation mechanism: Completely passive fanless design, based on a natural thermal convection system

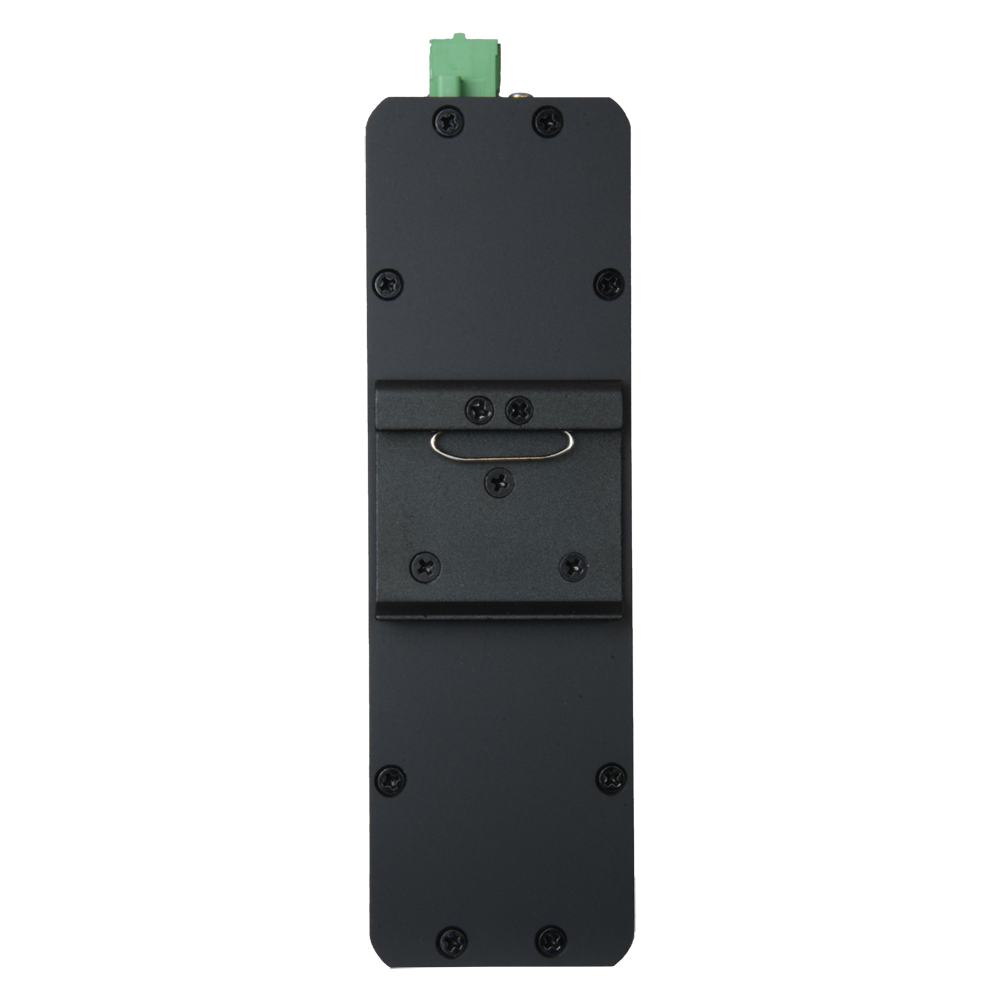

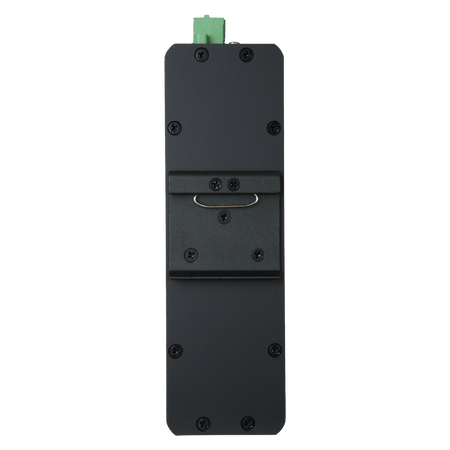

• Installation options: Standard telecommunications DIN-rail mount or desktop installation
• Physical interface buttons: 1 × RJ45 console port for technical maintenance, 1 × reset button
• Hardware reliability: MTBF of 1,852,444.63 hours of continuous operation in harsh industrial environments
• Lightning protection: ESD Contact discharge: 6 kV / Air discharge: 8 kV
• Surge protection: Service interfaces (Telecom): ±6 kV in common mode / Power connector: ±4 kV common and differential

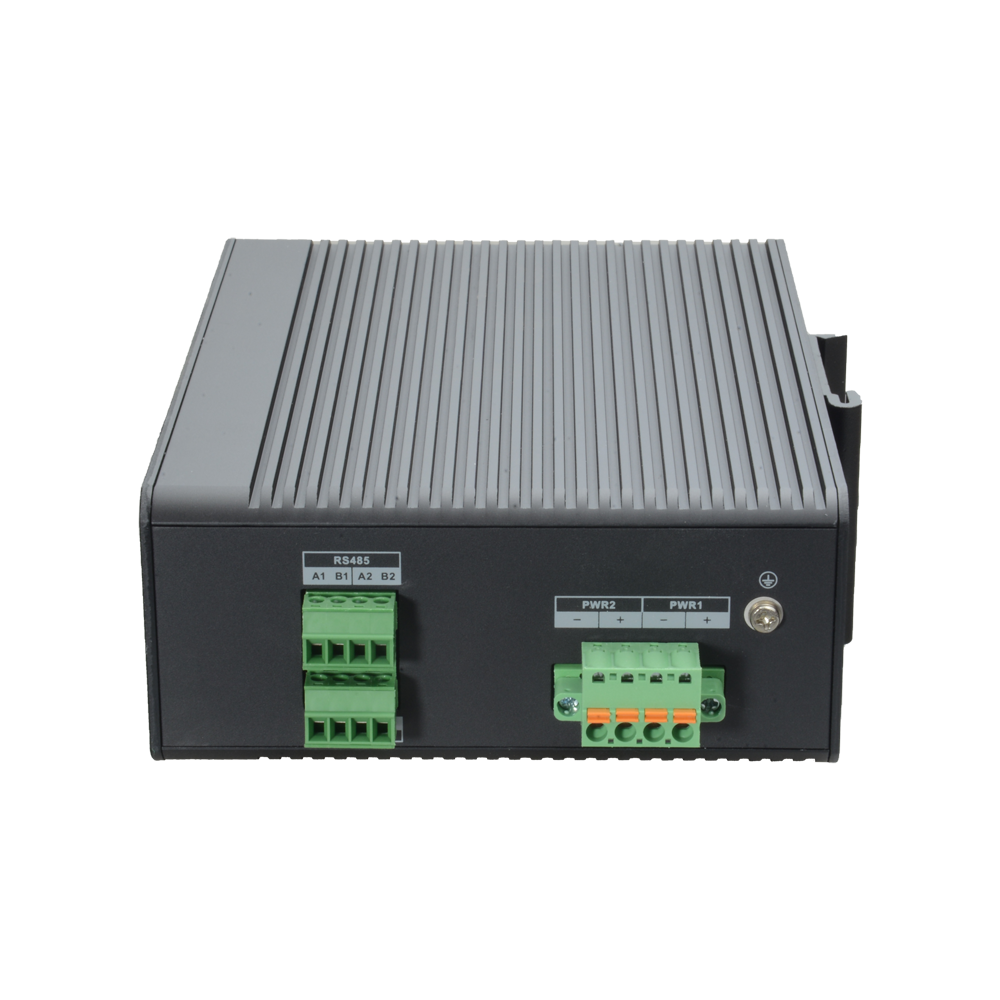

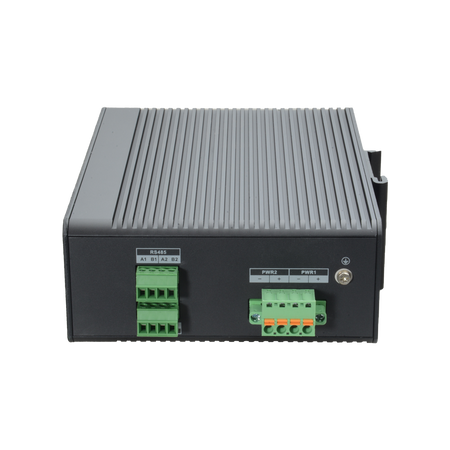

• Power input: Industrial terminal block and external DC connector: 48 V–57 V DC (maximum current: 2 A to 1.69 A)
• Electrical power consumption: Base electronic device consumption (Idling): ≤ 6 W / Absolute maximum consumption at full PoE load: 120 W
• Operating temperature: Temperature range from –40 °C to +75°C (–40 °F to +167 °F), suitable for outdoor cabinets exposed to weather
• Cooling system: Passive natural convection design (Fanless)
• Operating humidity: 10% to 90% RH (non-condensing in internal electronic circuits)
• Switch dimensions (L×W×H): 125 mm × 53.5 mm × 175 mm (slim vertical design to optimize space on the rail)
• Device net weight: 1.25 kg (2.8 lb)

📦 INCLUDED:
• 1x Industrial L2 switch XS-SW1006HIPOE-MFG-120-DIN
• 1x Screw accessory kit for structural installation
• 1x Industrial terminal block
• 1x Quick start guide and user manual
• 1x Legal and regulatory compliance document
