X-SECURITY

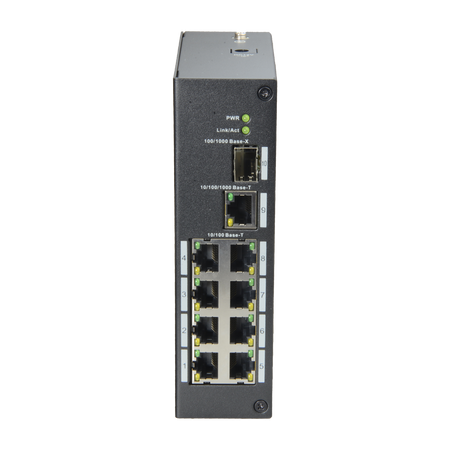

X-Security Industrial Switch

SKU: XS-SW09-C-DIN
(0)
Out of stock
€105,39 Final price
-4% €110,00 €105,39 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

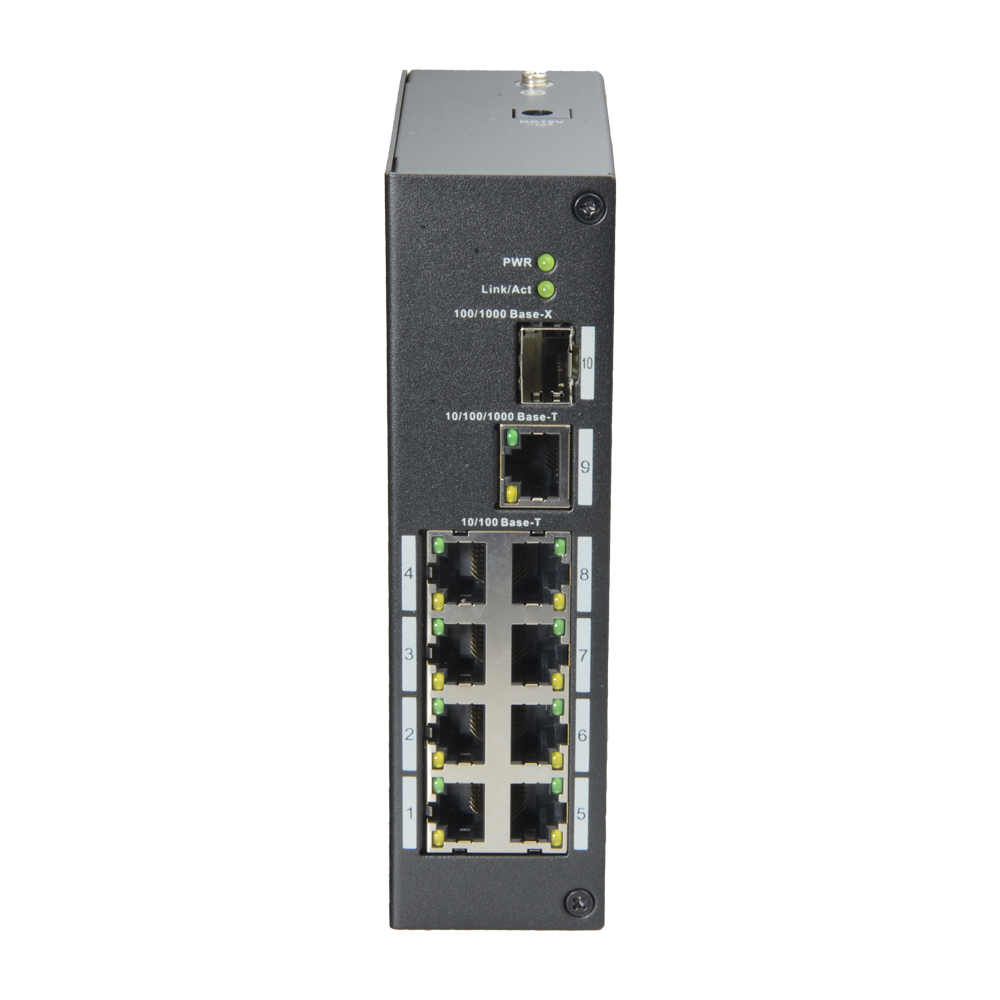

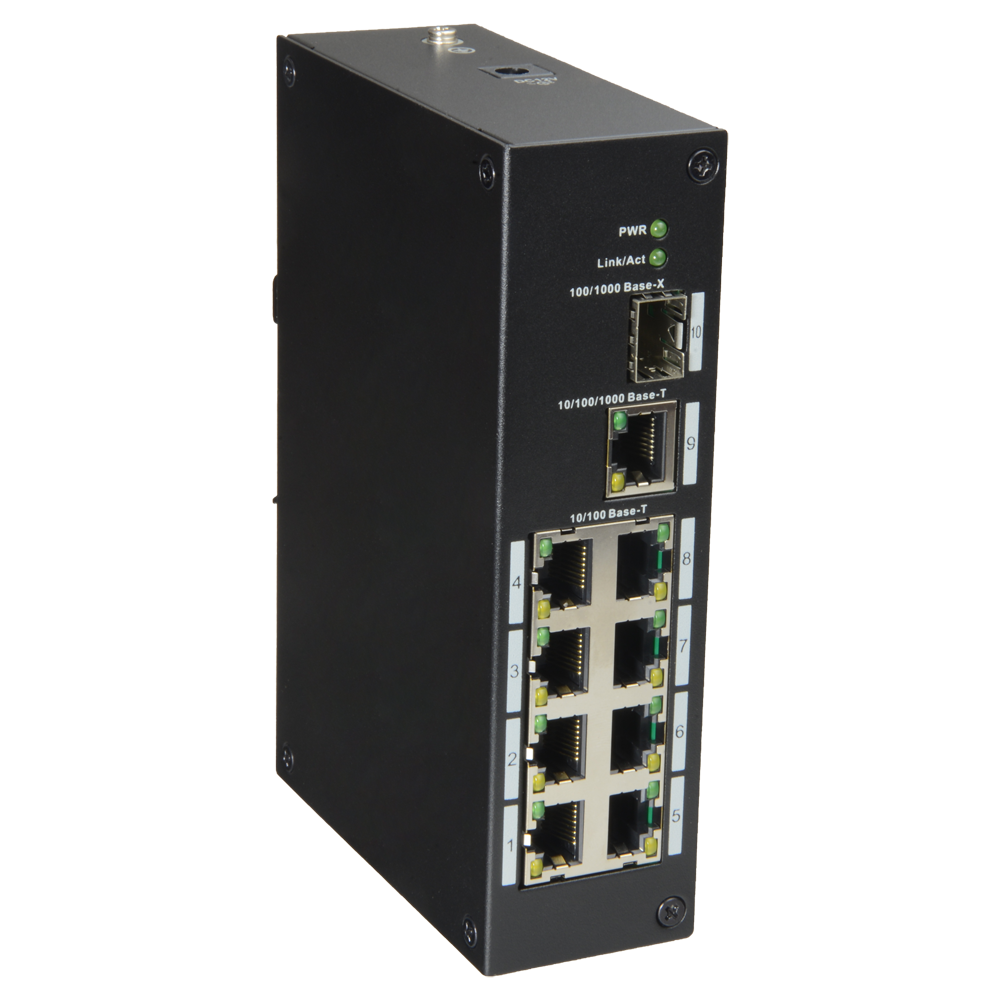

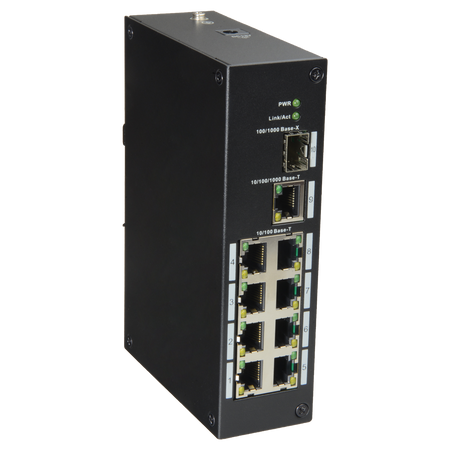

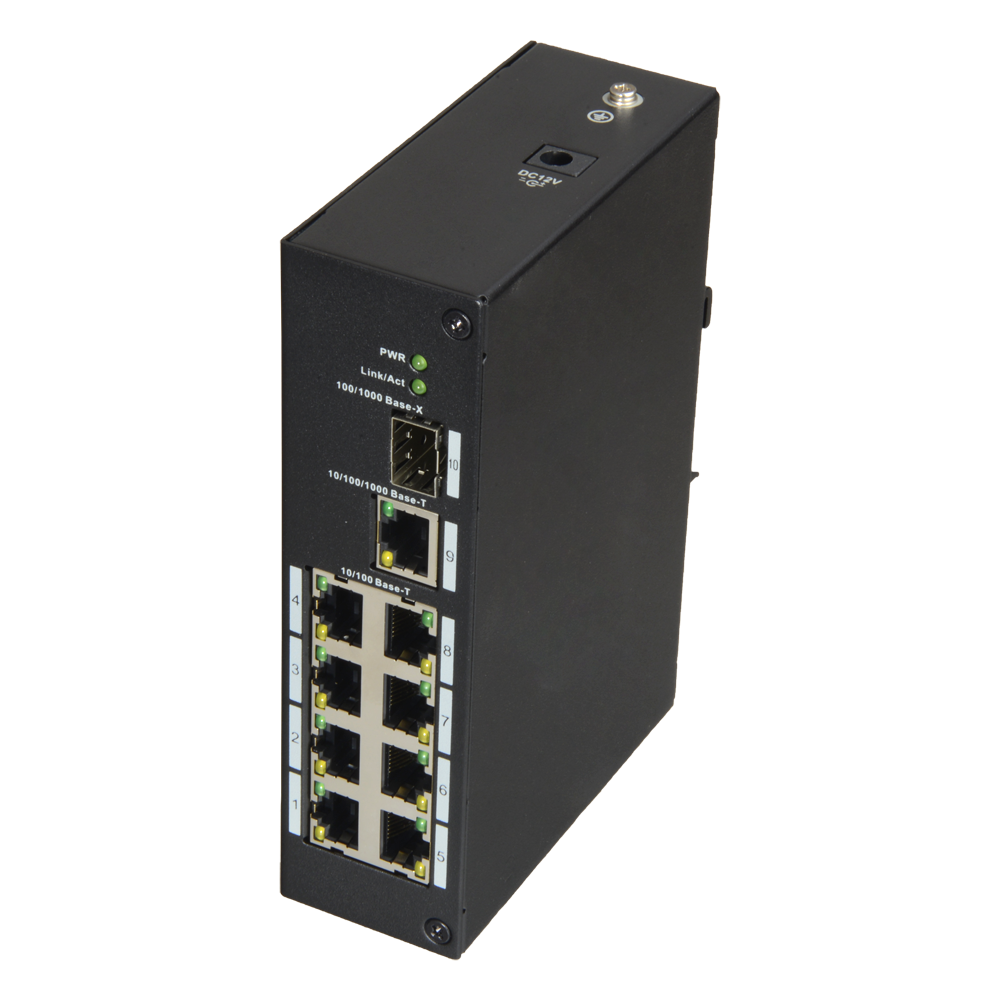

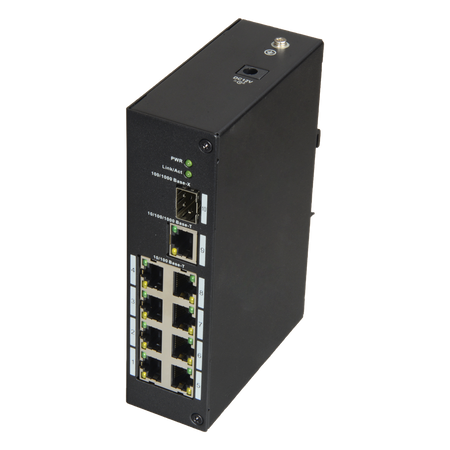

X-Security - Industrial Switch - 8 RJ45 ports + 1 GIGA Uplink + 1 SFP - 10/100 Mbps speed - Plug & Play - Energy-saving technology

📋 SPECIFICATIONS:
• Brand: X-Security
• Interface: 8 RJ45 ports + 1 GIGA Uplink + 1 SFP
• Port speed: 8x 10/100 Mbps Base-T; 1x 10/100/1000 Mbps Base-T; 1x 100/1000 Mbps Base-X
• Switch capacity: 13.6G
• Packet forwarding rate: 4.17Mpps
• Packet buffer memory: 2Mb
• MAC address table size: 8K
• Exchange mode: Store and forward

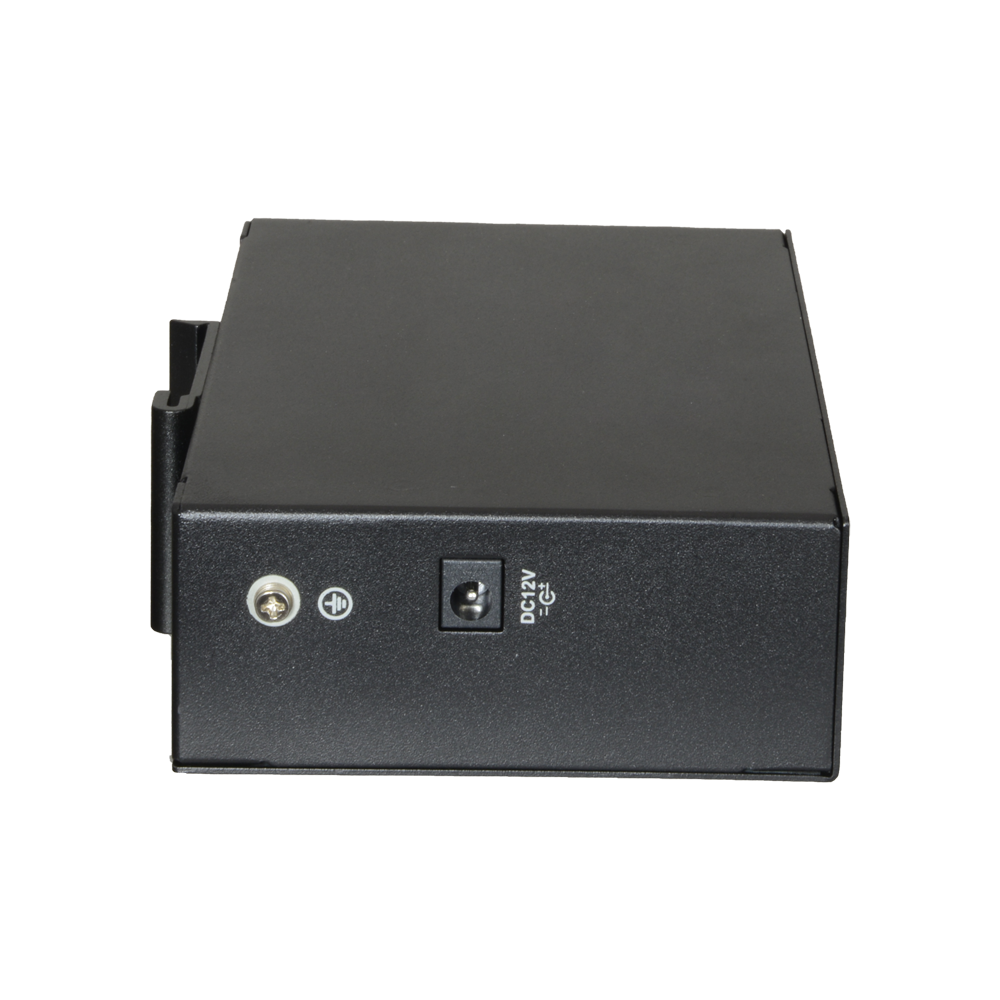

• Power supply: 12 VDC / 3W max.
• Lightning protection: Common mode 4KV; Differential mode 2KV

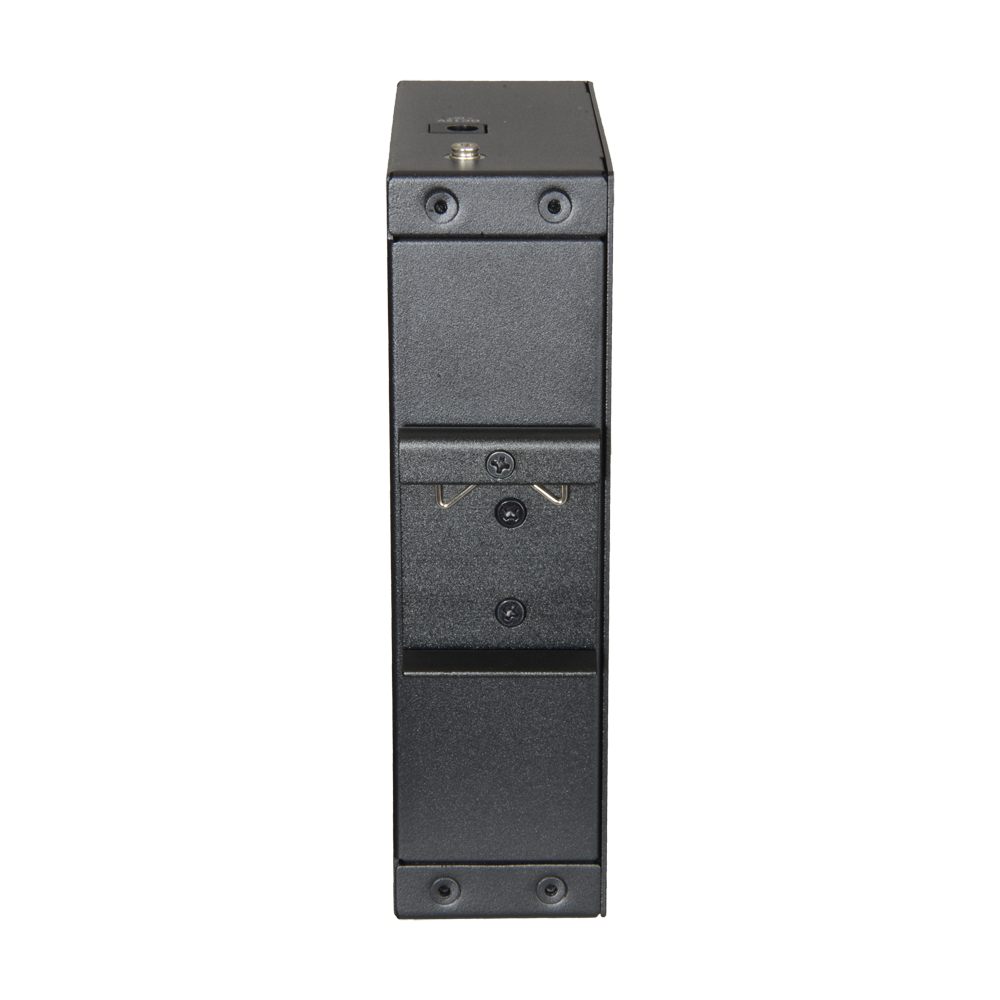

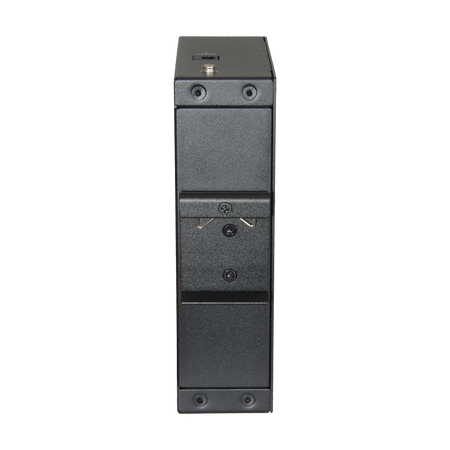

• Mounting: Desktop and DIN rail
• Operating temperature: -30°C ~ -65º C
• Cooling system: Passive natural convection design (Fanless)
• Dimensions: 150 (H) x 100 (D) x 42 (W) mm

📦 INCLUDED:
• Switch• AC/DC adapter• User instructions
Interface 8x RJ45 ports + 1 GIGA Uplink + 1 SFP
Port speed 8x 10/100 Mbps Base-T 1x 10/100/1000 Mbps Base-T 1x 100/1000 Mbps Base-X
Switching capacity 13.6G
Packet forwarding rate 4.17Mpps
Packet buffer memory 2Mb
MAC address table size 8K
Exchange mode Store-and-forward
Power supply 12 VDC / 3W max.
Lightning protection Common mode 4KV Differential mode 2KV
Mounting Desktop and DIN rail
Operating temperature -30°C ~ -65º C
Cooling system Passive natural convection design (Fanless)
Dimensions 150 (H) x 100 (D) x 42 (W) mm
