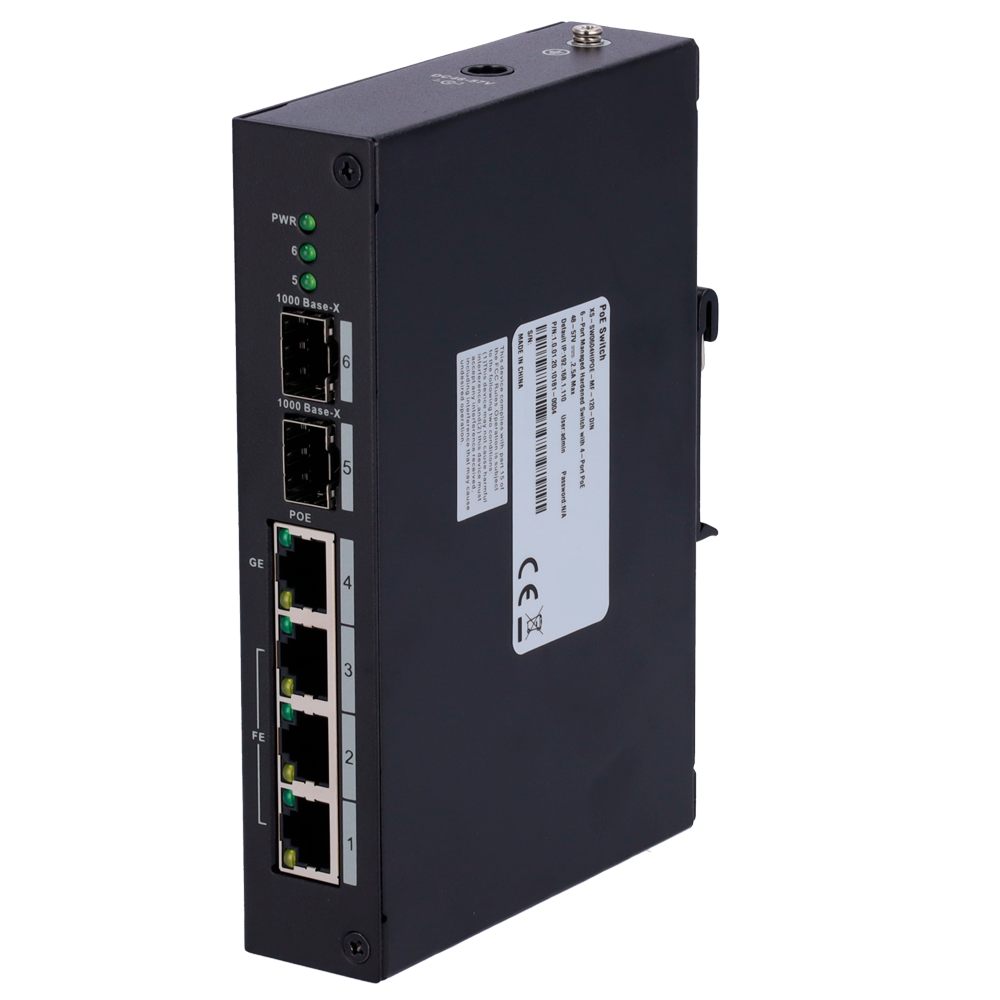

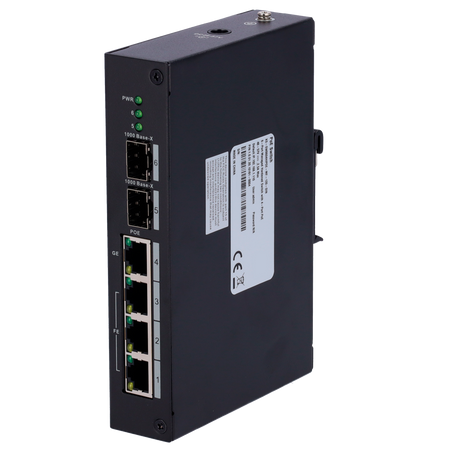

X-Security Industrial L2 Managed Switch - 6 total ports (4 PoE / 2 Uplink 1G SFP)

X-Security Industrial L2 Managed Switch - 6 total ports (4 PoE / 2 Uplink 1G SFP) - Industrial fanless design with natural heat dissipation - High-power Hi-PoE supply up to 60W - High availability with RSTP Spanning Tree support - Advanced local management via web interface

📋 SPECIFICATIONS:
• Brand: X-Security
• Product category: Industrial-grade edge access managed switch (Layer 2)
• Fixed fiber optic interfaces: 2 × 1000 Base-X (independent logical slots for Gigabit SFP transceivers)
• Hi-PoE copper interfaces: 1 × 10/100/1000 Base-T RJ45 compatible with Hi-PoE, PoE+, and PoE (Interface number 4)
• PoE+ copper interfaces: 3 × 10/100 Base-T RJ45 compatible with PoE+ and PoE standards (Interfaces 1 to 3)
• Supported PoE standards: PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), and high-power Hi-PoE standard
• Net PoE power: 120 W maximum unified power for terminal supply
• Power delivery per port: Ports 1 to 3: Up to 30 W per interface / Port 4: Up to 60 W stable injection
• PoE management functions: Power consumption monitoring, remote power on/off for industrial PCs, and overload shutdown
• Switching capacity: 6.8 Gbps
• Packet Forwarding Rate: 4.91 Mpps
• Internal packet buffer: 1 Mb buffer memory for mitigating instantaneous traffic spikes
• MAC address table: 8000 logical entries (with MAC address auto-learning and aging function)
• Full VLAN configuration: IEEE 802.1Q Standard VLAN for segmentation and logical isolation of subnets
• Flow Control mechanisms: Full duplex support based on PAUSE frames and half duplex based on back pressure
• Port Mirroring technology: Integrated support for many-to-one port mirroring
• L2 network resilience: Spanning Tree (STP/RSTP) support and automatic loop detection (Loop Detection)
• Cybersecurity environment: Access protection via system credentials, isolation policy, and CPU protection
• Network default settings: Local management IP address: 192.168.1.110/24 / Username and password: admin/(blank)
• Management platforms: Local WEB management interface (HTTP login) and standard SNMP v1/v2c protocol
• Housing material: High mechanical strength shielded metal housing (Metal Casing)
• Dissipation mechanism: Completely passive fanless design, based on a natural thermal convection system

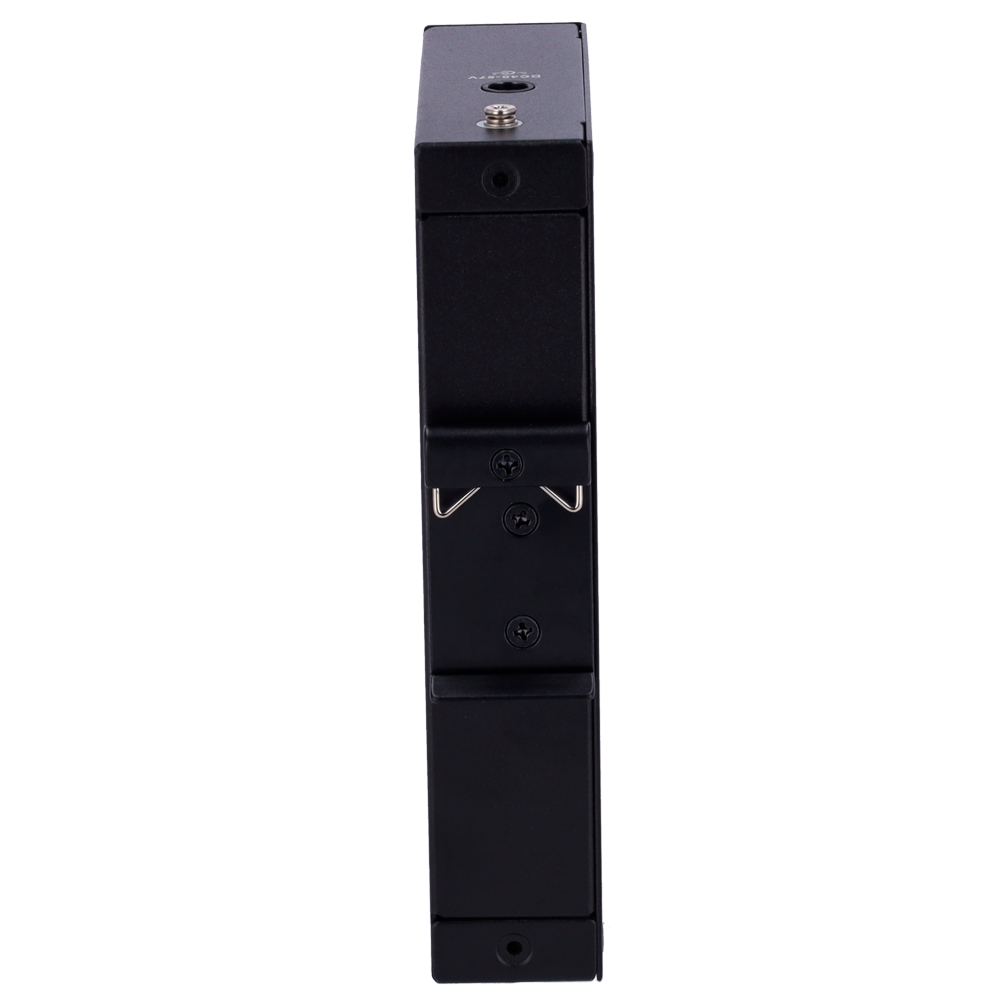

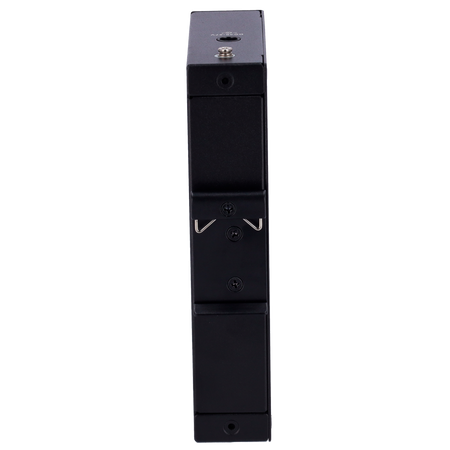

• Installation options: Integrated mounting on standard telecommunications DIN rail or wall installation
• Surge protection: Telecommunication interfaces: 4 KV in common mode and 2 KV in differential mode
• DC power range: External industrial terminal block for DC voltage input in the range of 48 V DC to 57 V DC
• Power consumption: Internal electronic component consumption: Only 12 W (without PoE load) / Absolute total maximum: 120 W
• Operating temperature: -30°C to 65°C, ideal for outdoor industrial cabinets or enclosures
• Cooling system: Passive natural convection design (Fanless)
• Operating humidity: 10% to 90% RH (non-condensing on internal electronic circuits)
• Switch dimensions (W×D×H): 150 mm × 100 mm × 30 mm (Reduced width optimized for maximum rail space utilization)
• Net device weight: 480 g (0.48 kg)

📦 INCLUDED:
• 1x Industrial L2 Switch XS-SW0604HIPOE-MF-120-DIN
• 1x Quick start guide and user manual
