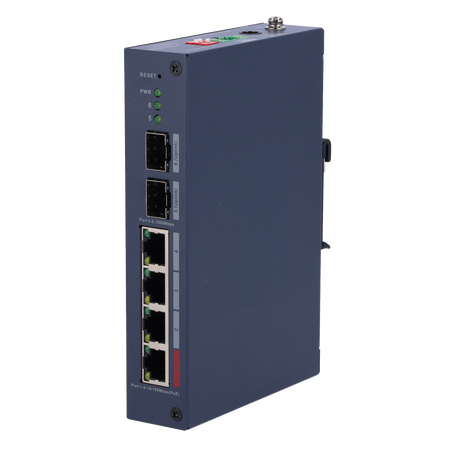

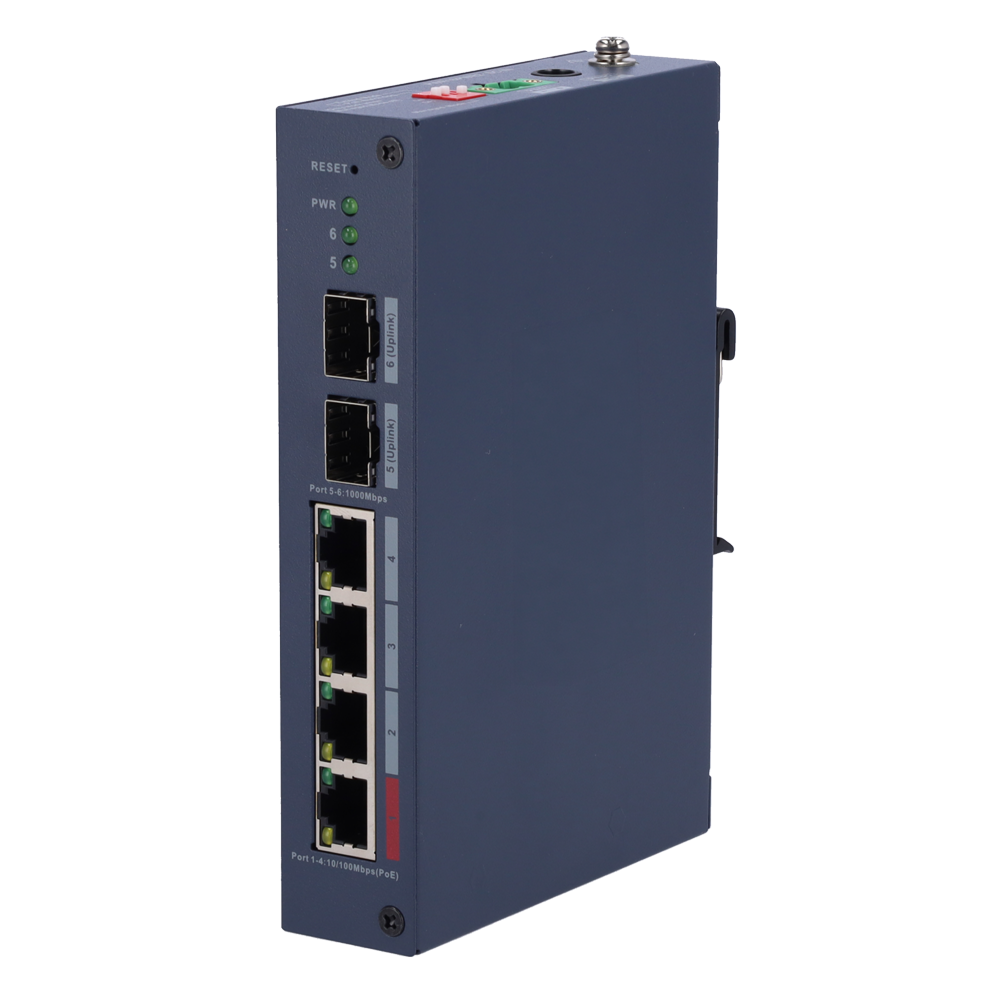

X-Security Hardened L2 Managed Switch - 6 total ports (4 PoE / 2 Uplink 1G SFP)

X-Security Hardened L2 Managed Switch - 6 total ports (4 PoE / 2 Uplink 1G SFP) - Ultra-high power PoE++ supply up to 90W - High availability with PoE Watchdog engine - Operating temperature range from -30°C to +65°C - Advanced local management via web interface

📋 SPECIFICATIONS:
• Brand: X-Security
• Product category: Industrial-grade hardened perimeter managed switch (Layer 2)

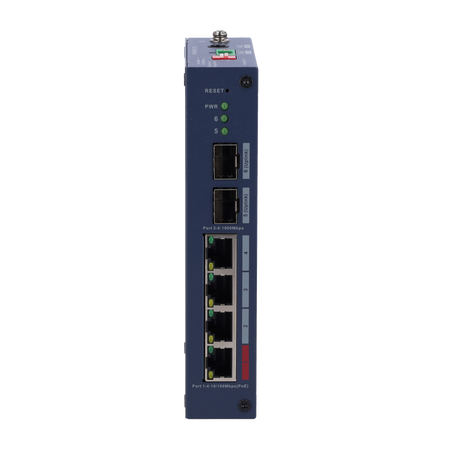

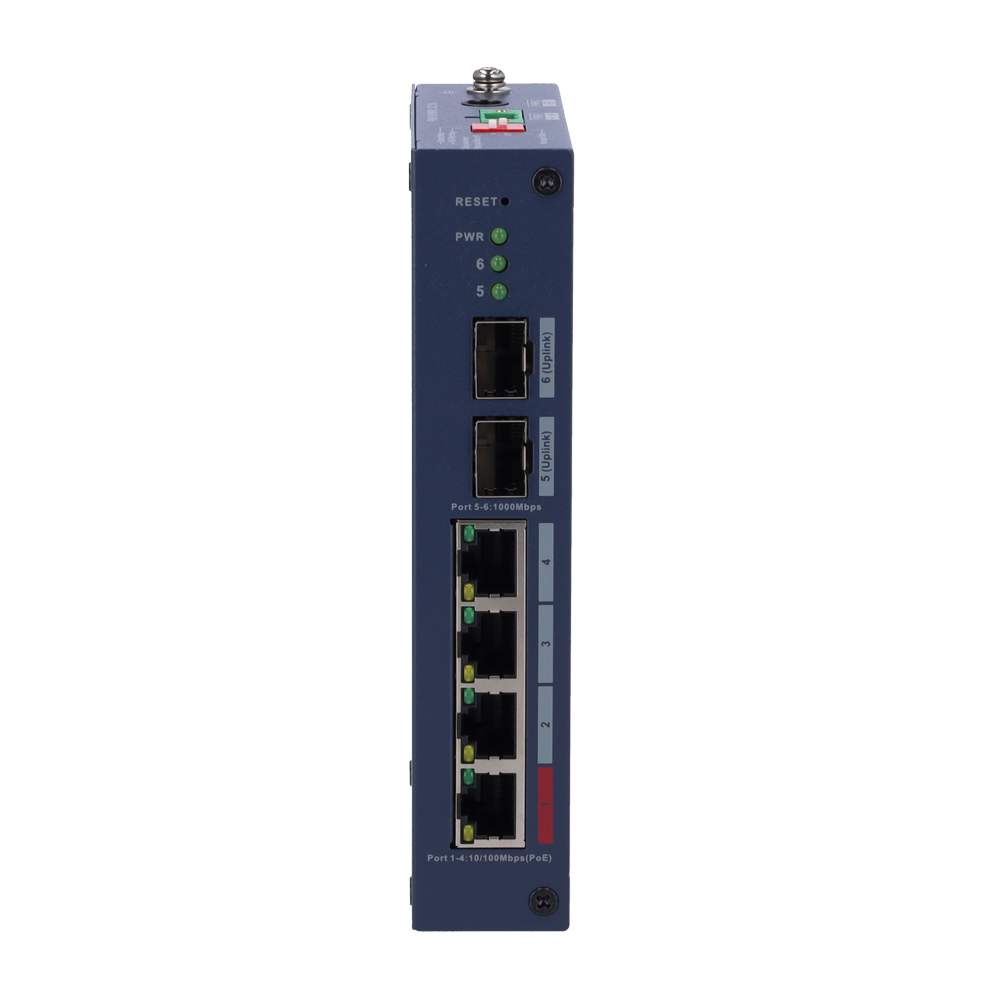

• Copper PoE interfaces: 4 × 10/100 Mbps RJ-45 compatible with intelligent perimeter supply
• Fiber Uplink interfaces: 2 × 1000 Mbps SFP (independent logical slots for fiber optic)
• Supported PoE standards: IEEE 802.3af (PoE), IEEE 802.3at (PoE+), Hi-PoE, and native IEEE 802.3bt (PoE++)
• PoE port distribution: Port 1: Supports PoE++ up to 90 W / Ports 2 to 4: Support PoE+ up to 30 W
• PoE net power: 90 W total electrical budget dynamically assignable
• PoE power pins: Power distribution via wires: 1, 2, 4, 5 (V+) and 3, 6, 7, 8 (V-)

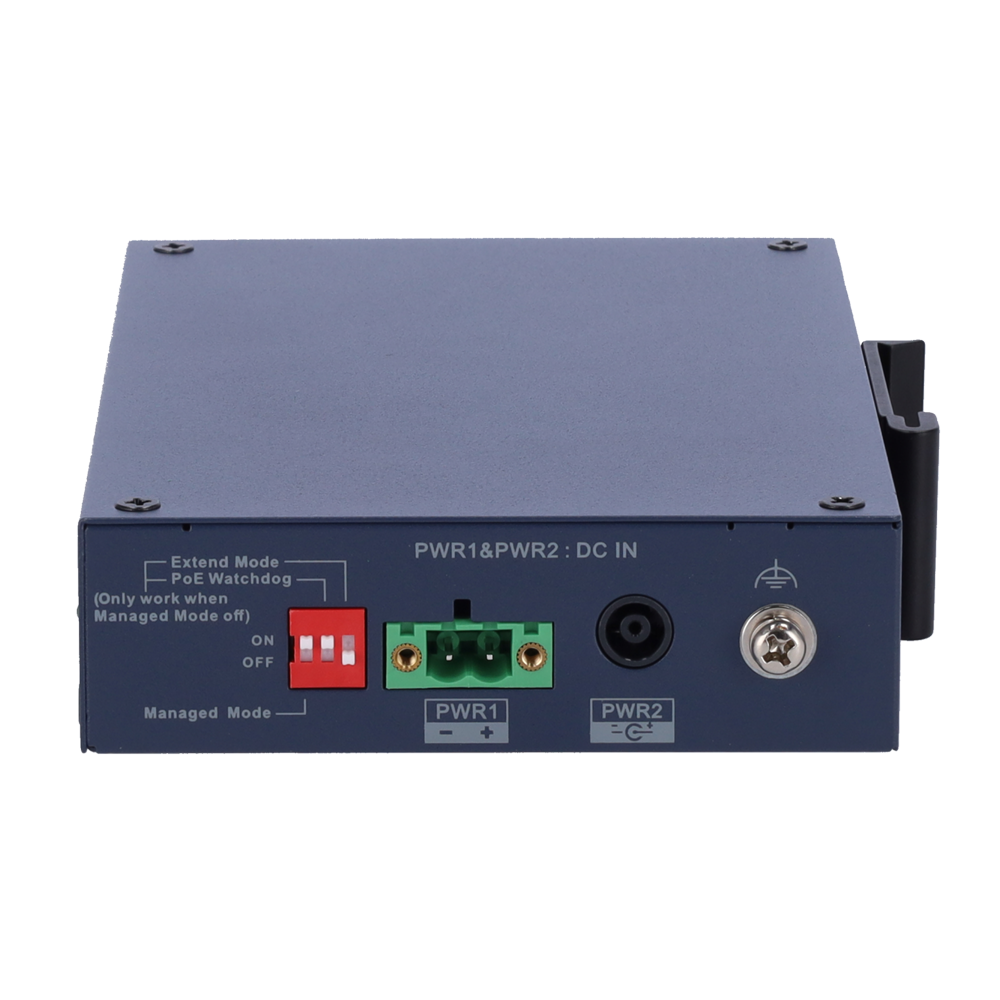

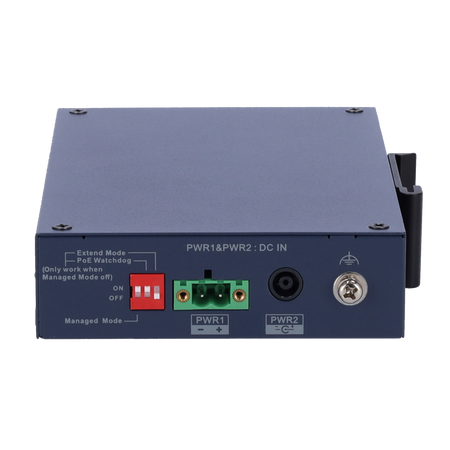

• Hardware modes (DIP Switch): Managed mode (Local or remote Web) / Extend mode (250m at 10 Mbps) / PoE Watchdog (automatic reboot)
• Long-range transmission: Supported natively on copper ports 1 to 4 (up to 250 meters with Cat5e cable)
• Switching capacity: 4.8 Gbps
• Packet forwarding rate: 3.57 Mpps
• Internal packet buffer: 4 Mbit dynamic buffer memory for peak mitigation
• MAC address table: 8000 enterprise entries (with automatic MAC address learning and aging function)
• VLAN network segmentation: Built-in support for up to 32 logical groups based on Port-based VLAN
• Communication standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
• Flow control mechanisms: Native support for IEEE 802.3x Flow Control (interface flow control)
• Network mitigation and control: Unknown unicast packet suppression, multicast and broadcast storm control, auto-loop detection
• Mirror technology: Support for Local Port Mirroring and advanced mirroring functions in N:1 Mirroring format
• PoE intelligent functions: PoE power consumption management, per-port power on/off, Green PoE, shutdown in case of overload
• Cybersecurity ecosystem: Port isolation mechanism, web access control via logical credentials
• Management platforms: Web Management local management environment, LLDP protocol, DHCP Client
• Structure material: High mechanical resistance iron casing (Iron Casing Material)
• Physical protection ratings: IP30 protection grade against dust and IK06 mechanical impact protection
• Dissipation mechanism: Completely passive fanless design, based on a natural thermal convection system

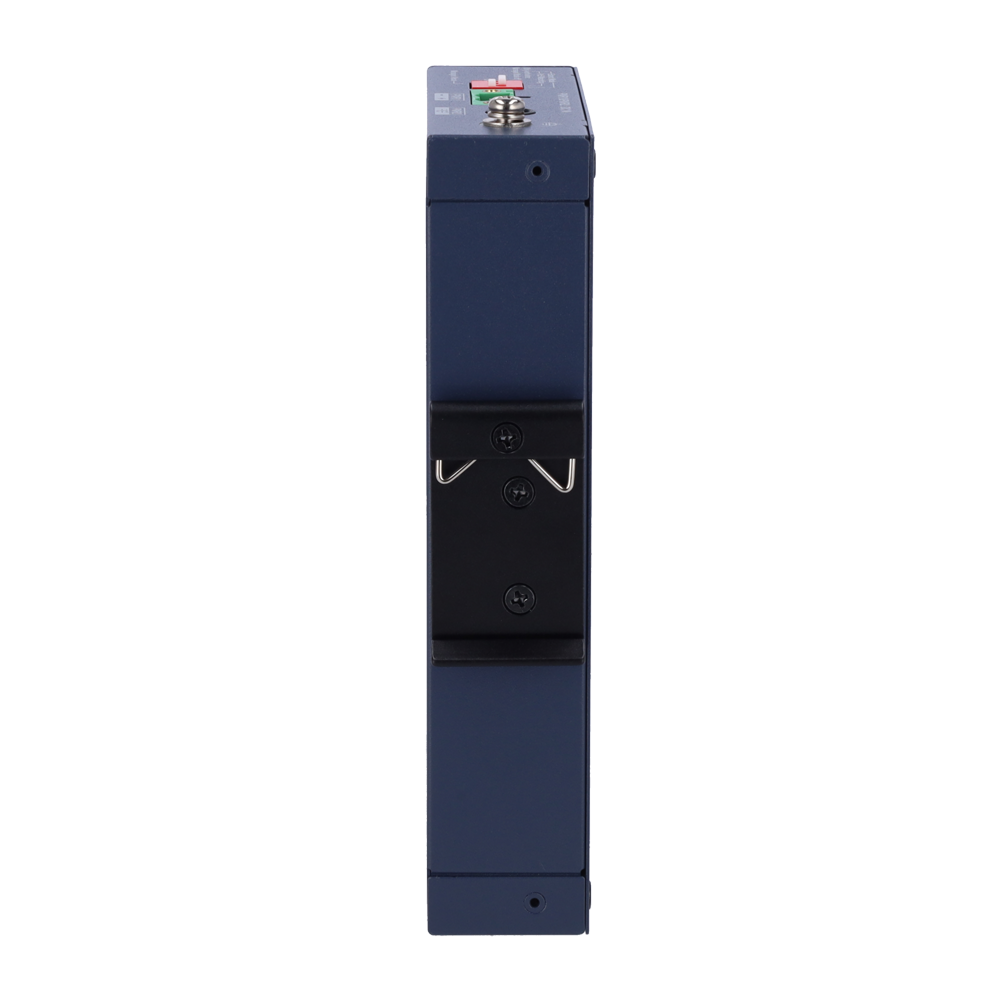

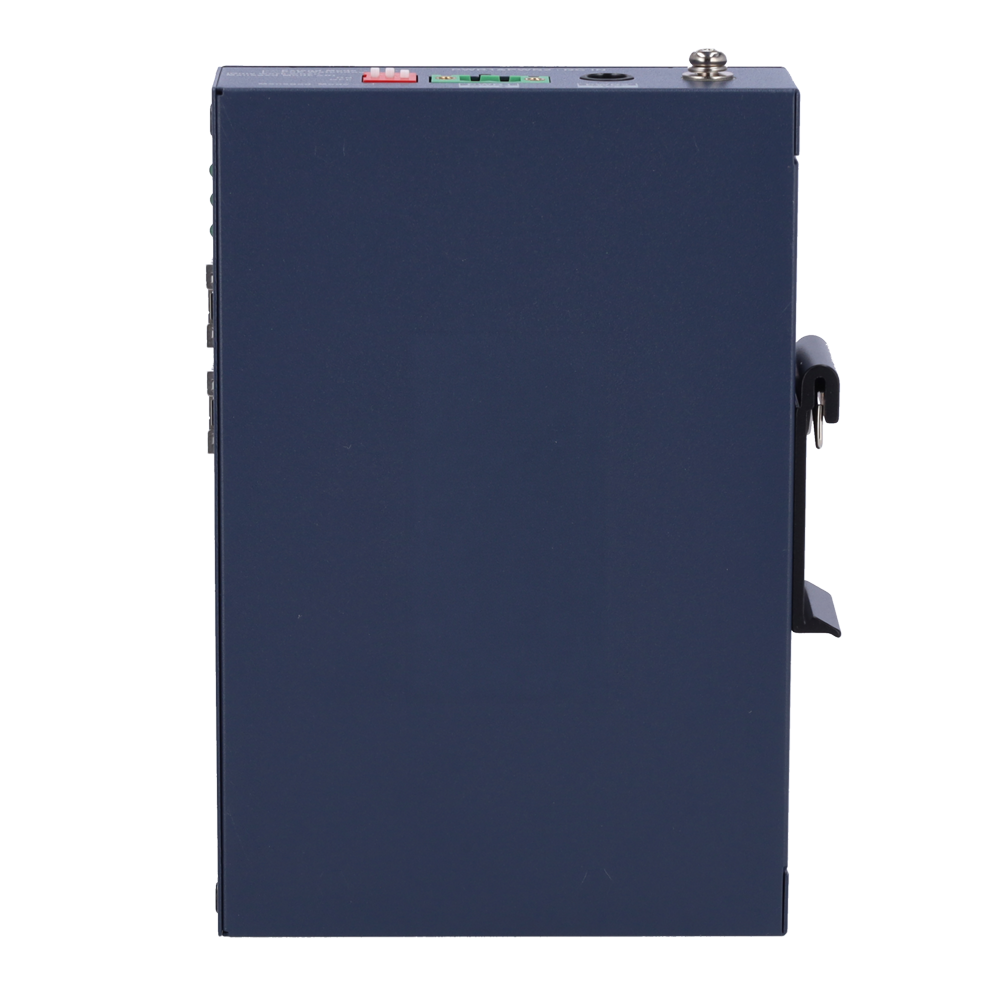

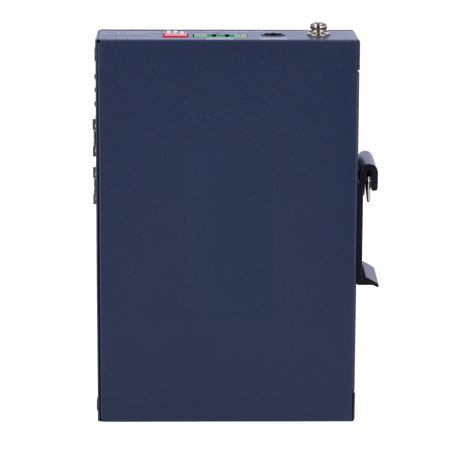

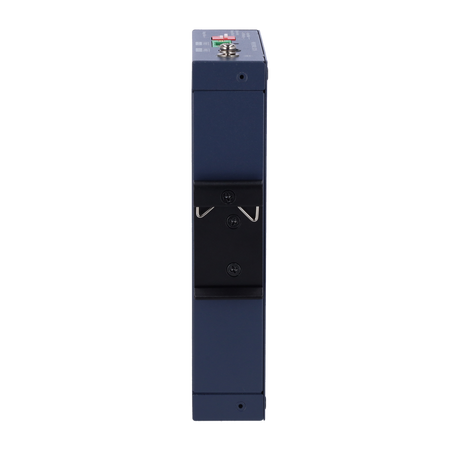

• Installation options: DIN rail mount (standard for telecommunications) or Desktop installation
• Physical interface buttons: 1 × software reset button integrated into the panel
• Hardware reliability: MTBF of 1,852,444.63 hours of continuous operation in harsh industrial environments
• Lightning protection: ESD Contact electrostatic discharge: 6 kV / Air discharge: 8 kV
• Surge protection: Service interfaces (Telecom): ±4 kV in common mode and ±2 kV in differential mode
• Power input: Dual external input (terminal block and DC connector): 48-57 VDC (rated current: 2 A to 1.69 A)
• Power supply included: 53V 1.8A
• Power consumption: Basic standby consumption (Idling): 1.3 W / Absolute maximum consumption at full PoE load: 92.7 W
• Operating temperature: From –30 °C to +65 °C (from –22 °F to +149 °F), ideal for outdoor cabinets exposed to weather conditions
• Cooling system: Passive natural convection design (Fanless)
• Operating humidity: 10% to 90% RH (without condensation on internal electronic components)
• Switch dimensions (L×W×H): 154.3 mm × 110.4 mm × 30 mm (Ultra-compact and slim format to optimize space)
• Net weight of the device: 0.32 kg (0.71 lb)

📦 INCLUDED:
• 1x Industrial L2 Switch XS-SW0604-96-DIN-HIPOE
• 1x Industrial terminal block
• 1x Quick start guide and user manual
• 1x Legal and regulatory information document
