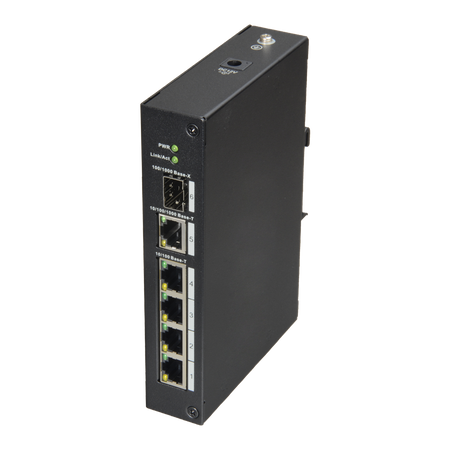

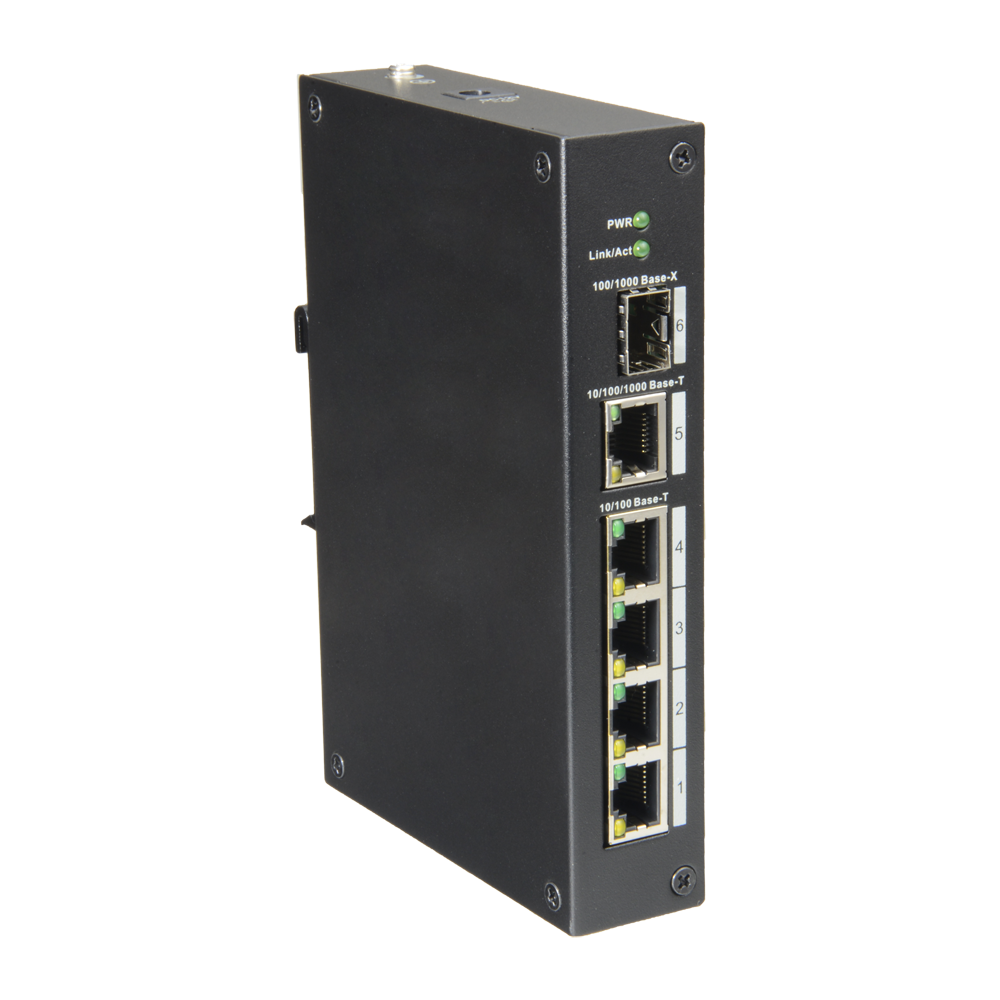

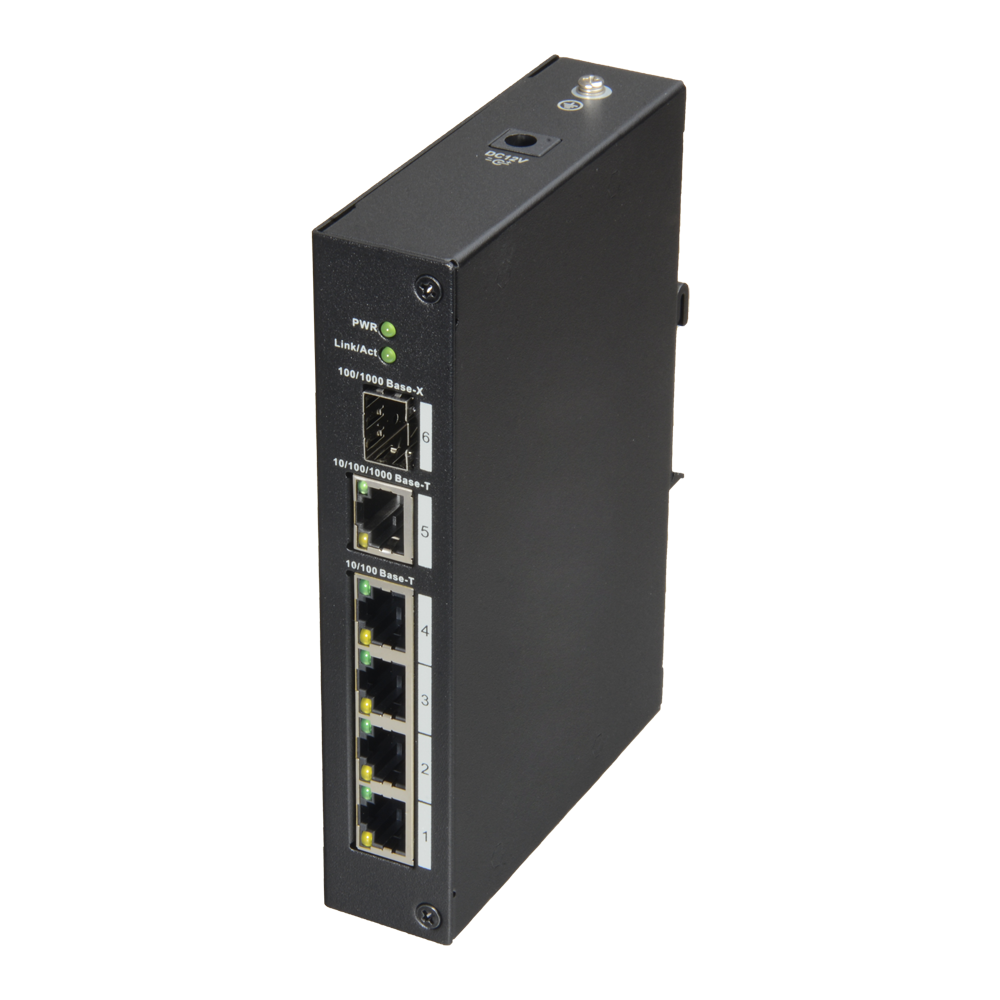

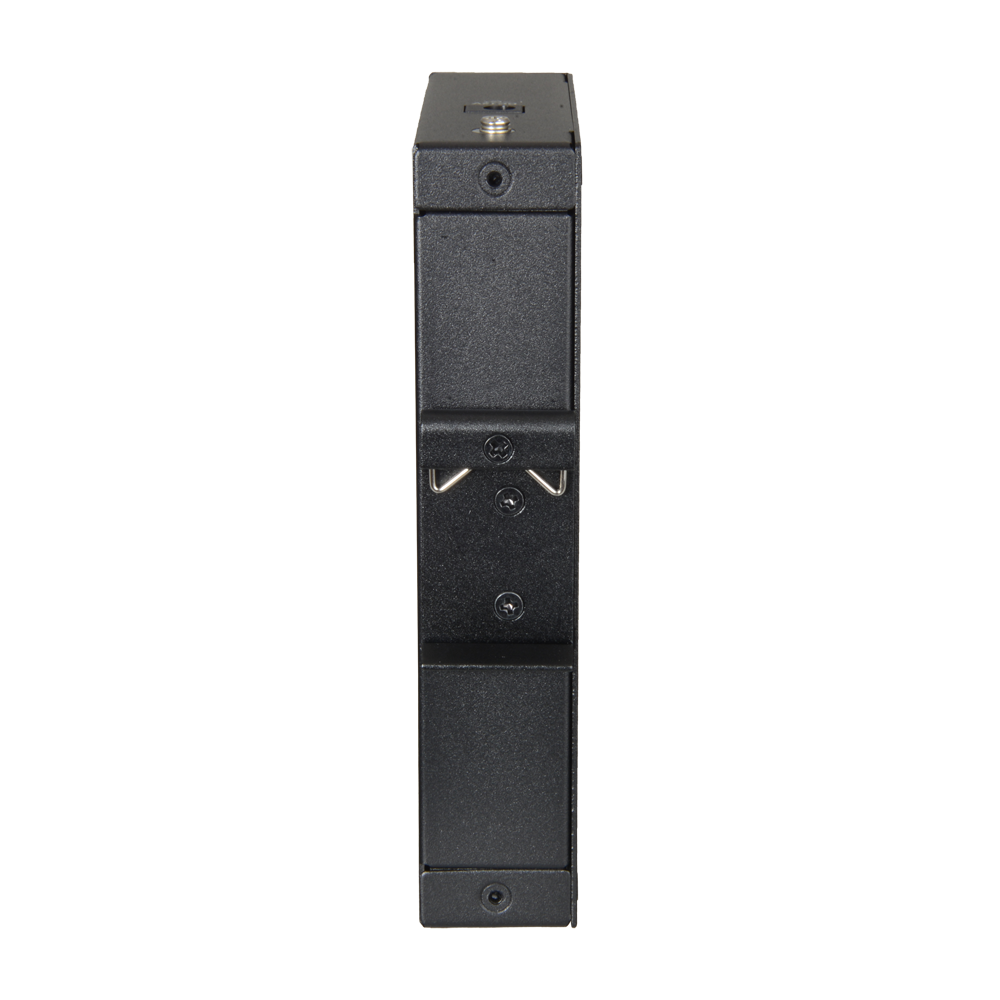

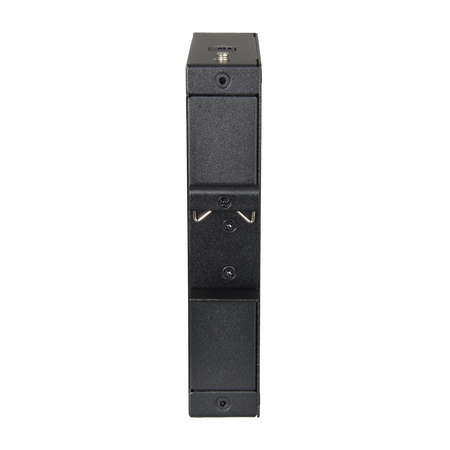

DIN rail-mounted X-Security switch
Regular price
€76,09
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

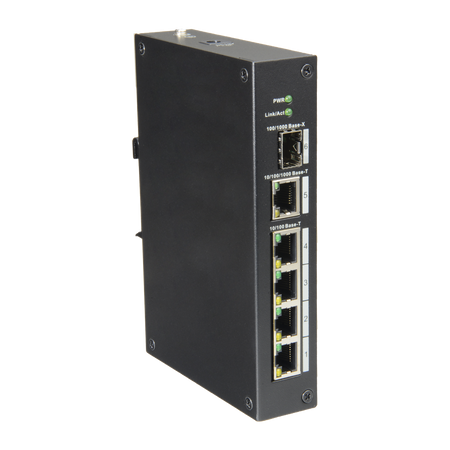

X-Security - DIN rail switch - 4 RJ45 ports + 1 Gigabit Combo Port - 10/100 Mbps speed - Plug & Play - Power saving technology
📋 SPECIFICATIONS:
• Brand: X-Security

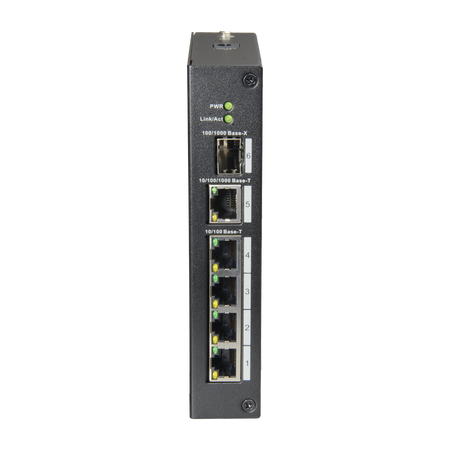

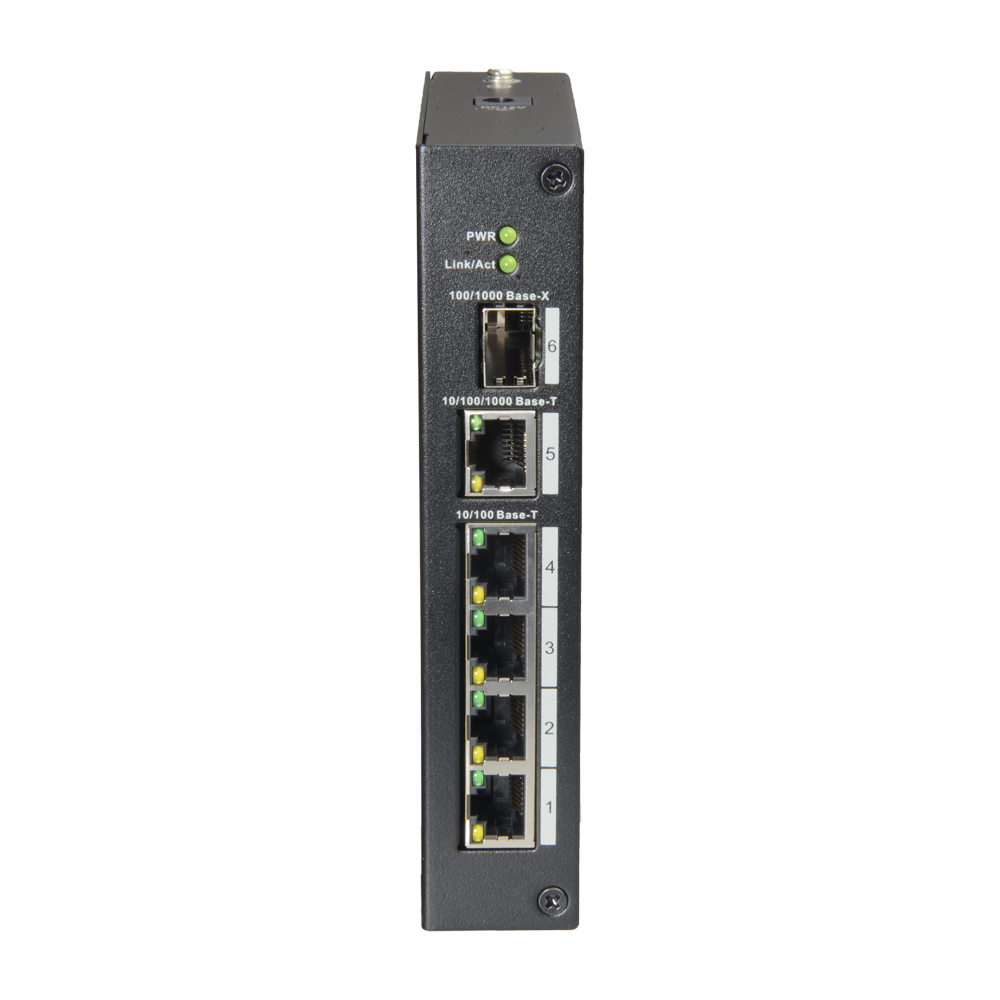

• Interface: 4 RJ45 ports + 1 Gigabit Combo Port
• Port speed: 4x 10/100 Mbps Base-T; 1x 10/100/1000 Mbps Base-T; 1x 100/1000 Mbps Base-X
• Switch capacity: 6.8G
• Packet forwarding rate: 3.57Mpps
• Packet buffer memory: 1Mb
• MAC table size: 8K
• Switching mode: Store-and-forward

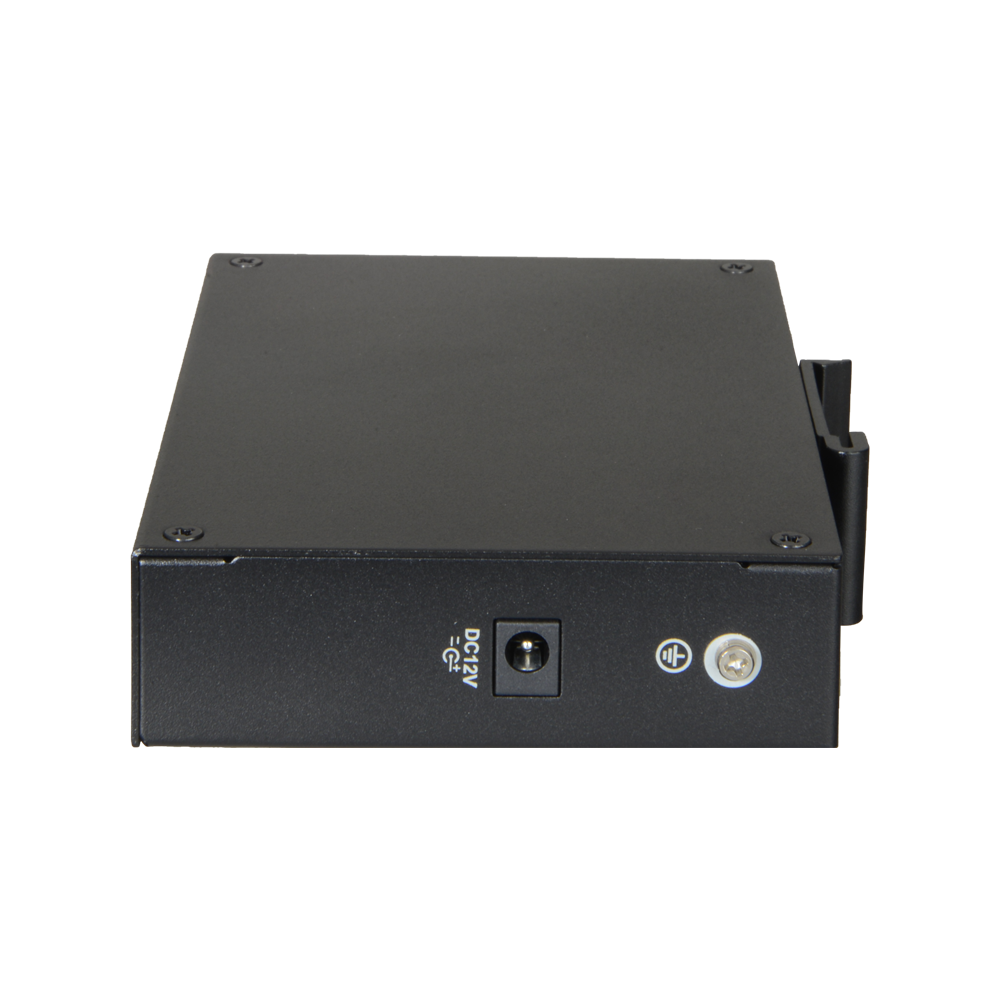

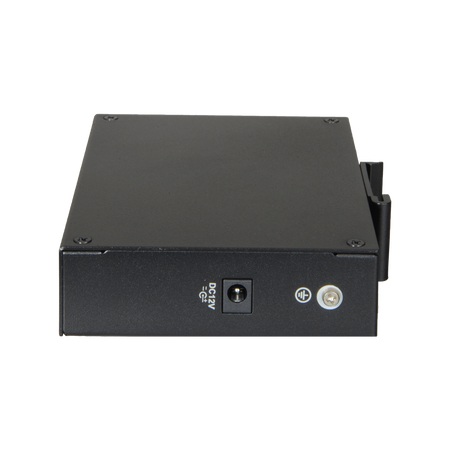

• Power supply: 12 VDC / 3W max.
• Lightning protection: Common mode 4KV; Differential mode 2KV
• Operating temperature: -30°C ~ -65º C
• Cooling system: Passive natural convection design (Fanless)
• Dimensions: 150 mm × 100 mm × 42 mm
• Weight: 0.45 kg (Industrial metal chassis)
📦 INCLUDED:
• 1 x XS-SW06-DIN Industrial Combo Switch• 1 x AC/DC power adapter (12V)• 1 x Quick installation guide
| Interface | 4 x RJ45 ports + 1 Gigabit Combo Port |
|---|---|
| Port Speed | 4x 10/100 Mbps Base-T 1x 10/100/1000 Mbps Base-T 1x 100/1000 Mbps Base-X |
| Switching Capacity | 6.8G |
| Packet Forwarding Rate | 3.57Mpps |
| Packet Buffer Memory | 1Mb |
| MAC Table Size | 8K |
| Exchange Mode | Store-and-forward |
| Power Supply | 12 VDC / 3W max. |
| Lightning Protection | Common mode 4KV, Differential mode 2KV |
| Operating Temperature | -30°C ~ -65°C |
| Cooling System | Natural convection passive design (Fanless) |
| Dimensions | 150 mm × 100 mm × 42 mm |
| Weight | 0.45 kg (Industrial metal chassis) |
