X-Security HDCVI motorized camera 240º/s
X-Security HDCVI motorized camera 240º/s
Regular price
€564,92
Final price
Regular price
-9%
€620,00
Sale price
€564,92
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

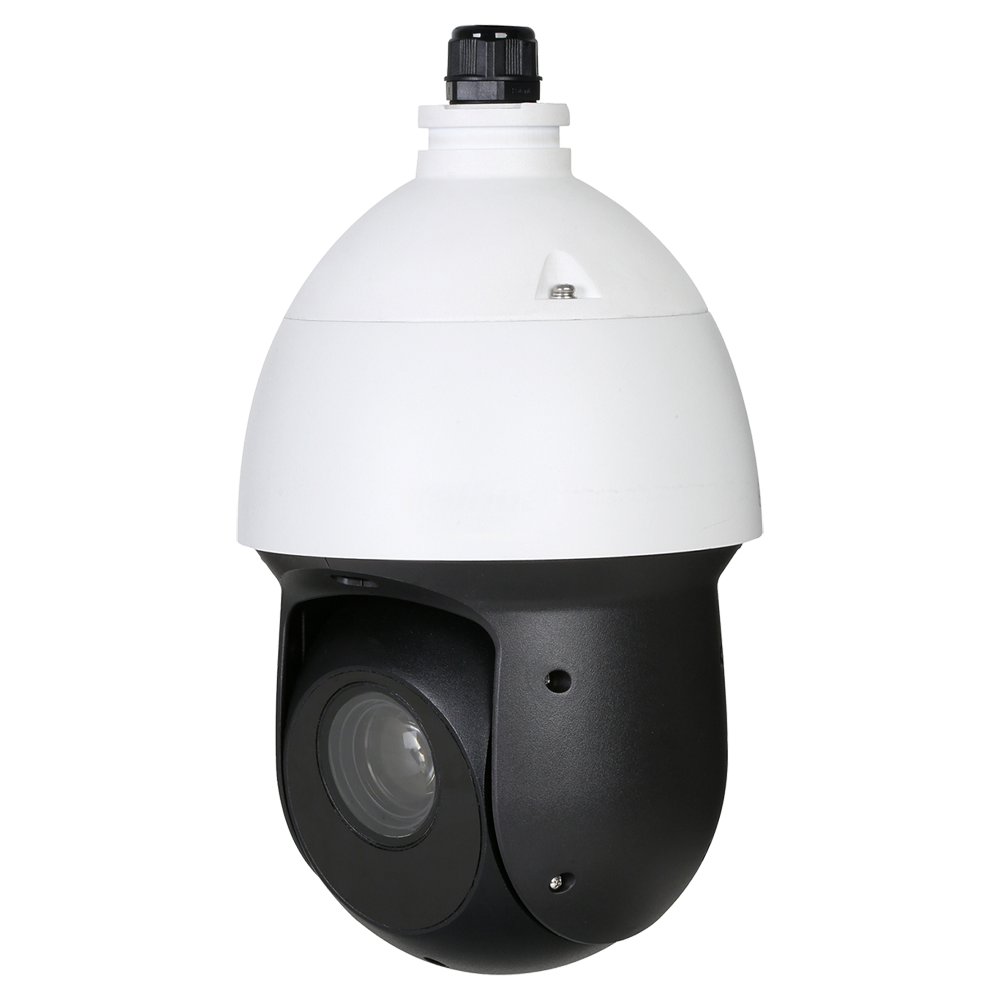

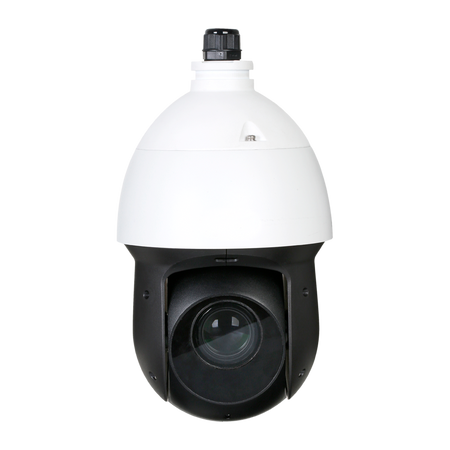

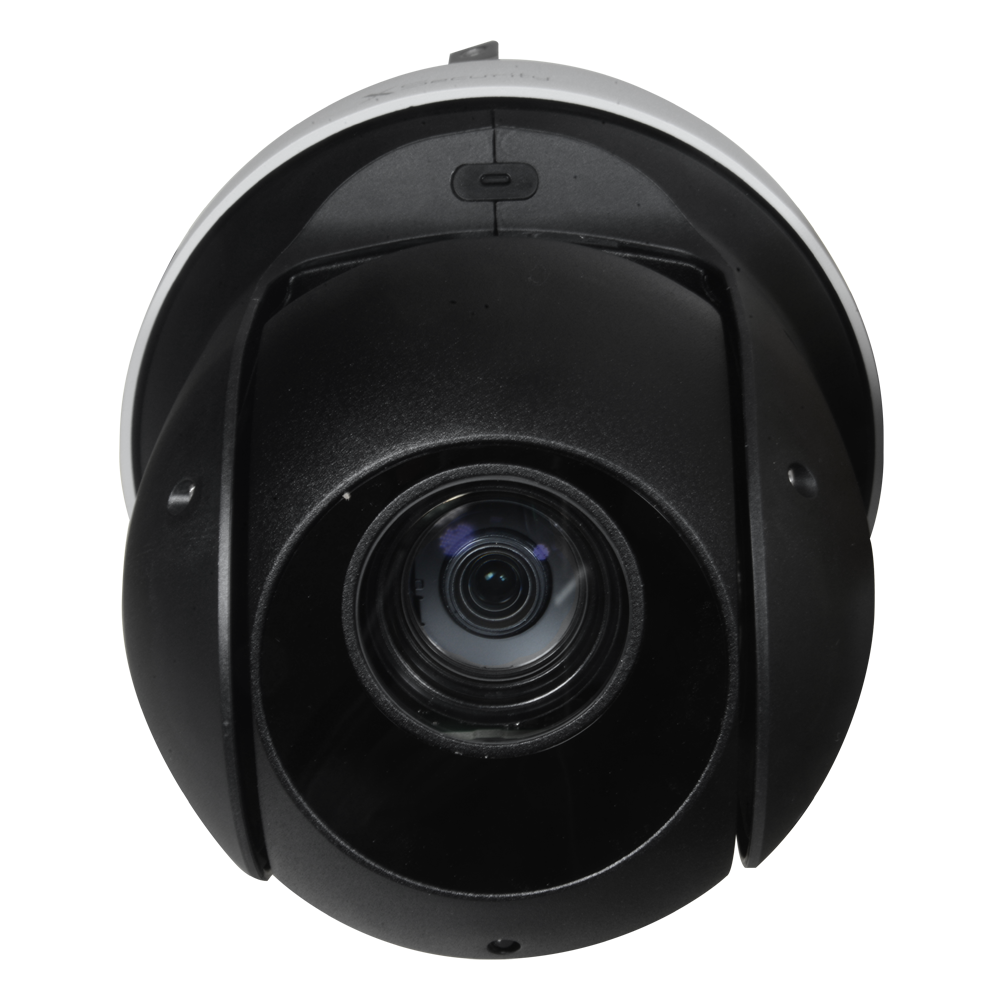

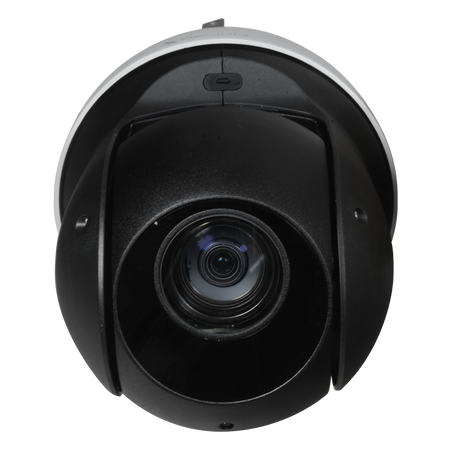

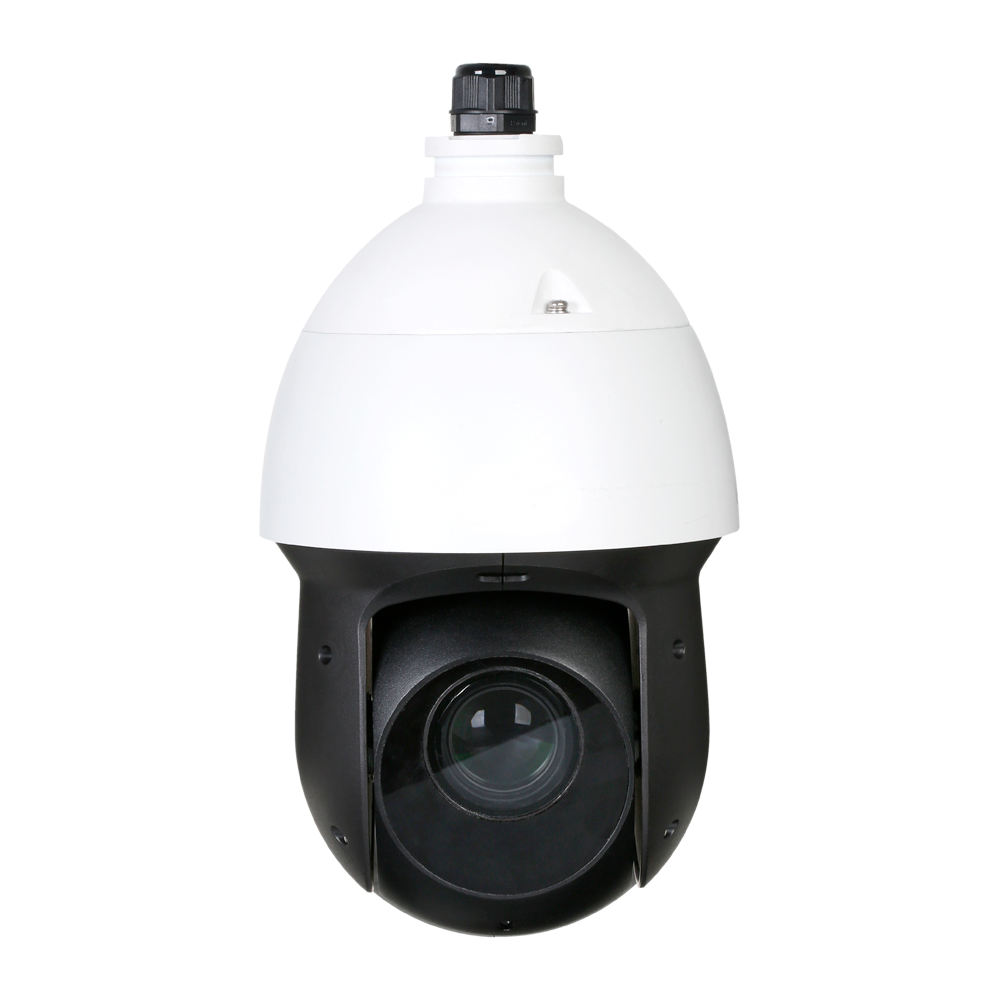

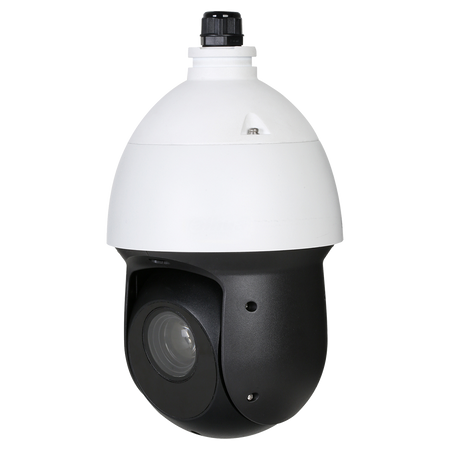

HDCVI X-Security motorized camera 240º/s - 1080P (25/30FPS) / 720P (25/50FPS) - 1/2.8" Sony© 2 Megapixel Starvis CMOS - 6 LEDs 100 m distance - 25X Optical Zoom (4.8~120 mm) - WDR / Audio / Alarms / IP66
📋 SPECIFICATIONS:
• Brand: X-Security
• Optical sensor: 1/2.8" Sony© 2 Megapixel Starvis
• Resolution: 1080P at 25 FPS / 720P at 50 FPS
• Video output: 1 x BNC switchable HDCVI / CVBS
• Minimum illumination: 0.005 Lux (color) @F1.6 / 0 Lux (B/W)
• Infrared illumination: Automatic 6 IR LEDs 100 meters distance
• Lens: Varifocal 4.8~120 mm (25X optical zoom)
• Digital zoom: 16 X
• Electronic shutter: 1/3s~1/100,000s
• Day / Night: Removable mechanical ICR filter
• Gain control: Auto / Manual
• Backlight compensation: BLC, HLC, WDR (120dB), AWB, ATW, AGC, 2D/3D-NR, Privacy masking
• Pan/Tilt range: Horizontal: 0°~360°, Vertical: -15°~90° automatic rotation 180°
• Manual speed: Horizontal: 0.1°~200°/s, Vertical: 0.1°~120°/s
• Preset speed: Horizontal: 240°/s, Vertical: 200°/s
• Preset positions: 300 presets, 5 auto patterns, 8 auto tours, auto pan, auto scan
• Communication: RS485, Pelco P / Pelco D / DH-SD
• Audio: 1 input (Line In)
• Alarms: 2 inputs / 1 output
• Power supply: 12 VDC / 3 A
• Operating temp: -40º C ~ +70º C
• Protection degree: IP66
• Dimensions (without bracket): 295 mm (H) x 160 (Ø) mm
• Weight (without bracket): 4200 g
📦 INCLUDED:
• Motorized dome camera• PFB305W wall mount• Allen key• User instructions• CD with software and instructions
| Optical sensor | 1/2.8" Sony© 2 Megapixel Starvis |
|---|---|
| Resolution | 1080P at 25 FPS / 720P at 50 FPS |
| Video output | 1 x BNC switchable HDCVI / CVBS |
| Minimum illumination | 0.005 Lux (color) @F1.6 / 0 Lux (B/W) |
| Infrared illumination | Automatic 6 IR LEDs, 100 meters range |
| Lens | Varifocal 4.8~120 mm (25X optical zoom) |
| Digital zoom | 16 X |
| Electronic shutter | 1/3s~1/100,000s |
| Day / Night | Removable mechanical ICR filter |
| Gain control | Auto / Manual |
| Backlight compensation | BLC, HLC, WDR (120dB), AWB, ATW, AGC, 2D/3D-NR, Privacy masking |
| Pan/Tilt range | Horizontal: 0°~360°, Vertical: -15°~90° with auto flip 180° |
| Manual speed | Horizontal: 0.1° ~200° /s, Vertical: 0.1° ~120° /s |
| Preset speed | Horizontal: 240° /s, Vertical: 200° /s |
| Presets | 300 presets, 5 auto patterns, 8 auto tours, auto pan, auto scan |
| Communication | RS485, Pelco P / Pelco D / DH-SD |
| Audio | 1 input (Line In) |
| Alarms | 2 inputs / 1 output |
| Power supply | 12 VDC / 3 A |
| Operating temp. | -40º C ~ +70º C |
| Protection rating | IP66 |
| Dimensions (without bracket) | 295 mm (H) x 160 (Ø) mm |
| Weight (without bracket) | 4200 g |
- User manual Link
