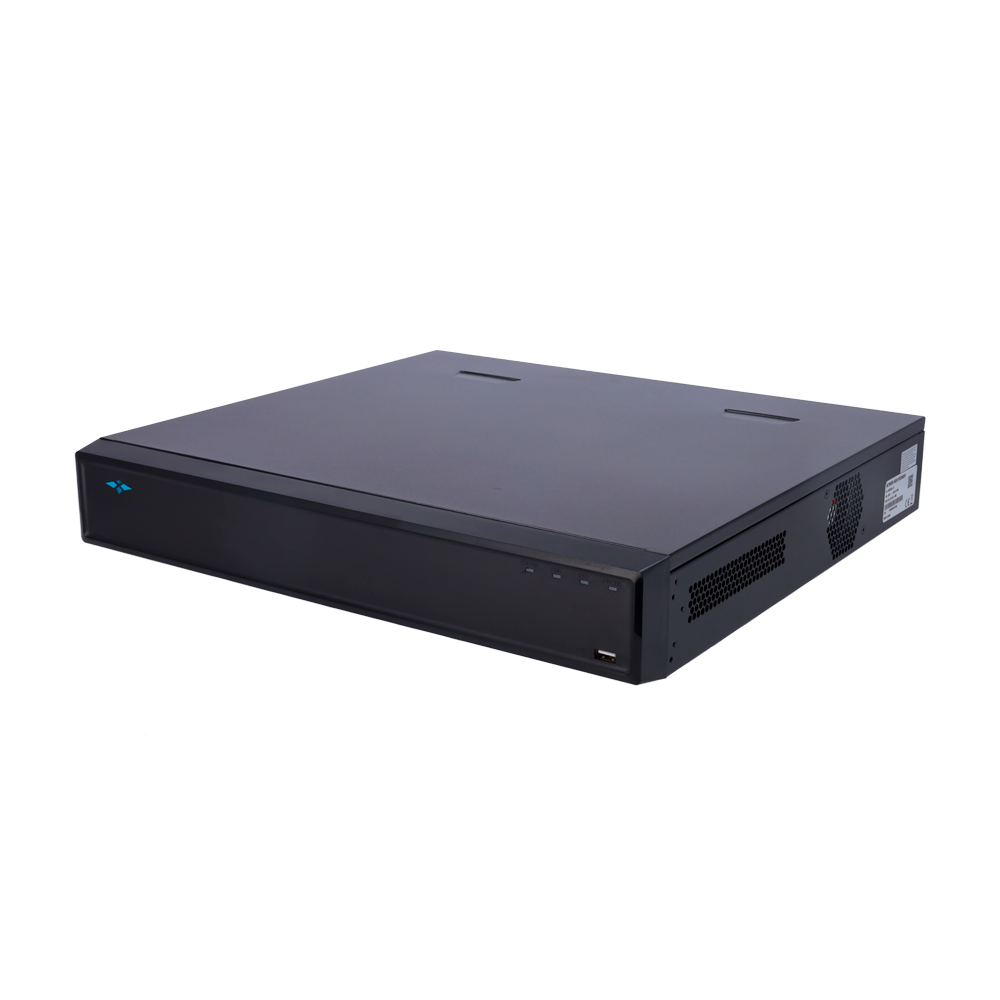

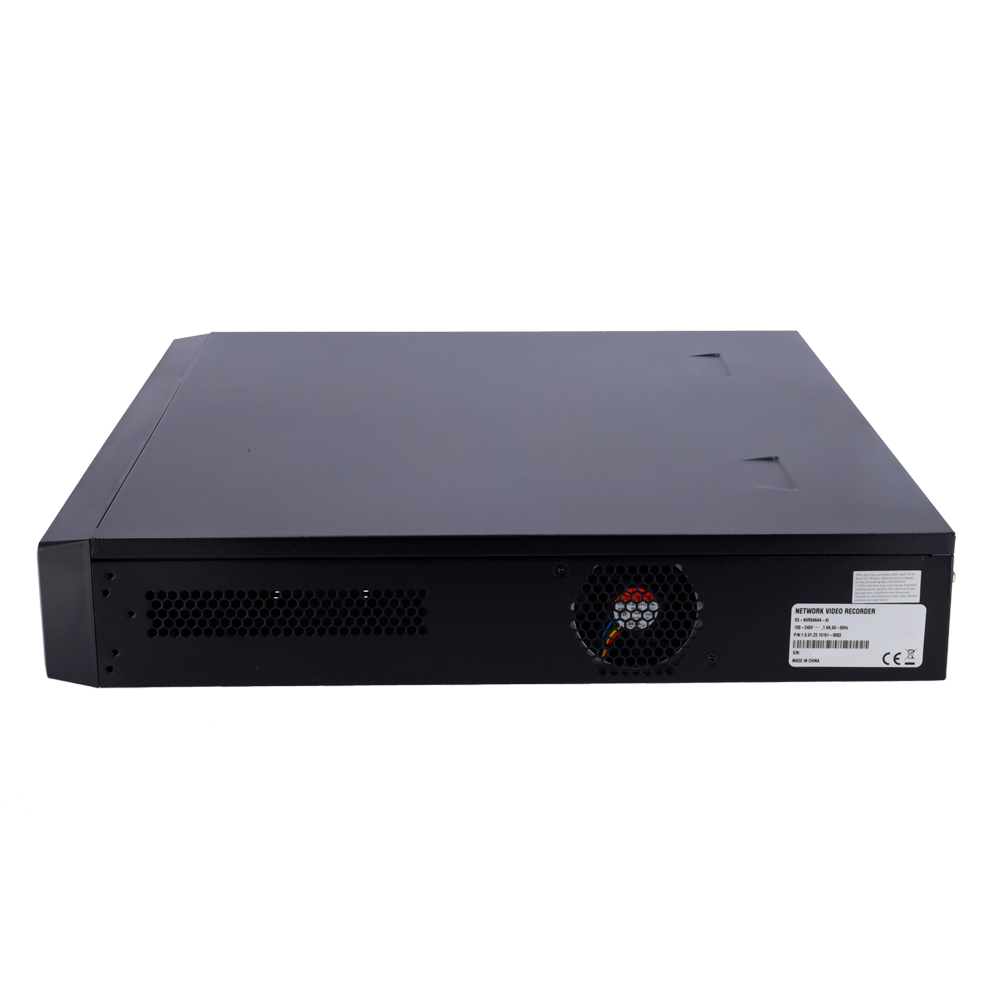

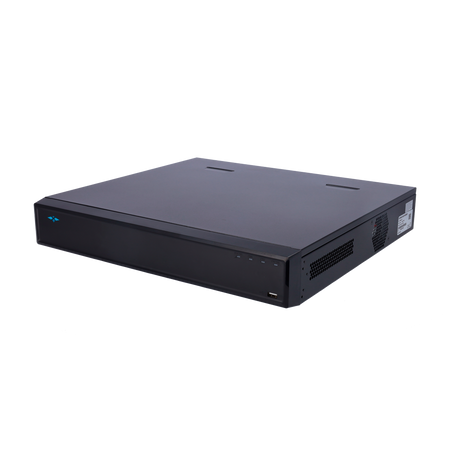

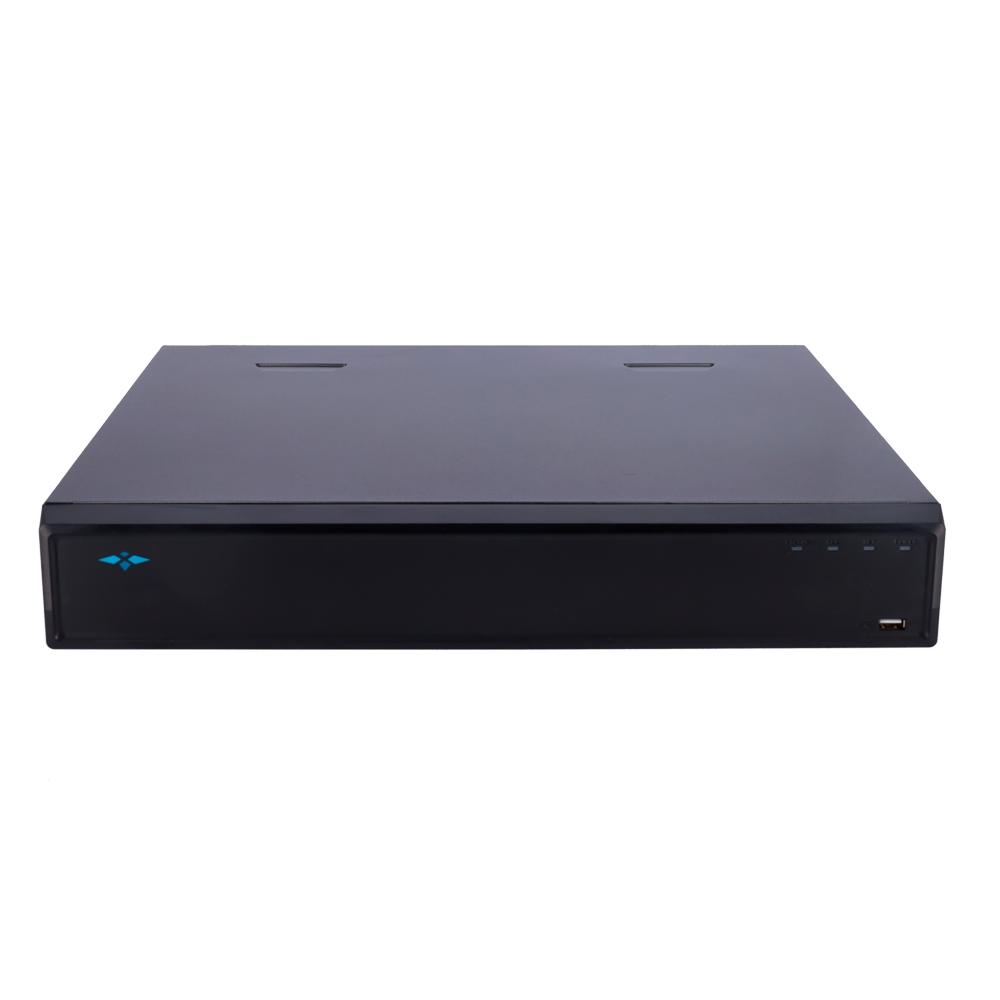

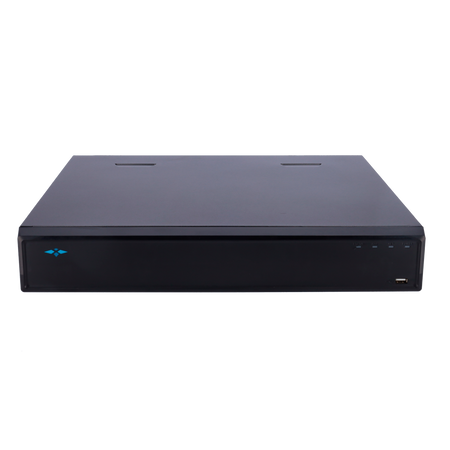

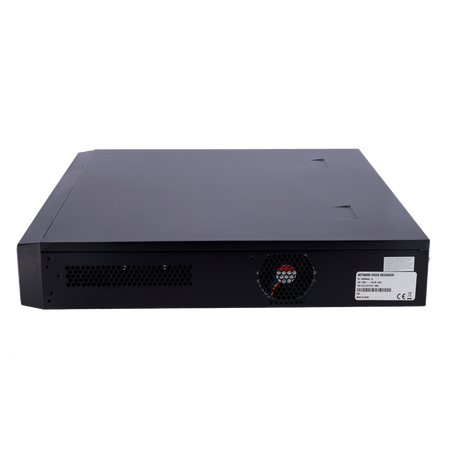

X-Security NVR ACUPICK Video Recorder - 64 CH IP

X-Security NVR ACUPICK Video Recorder - 64 CH IP - Maximum resolution 32 Megapixel - Smart H.265+; H.265; Smart H.264+; H.264; MJPEG - 2 x HDMI and VGA output - Smart functions

📋 SPECIFICATIONS:
• Brand: X-SECURITY
• IP camera inputs: LAN port up to 64 channels
• Bandwidth: AI disabled: 384 Mbps incoming, 384 Mbps recording, and 384 Mbps outgoing; AI enabled: 200 Mbps incoming, 200 Mbps recording, and 200 Mbps outgoing
• Video output: 2 x 4K HDMI and 2 x VGA
• Bidirectional audio: 1 in, 1 out, RCA
• Video compression format: H.265+ / H.264+
• Display resolution: 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF
• Decoding capacity: AI disabled: 2 channels 32 MP@20 fps; 2 channels 24 MP@20 fps; 4 channels 16 MP@30 fps; 5 channels 12 MP@30 fps; 8 channels 8 MP@30 fps; 12 channels 5 MP@30 fps; 16 channels 4 MP@30 fps; 32 channels 1080p@30 fps; AI enabled: 1 channel 32 MP@20 fps; 1 channel 24 MP@20 fps; 2 channels 16 MP@30 fps; 4 channels 12 MP@30 fps; 4 channels 8 MP@30 fps; 8 channels 5 MP@30 fps; 12 channels 4 MP@30 fps; 30 channels 1080p@24 fps
• AI per NVR: Face detection; face recognition; perimeter protection; SMD Plus
• AI per camera: Face detection; face recognition; video metadata (people, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; Heat map
• AcuPick AI per camera + NVR: Max. 16 channels, 1 combined event per channel(s)
• AI perimeter performance per NVR (number of channels): 4 channels, 10 IVS rules per channel
• AI perimeter performance per device (number of channels): 16 channels
• Face detection: Gender; Age group; Glasses; Expressions; Mask; Beard
• Network port: 2 (10/100/1000 Mbps Ethernet port, RJ-45)
• AI face detection performance per NVR (number of channels): 2 channels (up to 12 face images per channel)
• AI face detection capacity per camera (number of channels): 16 channels
• Face database capacity: Up to 20 face databases can be added with 20,000 images, with a total capacity of 2.5 G. Name, gender, date of birth, address, credential type, credential number, countries, regions, and state can be added to each face image.
• AI face recognition performance per NVR (number of channels): 1. 16-channel FD (per camera) + FR (per NVR), image stream: 16 face images; 2. 2-channel FD (per NVR) + FR (per NVR), video stream: 12 face images
• AI face recognition performance per camera (number of channels): 16 channels
• SMD Plus: SMD Plus per NVR; 8 channels: Secondary filter for motor vehicles and people, reducing false alarms caused by leaves, rain, and changing lighting conditions; SMD Plus per camera; 16 channels
• AI metadata performance per camera (number of channels): 8 channels
• Person features: Top color, top style, bottom color, bottom style, hat, bag, age, gender, and umbrella
• Recording method: Manual, scheduled, motion detection, alarm
• Smart functions: Line crossing, Intrusion, Abandoned object, Face detection, Heat map
• Backup: USB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA
• Motor vehicle features: License plate, plate color, vehicle body, vehicle model, vehicle logo, call sign, seat belt, vehicle interior, vehicle registration location.
• Non-motor vehicle features: Vehicle model, vehicle color, number of people, helmet.
• ANPR per camera (number of channels): 8 channels
• License plate database capacity: 1. Create up to 20,000 license plate numbers; 2. Unauthorized list and authorized list
• Alarms: 16 Inputs, 6 Relay NO/NC

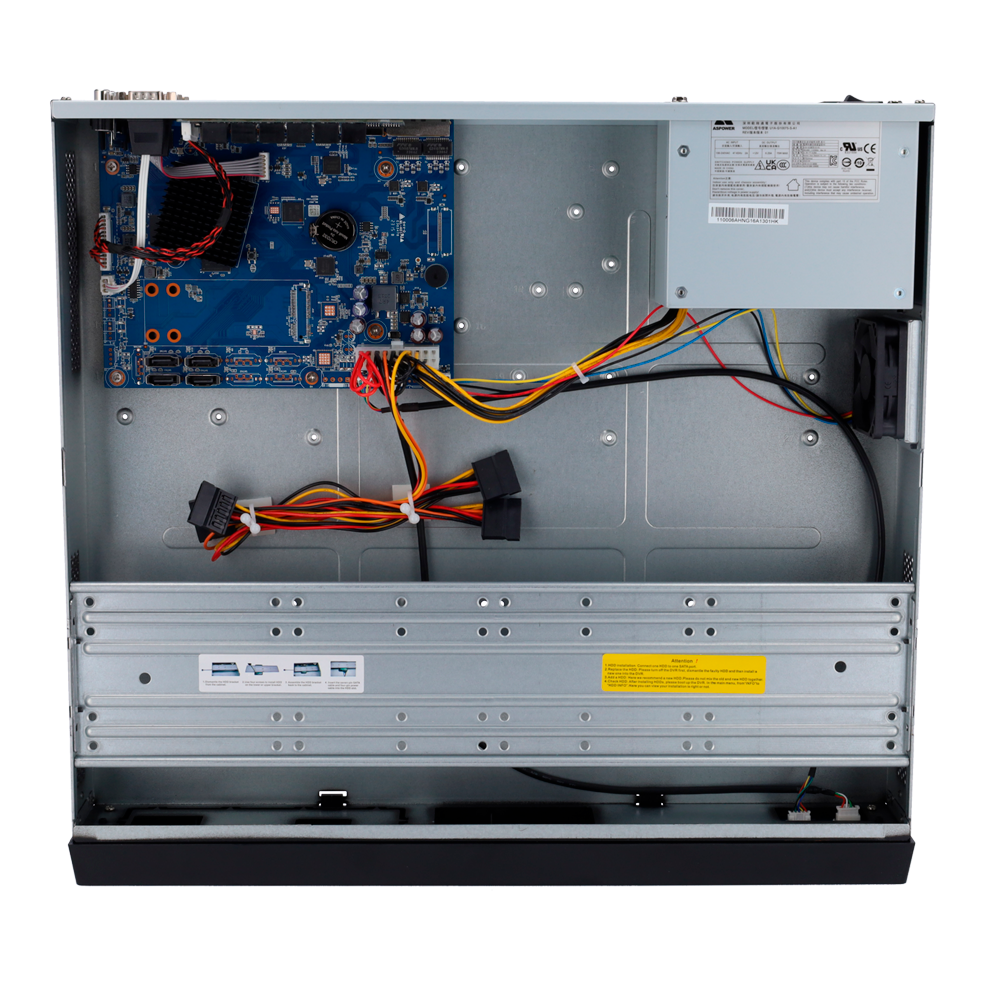

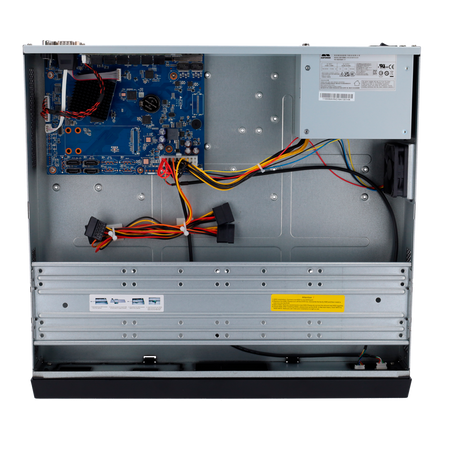

• Internal memory: 4 SATA 3.5" HDDs up to 10 TB (not included)
• Third-party camera access: ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung

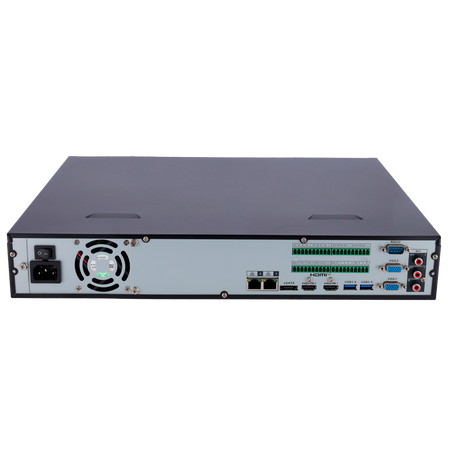

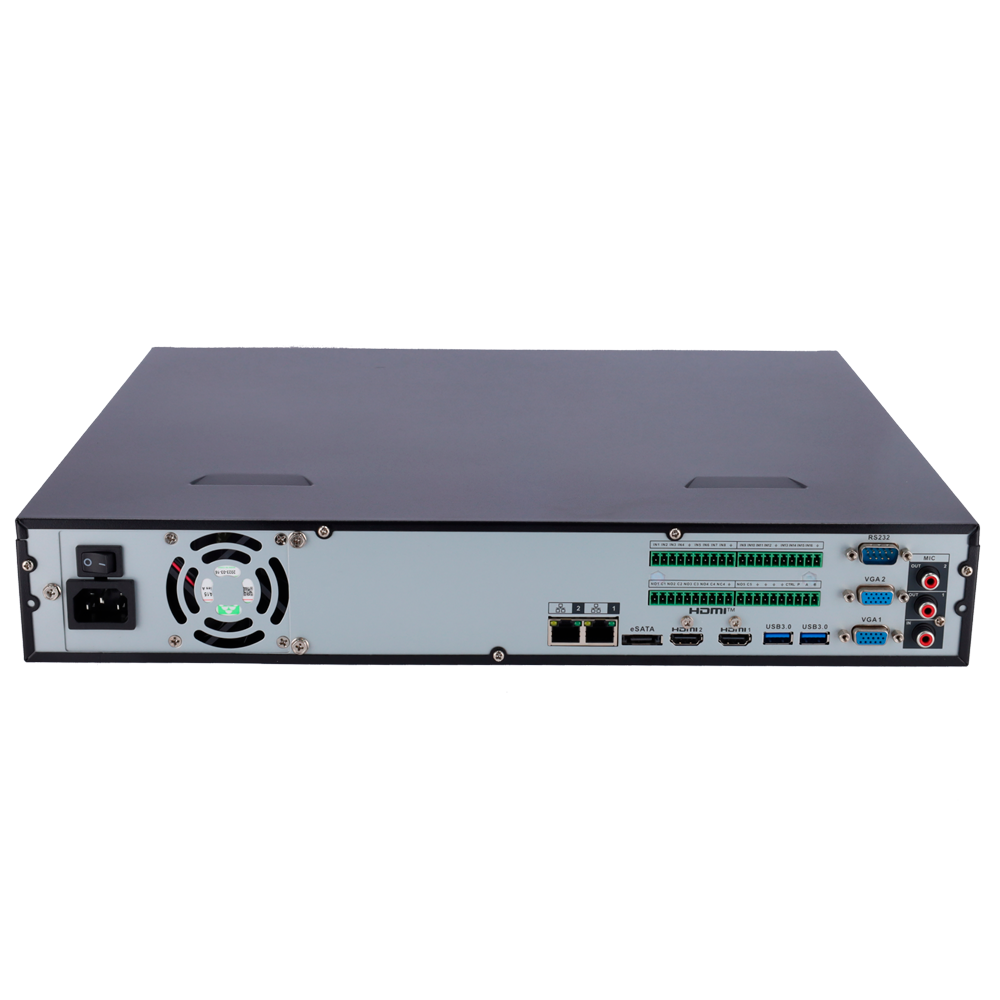

• Communication: 3xUSB Ports / 2 RJ45 10/100/1000M (Ethernet)
• Remote access: Browser (ActiveX), Smartphone App, or PSS software
• Power supply: 100 ~ 240 VAC / 13W

📦 INCLUDED:
• X-SECURITY NVR Video Recorder • Mouse • Ethernet cable • Power cable • User instructions • CD with manual and software
