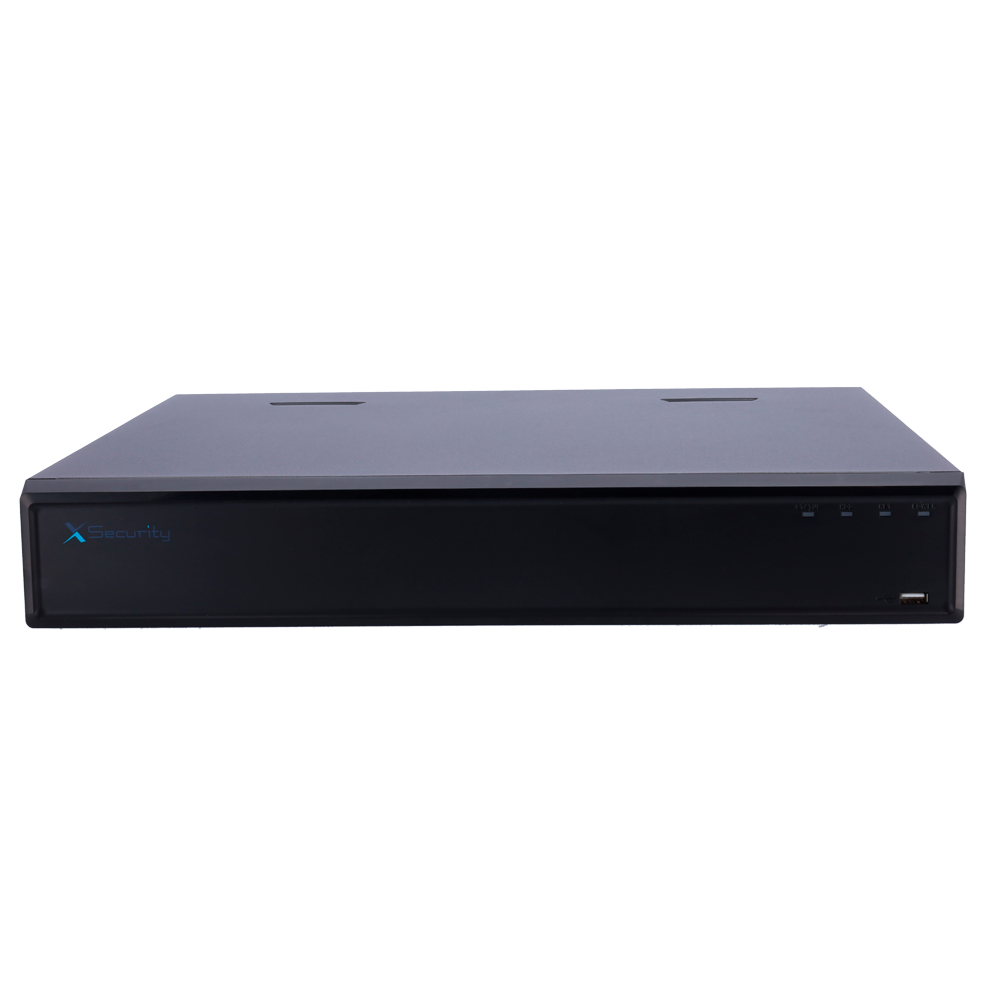

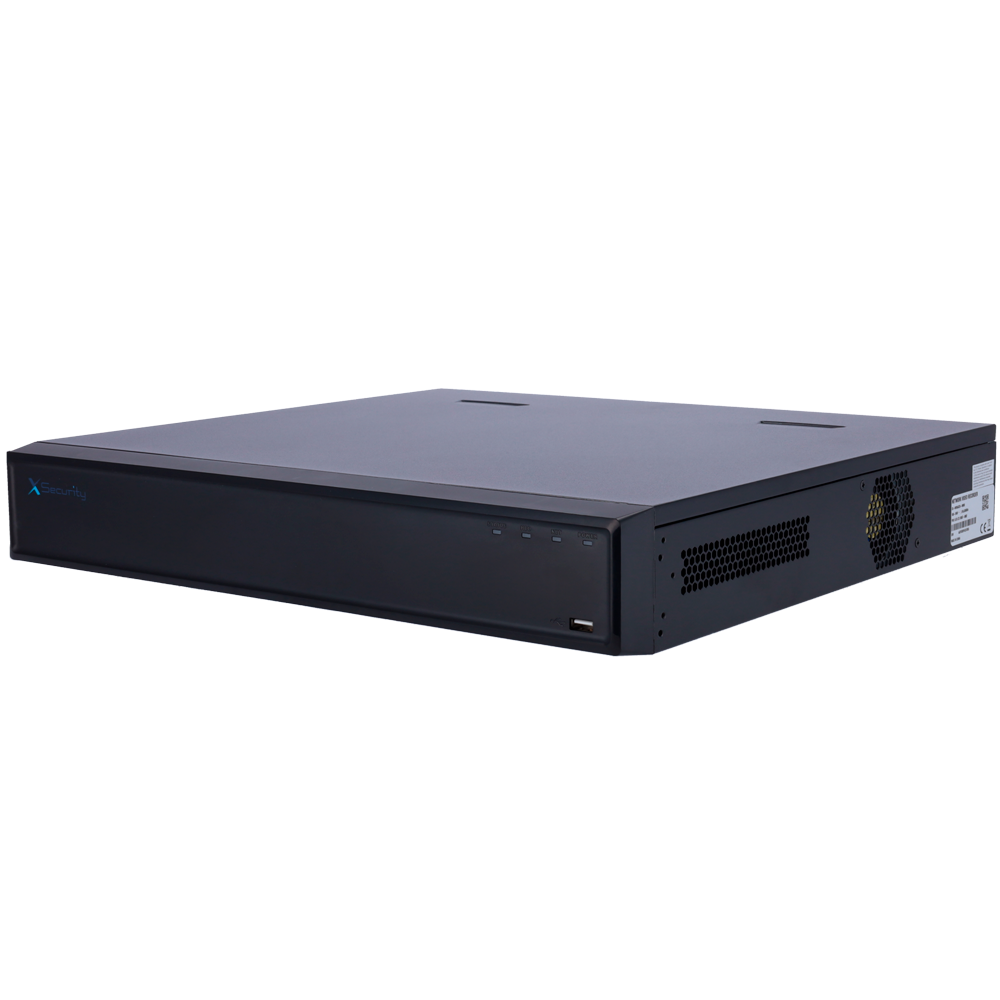

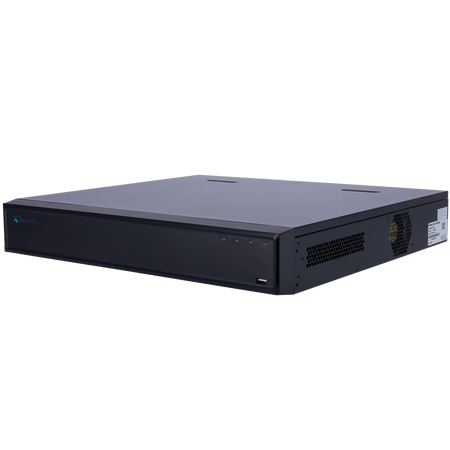

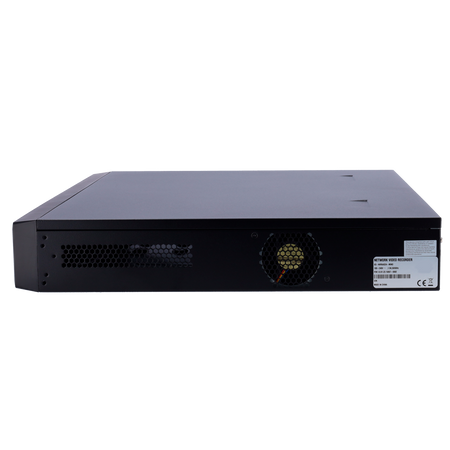

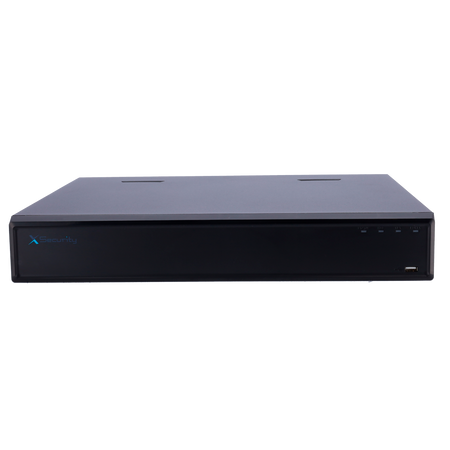

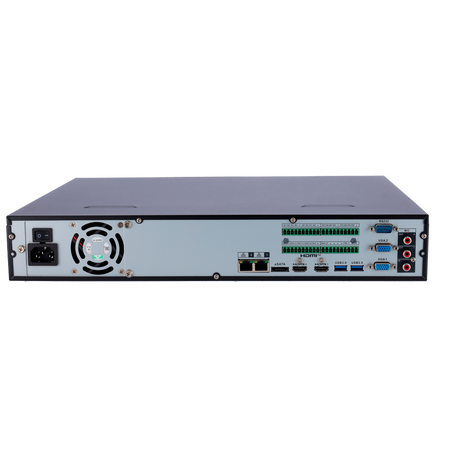

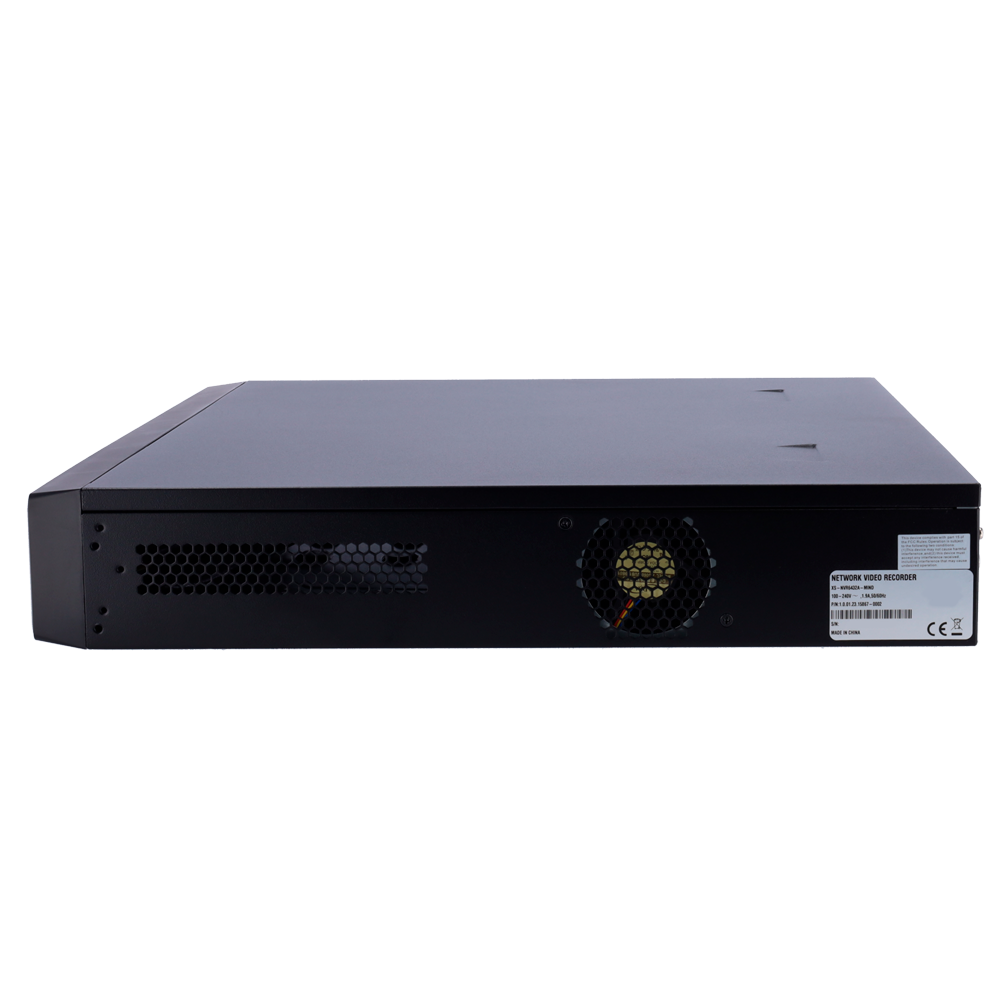

X-Security WizMind NVR Maximum resolution 32 Megapixel

X-Security NVR WizMind - Maximum resolution 32 Megapixel - 32 CH - H.265 / H.264 compression | 4 HDD - 4K HDMI output | Alarm outputs - SMD, IVS, Metadata and AcuPick

📋 SPECIFICATIONS:
• Brand: X-SECURITY
• IP camera inputs: LAN port up to 64 channels
• PoE: 16 PoE ports IEEE802.3at/af
• Compatible IP cameras: X-SECURITY (proprietary protocol), ONVIF
• Video output: 1 4K HDMI, 1 VGA
• Video compression format: H.265+ Smart / H.265 / H.264+ / H.264 / MJPEG
• Two-way audio: 1 input, 1 output, RCA
• Recording resolution: 32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, CIF
• Decoding capacity: AI Disabled:; 2CH at 32MP@30FPS, 2CH at 24MP@30FPS, 4CH at 16MP@30FPS, 5CH at 12MP@30FPS, 8CH at 8MP@30FPS, 4CH at 10MP@30FPS, 12CH at 5MP@30FPS, 16CH at 4MP@30FPS, 32CH at 1080p@30FPS; AI Enabled:; 1CH at 32MP@30FPS, 1CH at 24MP@30FPS, 2CH at 16MP@30FPS, 4CH at 12MP@30FPS, 6CH at 8MP@30FPS, 8CH at 6MP@30FPS, 8CH at 5MP@30FPS, 12CH at 4MP@30FPS, 24CH at 1080p@30FPS
• Video output: 2 HDMI up to 4K; 2 VGA up to 1080P
• Display resolution: HDMI 1 and 2: 3840×2160, 1920×1080, 1280×1024, 1280×720; VGA 1 and 2: 1920x1080, 1280×1024, 1280×720; *HDMI 1 and HDMI 2 outputs are independent; *HDMI 1 and VGA 1 outputs are independent; *HDMI 2 and VGA 2 outputs are independent
• Bandwidth: AI Disabled:; 512 Mbps incoming / 512 Mbps outgoing; AI Enabled:; 200 Mbps incoming / 200 Mbps outgoing
• SMD (Smart Motion Detection): Advanced motion detection based on pixel changes caused by people and vehicles, reducing false alarms; For NVR: Up to 8CH; For IP camera with SMD: All channels (up to 32 targets/second)
• IVS Perimeter Protection: Intelligent algorithm based on person and vehicle detection with high precision, filtering out uninteresting objects such as rain, leaves, bright lights, etc.; IVS is based on line crossing, area intrusion and area entry, ...; For NVR: Up to 4CH (Up to 10 IVS rules); For IP camera with IVS: All channels (16 targets/second)
• Face Detection: Detection of facial features such as: Gender, age range, glasses, expressions, mask or beard; For NVR: Up to 2CH (Up to 12 images/second per channel); With IP camera with face detection: Up to 16CH (Up to 12 targets/second)
• Face Recognition: Up to 20 face databases with 2,000,000 images (44G); Second screen with 4K enabled:; 32ch Face detection by camera + Face recognition by NVR; 4ch Face detection by NVR + Face recognition by NVR; Second screen with 4K disabled:; 32ch Face detection by camera + Face recognition by NVR; 8ch Face detection by NVR + Face recognition by NVR; From IP camera with face recognition: Up to 32CH
• AcuPick: Rapid target search for up to 32CH of people and vehicles on live video or recordings based on IVS Perimeter Protection events
• Video metadata: For NVR: Up to 8CH; For IP camera with video metadata: Up to 32CH; Extraction of 9 person attributes, 9 vehicle attributes and 4 non-motorized vehicle attributes
• Smart event searches: SMD, IVS, Face detection, Face recognition, ANPR, People counting, Heat map
• Multifunction: Pentaplex: Live, recording, playback, backup and remote access
• Alarms: 4 Inputs / 2 Outputs NO/NC
• Audio: 1 RCA input / 1 RCA output
• Recording method: Manual, scheduled, motion detection, alarm
• Backup: USB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA
• Internal storage: 4 SATA 3.5" HDD up to 20TB (not included)

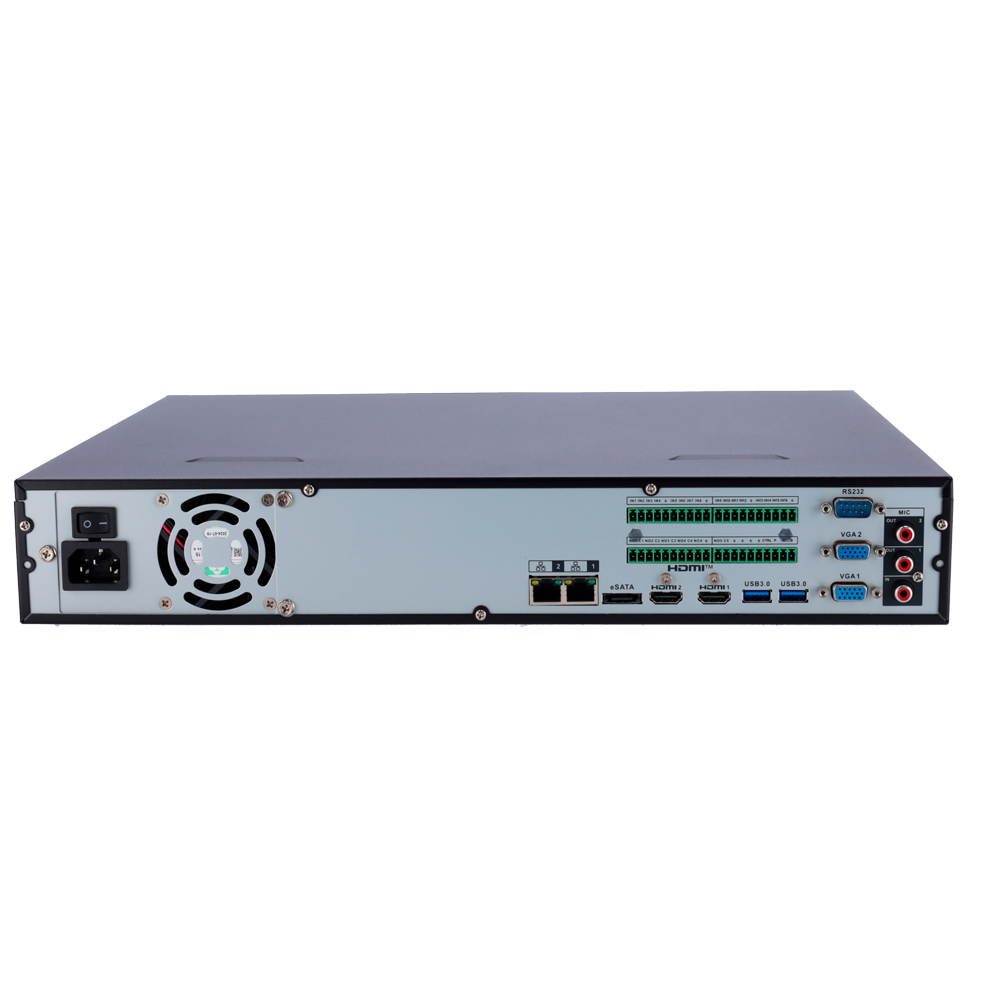

• Communication: 3x USB (Mouse and backup) / 1xRS232 / 1xRS484 / 1 RJ45 10/100/1000M (Ethernet)
• Rack mount: 1.5U
• Remote access: Browser (ActiveX), mobile phone application, DSS or DSS PRO software
• Power supply: AC 100~240 V, 50/60 Hz, >10W
• Operating temperature: –10 °C to +55 °C, 10%-93% (RH, non-condensing)
• Dimensions: 53 (H) x 375 (W) x 329.3 (D) mm / 2.6 Kg

📦 INCLUDED:
• X-SECURITY NVR Video Recorder • Mouse • Ethernet cable • Power cable • User instructions • CD with manual and software
