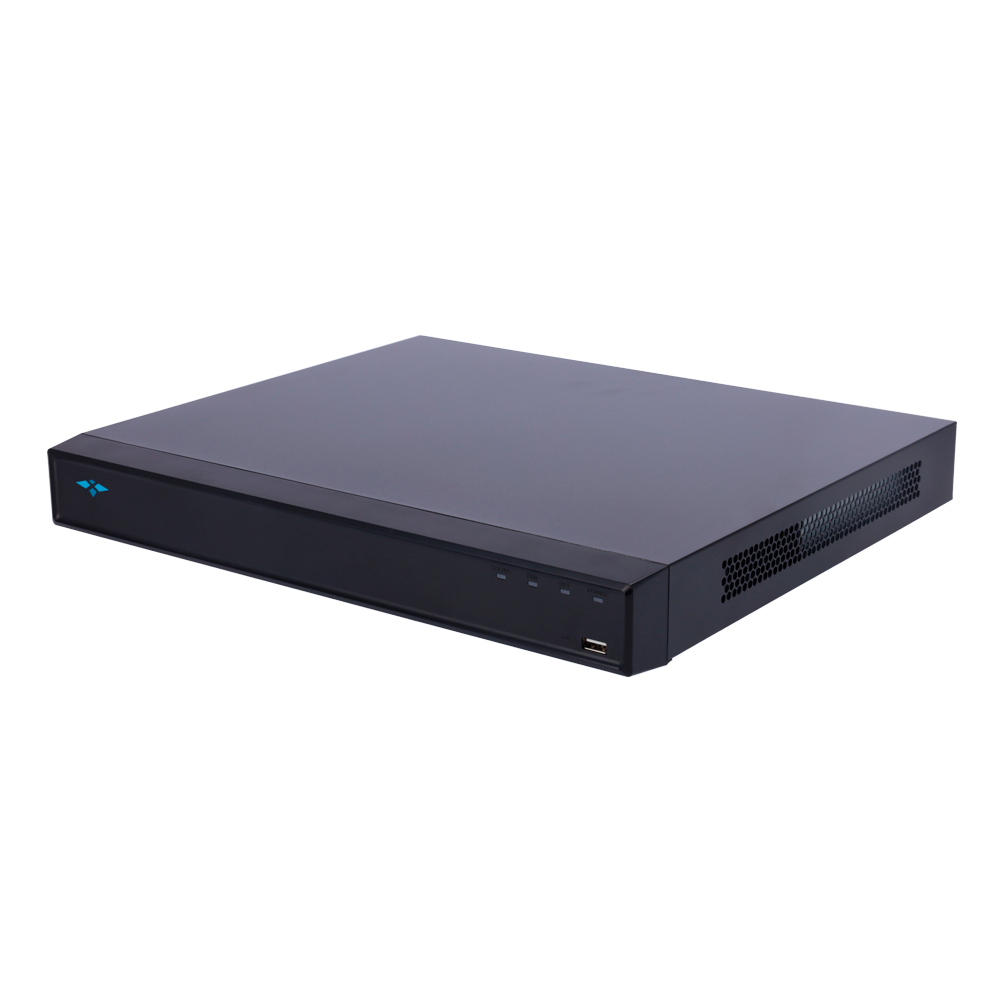

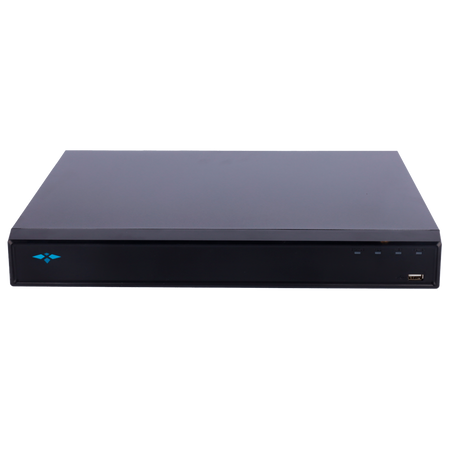

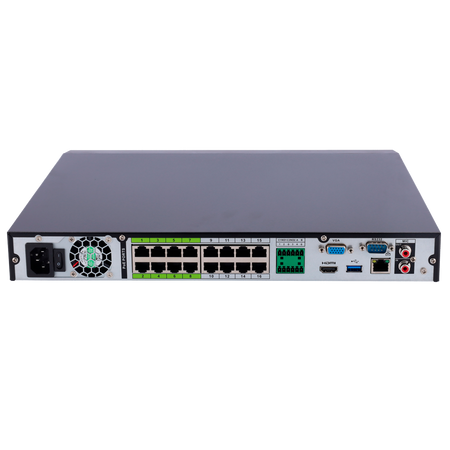

X-Security NVR video recorder for IP cameras - Maximum resolution 12 Megapixel - 16 IP channels, 16 PoE ports
X-Security NVR video recorder for IP cameras - Maximum resolution 12 Megapixel - 16 IP channels, 16 PoE ports
Regular price
€617,95
Final price
Regular price
-6%
€660,00
Sale price
€617,95
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
X-Security NVR video recorder for IP cameras - Maximum resolution 12 Megapixels - Smart H.265+ / Smart H.264+ compression - 16 IP channels, 16 PoE ports - 4 Ch face recognition or 16 Ch AI - WEB, DSS/PSS, Smartphone and NVR
📋 SPECIFICATIONS:
• Brand: X-SECURITY
• IP camera inputs: LAN port up to 16 channels
• PoE: 16 PoE ports IEEE802.3af/at (8ePoE)
• Compatible IP cameras: X-SECURITY (proprietary protocol), ONVIF
• Video output: 1 4K HDMI, 1 VGA
• Two-way audio: 1 input, 1 output, RCA
• Video compression format: Smart H.265+ / H.265 / Smart H.264+ / H.264
• Display resolution: 3840× 2160, 1920× 1080, 1280× 1024, 1280× 720, 1024× 768
• Total bandwidth: 384 Mbps
• Recording resolution: 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P ...
• Multi-function: Pentaplex: Live, recording, playback, backup and remote access
• Alarms: 4 inputs 2 NO/NC relays
• Recording method: Manual, scheduled, motion detection, alarm
• Artificial Intelligence: Face recognition up to 2Ch, perimeter protection up to 4Ch and SMD plus up to 8Ch
• Backup: USB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA
• Internal storage: 2 SATA 3.5" HDDs up to 10 TB (not included)
• Communication: 3xUSB (Mouse and backup) / 1 RJ45 10/100/1000M (Ethernet)
• Remote access: Browser (ActiveX), Smartphone App or PSS software
• Power supply: AC 100~240V 50~60 Hz / PoE IEEE802.3af/at
• Dimensions: 53 (H) x 329 (W) x 375 (D) mm / 3.82 Kg (without HDD)
📦 INCLUDED:
• X-SECURITY NVR video recorder • Mouse • Power cable • User manual
| IP camera inputs | LAN port up to 16 channels |
|---|---|
| PoE | 16 PoE ports IEEE802.3af/at (8ePoE) |
| Compatible IP cameras | X-SECURITY (proprietary protocol), ONVIF |
| Video output | 1 HDMI 4K, 1 VGA |
| Two-way audio | 1 input, 1 output, RCA |
| Video compression format | Smart H.265+ / H.265 / Smart H.264+/ H.264 |
| Display resolution | 3840× 2160, 1920× 1080, 1280× 1024, 1280× 720, 1024× 768 |
| Total bandwidth | 384 Mbps |
| Recording resolution | 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P ... |
| Multifunction | Pentaplex: Live, recording, playback, backup and remote access |
| Alarms | 4 inputs 2 Relay NO/NC |
| Recording method | Manual, scheduled, motion detection, alarm |
| Artificial Intelligence | Facial recognition up to 2Ch, perimeter protection up to 4Ch and SMD plus up to 8Ch |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA |
| Internal storage | 2 HDD SATA 3.5" up to 10 TB (not included) |
| Communication | 3xUSB (Mouse and backup) / 1 RJ45 10/100/1000M (Ethernet) |
| Remote access | Browser (ActiveX), smartphone app or PSS software |
| Power supply | AC 100~240V 50~60 Hz / PoE IEEE802.3af/at |
| Dimensions | 53 (H) x 329 (W) x 375 (D) mm / 3.82 Kg (without HDD) |
- User manual Link
