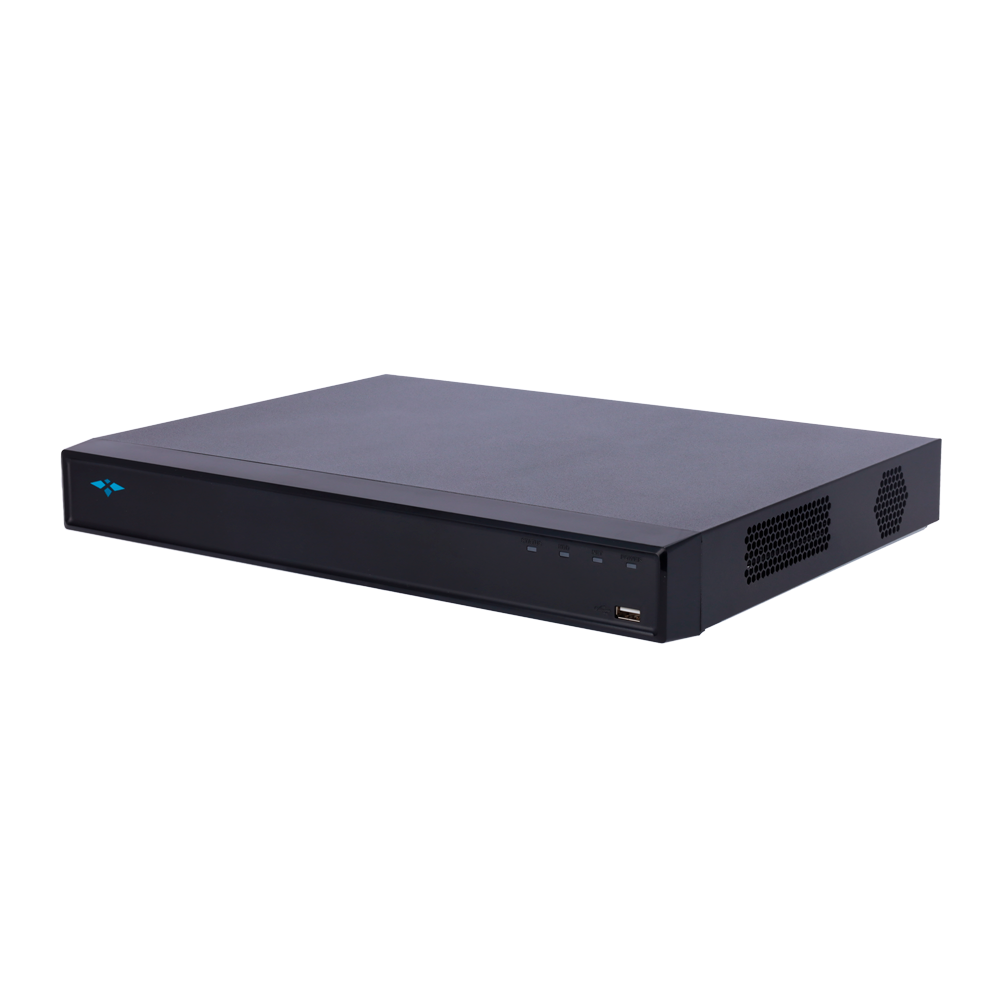

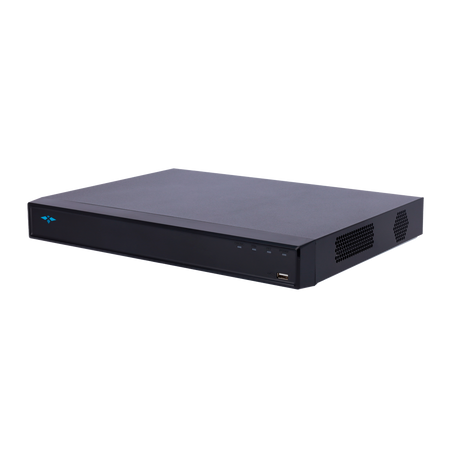

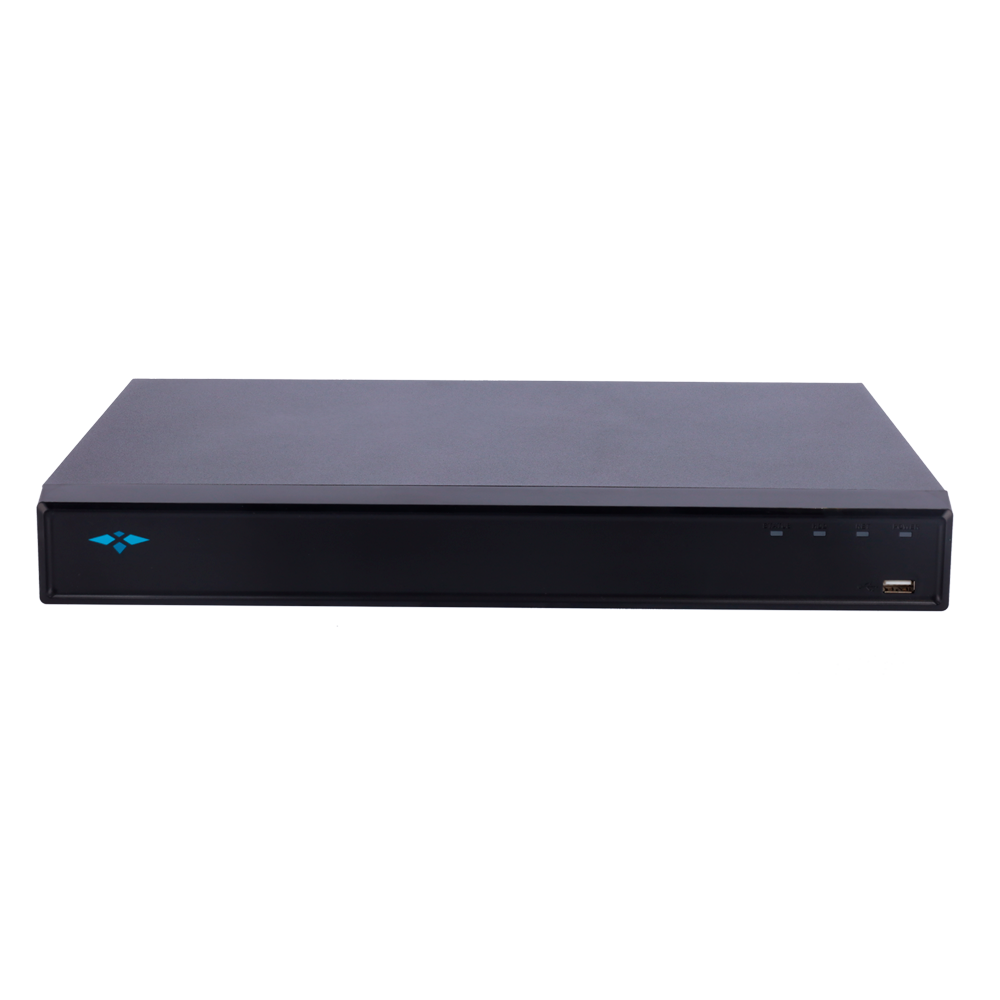

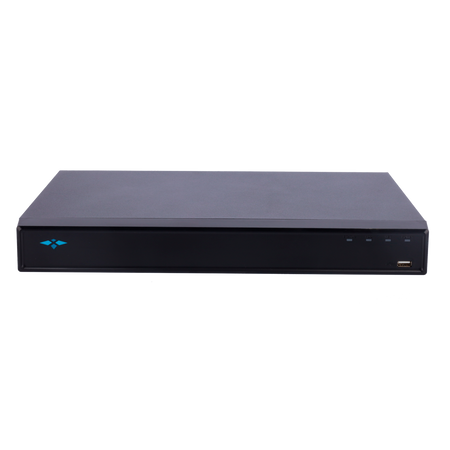

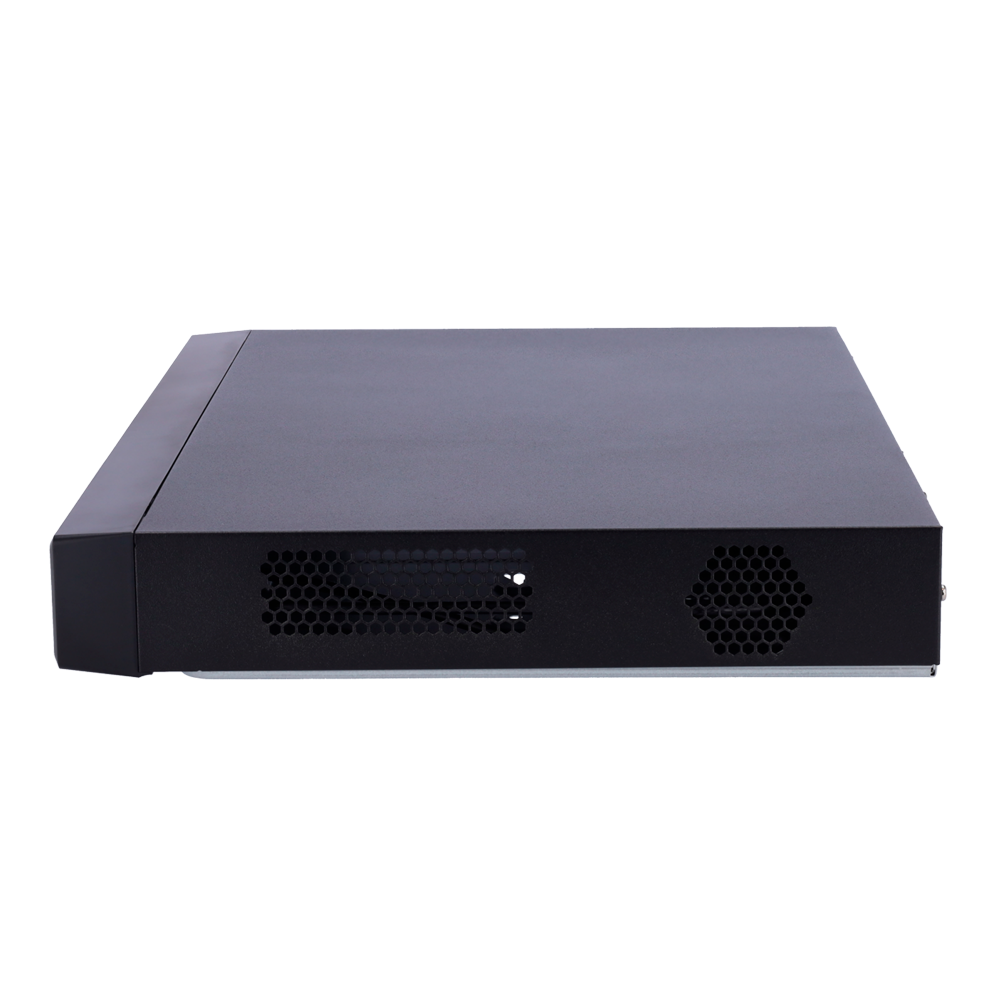

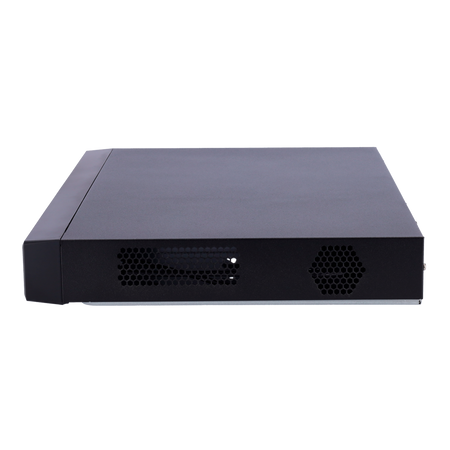

X-Security NVR video recorder for IP cameras - Maximum resolution 16 Megapixels - 32 IP channels
X-Security NVR video recorder for IP cameras - Maximum resolution 16 Megapixels - 32 IP channels
Regular price
€345,13
Final price
Regular price
-10%
€383,56
Sale price
€345,13
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
X-Security NVR video recorder for IP cameras - Maximum resolution 16 Megapixel - Smart H.265+ / Smart H.264+ compression - 32 IP channels - AI Intelligent functions - WEB, DSS/PSS, Smartphone and NVR
📋 SPECIFICATIONS:
• Brand: X-SECURITY
• IP camera inputs: LAN port up to 32 channels

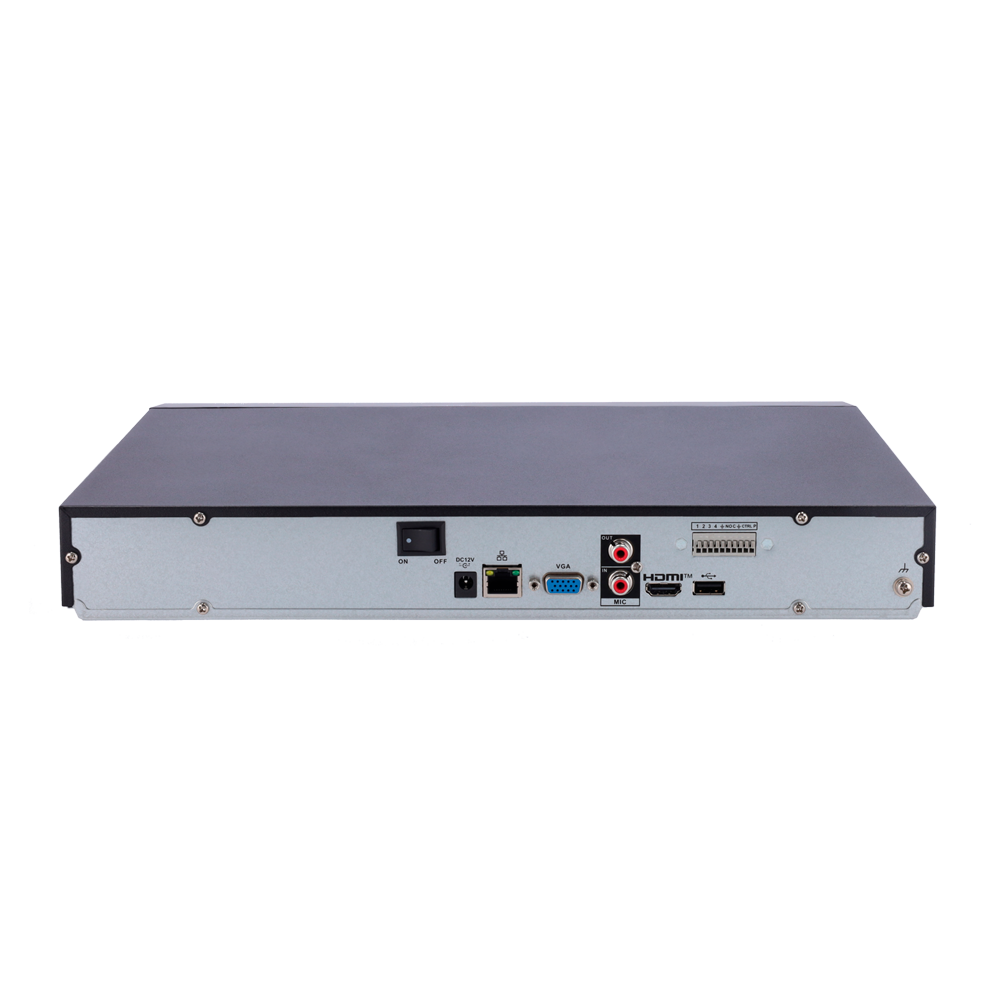

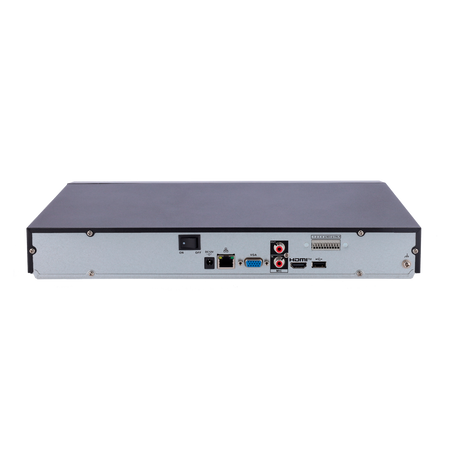

• Video output: 1 HDMI 4K, 1 VGA
• Two-way audio: 1 input, 1 output, RCA
• Video compression format: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
• Decoding capacity: AI Disabled: 2 channels 16 MP@30 fps; 2 channels 12 MP@30 fps; 4 channels 8 MP@30 fps; 6 channels 5 MP@30 fps; 8 channels 4 MP@30 fps; 16 channels 1080p@30 fps; AI Enabled: 1 channel 16 MP@30 fps; 2 channels 12 MP@30 fps; 3 channels 8 MP@30 fps; 4 channels 5 MP@30 fps; 6 channels 4 MP@30 fps; 30 channels 1080p@30 fps
• Total bandwidth: AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing; AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing
• Recording resolution: 16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 960p, 720p, D1, CIF
• Multifunction: Pentaplex: Live, recording, playback, backup and remote access
• Alarms: 4 Inputs 2 Relay NO/NC
• SMD Plus: SMD Plus per recorder up to 4 channels: Secondary filter for people and motor vehicles, which reduces false alarms caused by leaves, rain, and varying lighting conditions.; SMD Plus per camera up to 8 channels.
• Perimeter protection: Per recorder up to 2 channels, 10 IVS rules for each channel.; Per camera up to 8 channels.
• Face detection: Per recorder 1 channel (up to 12 face images per channel); Per camera up to 8 channels.; Gender; Age group; Glasses; Expressions; Mask; Beard
• Face recognition: Up to 10 face databases with 200,000 images, with a total capacity of 2.5 GB. For each face image, name, gender, date of birth, address, credential type, credential number, countries, regions and state can be added.
• AI face recognition performance per camera (number of channels): 8 channels
• AI face recognition performance per recorder (number of channels): 8-channel FD (per camera) + FR (per recorder), image stream: 12 face images; 1-channel FD (per recorder) + FR (per recorder), video stream: 12 face images

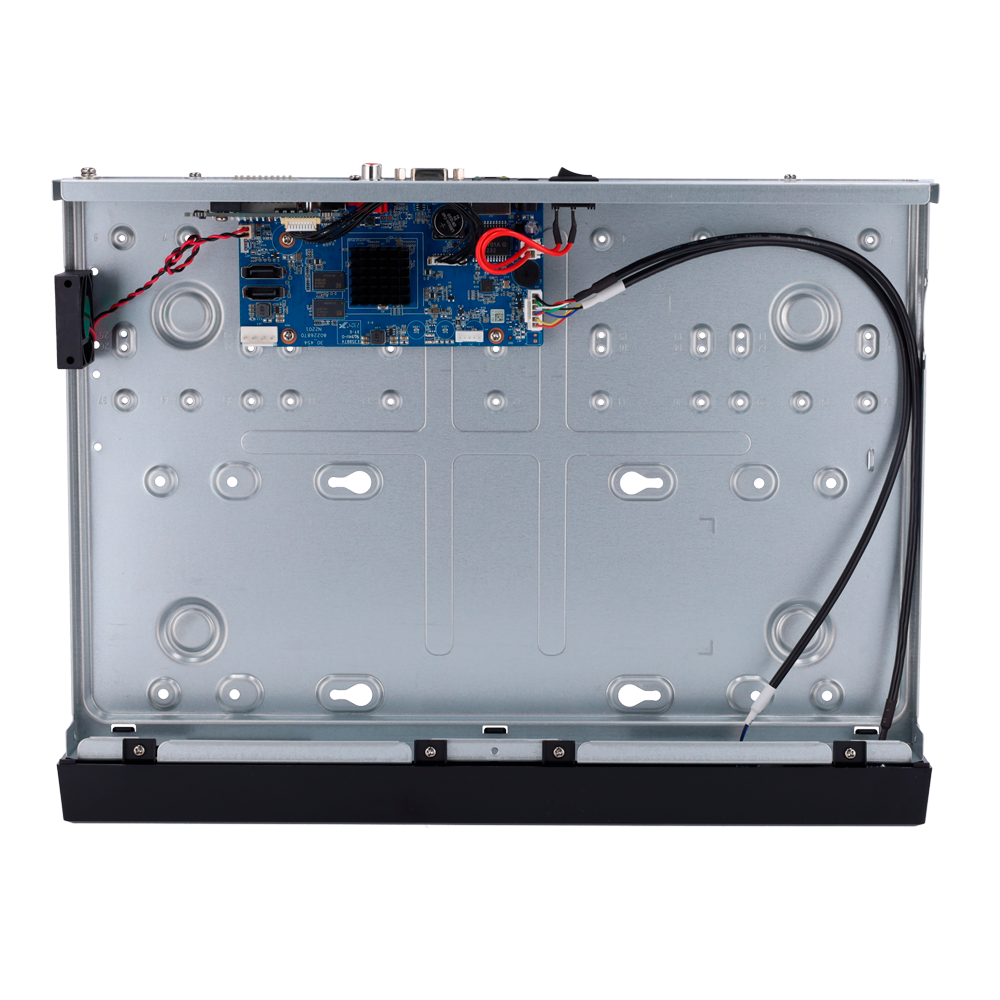

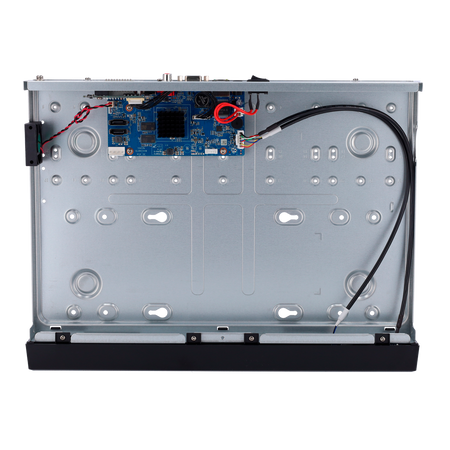

• Internal memory: 2 SATA 3.5" HDDs up to 16 TB (not included)
• Alarms: 4 Input relays / 2 Output relays
• Communication: 2xUSB / 1 RJ45 10/100/1000M (Ethernet) / 16 ports, 10/100 Mbps, IEEE 802.3 af-at
• Remote access: Browser (ActiveX), Smartphone App or Smart PSS software
• Power supply: 100–240 VAC, 47-63 Hz
• Dimensions: 53 (H) x 329.3 (W) x 375 (D) mm / 2.6 Kg (without HDD)
📦 INCLUDED:
• X-SECURITY NVR video recorder• Mouse• Power cable• User manual
| IP camera inputs | LAN port up to 32 channels |
|---|---|
| Video output | 1 HDMI 4K, 1 VGA |
| Two-way audio | 1 input, 1 output, RCA |
| Video compression format | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Decoding capacity | AI disabled: 2 channels 16 MP@30 fps; 2 channels 12 MP@30 fps; 4 channels 8 MP@30 fps; 6 channels 5 MP@30 fps; 8 channels 4 MP@30 fps; 16 channels 1080p@30 fps AI enabled: 1 channel 16 MP@30 fps; 2 channels 12 MP@30 fps; 3 channels 8 MP@30 fps; 4 channels 5 MP@30 fps; 6 channels 4 MP@30 fps; 12 channels 1080p@30 fps |
| Total bandwidth | AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing |
| Recording resolution | 16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 960p, 720p, D1, CIF |
| Multifunction | Pentaplex: Live, recording, playback, backup and remote access |
| Alarms | 4 inputs 2 relays NO/NC |
| SMD Plus | SMD Plus per recorder up to 4 channels: Secondary filter for people and motor vehicles, which reduces false alarms caused by leaves, rain and changing lighting conditions. SMD Plus per camera up to 8 channels. |
| Perimeter protection | For each recorder up to 2 channels, 10 IVS rules for each channel. For each camera up to 8 channels. |
| Face detection | For each recorder 1 channel (up to 12 face images per channel) For each camera up to 8 channels. Gender; age group; glasses; expressions; mask; beard |
| Face recognition | Up to 10 face databases with 200,000 images, with a total capacity of 2.5 G. Name, gender, date of birth, address, credential type, credential number, countries, regions and state can be added to each face image. |
| AI face recognition performance per camera (number of channels) | 8 channels |
| AI face recognition performance per recorder (number of channels) | 8-channel FD (per camera) + FR (per recorder), image stream: 12 face images 1-channel FD (per recorder) + FR (per recorder), video stream: 12 face images |
| Internal memory | 2 3.5" SATA HDDs up to 16 TB (not included) |
| Alarms | 4 input relays / 2 output relays |
| Communication | 2xUSB / 1 RJ45 10/100/1000M (Ethernet) / 16 ports, 10/100 Mbps, IEEE 802.3 af-at |
| Remote access | Browser (ActiveX), smartphone app or Smart PSS software |
| Power supply | 100–240 VAC, 47-63 Hz |
| Dimensions | 53 (W) x 329.3 (L) x 375 (H) mm / 2.6 kg (without HDD) |
- User manual Link
