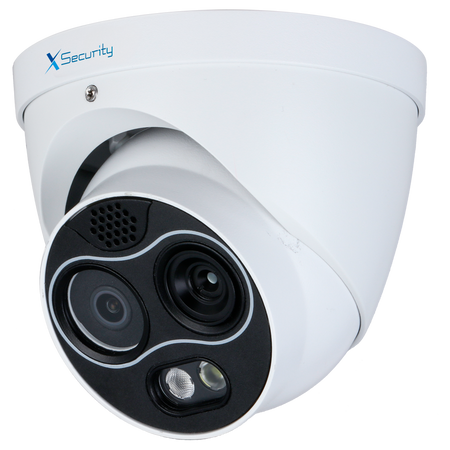

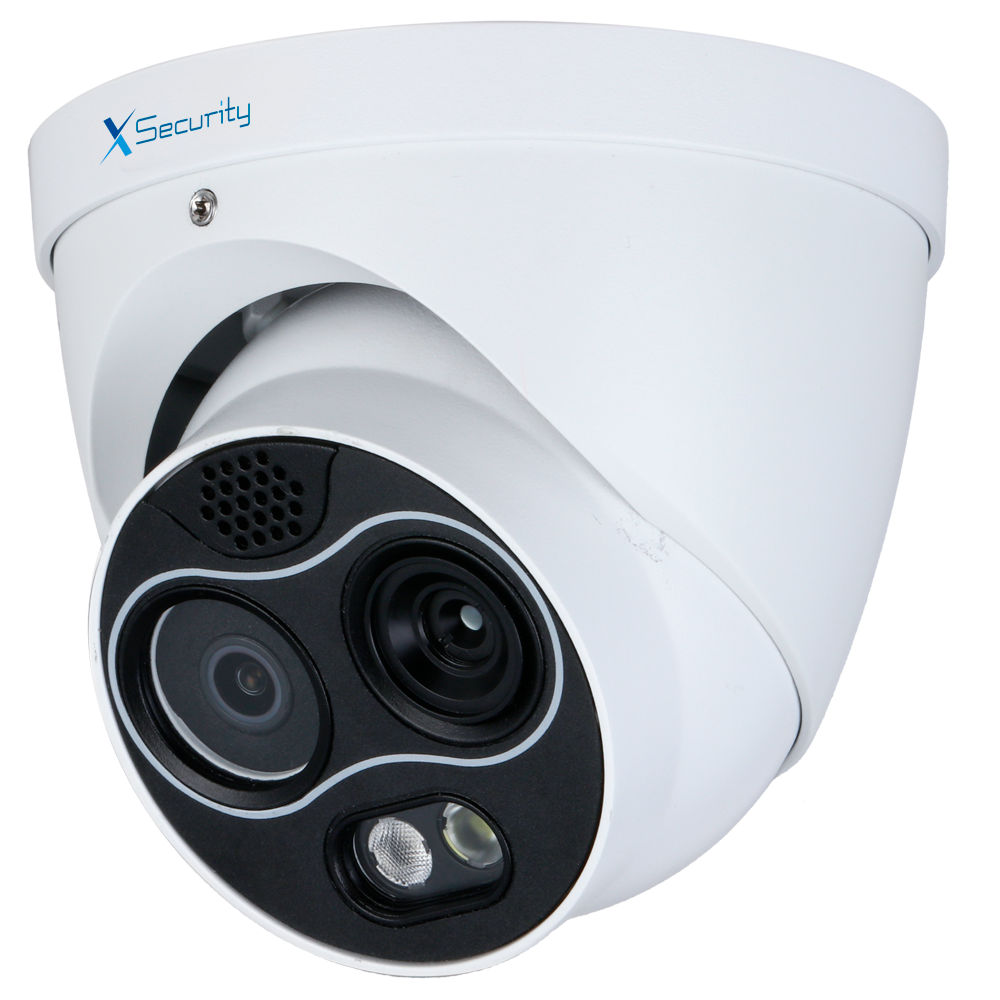

X-Security Dual IP thermal camera - 256x192 VOx | 7 mm lens - 1/2.7” 4 Mpx optical sensor | 8 mm lens - Thermal sensitivity ≤40mK - Fire detection and alarm - Audio | Alarms | MicroSD | PoE
📋 SPECIFICATIONS:
• Brand: X-Security
• Thermal sensor: 256x190 Vanadium Oxide
• Optical sensor: 1/2.7” Progressive Scan CMOS 4 Megapixel
• Main Stream frame rate: Therm: 1280 × 960 (1.3M), XVGA (1024 × 768), VGA (640 × 480), 256 × 192; Opt: 2336 × 1752, 1080P (1920 × 1080), 720P (1280 × 720), D1 (704 × 576)
• Sub Stream frame rate: Therm: VGA (640 × 480), 256 × 192; Opt: 720P (1280 × 720), D1 (704 × 576)/CIF (352 × 288), 352 × 288
• Compression: H.265 / H.264 / MJPEG
• Electronic Shutter: 1~1/30.000 s
• Minimum illumination: Color: 0.05 Lux; 0 Lux with 30 m IR range
• Lens: Thermal: 7 mm; Optical: 8 mm
• Field of view: Thermal: 24°×18°; Optical: 33.4°×25°
• DORI: Human: 292 m (D), 75 m (R), 38 m (I); Vehicle: 897 m (D), 220 m (R), 111 m (I)
• VCA Range: Human: 49 m; Vehicle: 146.5 m; Temperature measurement (Object 0.2x0.2m): 86 m
• Thermal sensitivity: < 40mK
• Temperature measurement: No
• Spectral range: 8~14 μm
• Detector pitch: 12 μm
• VCA: IVS rules (line crossing, intrusion, zone entry and exit)
• Fire rules: Up to 4 fire detection regions
• Smart functions: Heat detection and alarm; Cold and hot spot detection; Human and vehicle classification; Smoke detection; Call detection
• Smart enhancements: DWDR, 3DNR, BLC, HLC, AGC, AWB, ROI, 180º Flip
• Audio: 1 Input / 1 Output
• Alarm: 2 Inputs / 2 Outputs
• Internal memory: MicroSD card slot up to 256 GB
• Communication: 1 x RS-485
• Network interface: Ethernet 10/100M BaseT
• Remote access: WEB interface, CMS (DSS/PSS), Smartphone and NVR
• Interoperability: ONVIF
• Power supply: DC 12 V, 1.2 A, 7 W max.; PoE IEEE802.3af, 9 W max.
• Operating temp.: -30º C ~ +60º C
• Protection rating: Waterproof IP67
• Dimensions: 122 mm (Ø) x 122 mm (H)
• Base dimensions: Base Ø 122 mm / Ø between screws 84 mm / 3 screws
• Weight: < 1 kg
📦 INCLUDED:
• X-Security IP thermal camera• Installation material• User instructions
| Thermal sensor | 256×190 Vanadium Oxide |
|---|---|
| Optical sensor | 1/2.7” 4 Megapixel Progressive Scan CMOS |
| Main Stream frame rate | Therm: 1280 × 960 (1.3M), XVGA (1024 × 768), VGA (640 × 480), 256 × 192 Opt: 2336 × 1752, 1080P (1920 × 1080), 720P (1280 × 720), D1 (704 × 576) |
| Sub Stream frame rate | Therm: VGA (640 × 480), 256 × 192 Opt: 720P (1280 × 720), D1 (704 × 576)/CIF (352 × 288), 352 × 288 |
| Compression | H.265 / H.264 / MJPEG |
| Electronic Shutter | 1~1/30,000 s |
| Minimum illumination | Color: 0.05 Lux, 0 Lux with 30 m IR range |
| Lens | Thermal: 7 mm Optical: 8 mm |
| Field of view | Thermal: 24°×18° Optical: 33.4°×25° |
| DORI | Person: 292 m (D), 75 m (R), 38 m (I) Vehicle: 897 m (D), 220 m (R), 111 m (I) |
| VCA range | Person: 49 m Vehicle: 146.5 m Temperature measurement (0.2x0.2m object): 86 m |
| Thermal sensitivity | < 40mK |
| Temperature measurement | No |
| Spectral range | 8~14 μm |
| Detector pitch | 12 μm |
| VCA | IVS rules (line crossing, intrusion, zone entry and exit) |
| Fire rules | Up to 4 fire detection regions |
| Intelligent functions | Heat detection and alarm, cold and hot spot detection, person and vehicle classification, smoke detection, call detection |
| Intelligent enhancements | DWDR, 3DNR, BLC, HLC, AGC, AWB, ROI, 180º Flip |
| Audio | 1 Input / 1 Output |
| Alarm | 2 Inputs / 2 Outputs |
| Internal memory | MicroSD card slot up to 256 GB |
| Communication | 1 x RS-485 |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | WEB interface, CMS (DSS/PSS), Smartphone and NVR |
| Interoperability | ONVIF |
| Power supply | DC 12 V, 1.2 A, 7 W max. PoE IEEE802.3af, 9 W max. |
| Operating temp. | -30º C ~ +60º C |
| Protection rating | Waterproof IP67 |
| Dimensions | 122 mm (Ø) x 122 mm (H) |
| Base dimensions | Ø base 122 mm / Ø between screws 84 mm / 3 screws |
| Weight | < 1 kg |
