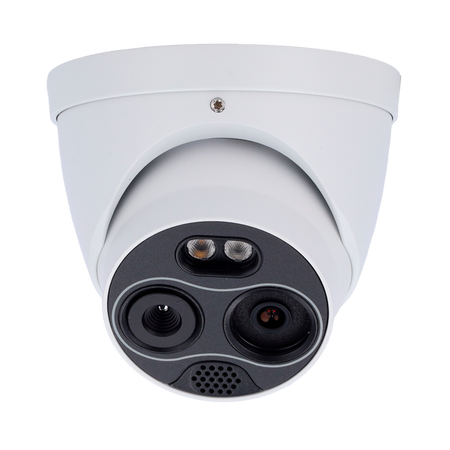

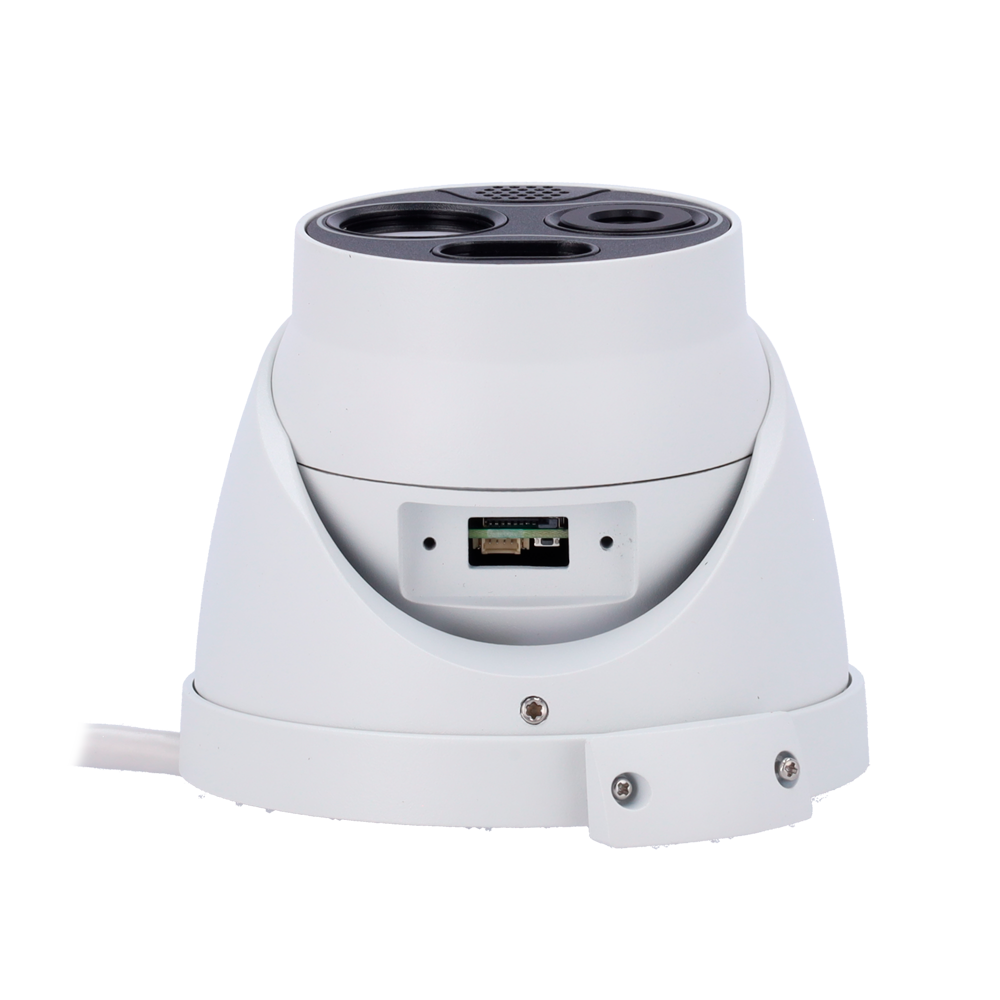

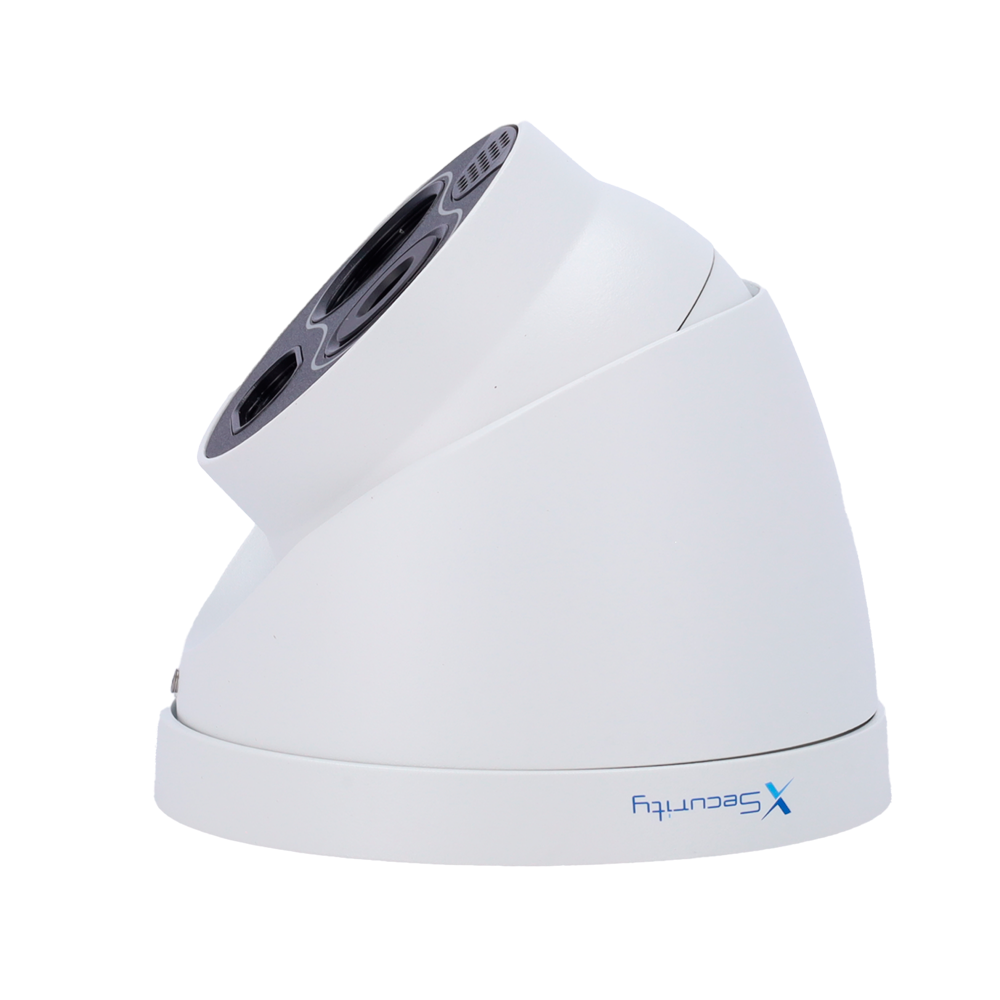

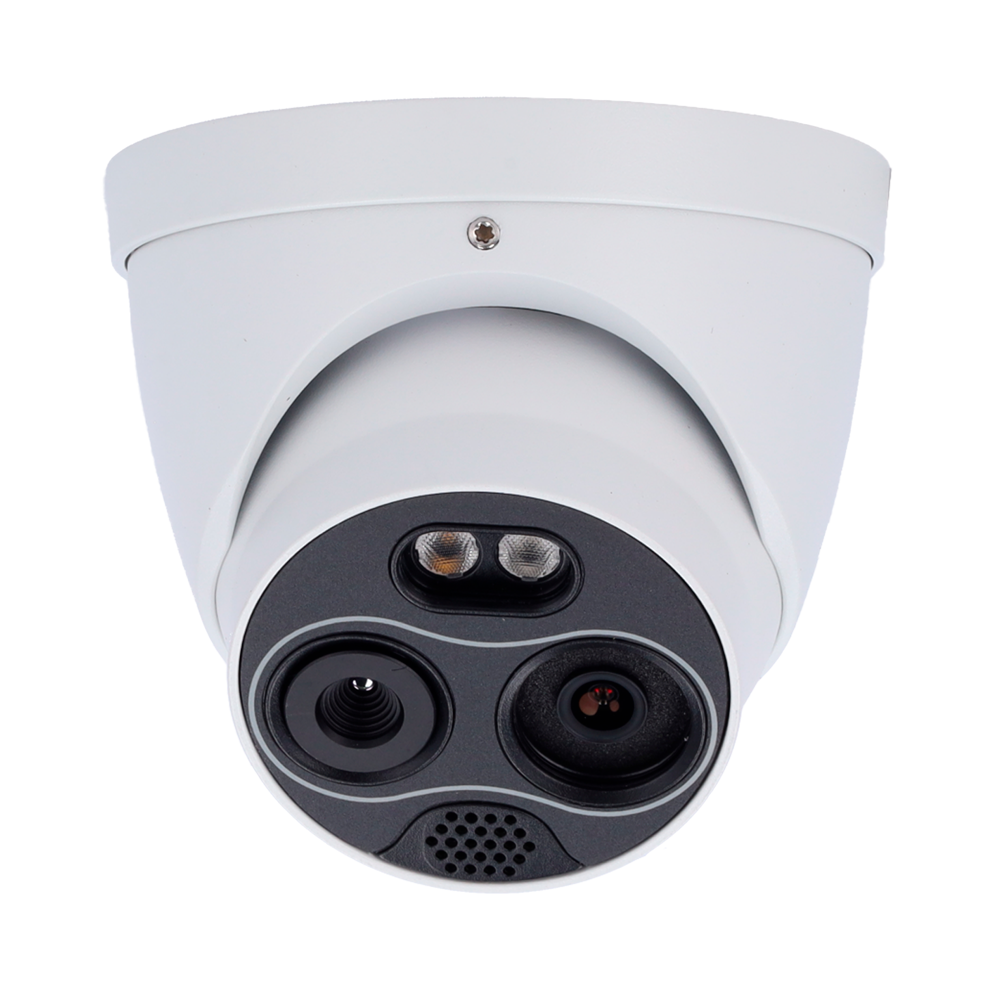

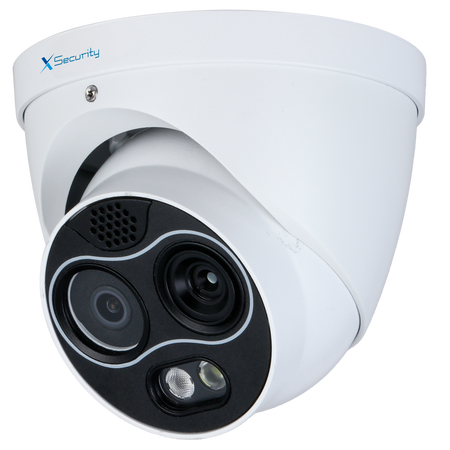

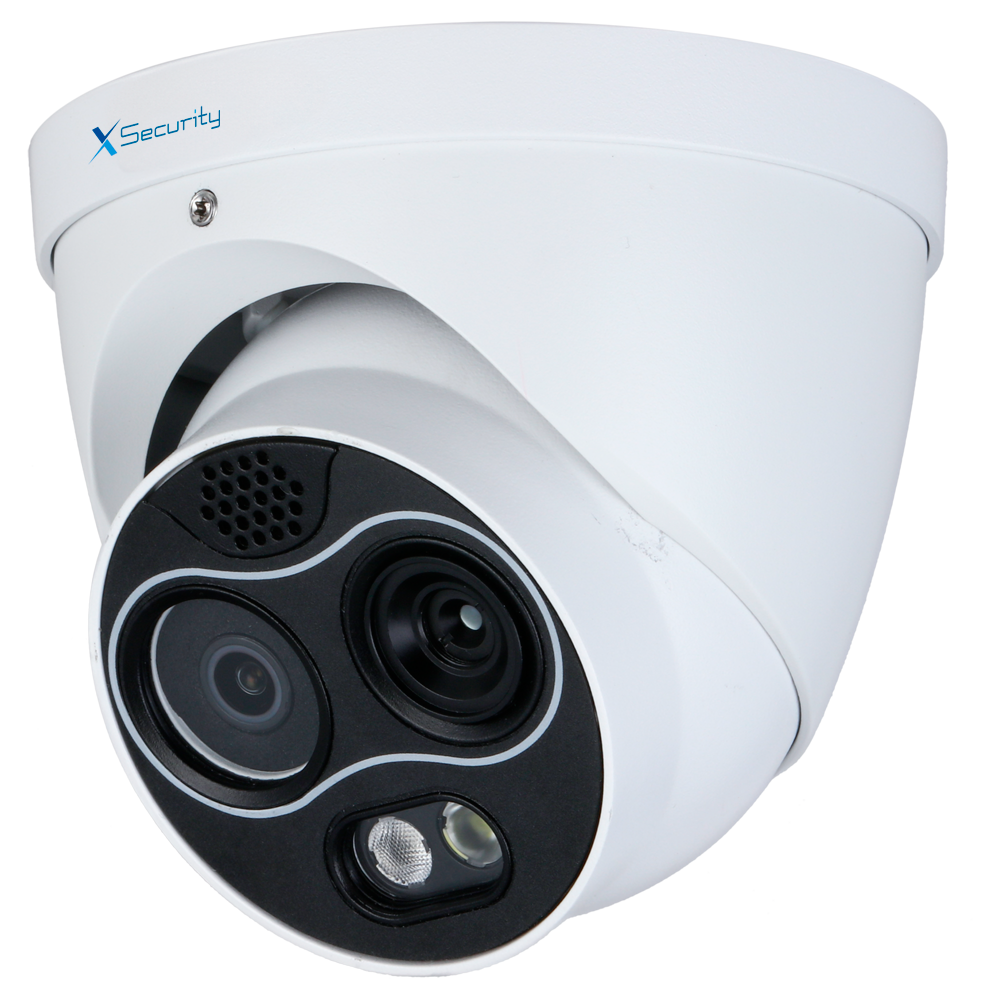

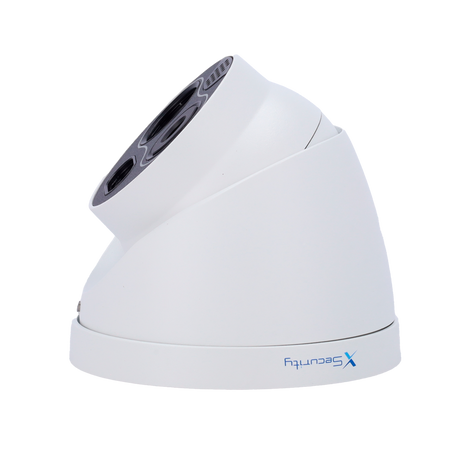

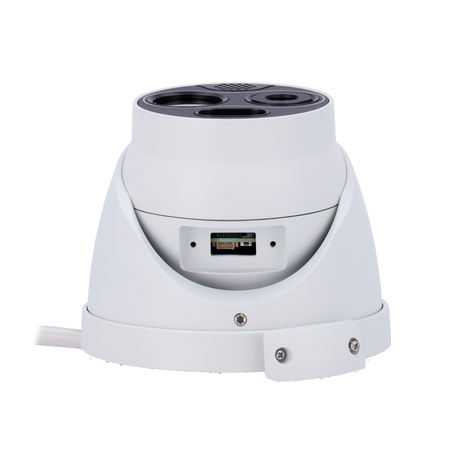

X-Security Dual IP Turret Thermal Camera - 256x192 VOx | 3.5 mm Lens | Sensitivity ≤ 40mK
X-Security Dual IP Turret Thermal Camera - 256x192 VOx | 3.5 mm Lens | Sensitivity ≤ 40mK
Regular price
€620,81
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
X-Security IP Dual Turret Thermal Camera - 256x192 VOx | 3.5 mm lens | Sensitivity ≤ 40mK - 1/2.7” 4 Mpx optical sensor | 4 mm lens - WizSense, with human and vehicle classification - Smoke and heat detection - Audio | Alarms | MicroSD | PoE
📋 SPECIFICATIONS:
• Brand: X-Security
• Thermal sensor: 256x192 Vanadium Oxide
• Optical sensor: 1/2.7” Progressive Scan CMOS 4 Megapixel
• Main Stream frame rate: Therm: 1280 × 960 (1.3M), XVGA (1024 × 768), VGA (640 × 480), 256 × 192; Opt: 2336 × 1752, 1080P (1920 × 1080), 720P (1280 × 720), D1 (704 × 576)
• Sub Stream frame rate: Therm: VGA (640 × 480), 256 × 192; Opt: 720P (1280 × 720), D1 (704 × 576)/CIF (352 × 288), 352 × 288
• Compression: H.265 / H.264 / H.264H / MJPEG
• Electronic Shutter: 1~1/30,000 s
• Minimum illumination: Color: 0.05 Lux; 0 Lux with IR up to 30 m
• Lens: Thermal: 3.5 mm; Optical: 4 mm
• Viewing angle: Thermal: 50.6° (H), 37.8° (V); Optical: 71.2° (H), 52° (V)
• DORI: Human: 146 m (D), 38 m (R), 19 m (I); vehicle: 449 m (D), 110 m (R), 56 m (I)
• VCA range: Human: 24.5 m; vehicle: 72.5 m; Heat detection (0.2x0.2m object): 45 m
• Thermal sensitivity: < 40 mK
• Spectral range: 8~14 μm
• Detector pitch: 12 μm
• Intelligent functions: Heat detection and alarm; Cold and hot spot detection; Human and vehicle classification; Smoke detection; Call detection
• Intelligent enhancements: DWDR, 3DNR, BLC, HLC, AGC, AWB, ROI, Flip 180º
• Audio: 1 Input / 1 Output
• Alarm: 2 Inputs / 2 Outputs
• Audio compression: G.711a; G.711mu; PCM
• Internal storage: MicroSD card slot up to 256 GB
• Communication: 1 x RS-485
• Network interface: Ethernet 10/100M BaseT
• Remote access: WEB interface, CMS (DSS/PSS), Smartphone and NVR
• Interoperability: ONVIF
• Power supply: DC 12 V, 1.2 A, 7 W max.; PoE IEEE802.3af, 9 W max.
• Operating temp.: -30º C ~ +60º C
• Protection rating: Waterproof IP67
• Dimensions: 122 mm (Ø) x 112 mm (H)
• Base dimensions: Base Ø 122 mm / Ø between screws 84 mm / 3 screws
• Weight: < 0.85 kg
📦 INCLUDED:
• X-Security IP thermal camera• Installation material• User instructions
| Thermal sensor | 256x192 Vanadium Oxide |
|---|---|
| Optical sensor | 1/2.7” Progressive Scan CMOS 4 Megapixel |
| Main Stream frame rate | Therm: 1280 × 960 (1.3M), XVGA (1024 × 768), VGA (640 × 480), 256 × 192 Opt: 2336 × 1752, 1080P (1920 × 1080), 720P (1280 × 720), D1 (704 × 576) |
| Sub Stream frame rate | Therm: VGA (640 × 480), 256 × 192 Opt: 720P (1280 × 720), D1 (704 × 576)/CIF (352 × 288), 352 × 288 |
| Compression | H.265 / H.264 / H.264H / MJPEG |
| Electronic Shutter | 1~1/30,000 s |
| Minimum illumination | Color: 0.05 Lux 0 Lux with IR range 30 m |
| Lens | Thermal: 3.5 mm Optical: 4 mm |
| Angle of view | Thermal: 50.6° (H), 37.8° (V) Optical: 71.2° (H), 52° (V) |
| DORI | Person: 146 m (D), 38 m (R), 19 m (I) vehicle: 449 m (D), 110 m (R), 56 m (I) |
| VCA range | Person: 24.5 m vehicle: 72.5 m Heat detection (Object 0.2x0.2m): 45 m |
| Thermal sensitivity | < 40 mK |
| Spectral range | 8~14 μm |
| Detector pitch | 12 μm |
| Intelligent functions | Heat detection and alarm Cold and hot spot detection Person and vehicle classification Smoke detection Call detection |
| Intelligent enhancements | DWDR, 3DNR, BLC, HLC, AGC, AWB, ROI, Flip 180º |
| Audio | 1 Input / 1 Output |
| Alarm | 2 Inputs / 2 Outputs |
| Audio compression | G.711a; G.711mu; PCM |
| Internal storage | MicroSD card slot up to 256 GB |
| Communication | 1 x RS-485 |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | WEB interface, CMS (DSS/PSS), Smartphone and NVR |
| Interoperability | ONVIF |
| Power supply | DC 12 V, 1.2 A, 7 W max. PoE IEEE802.3af, 9 W max. |
| Operating temp | -30º C ~ +60º C |
| Protection rating | Waterproof IP67 |
| Dimensions | 122 mm (Ø) x 112 mm (H) |
| Base dimensions | Base Ø 122 mm / Ø between screws 84 mm / 3 screws |
| Weight | < 0.85 kg |
