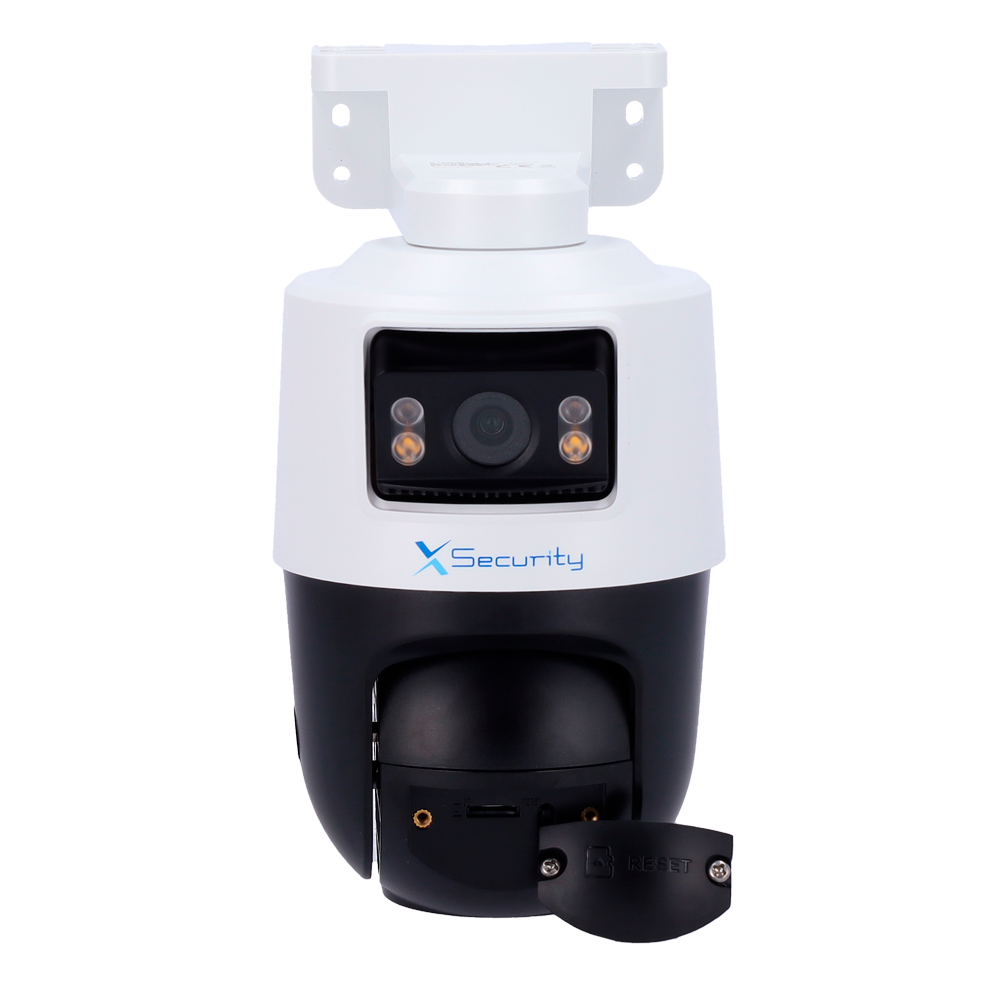

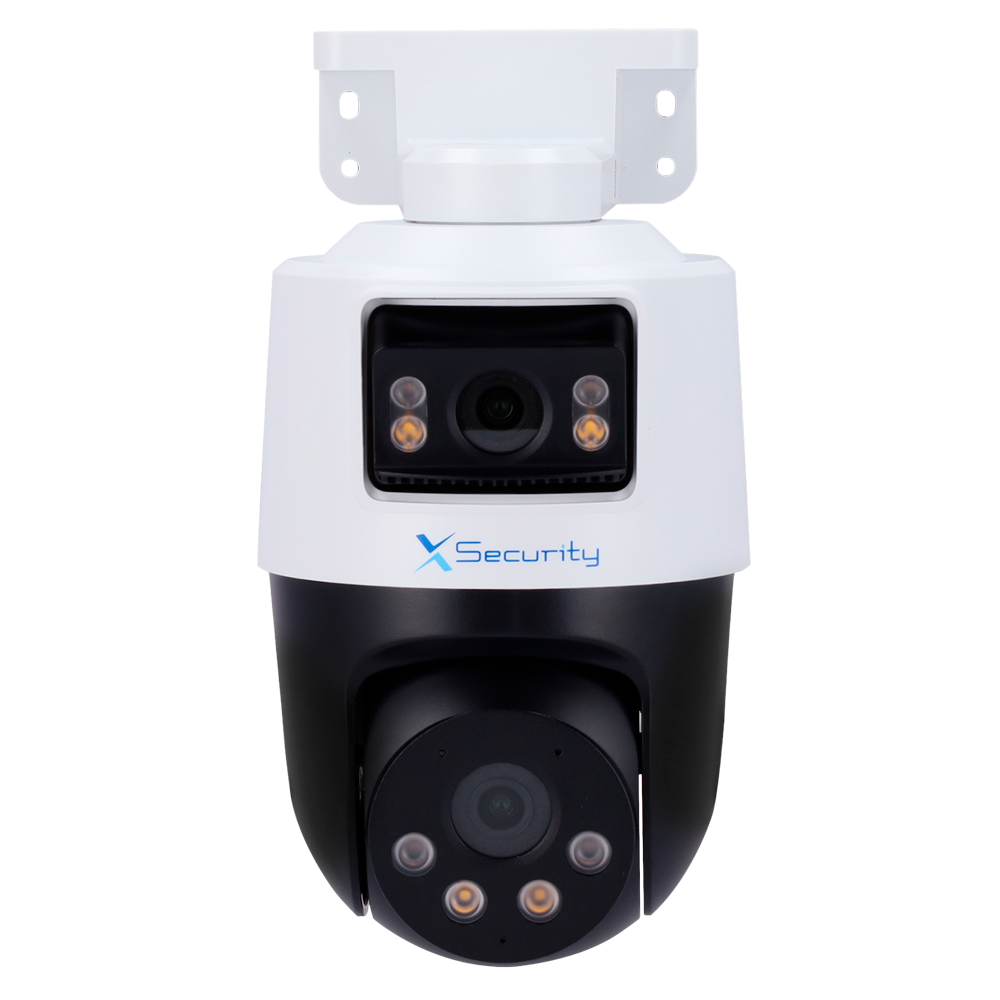

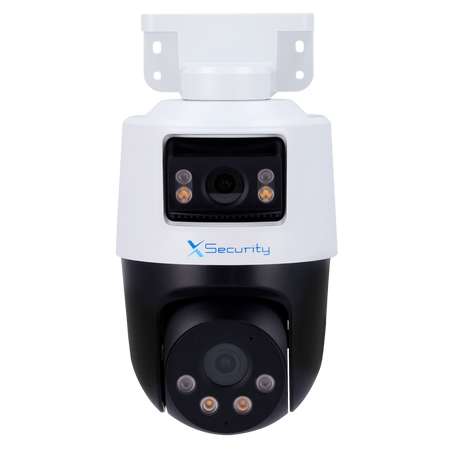

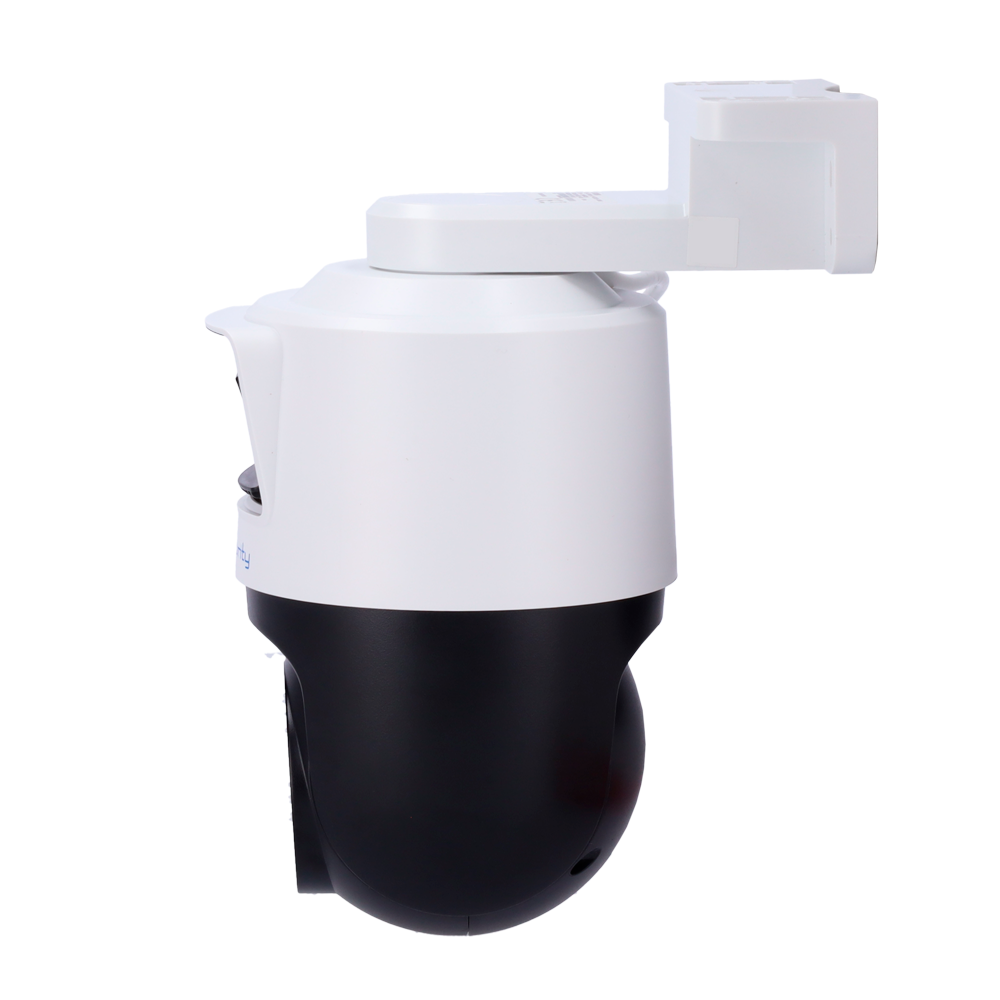

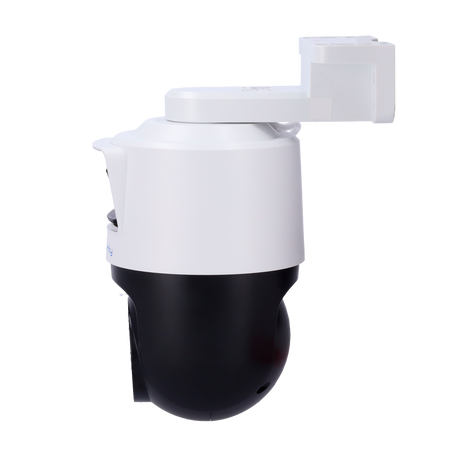

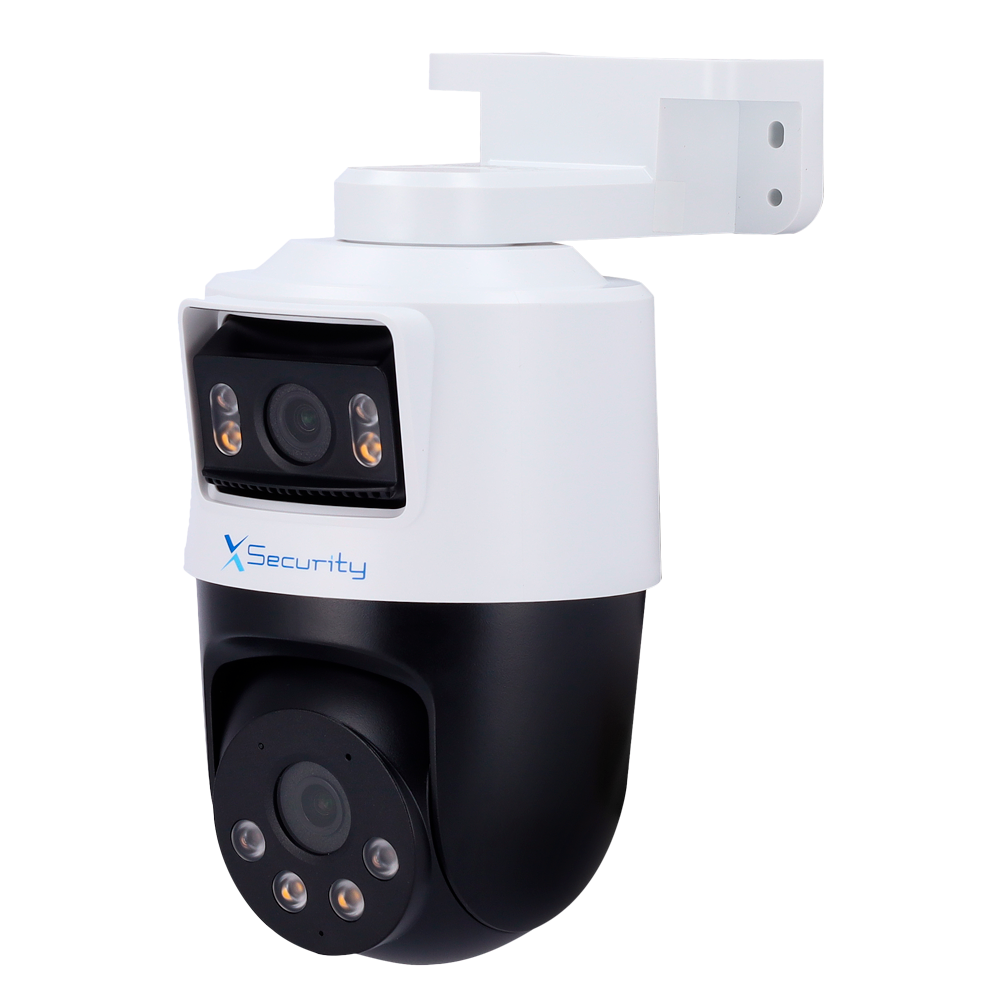

X-Security Wizcolor IP PT Camera
X-Security Wizcolor IP PT Camera
Regular price
€201,30
Final price
Regular price
-14%
€234,80
Sale price
€201,30
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

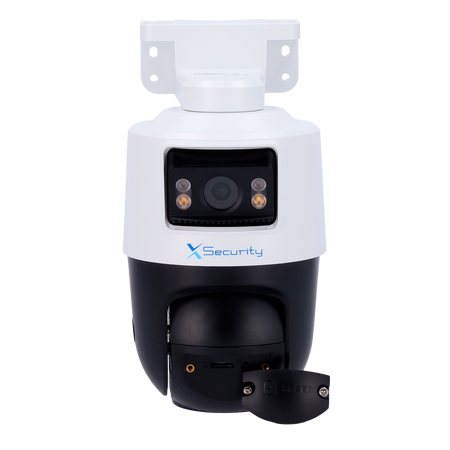

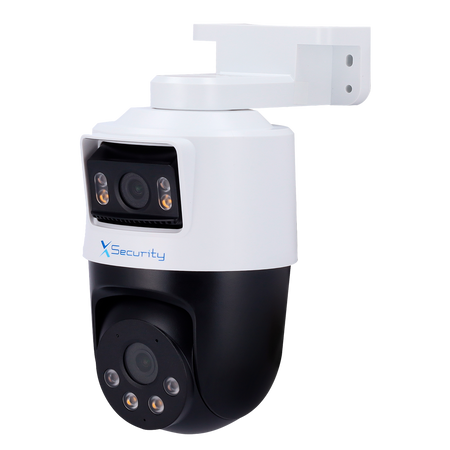

X-Security Wizcolor PT IP Camera - Fixed and PT 2 MP optical resolution (1920x1080) - 3.6 mm fixed lens | 3.6 mm PT lens - 30m white light | 120dB WDR | Built-in microphone - WizSense, with human and vehicle classification - 256 GB MicroSD slot | IP66 | PoE | SMD
📋 SPECIFICATIONS:
• Brand: X-Security
• Image sensor: 1/2.9" Progressive Scan CMOS
• Maximum resolution: 2 Megapixel (1920x1080)
• Lens: 3.6 mm (fixed), 3.6 mm (PT)
• Main Stream resolution: 1920×1080@(1–25/30 fps)
• Extra Stream Frame Rate: 704×576@(1–25 fps) / 704×480@(1–30 fps)
• Compression: H.265; H.264; H.264H; H.264B; MJPEG
• Video Bit Rate: H.264: 32 kbps–4096 kbps; H.265: 12 kbps–4096 kbps
• Minimum illumination: 0.0006 lux@F1.0
• White Light range: 30 m
• Viewing angle (FOV): PT: 81º(H), 44º(V), 95º(D); Fixed: 81º(H), 44º(V), 95º(D)
• DORI: PT: 55.7 m (D), 22.3 m (O), 11.1 m (R), 5.6 m (I); Fixed: 55.7 m (D), 22.3 m (O), 11.1 m (R), 5.6 m (I)
• SMD Plus: Yes (Motion detection based on people and vehicles)
• IVS (Perimeter protection): Intrusion, tripwire (both functions support accurate classification and detection of vehicles and people)
• Smart search: Using microSD card or X-Security NVR
• Wizcolor: True color images 24/7 even in low light and darkness conditions.
• Human detection: Yes
• Pan/Tilt range: PT Lens: Pan: 0~350°; Tilt: 0~90°; Fixed Lens: Pan: 0~326°; Tilt: -10~15°
• Manual speed: Pan: 0.1°/s~55.4°/s; Tilt: 0.1°/s~29.3°/s
• Preset speed: Pan: 55.4°/s; Tilt: 29.3°/s
• Preset positions: 300 presets, 8~32 presets per tour
• Image enhancements: 120dB WDR, BLC, HLC, AWB, AGC, 3D-NR, ROI, Smart Illumination, Mirror function, Privacy Masking, ROI
• Day / Night: Color/Black and white
• Electronic shutter: 1/3 s–1/100,000 s
• Active Deterrence: White light warning, audible warning alarm; Deterrent lighting: White light, in flash or steady mode with 5~30 s duration; Deterrent sound: 3 types of sound and option to import custom audio. Volume from 0~100. Sound playback from 1~10 times.

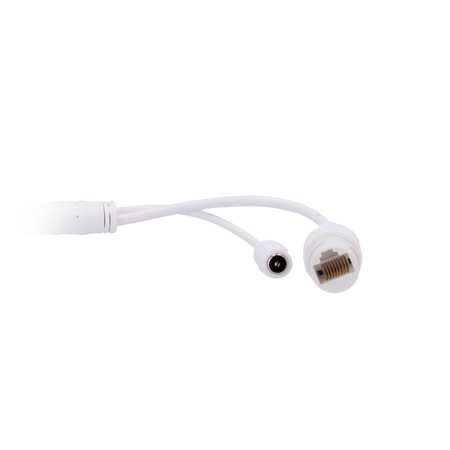

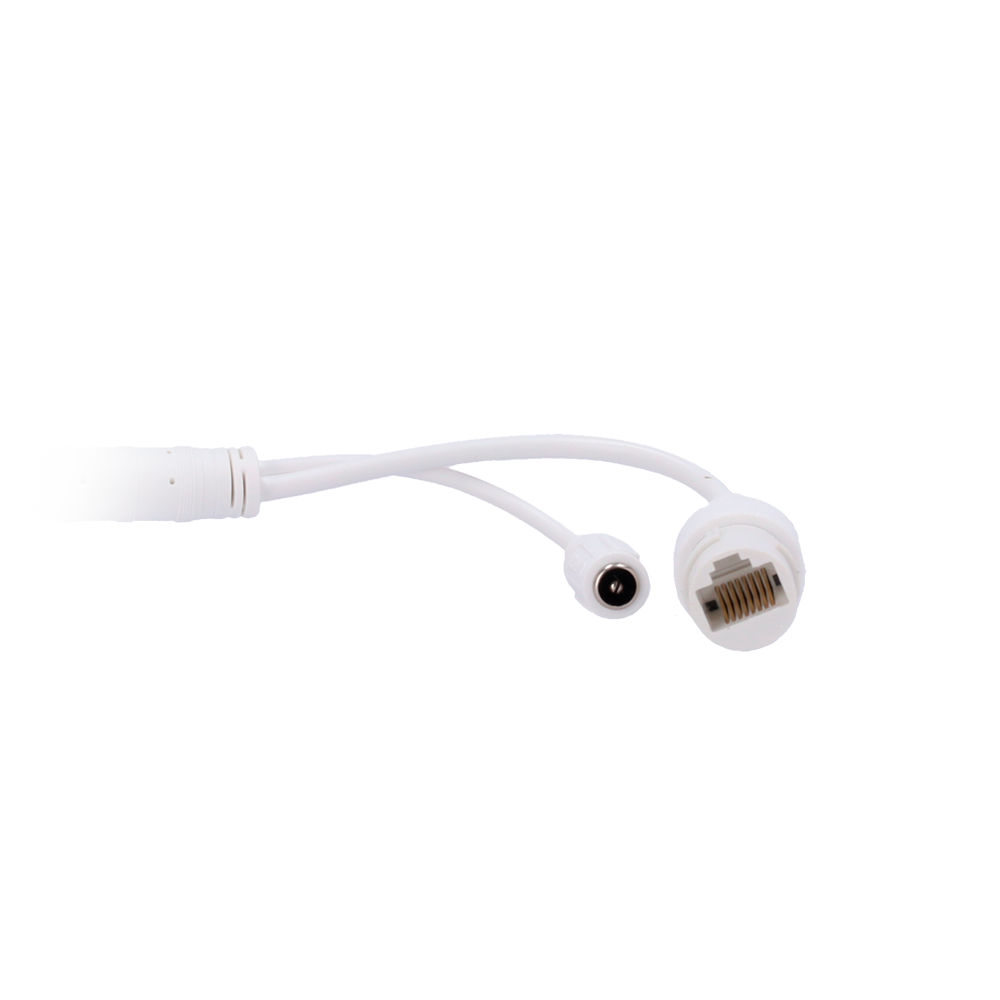

• Network interface: Ethernet RJ-45 (10Base-T/100Base-TX)
• Internal memory: MicroSD Card slot, Max 256GB
• Audio: Built-in speaker and microphone
• Audio compression: G.711a; G.711Mu; PCM; G.726
• Remote access: Web browser, CMS software (DSS/PSS), smartphone (DMSS) and NVR
• Interoperability: ONVIF (S/G/T), CGI
• Power supply: DC 12 V, max. 10.5 W; PoE IEEE802.3af
• Material: Plastic
• Operating temperature: -40º C ~ 50º C
• Protection rating: Waterproof IP66
• Dimensions: 210 (H) mm × 110.1 (W) mm × 159.4 (D) mm
• Weight: 620 g
📦 INCLUDED:
• PTZ IP camera
• Installation material
• User instructions

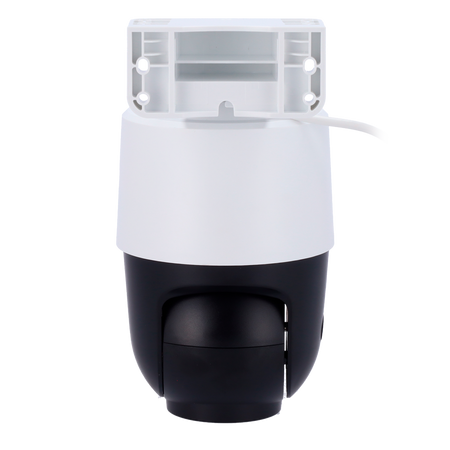

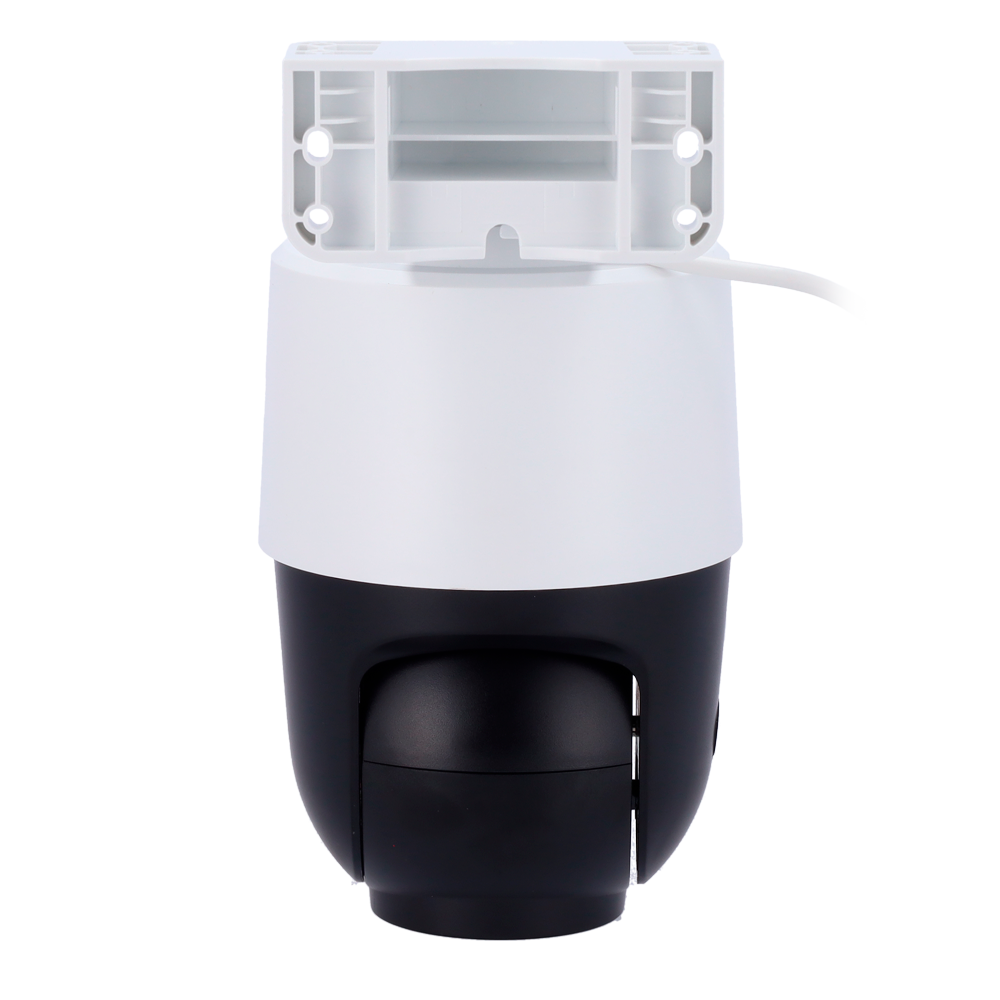

• Includes wall bracket
| Image sensor | 1/2.9" Progressive Scan CMOS |
|---|---|
| Maximum resolution | 2 Megapixel (1920x1080) |
| Lens | 3.6 mm (fixed), 3.6 mm (PT) |
| Main Stream rate | 1920×1080@(1–25/30 fps) |
| Extra Stream rate | 704×576@(1–25 fps) / 704×480@(1–30 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Video Bit Rate | H.264: 32 kbps–4096 kbps; H.265: 12 kbps–4096 kbps |
| Minimum illumination | 0.0006 lux@F1.0 |
| White light range | 30 m |
| Field of View (FOV) | PT: 81º(H), 44º(V), 95º(D) Fixed: 81º(H), 44º(V), 95º(D) |
| DORI | PT: 55.7 m (D), 22.3 m (O), 11.1 m (R), 5.6 m (I) Fixed: 55.7 m (D), 22.3 m (O), 11.1 m (R), 5.6 m (I) |
| SMD Plus | Yes (Human and vehicle based motion detection) |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support accurate vehicle and human detection and classification) |
| Smart search | Using microSD card or X-Security NVR |
| Wizcolor | 24/7 true color images even in low light and dark conditions. |
| Human detection | Yes |
| Pan/Tilt range | PT Lens: Pan: 0~350°; Tilt: 0~90°; Fixed Lens: Pan: 0~326°; Tilt: -10~15° |
| Manual speed | Pan: 0.1°/s~55.4°/s; Tilt: 0.1°/s~29.3°/s |
| Preset speed | Pan: 55.4°/s; Tilt: 29.3°/s |
| Preset positions | 300 presets, 8~32 presets per tour |
| Image enhancement | 120dB WDR, BLC, HLC, AWB, AGC, 3D-NR, ROI, Smart Illumination, Mirror function, Privacy Masking, ROI |
| Day / Night | Color/Black & White |
| Electronic shutter | 1/3 s–1/100,000 s |
| Active Deterrence | White light warning, Warning sound alarm Deterrent lighting: White light, in flash or steady mode with 5~30 s duration. Deterrent sound: 3 types of sound and possibility to import custom sound. Sound 0~100. Sound playback 1~10 times. |
| Network interface | Ethernet RJ-45 (10Base-T/100Base-TX) |
| Internal storage | MicroSD card slot, Max 256GB |
| Audio | Built-in speaker and microphone |
| Audio compression | G.711a; G.711Mu; PCM; G.726 |
| Remote access | Web browser, CMS Software (DSS/PSS), Smartphone (DMSS) and NVR |
| Interoperability | ONVIF (S/G/T), CGI |
| Power supply | DC 12 V, Max 10.5 W PoE IEEE802.3af |
| Material | Plastic |
| Operating temp. | -40º C ~ 50º C |
| Protection rating | Waterproof IP66 |
| Dimensions | 210 (H) mm × 110.1 (W) mm × 159.4 (D) mm |
| Weight | 620 g |
- User manual Link
