XS-IPMCBOX-4-V2
XS-IPMCBOX-4-V2

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

X-SECURITY

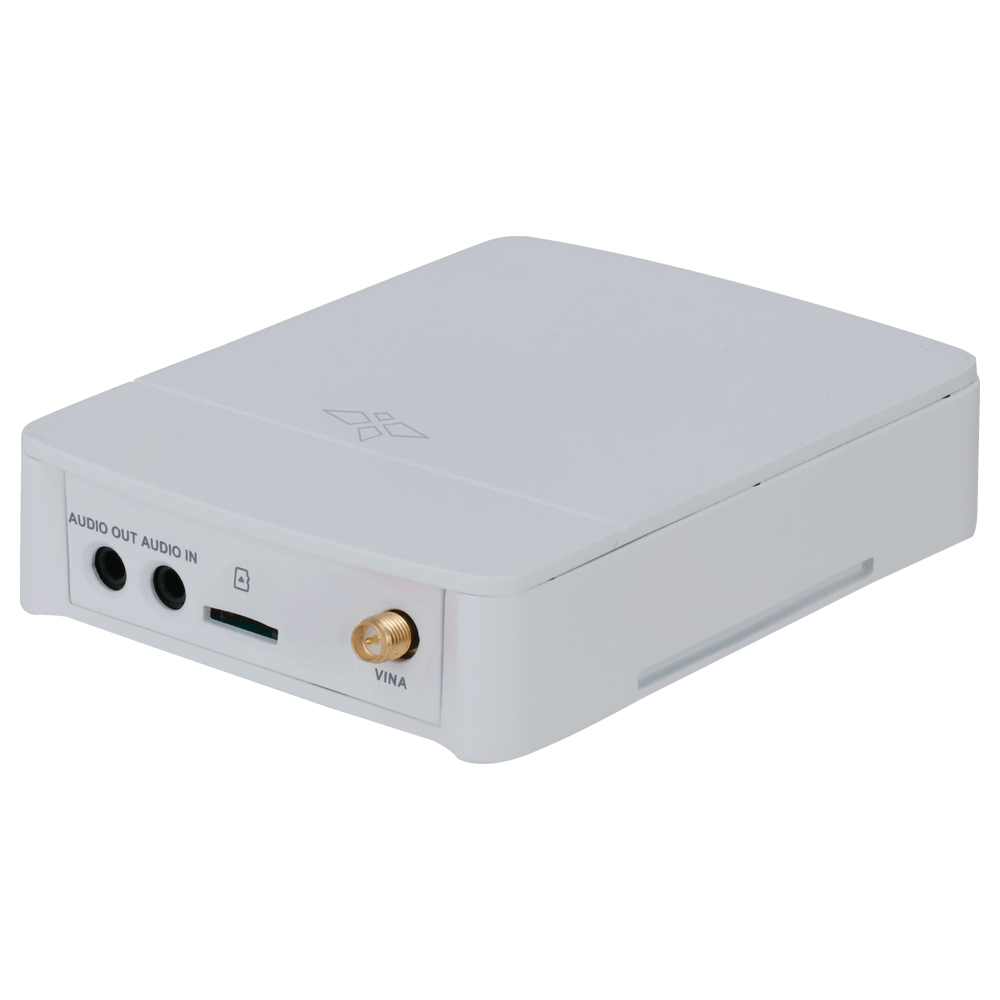

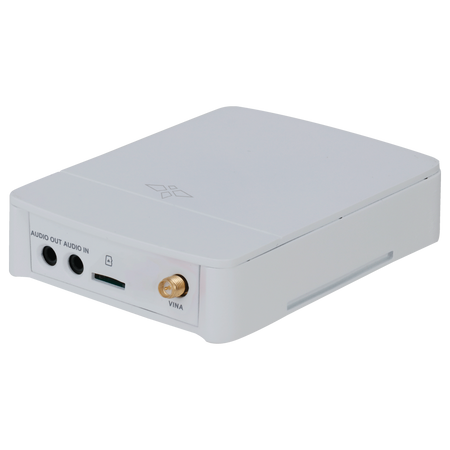

Main box for X-Security mini cameras - 4 Megapixel (2592x1944)

SKU: XS-IPMCBOX-4-V2
(0)
In stock
Usually shipped within 24 hours
€454,25 Final price
-6% €482,00 €454,25 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Main box for X-Security pinhole cameras - 4 Megapixel (2592x1944) - Requires lenses to function - 3-stream capacity - H.265+/H.265/H.264+/H.264 compression - PoE IEEE802.3af

📋 SPECIFICATIONS:
• Brand: X-SECURITY
• Maximum resolution: 4 Megapixel (2592x1944)
• Main Stream frame rate: 2688×1520 (1–25 fps)
• Sub Stream frame rate: Sub stream: 704×576 (1–25 fps); Third stream: 1920×1080 (1–25 fps)
• Compression: H.265+/H.265/H.264+/H.264
• Lens: Compatible with lenses: XS-IPMC-4U-L1, XS-IPMC-4U-L3, XS-IPMC-4U-L4, XS-IPMC-4U-L5
• Image enhancements: BLC, HLC, DWDR, AWB, AGC, 3D-NR, MD, ROI, Mirror, Privacy Masking
• Day / Night: Automatic electronic filter
• Intelligent functions: Facial recognition, line crossing, intrusion, scene changes, and audio detection
• Network interface: Ethernet 10/100 BaseT
• Internal memory: SD card slot, Max 128 GB
• Alarms: 2 Input / 2 Relay
• Audio: 1 Input / 1 Output
• Remote access: WEB interface, CMS (DSS/PSS), Smartphone, and NVR
• Interoperability: ONVIF
• Power supply: DC 12 V / 4.8W mA, PoE IEEE802.3af
• Operating temperature: -40º C ~ 60º C
• Protection rating: Indoor
• Unit dimensions: 110 mm (W) x 83 (H) x 24 (D) mm
• Weight: 210 g

📦 INCLUDED:
• X-SECURITY Main Box• Installation material• User instructions
Maximum resolution 4 Megapixel (2592x1944)
Main Stream frame rate 2688×1520 (1–25 fps)
Sub Stream frame rate Sub stream: 704×576 (1–25 fps) Third stream: 1920×1080 (1–25 fps)
Compression H.265+/H.265/H.264+/H.264
Lens Compatible with lenses: XS-IPMC-4U-L1, XS-IPMC-4U-L3, XS-IPMC-4U-L4, XS-IPMC-4U-L5
Image enhancements BLC, HLC, DWDR, AWB, AGC, 3D-NR, MD, ROI, Mirror, Privacy Masking
Day / Night Automatic electronic filter
Smart functions Face detection, line crossing, intrusion, scene changes and audio detection
Network interface Ethernet 10/100 BaseT
Internal storage SD card slot, Max 128 GB
Alarms 2 Input / 2 Relay
Audio 1 Input / 1 Output
Remote access WEB interface, CMS (DSS/PSS), Smartphone and NVR
Interoperability ONVIF
Power supply DC 12 V / 4.8W mA, PoE IEEE802.3af
Operating temp. -40º C ~ 60º C
Protection rating Indoor
Unit dimensions 110 mm (W) x 83 (H) x 24 (D) mm
Weight 210 g
