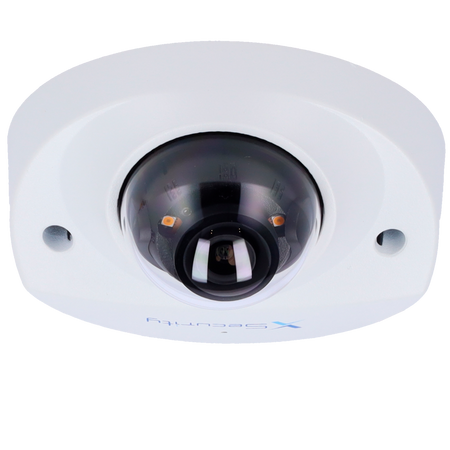

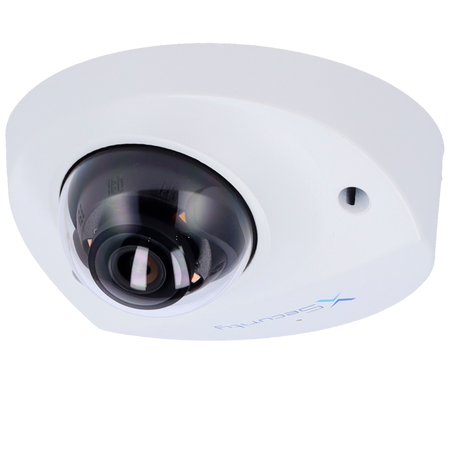

X-Security Mini Dome IP Camera - 120dB WDR | Dual Light (30m IR and 30m White Light)
X-Security Mini Dome IP Camera - 120dB WDR | Dual Light (30m IR and 30m White Light)
Regular price
€165,94
Final price
Regular price
-7%
€178,00
Sale price
€165,94
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

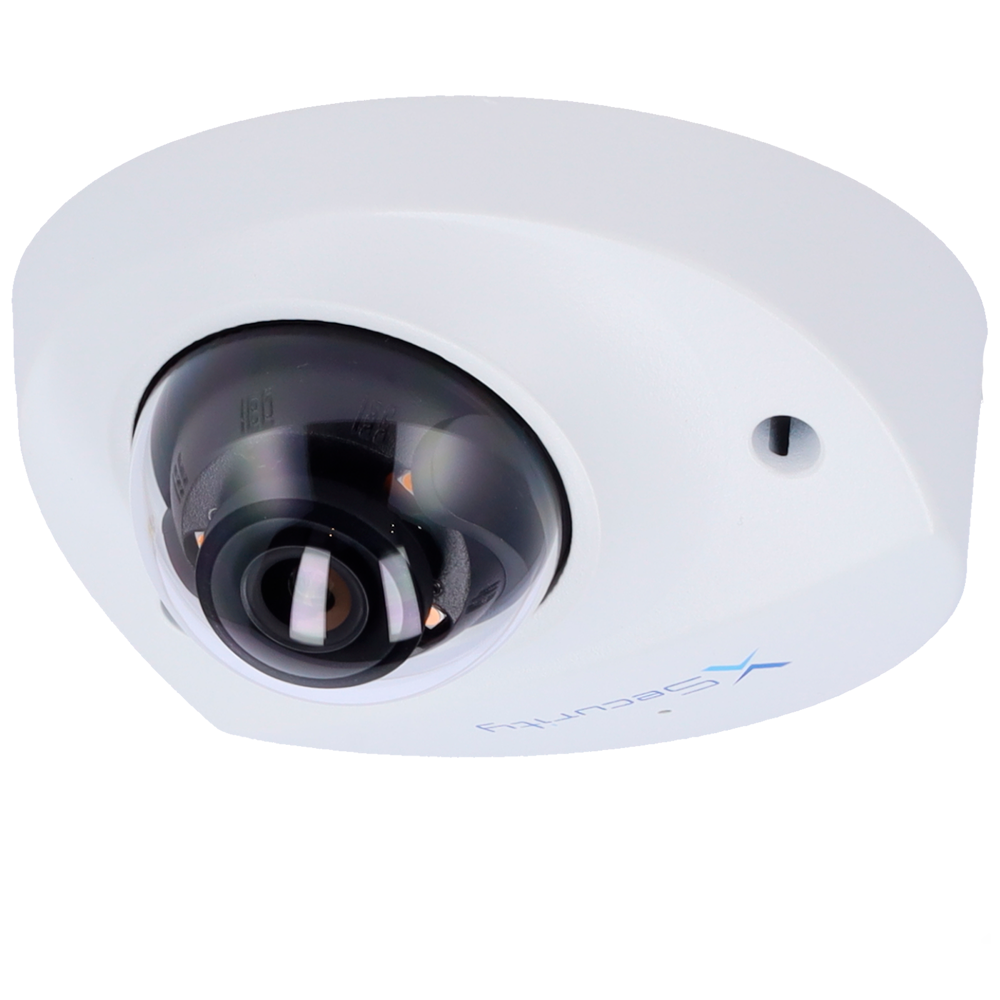

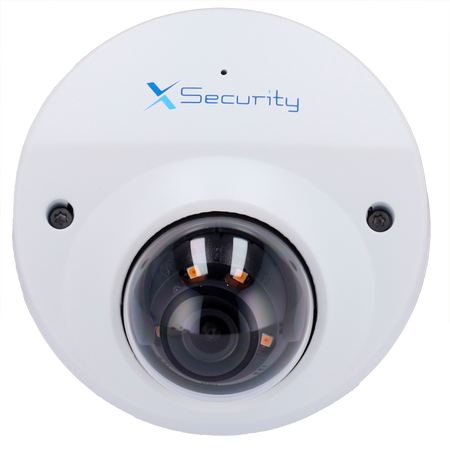

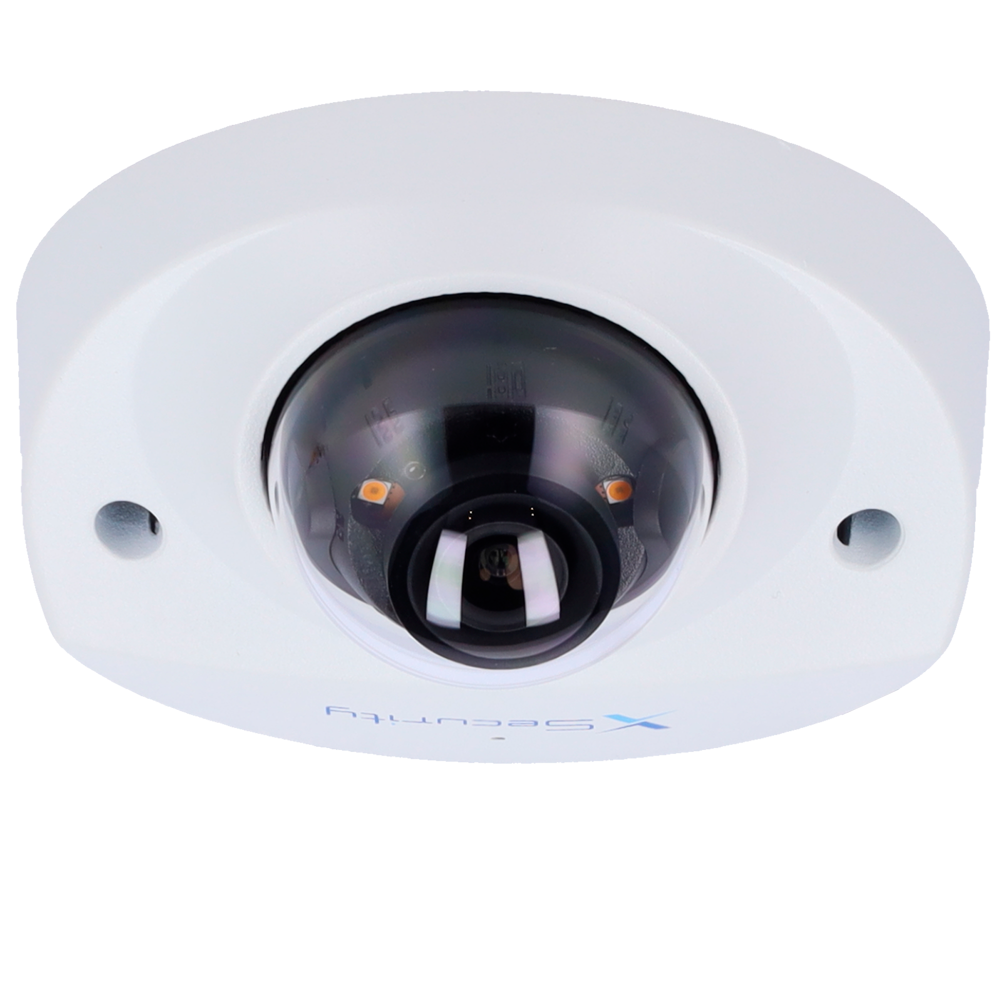

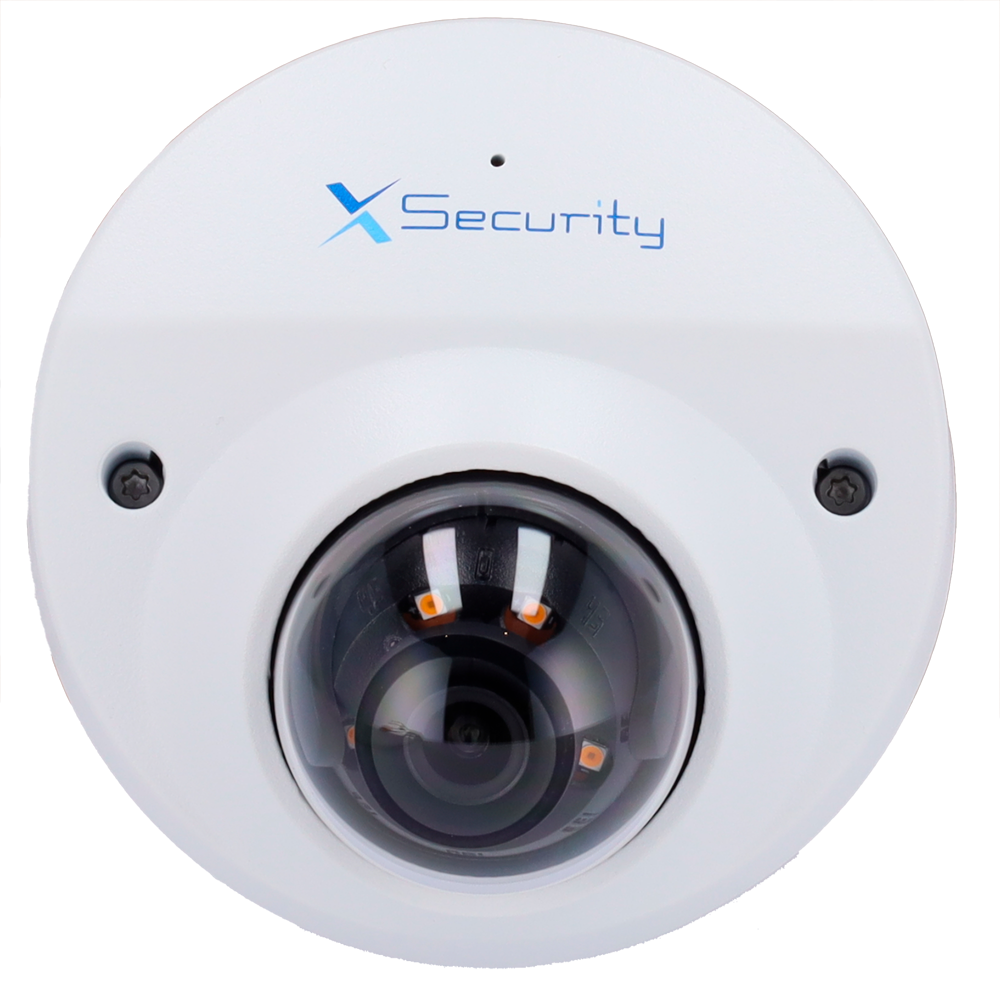

X-Security Mini Dome IP Camera - 4 Megapixel (2688x1520) - 2.8mm Fixed Lens - 120dB WDR | Dual Light (30m IR and 30m White Light) - WizSense, with human and vehicle classification - 256GB MicroSD / IP67 & IK10
📋 SPECIFICATIONS:
• Brand: X-SECURITY
• Optical sensor: 1/2.9” CMOS image sensor
• Maximum resolution: 4 Megapixel (2688 × 1520)
• Lens: 2.8 mm (H: 102°; V: 54°; D: 121°)
• Main Stream frame rate: 2688×1520@(1–20 fps) / 2560×1440@(1–25/30 fps)
• Sub Stream frame rate: 704 × 576@(1–25 fps) / 704 × 480@(1–30 fps)
• Compression: H.265; H.264; H.264H; H.264B; MJPEG
• Minimum illumination: 0.006 lux@F1.6 (color, 30 IRE); 0.0006 lux@F1.6 (B/W, 30 IRE); 0 lux (light on)
• Dual Light: Operating mode: Smart mode (default, IR active and switches to white LED upon target detection); IR mode
• DORI: 63.6 (D), 25.4 (O), 12.7 (R), 6.4 (I)
• Video bitrate: H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps
• Image enhancements: WDR (120 dB), BLC, HLC, AWB, AGC, 3D-NR, ROI, Smart IR
• IVS (Perimeter Protection): Intrusion, tripwire (both functions support accurate classification and detection of vehicles and people)
• Network interface: Ethernet 10/100 Base-T
• Audio: Built-in microphone
• Audio compression: G.711a; G.711Mu; G.726; PCM
• External storage: MicroSD card slot up to 256 GB
• Remote access: WEB interface, CMS (DSS/PSS), Smartphone and NVR
• Interoperability: ONVIF (Profile S/Profile G); CGI; P2P
• Power supply: DC 12 V / 2.5 W, PoE IEEE802.3af
• Operating temp.: -40º C ~ +60º C
• Material: Metal
• Lens adjustment: 3-Axis
• Color: White
• Protection rating: Waterproof IP67, Vandal-proof IK10
• Dimensions: 55 (D) x 108.9 (Ø) mm
• Weight: 410 g
📦 INCLUDED:
• X-Security IP camera• Installation material• User instructions• CD with software and instructions
| Optical sensor | 1/2.9” CMOS image sensor |
|---|---|
| Maximum resolution | 4 Megapixel (2688 × 1520) |
| Lens | 2.8 mm (H: 102°; V: 54°; D: 121°) |
| Main Stream frame rate | 2688×1520@(1–20 fps) / 2560×1440@(1–25/30 fps) |
| Sub Stream frame rate | 704 × 576@(1–25 fps) / 704 × 480@(1–30 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Minimum illumination | 0.006 lux@F1.6 (Color, 30 IRE) 0.0006 lux@F1.6 (B/W, 30 IRE) 0 lux (light on) |
| Dual Light | Operating modes: Smart Mode (default, IR activated and switches to white LED when a target is present) IR Mode |
| DORI | 63.6 (D), 25.4 (O), 12.7 (R), 6.4 (I) |
| Video bit rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
| Image enhancements | WDR (120 dB), BLC, HLC, AWB, AGC, 3D-NR, ROI, Smart IR |
| IVS (Perimeter Protection) | Intrusion, tripwire (both functions support accurate classification and detection of vehicles and people) |
| Network interface | Ethernet 10/100m BaseT |
| Audio | Built-in microphone |
| Audio compression | G.711a; G.711Mu; G.726; PCM |
| External storage | 256 GB microSD card slot |
| Remote access | WEB interface, CMS (DSS/PSS), Smartphone and NVR |
| Interoperability | ONVIF (Profile S/Profile G); .CGI; P2P |
| Power supply | DC 12 V / 2.5 W, PoE IEEE802.3af |
| Operating temp. | -40º C ~ +60º C |
| Material | Metal |
| Lens adjustment | 3 Axis |
| Color | White |
| Protection rating | Waterproof IP67, Vandal-proof IK10 |
| Dimensions | 55 (H) x 108.9 (Ø) mm |
| Weight | 410 g |
