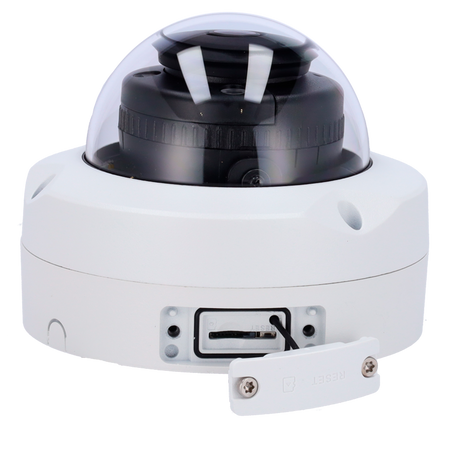

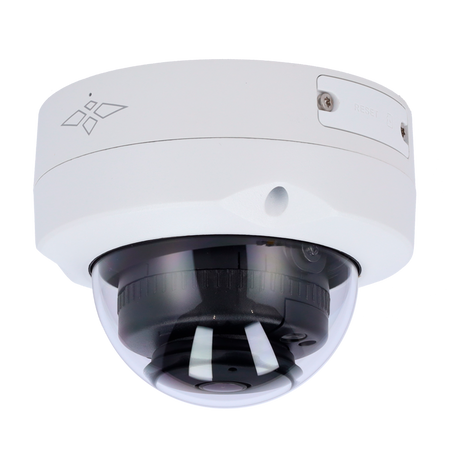

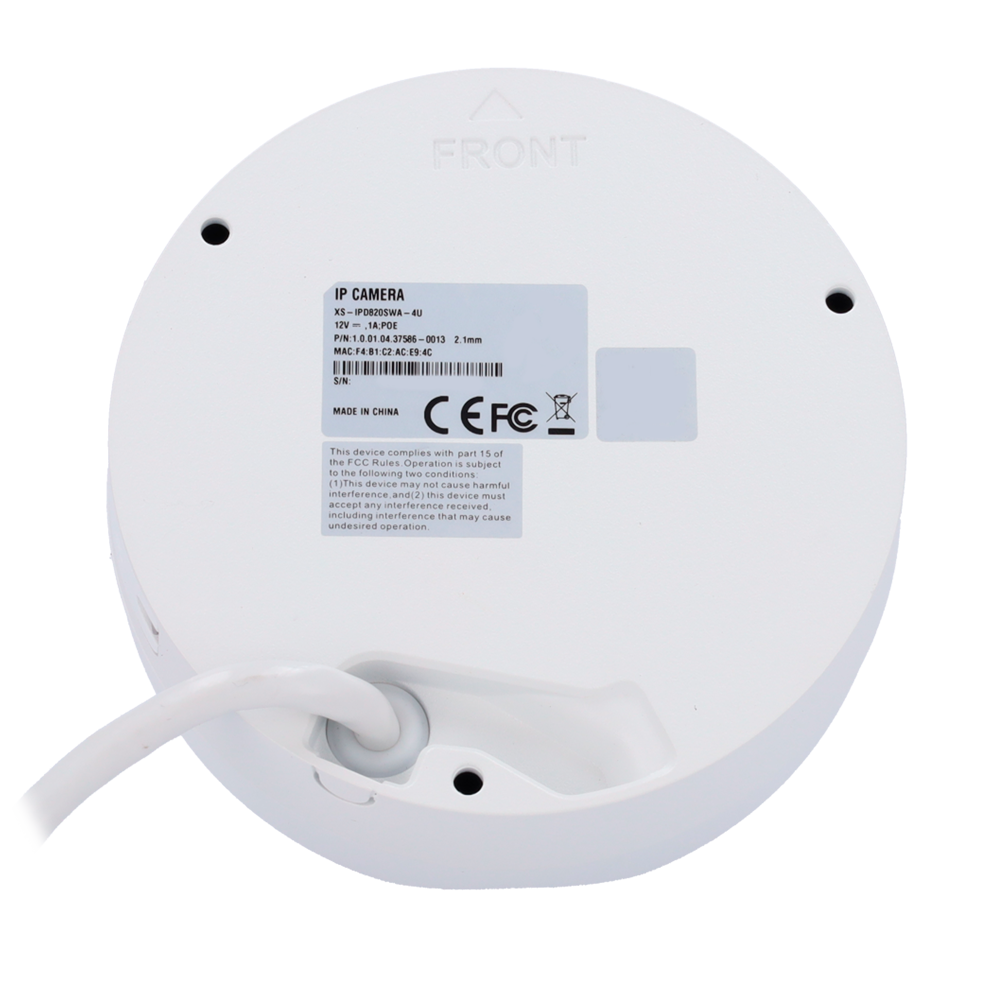

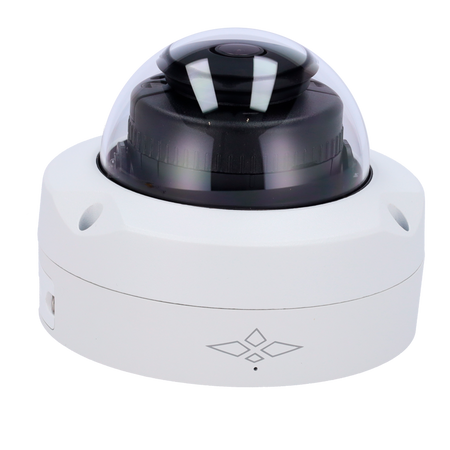

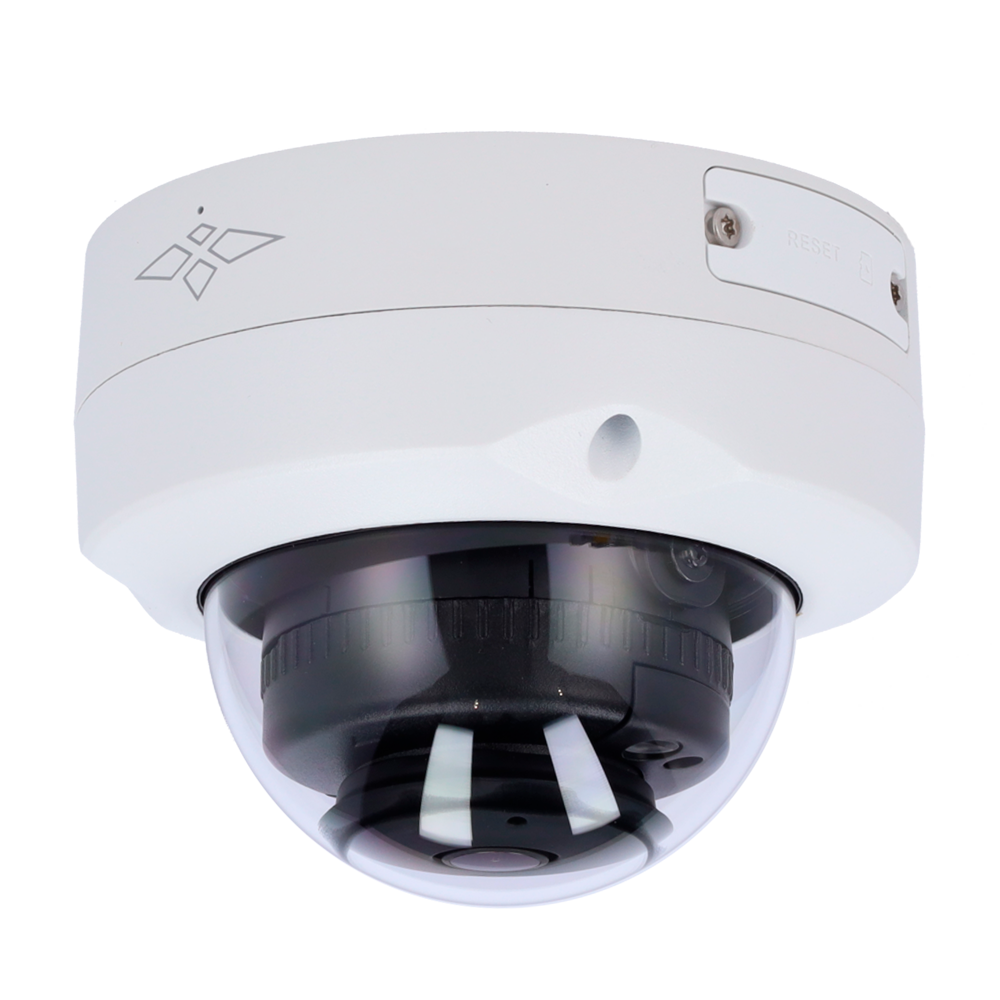

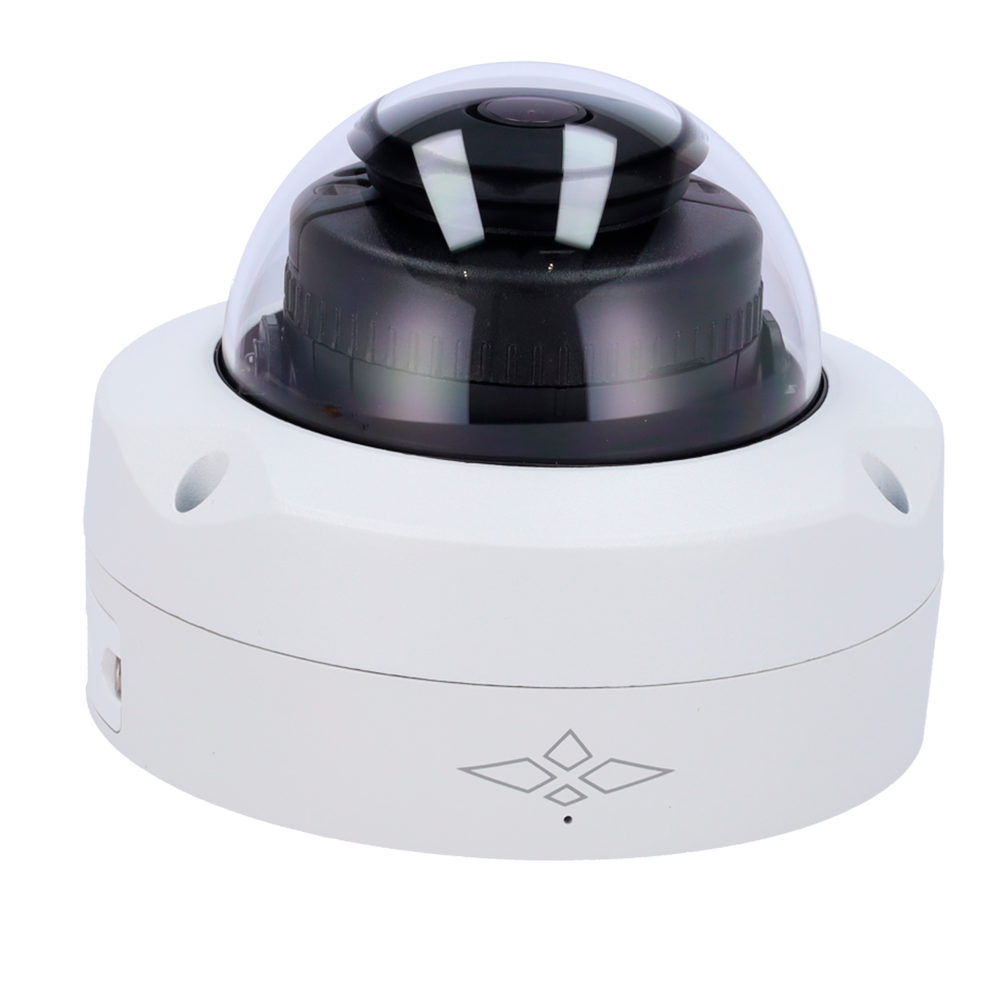

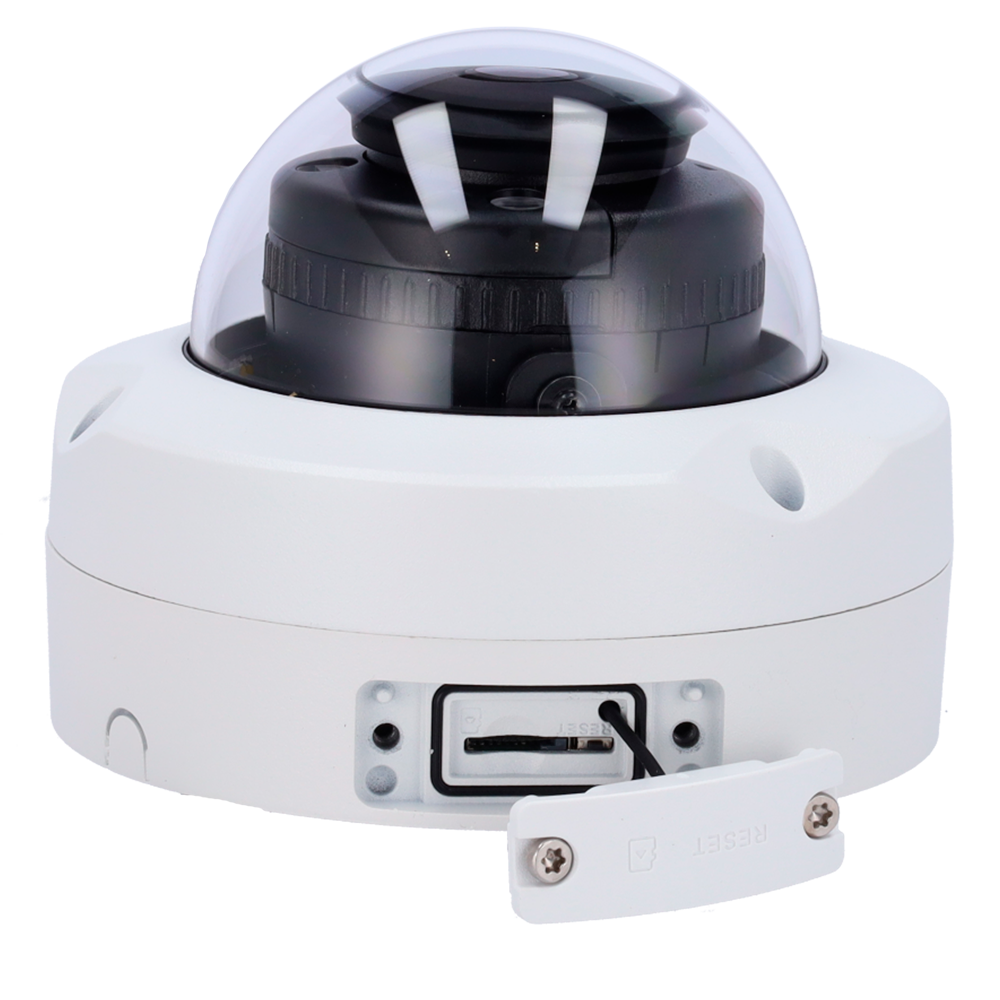

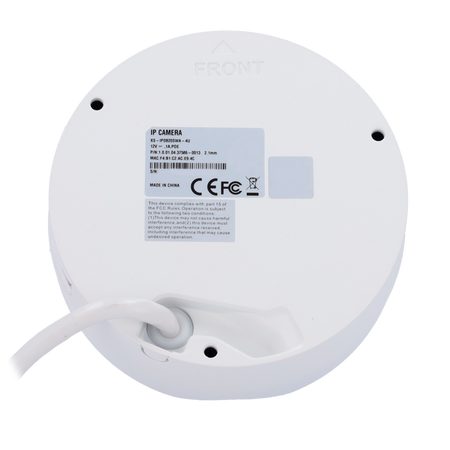

X-Security 4 Megapixel IP Camera - 1/2.1" 4MP Wide Angle - 2.8 mm Lens / WDR - SWA 4U
X-Security 4 Megapixel IP Camera - 1/2.1" 4MP Wide Angle - 2.8 mm Lens / WDR - SWA 4U
Regular price
€166,25
Final price
Regular price
-35%
€254,00
Sale price
€166,25
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
4 Megapixel IP Camera - 1/2.1" 4MP Wide-angle - H.265+ / H.265 Compression - 2.8 mm Lens / WDR - EPTZ: Intelligent alarm monitoring - SMD Plus and Perimeter Protection
📋 SPECIFICATIONS:
• Brand: X-Security
• Image sensor: 1/2.7" 4MP progressive CMOS
• Maximum resolution: 4 Megapixel (2880 × 1620)
• Lens: 2.1 mm
• IR illumination distance: 15 m
• DORI: 52 (D), 20.8 (O), 10.4 (R), 5.2 (I)
• Minimum illumination: 0.01 lux@F2.0 (color, 30 IRE); 0.001 lux@F2.0 (b/w, 30 IRE); 0 lux (light on)
• Field of view: LDC disabled: Horizontal: 180°; Vertical: 78°; Diagonal: 180°; LDC enabled (default): Horizontal: 170°; Vertical: 75°; Diagonal: 175°
• Main stream frame rate: 2880 × 1620 @(1–20 fps)/2688 × 1520 @(1–25/30 fps)
• Resolution: 5M (2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536); 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280×720); D1 (704× 576/704×480); VGA (640 × 480); CIF(352 × 288/352 × 240)
• Video transmission speed: H.264: 3 kbps–8192 kbps; H.265: 3 kbps–8192 kbps
• Compression: H.265; H.264; H.264B; MJPEG (only compatible with sub-streams)
• Smart codec: Smart H.265+; Smart H.264+
• AI encoding: AI H.265; AI H.264
• Image enhancements: WDR, BLC, 3D-DNR, MD, ROI
• SMD 3.0: Fewer false alarms, longer detection distance
• IVS (Perimeter Protection): Intrusion, tripwire (both functions support accurate classification and detection of vehicles and people)
• Smart search: Works with Smart NVR to refine smart search, event detection, and merging with event videos
• Day / Night: Removable mechanical ICR filter
• Internal storage: MicroSD card, Max 256 GB
• Network interface: Ethernet 10/100 BaseT

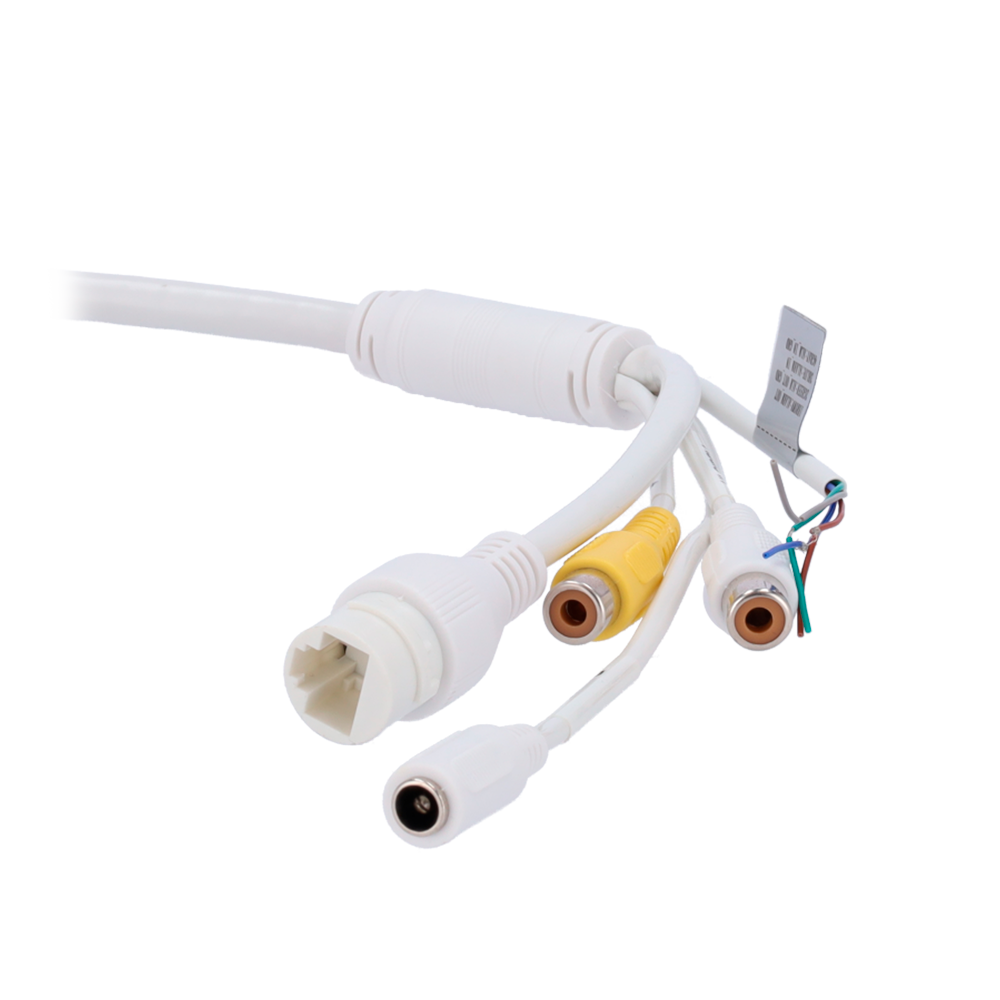

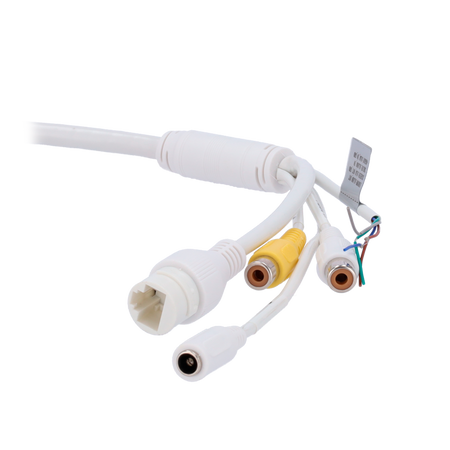

• Audio: Built-in microphone; 1 input (RCA port); 1 output (RCA port)
• Remote access: NVR, Web Browser, Smartphone App, and Safire Control Center PC software
• Alarms: 1 input: 5 mA 3–5V DC; 1 output: 1,000 mA 30V DC/500mA 50V DC
• Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; P2P
• Power supply: DC 12V / 3.9W, PoE IEEE802.3af
• Protection rating: IP67, IK10
• Material: Metal
• Operating temp: -40º C ~ +60º C
• Dimensions: 94 mm (H) × Φ122.0 mm
• Weight: 500 g
📦 INCLUDED:
• X-Security IP Bullet Camera • Installation hardware • CD with software and instructions • User manual
| Optical sensor | 1/2.7" 4MP progressive CMOS |
|---|---|
| Maximum resolution | 4 Megapixel (2880 × 1620) |
| Lens | 2.1 mm |
| IR illumination distance | 15 m |
| DORI | 52 (D), 20.8 (O), 10.4 (R), 5.2 (I) |
| Minimum illumination | 0.01 lux@F2.0 (color, 30 IRE) 0.001 lux@F2.0 (b/w, 30 IRE) 0 lux (light on) |
| Field of view | LDC disabled: Horizontal: 180°; Vertical: 78°; Diagonal: 180° LDC enabled (default): Horizontal: 170°; Vertical: 75°; Diagonal: 175° |
| Main Stream frame rate | 2880 × 1620 @(1–20 fps)/2688 × 1520 @(1–25/30 fps) |
| Resolution | 5M (2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536); 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Video bit rate | H.264: 3 kbps–8192 kbps; H.265: 3 kbps–8192 kbps |
| Compression | H.265; H.264; H.264B; MJPEG (only supported by sub-streams) |
| Smart codec | Smart H.265+; Smart H.264+ |
| AI coding | AI H.265; AI H.264 |
| Image enhancement | WDR, BLC, 3D-DNR, MD, ROI |
| SMD 3.0 | Fewer false alarms, longer detection distance |
| IVS (Perimeter Protection) | Intrusion, tripwire (both functions support the classification and accurate detection of vehicles and people) |
| Smart search | Works with Smart NVR to refine smart search, event detection, and merging with event videos |
| Day/Night | Removable ICR mechanical filter |
| Internal memory | MicroSD card, Max 256 GB |
| Network interface | Ethernet 10/100 BaseT |
| Audio | Built-in microphone, 1 input (RCA port), 1 output (RCA port) |
| Remote access | NVR, Web Browser, Smartphone App, and Safire Control Center PC software |
| Alarms | 1 input: 5 mA 3–5V DC, 1 output: 1000 mA 30V DC/500mA 50V DC |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P |
| Power supply | DC 12V / 3.9W, PoE IEEE802.3af |
| Protection rating | IP67, IK10 |
| Material | Metal |
| Operating temp. | -40º C ~ +60º C |
| Dimensions | 94 mm (H) × Φ122.0 mm |
| Weight | 500 g |
