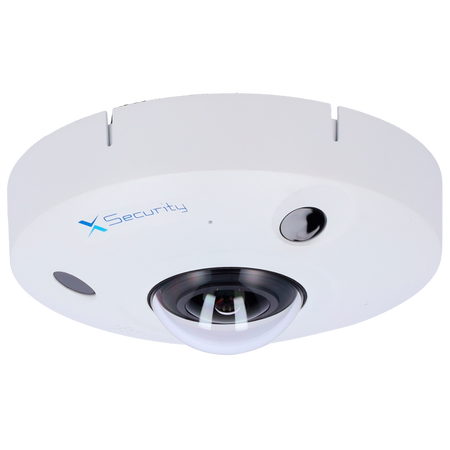

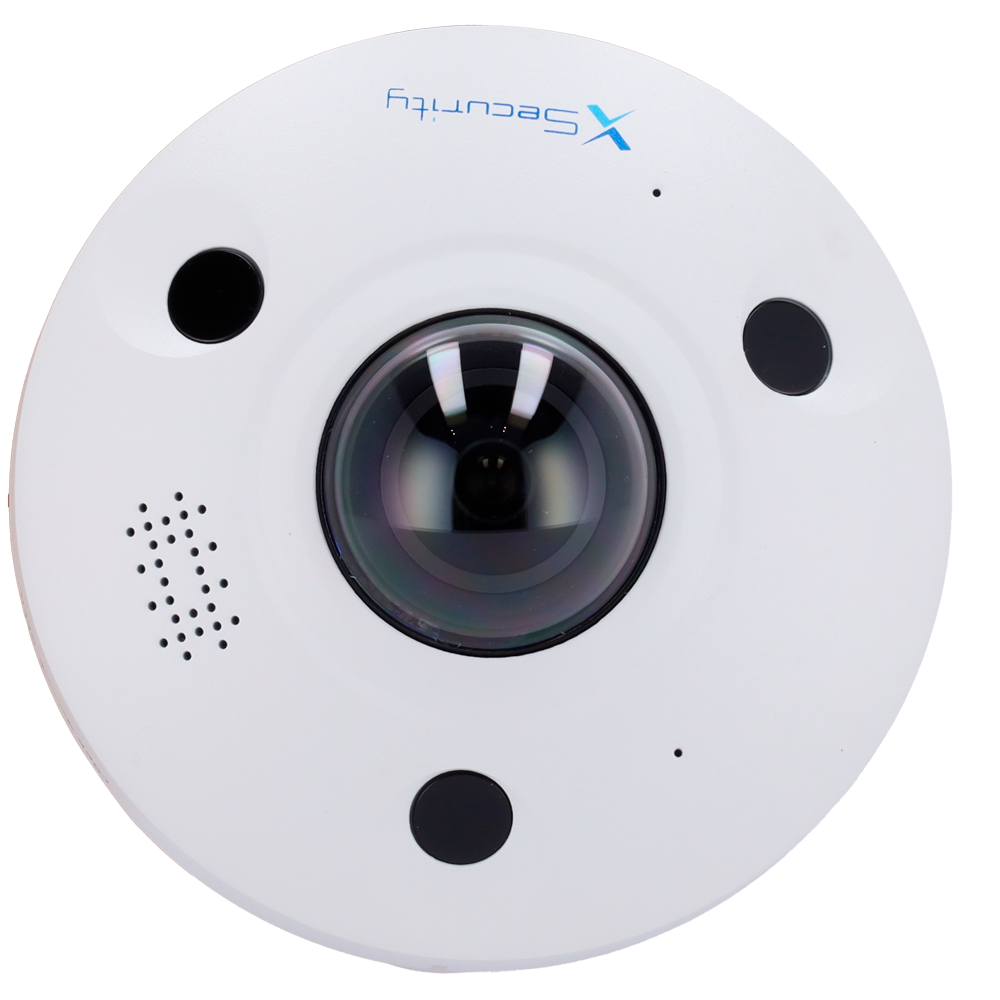

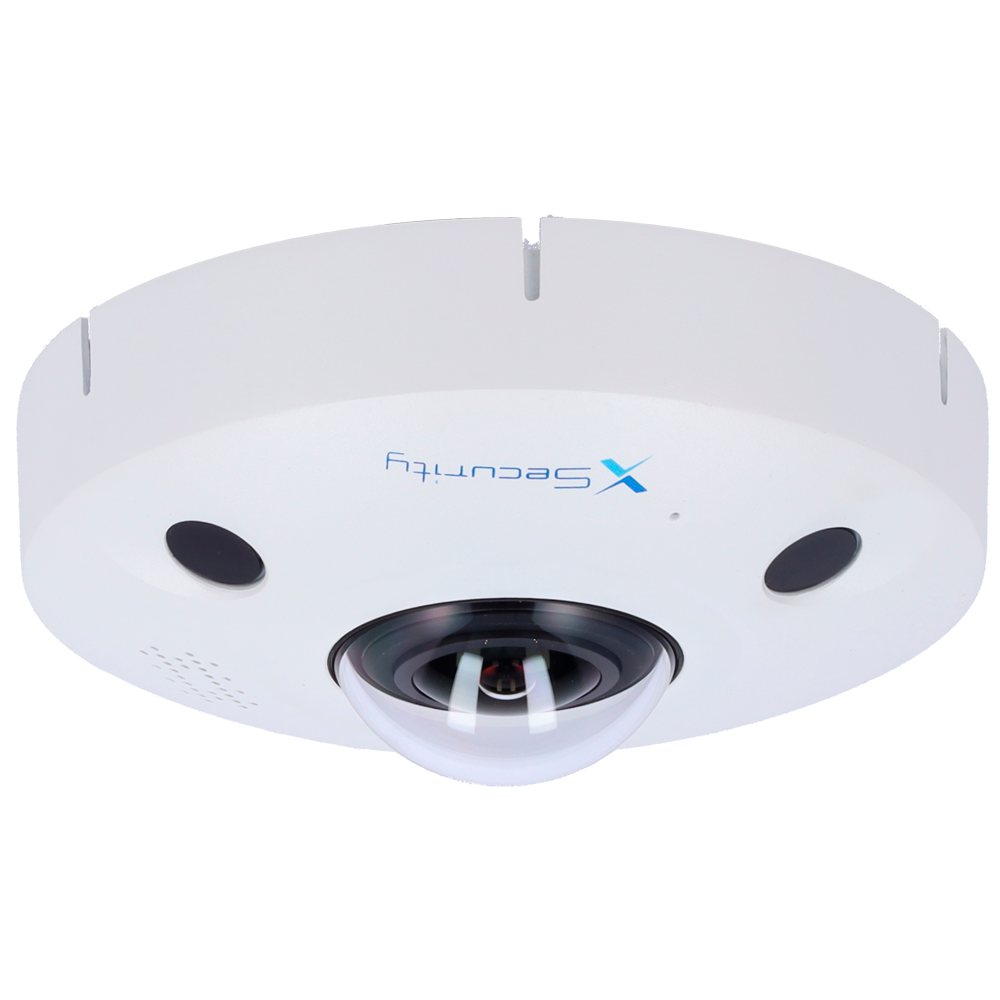

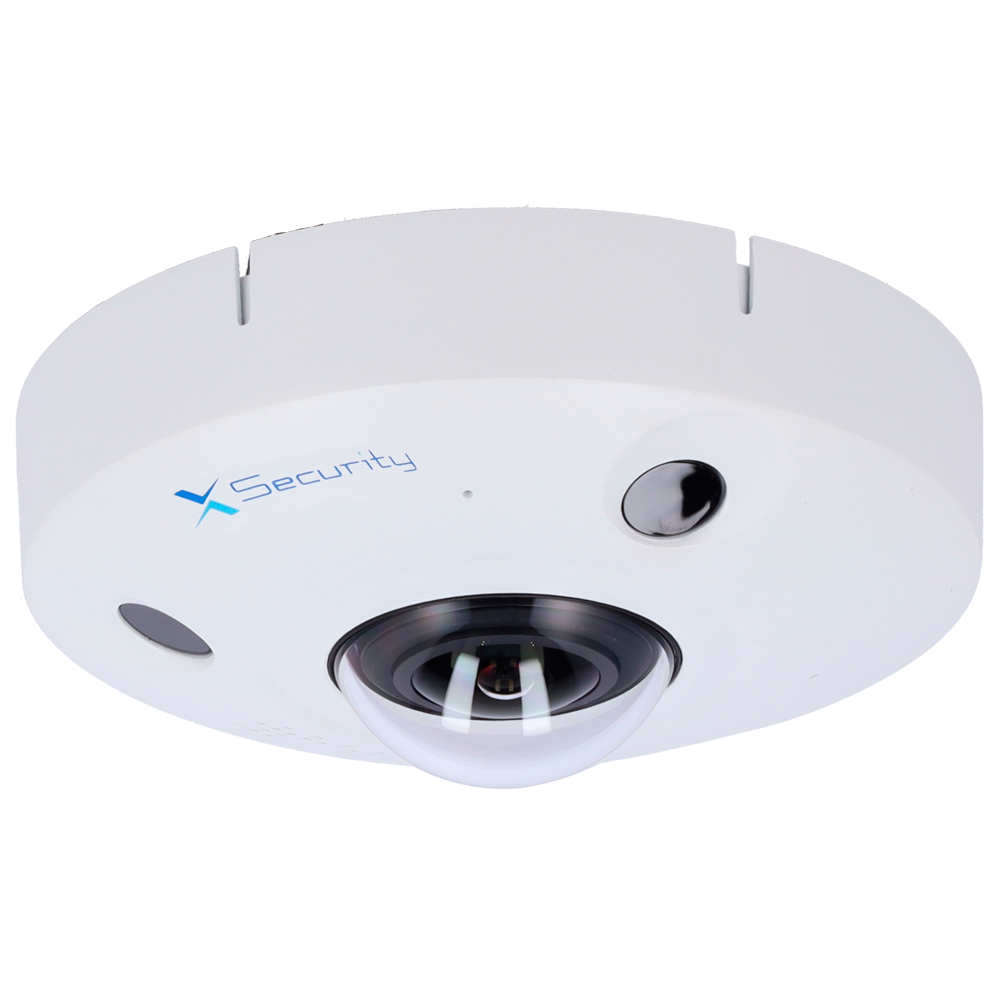

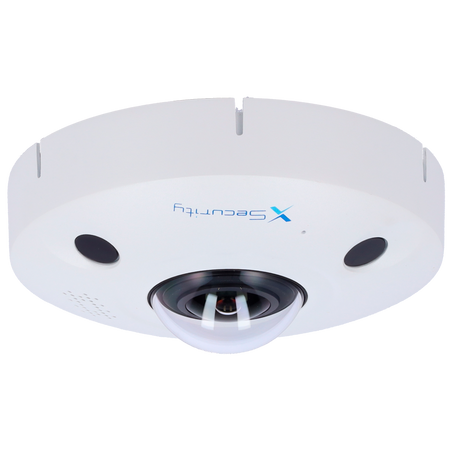

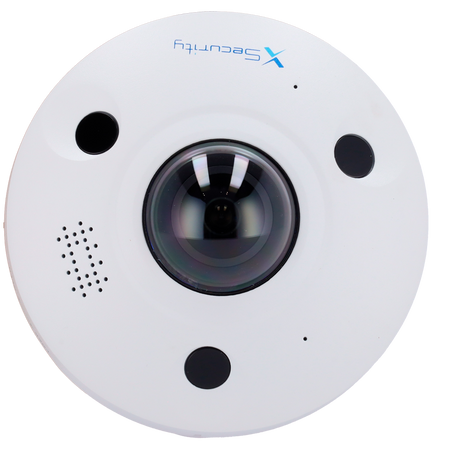

X-Security Fisheye Dome IP Camera - 8 Megapixel (3280x2480) - 1.85mm Lens 360º - IR 10m | Dewarping - IVS | Heat Map | People Counting - MicroSD 256GB | IP67 & IK10
📋 SPECIFICATIONS:
• Brand: X-SECURITY
• Optical sensor: 1/1.7” Progressive CMOS
• Maximum resolution: 8 Megapixel (3280x2480)
• Lens: 1.85mm (360º total coverage)
• Display modes: Front (Hardware dewarping): 1O / 1P / 2P / 1R / 2R / 4R / 1O + 3R; O: Fisheye view; P: Panoramic view; R: Image area view; Back (Software dewarping); Fisheye view; 360º panoramic view + PTZ; Dual channel 180º each channel; Fisheye + 2PTZ; Fisheye + 3PTZ; Fisheye + 4PTZ; 360º panoramic + 6PTZ; Fisheye + 8PTZ; 180º panoramic view; 180º panoramic view + 3PTZ; 180º panoramic view + 4PTZ; 180º panoramic view + 8PTZ
• Video frame: Fisheye mode:; 1O (3280×2480); 1P (4096×1024); 2P (2432×2432); 1R (1216×1216); 2R (2432×2432); 4R (2432×2432); 1O + 3R (2432×2432)
• Main Stream frame rate: 8M (3280x2480@1–25/30 fps)
• Sub Stream frame rate: 704×576@1–25/30 fps
• Third stream frame rate: 1280x960@1–25/30 fps
• Compression: H.265+/H.265/H.264+/H.264
• DORI: 40 (D), 16 (O), 8 (R), 4 (I)
• IVS (Perimeter Protection): Line crossing and intrusion
• People Counting: Counting people in the area (Entries / Exits / Inside).; Configurable up to 4 areas; Annual/monthly/daily and custom reports; Alarm activation if allowed capacity is exceeded
• Heat Map: Yes
• Image enhancements: DWDR, 3DNR, AWB, AGC, BLC, HLC, Privacy Masking, ROI

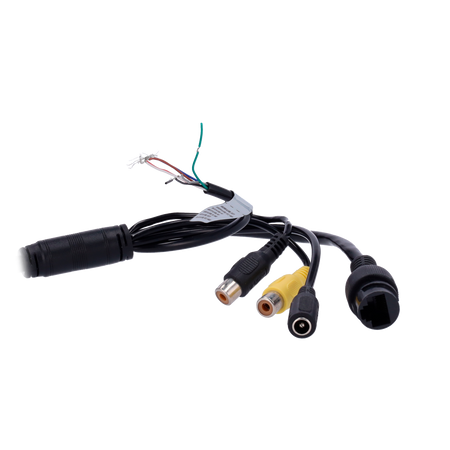

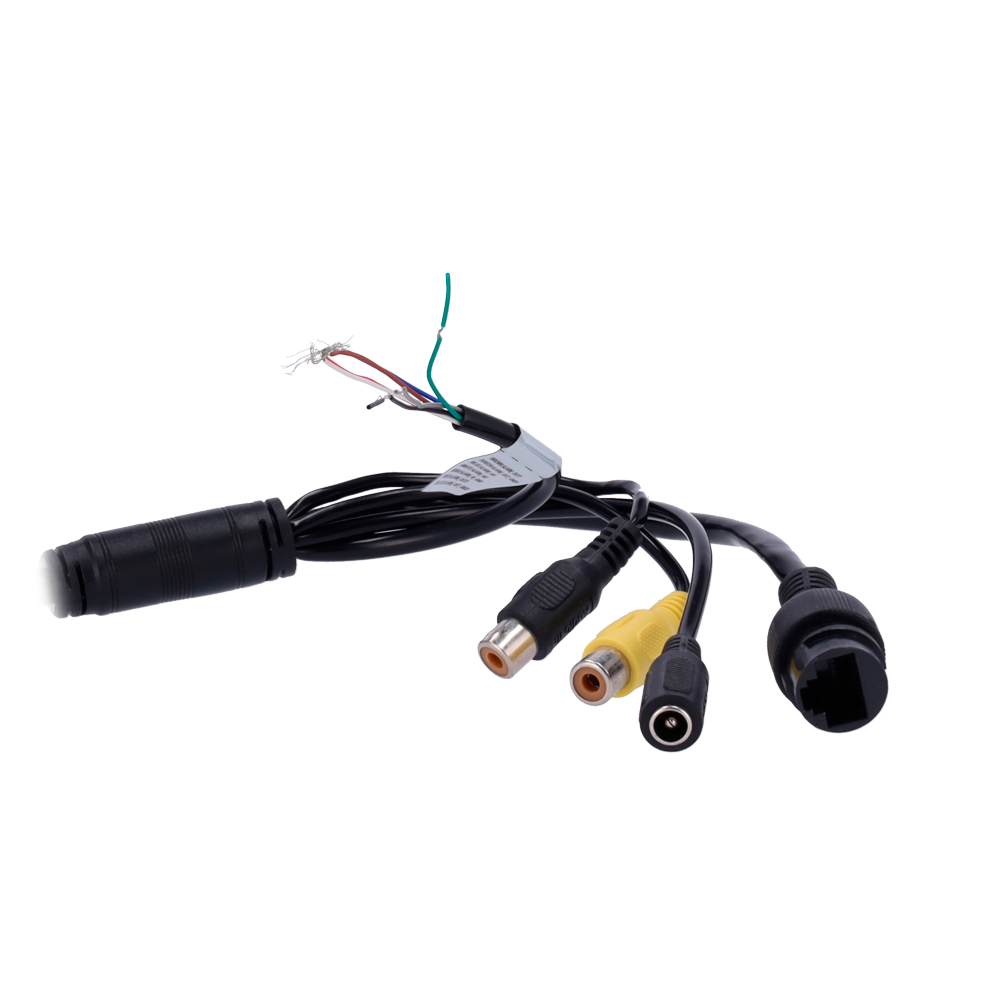

• Audio: 1 Input (RCA port); 1 Output (RCA port); Integrated microphone
• Network interface: Ethernet 10/100 BaseT
• Internal storage: MicroSD card up to 256 GB (not included)
• Alarms: 2 inputs: 5mA 3V–5V DC; 2 outputs: 300mA 12V DC
• Remote access: WEB interface, CMS (DSS/PSS), Smartphone and NVR
• Interoperability: ONVIF
• Power supply: DC 12 V / 13W, PoE IEEE802.3af
• Material: Metal
• Protection degree: Waterproof IP67, Vandal-proof IK10
• Operating temp.: -40º C ~ +60º C
• Dimensions: 59.8 mm (D) x 149.8 (Ø) mm
• Weight: 790 g
📦 INCLUDED:
• X-Security IP Camera• Installation material• User manual
| Optical sensor | 1/1.7” Progressive CMOS |
|---|---|
| Maximum resolution | 8 Megapixel (3280x2480) |
| Lens | 1.85mm (360º total coverage) |
| Display mode | Front (Hardware dewarping): 1O / 1P / 2P / 1R / 2R / 4R / 1O + 3R O: Fisheye view P: Panoramic view R: Image area view Rear (Software dewarping) - Fisheye view - 360º panoramic view + PTZ - Dual channel 180º each channel - Fisheye + 2PTZ - Fisheye + 3PTZ - Fisheye + 4PTZ - 360º panoramic + 6PTZ - Fisheye + 8PTZ - 180º panoramic view - 180º panoramic view + 3PTZ - 180º panoramic view + 4PTZ - 180º panoramic view + 8PTZ |
| Video frame | Fisheye mode: 1O (3280×2480) 1P (4096×1024) 2P (2432×2432) 1R (1216×1216) 2R (2432×2432) 4R (2432×2432) 1O + 3R (2432×2432) |
| Main Stream frame rate | 8M (3280x2480@1–25/30 fps) |
| Sub Stream frame rate | 704×576@1–25/30 fps |
| Third stream frame rate | 1280x960@1–25/30 fps |
| Compression | H.265+/H.265/H.264+/H.264 |
| DORI | 40 (D), 16 (O), 8 (R), 4 (I) |
| IVS (Perimeter Protection) | Line crossing and intrusion |
| People counting | Counting people in the area (Entries / Exits / Inside). Configuration for up to 4 areas Annual/monthly/daily and customized reports Alarm activation when capacity is exceeded |
| Heat Map | Yes |
| Image enhancement | DWDR, 3DNR, AWB, AGC, BLC, HLC, Privacy Masking, ROI |
| Audio | 1 Input (RCA port) 1 Output (RCA port) Built-in microphone |
| Network interface | Ethernet 10/100 BaseT |
| Internal storage | MicroSD card up to 256 GB (not included) |
| Alarms | 2 inputs: 5mA 3V–5V DC 2 outputs: 300mA 12V DC |
| Remote access | WEB interface, CMS (DSS/PSS), Smartphone and NVR |
| Interoperability | ONVIF |
| Power supply | DC 12 V / 13W, PoE IEEE802.3af |
| Material | Metal |
| Protection rating | Waterproof IP67, Vandal-proof IK10 |
| Operating temp. | -40º C ~ +60º C |
| Dimensions | 59.8 mm (D) x 149.8 (Ø) mm |
| Weight | 790 g |
