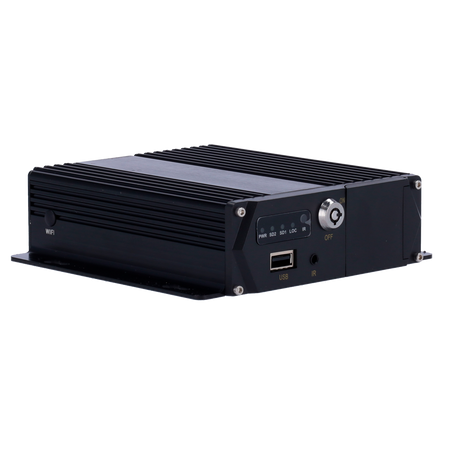

Basic 4-channel 1080P AHD MDVR
Regular price
€156,79
Final price
Regular price
-14%
€182,00
Sale price
€156,79
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

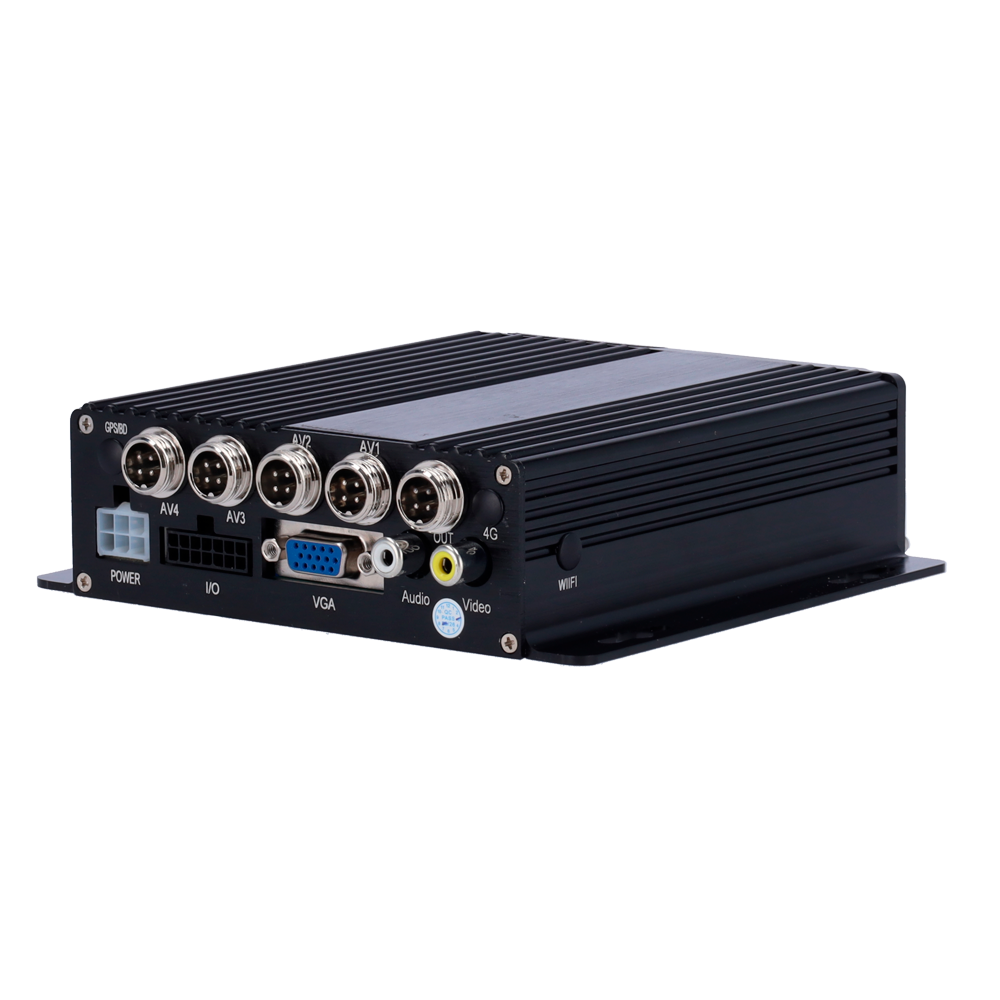

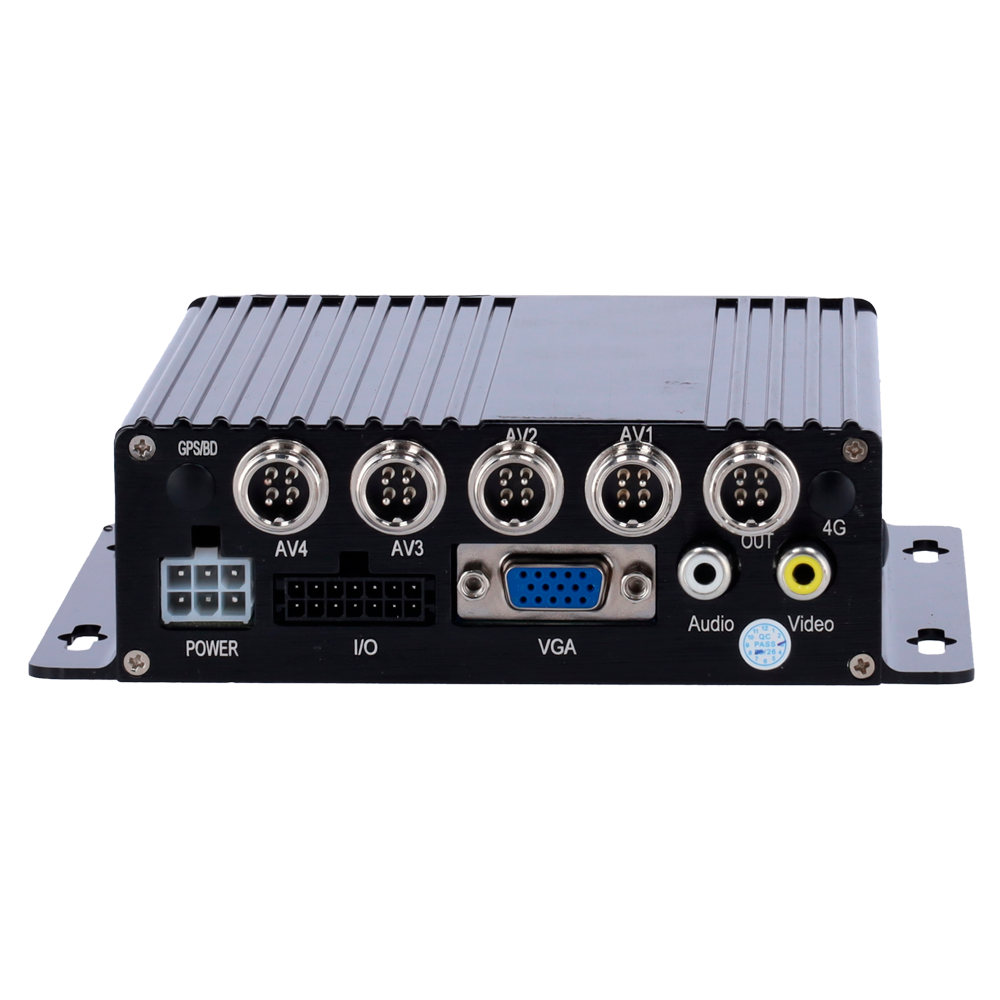

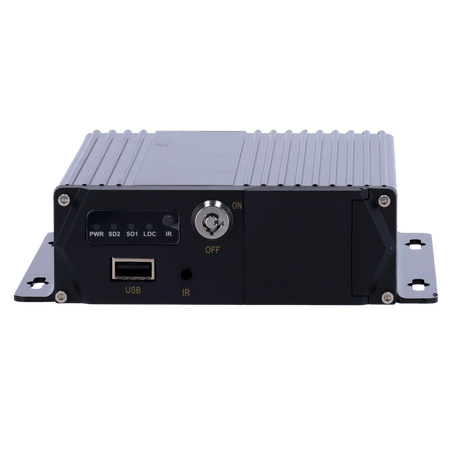

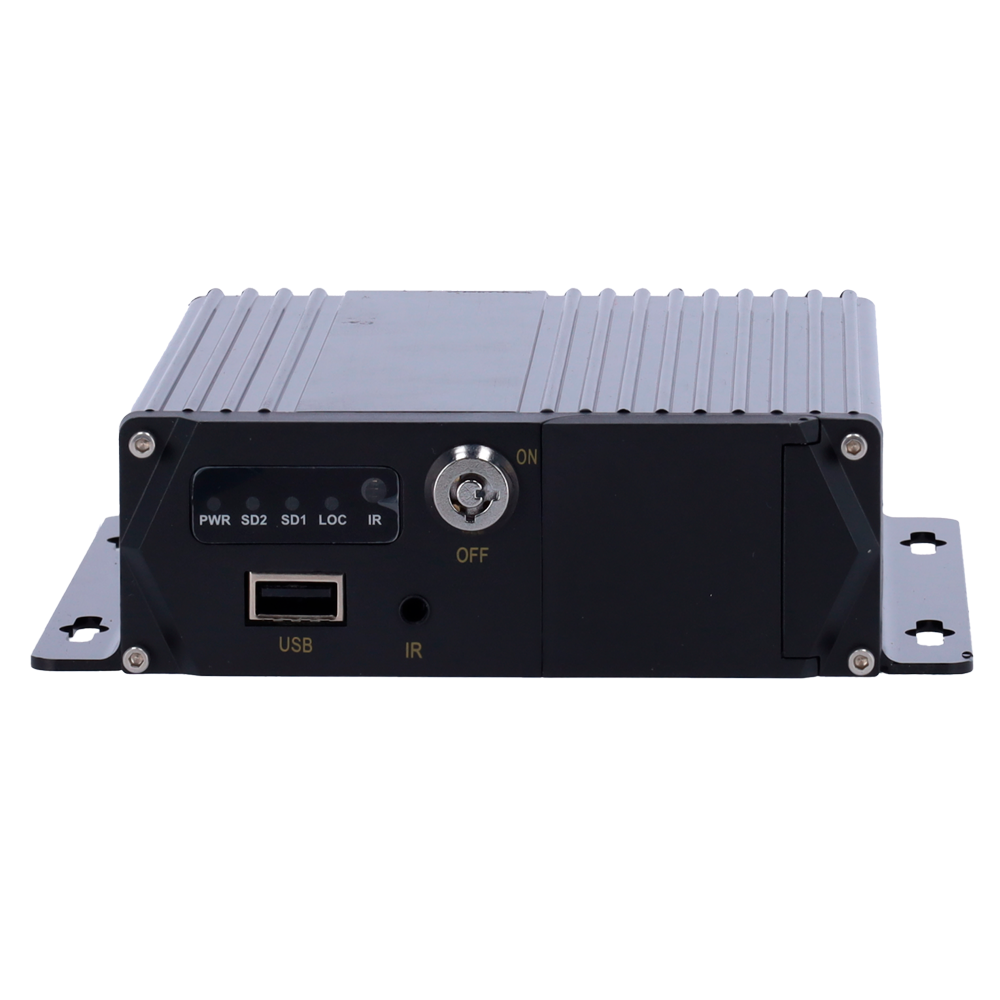

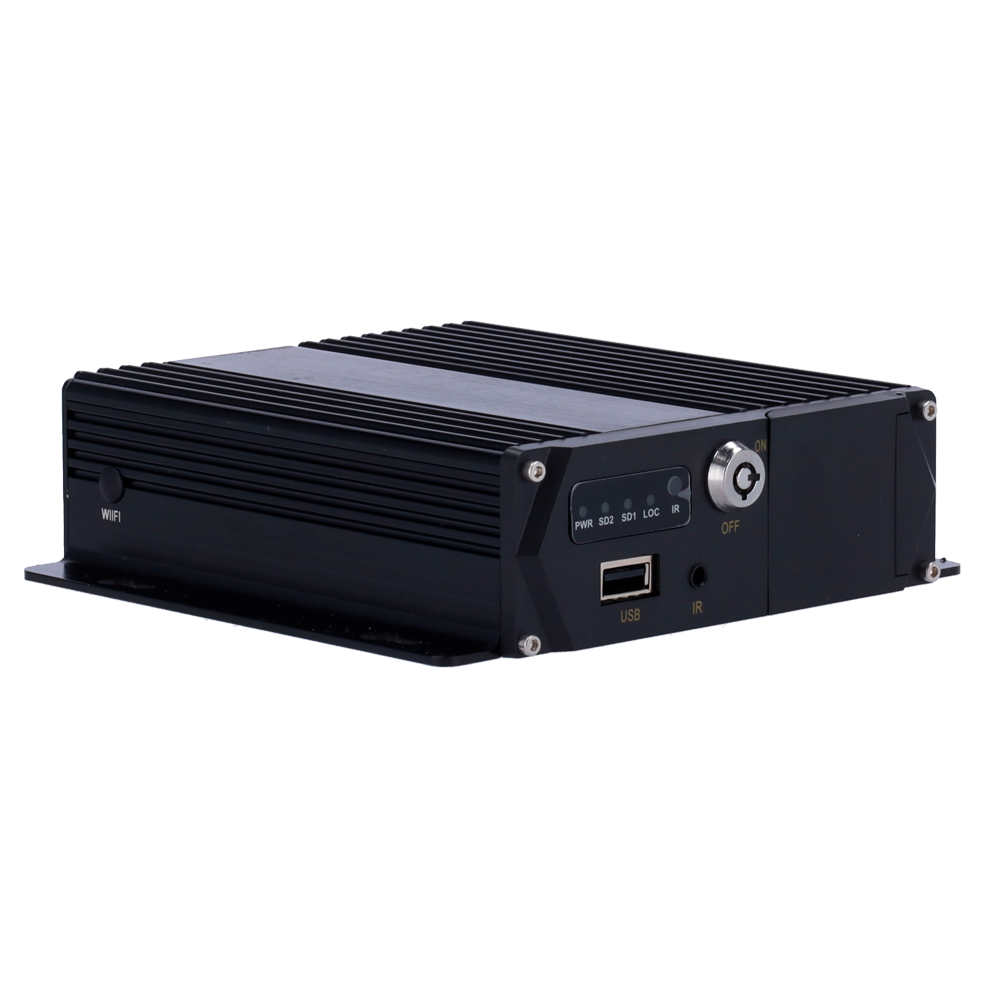

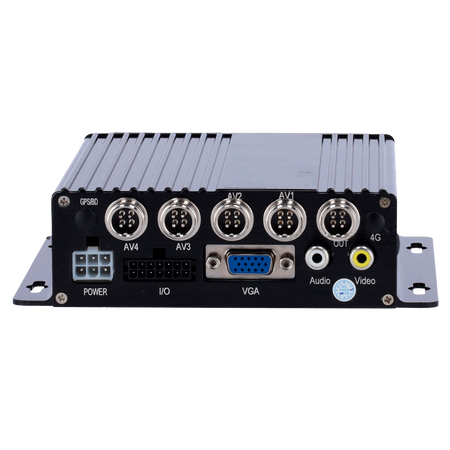

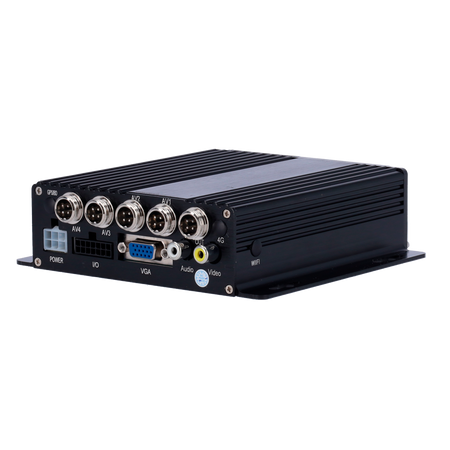

Basic 4-channel AHD 1080P MDVR - SD card recording - 4-pin M12 connectors - 4 alarm inputs and 2 outputs
📋 SPECIFICATIONS:
• Operating System: Embedded Linux
• Languages: English, Chinese, Russian
• Video compression: H264 / H265
• OSD: Camera title, date and time, vehicle ID
• Video channels: 4 AHD 1080P video inputs
• Video output: 1 RCA composite video output; 1 VGA video output
• Live view: 1-channel full screen, 2/4-split screen and full screen per event
• Resolution: 4 channels at 1080P 25 frames
• Recording modes: Automatic; By vehicle ignition; Manual; By alarm
• Audio input: 4 channels via M12
• Audio output: 1 RCA output
• Audio compression: G.711A 8KB/s
• Alarm inputs: 4 inputs via I/O cable
• Alarm output: 2 outputs via I/O cable
• Communication interface: 1 RS232 channel, 1 RS485 channel
• Storage: 1 SD card up to 512GB
• USB: Interface for recording backup
• Playback: Up to 4 simultaneous channels, supports x2, x4, x8, x16 fast-forward
• Input voltage: DC:+12V ~ +36V
• I/O cable output voltage: 12V 2.5A, 5V 2A
• Power consumption: 5W
• Operating temperature: -20℃ to +70℃
• Relative humidity: 20% to 80%
• Security: Password-protected access
• Dimensions: 15 x 14.7 x 4 cm
• Weight: 0.7kg
📦 INCLUDED:

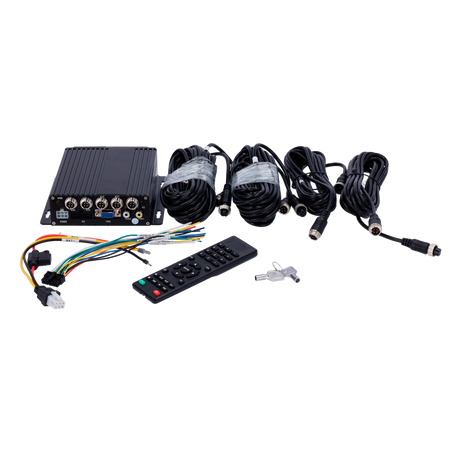

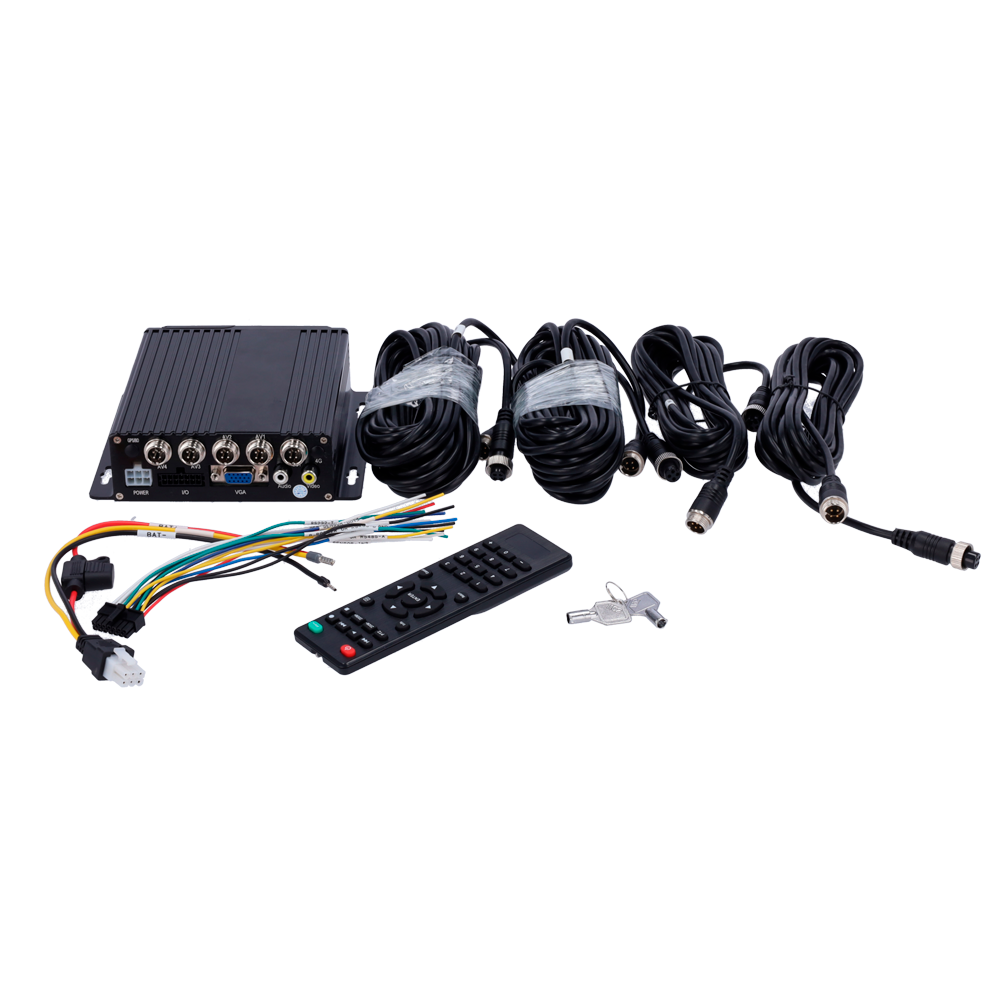

• MDVR• 2 x 5m video extender cables• 2 x 10m video extender cables• Remote control• I/O cable for alarm/voltage/RS485 inputs• Power cable with fuse• Front panel key
| Operating System | Embedded Linux |
|---|---|
| Languages | English, Chinese, Russian |
| Video compression | H264 / H265 |
| OSD | Camera title, date and time, vehicle ID |
| Video channels | 4 AHD 1080P video inputs |
| Video output | 1 RCA composite video output, 1 VGA video output |
| Live view | 1-channel full screen, 2/4 split screen and full screen per event |
| Resolution | 4 channels at 1080P 25 frames |
| Recording modes | - Automatic - By vehicle ignition - Manual - By alarm |
| Audio input | 4 channels via M12 |
| Audio output | 1 RCA output |
| Audio compression | G.711A 8KB/s |
| Alarm inputs | 4 inputs via I/O cable |
| Alarm output | 2 outputs via I/O cable |
| Communication interface | 1 RS232 channel, 1 RS485 channel |
| Storage | 1 SD card up to 512GB |
| USB | Interface for recording backup |
| Playback | Up to 4 simultaneous channels, supports fast forward x2, x4, x8, x16 |
| Input voltage | DC: +12V ~ +36V |
| I/O cable output voltage | 12V 2.5A, 5V 2A |
| Consumption | 5W |
| Operating temperature | -20℃ to +70℃ |
| Relative humidity | 20% to 80% |
| Security | Password-protected access |
| Dimensions | 15 x 14.7 x 4 cm |
| Weight | 0.7kg |
