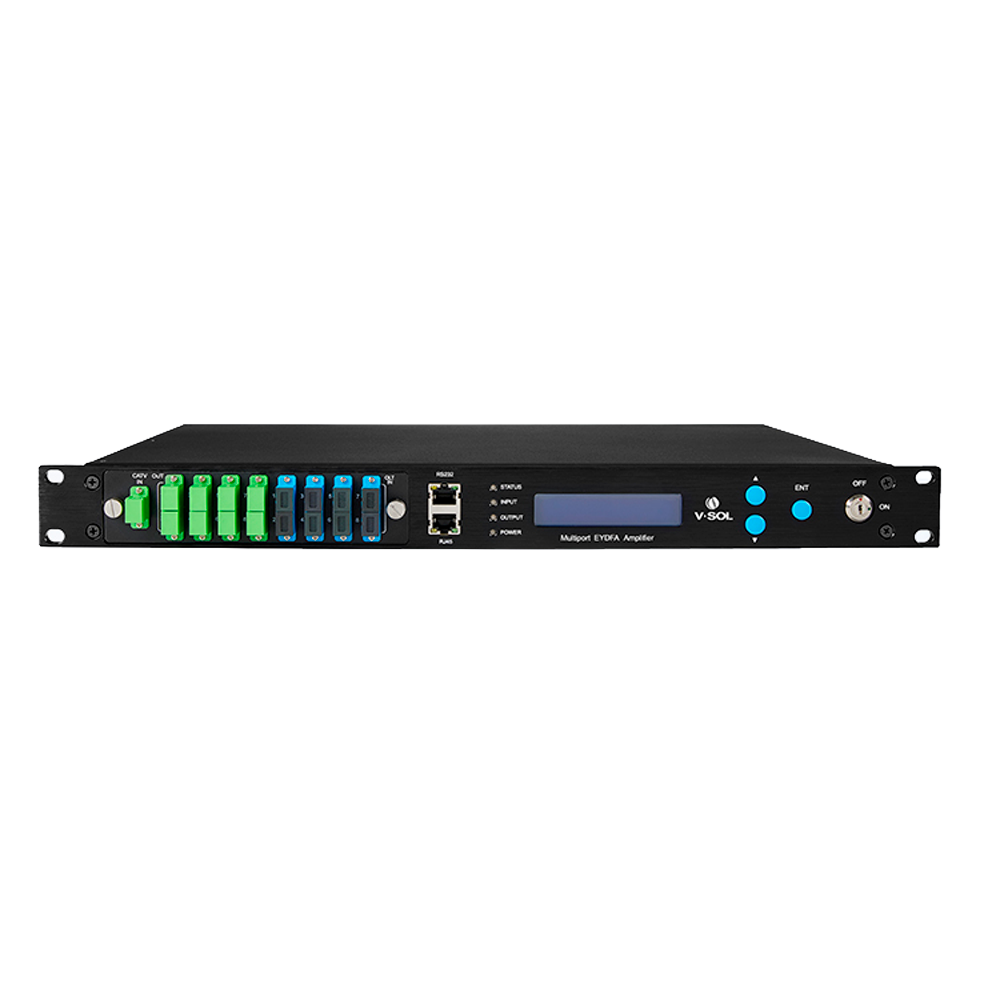

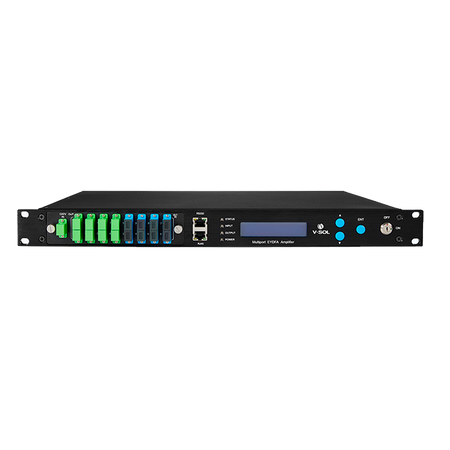

V-Sol 8-port 22 dBm CATV PON EDFA V-Sol
Regular price
€2.882,25
Final price
Regular price
-4%
€3.000,00
Sale price
€2.882,25
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Vsol 8-Port CATV PON EYDFA 22 dBm - High-power 1550 nm PON EYDFA - Compatible with FTTx PON: EPON, GPON, 10GPON - Dual CATV/PON fiber optic inputs - Adjustable output with DWDM ( 0~-4 dBm ) - Operating wavelength (1545 ~ 1565 nm)
📋 SPECIFICATIONS:
• Brand: V-SOL
• Chassis: 1U Rack
• CATV operating wavelength: 1545 nm - 1565 nm
• OLT PON pass-through wavelength: XPON: 1310/1490; 10G PON: 1270/1577
• Number of OLT PON IN ports: 8 SC/UPC
• Number of CATV IN (RF) ports: 1
• Number of OUT (PON + CATV) ports: 8 SC/APC ( 22dbm )
• Network management interface: SNMP, WEB
• Power supply: AC 90 V - 265 V ( supports dual power supply )
• Operating temperature: -5°C - 65°C
• Dimensions: 370×483×44 mm
• Weight: 5.5 kg
📦 INCLUDED:
• Vsol CATV PON EYDFA • AC power cable • User manual
| Case | 1U Rack |
|---|---|
| CATV operating wavelength | 1545 nm - 1565 nm |
| OLT PON pass-through wavelength | XPON: 1310/1490 10G PON: 1270/1577 |
| Number of OLT PON IN ports | 8 SC/UPC |
| Number of CATV IN (RF) ports | 1 |
| Number of OUT (PON + CATV) ports | 8 SC/APC ( 22dbm ) |
| Network management interface | SNMP, WEB |
| Power supply | AC 90 V - 265 V ( supports dual power supply ) |
| Operating temperature | -5°C - 65°C |
| Dimensions | 370×483×44 mm |
| Weight | 5.5 kg |
