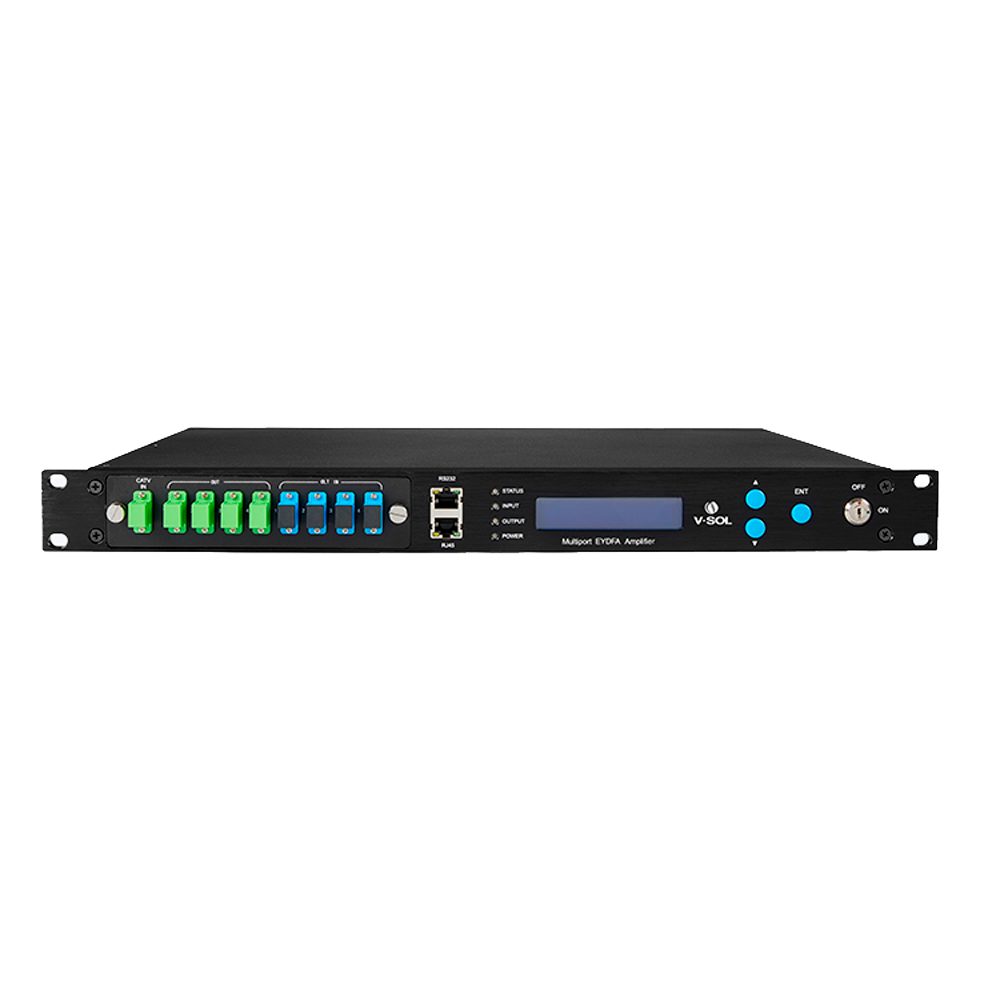

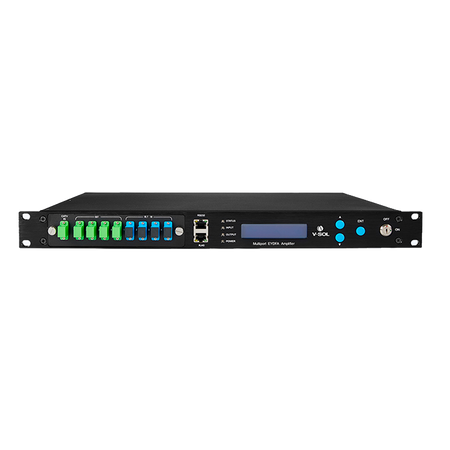

Vsol 4-port 22 dBm CATV PON EYDFA - High-power 1550 nm PON EYDFA - Compatible with FTTx PON: EPON, GPON, 10GPON - Dual CATV/PON fiber optic inputs - Adjustable output with DWDM (0~-4 dBm) - Operating wavelength (1545 ~ 1565 nm)
📋 SPECIFICATIONS:
• Brand: V-SOL
• Chassis: 1U Rack
• CATV operating wavelength: 1545 nm - 1565 nm
• OLT PON pass-through wavelength: XPON: 1310/1490; 10G PON: 1270/1577
• Number of OLT PON IN ports: 4 SC/UPC
• Number of CATV IN (RF) ports: 1
• Number of OUT (PON + CATV) ports: 4 SC/APC (22 dBm)
• Network management interface: SNMP, WEB
• Power supply: AC 90 V - 265 V (supports dual power supply)
• Operating temperature: -5°C - 65°C
• Dimensions: 370×483×44 mm
• Weight: 5.5 kg
📦 INCLUDED:
• Vsol CATV PON EYDFA • AC power cable • User manual
| Case | 1U Rack |
|---|---|
| CATV operating wavelength | 1545 nm - 1565 nm |
| OLT PON pass-through wavelength | XPON: 1310/1490 10G PON: 1270/1577 |
| Number of OLT PON IN ports | 4 SC/UPC |
| Number of CATV IN (RF) ports | 1 |
| Number of OUT ports (PON + CATV) | 4 SC/APC ( 22dbm ) |
| Network management interface | SNMP, WEB |
| Power supply | AC 90 V - 265 V ( supports dual power supply ) |
| Operating temperature | -5°C - 65°C |
| Dimensions | 370×483×44 mm |
| Weight | 5.5 kg |
