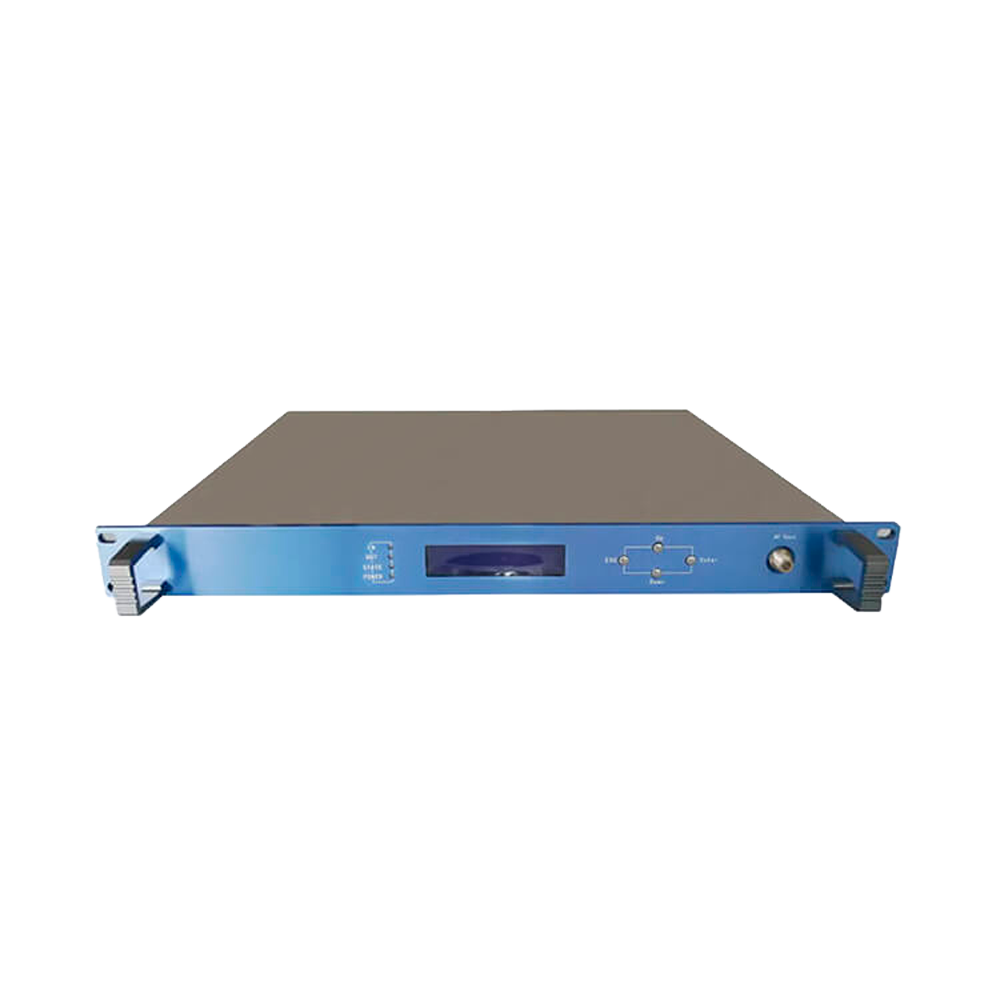

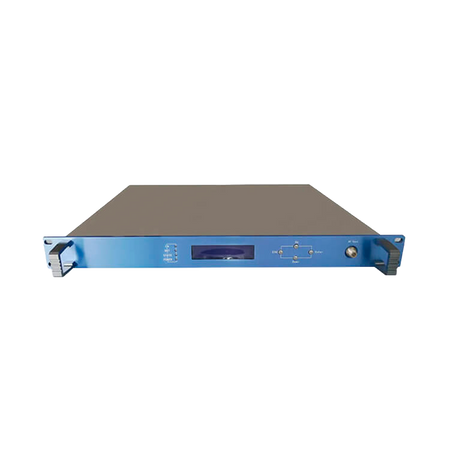

V-Sol direct modulation optical transmitter
Regular price
€1.320,53
Final price
Regular price
-6%
€1.400,00
Sale price
€1.320,53
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Vsol Direct Modulation Optical Transmitter - High linearity 1550 nm DFB laser - RF bandwidth: 45–870 / 1000 MHz - AGC/MGC control for signal stability - Ideal for metropolitan HFC networks (CATV / PON) - 19-inch rack-mount format
📋 SPECIFICATIONS:
• Brand: V-SOL
• Chassis: 1U Rack
• Operating wavelength: 1550 nm
• Optical power: 10 dBm
• Optical connection type: SC/APC
• RF bandwidth: 45–870 / 1000 MHz
• RF input impedance: 75Ω
• RF connection type: F-type female connector
• Control interface: RJ45 (via web)
• Power supply: AC 90 V - 265 V (supports dual power supply)
• Operating temperature: 0°C - 50°C
• Dimensions: 483x450x44 mm
• Weight: 2.8 kg
📦 INCLUDED:
• Vsol Optical transmitter• AC power cable• User manual
| Case | 1U Rack |
|---|---|
| Operating wavelength | 1550 nm |
| Optical power | 10 dbm |
| Optical connection type | SC/APC |
| RF bandwidth | 45–870 / 1000 MHz |
| RF input impedance | 75Ω |
| RF connection type | F-type female connector |
| Control interface | RJ45 (via web) |
| Power supply | AC 90 V - 265 V (supports dual power supply) |
| Operating temperature | 0°C - 50°C |
| Dimensions | 483x450x44 mm |
| Weight | 2.8 kg |
