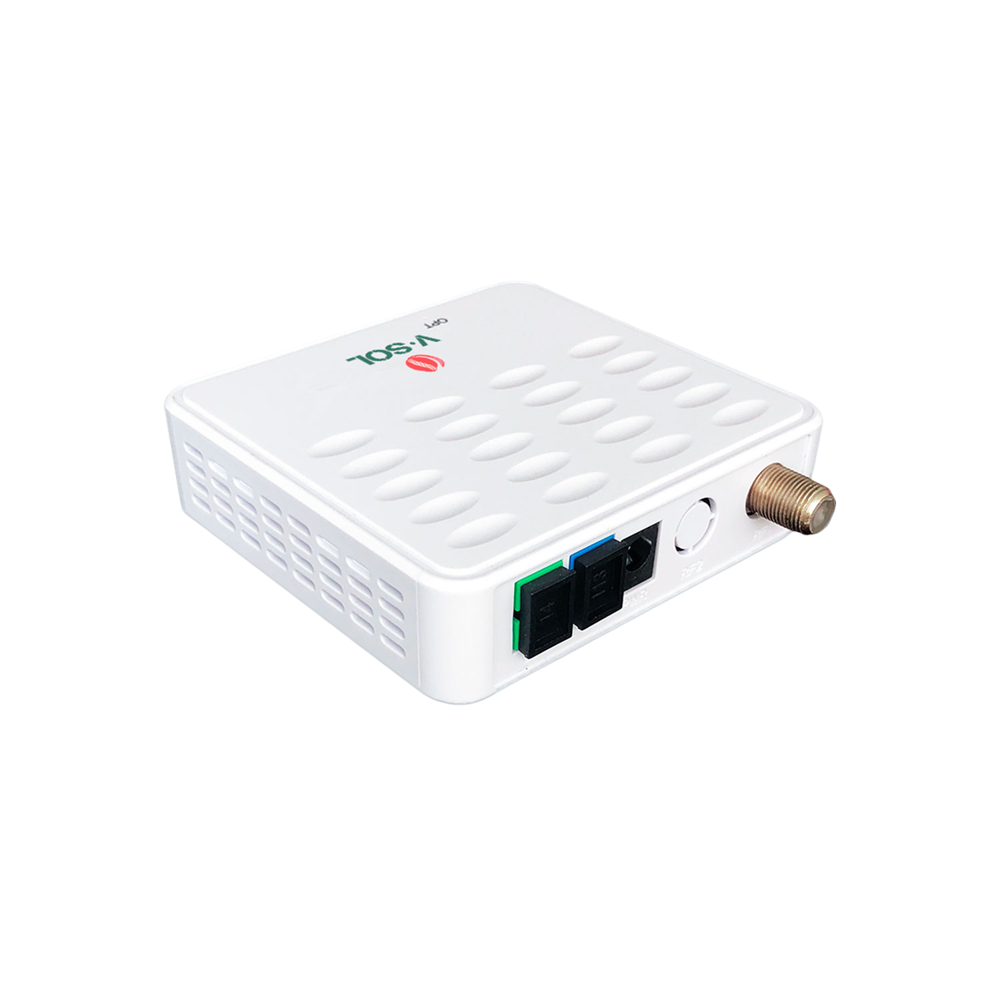

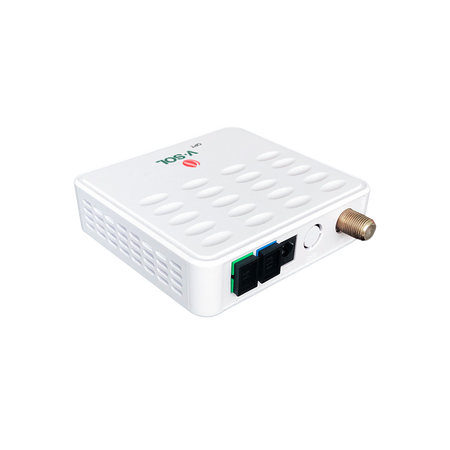

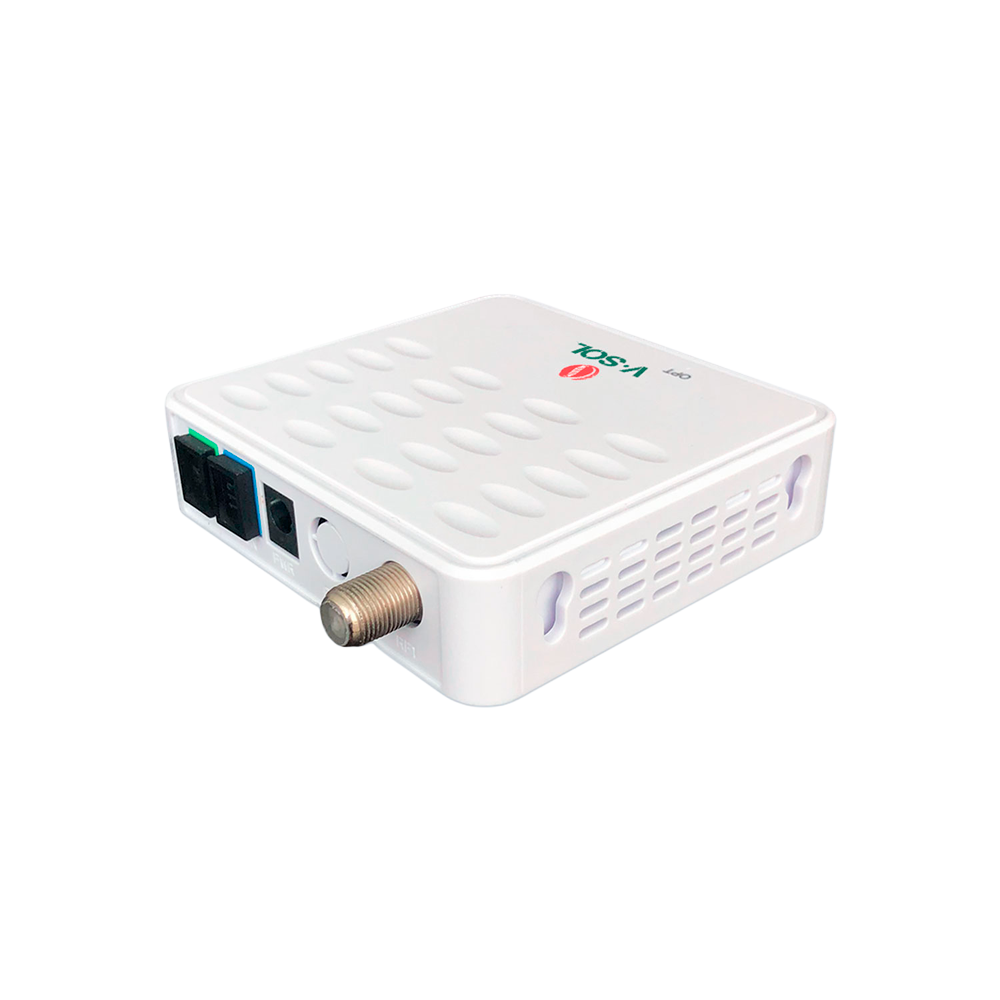

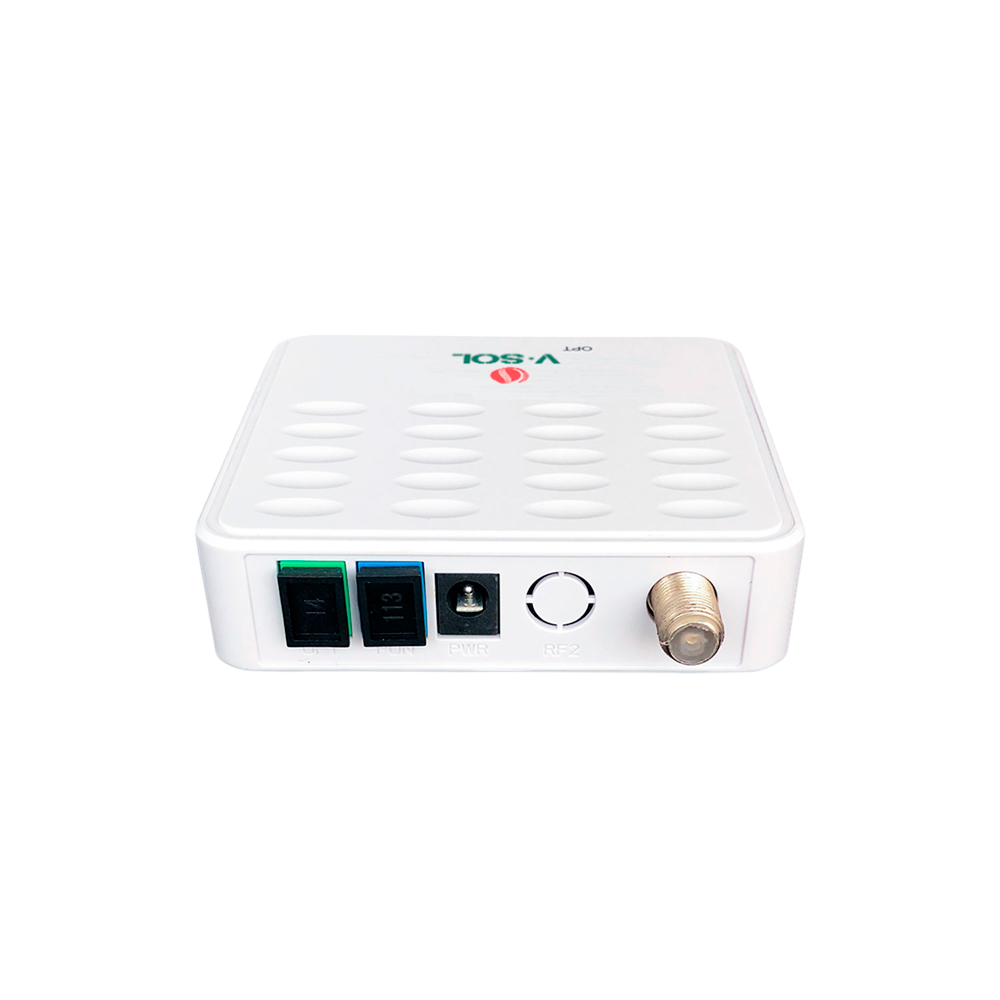

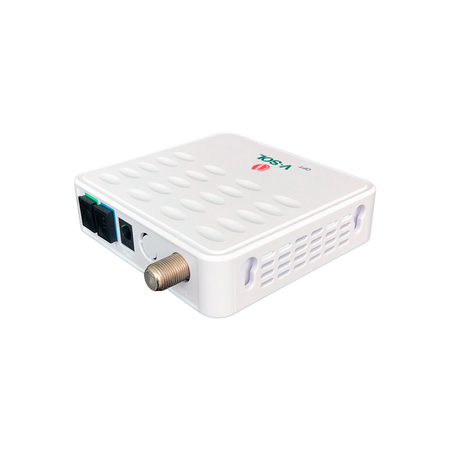

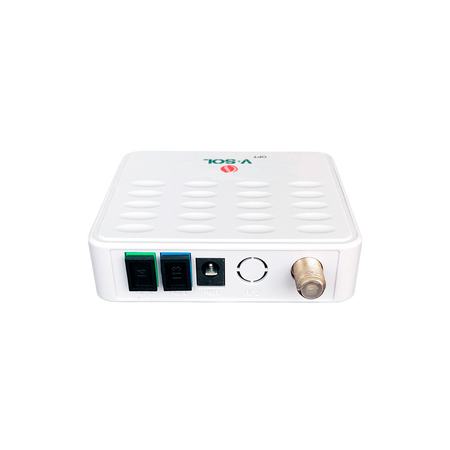

V-SOL CATV optical receiver with WDM
Regular price
€26,51
Final price
Regular price
-9%
€29,00
Sale price
€26,51
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Vsol CATV optical receiver with WDM - Allows combining TV (1550 nm) and PON data (1310/1490/1577 nm) - 1 GHz operating bandwidth - Optical input range from +2 to -20 dBm - 1 RF output (71 dBuV) - Low power consumption
📋 SPECIFICATIONS:
• Brand: V-SOL
• CATV optical receiver with integrated WDM: Allows combining TV (1550 nm) and PON data (1310/1490/1577 nm) on a single fiber
• Optical input range: +2 to -20 dBm
• Optical connection type: SC/APC in; SC/APC out
• RF bandwidth: 47–1003 MHz (≈1 GHz)
• RF output: up to ~75 dBµV
• RF connection type: RG6 connector
• Power supply: DC12V/1A
• Operating temperature: -25°C - 65°C
• Dimensions: 90×85×25 mm
• Weight: 0.15 kg
📦 INCLUDED:
• Vsol CATV optical receiver with WDM• User manual
| CATV optical receiver with integrated WDM | Allows combining TV (1550 nm) and PON data (1310/1490/1577 nm) on a single fiber |
|---|---|
| Optical input range | +2 to -20 dBm |
| Optical connection type | SC/APC in, SC/APC out |
| RF bandwidth | 47–1003 MHz (≈1 GHz) |
| RF output | up to ~75 dBµV |
| RF connection type | RG6 connector |
| Power supply | DC12V/1A |
| Operating temperature | -25°C - 65°C |
| Dimensions | 90×85×25 mm |
| Weight | 0.15 kg |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
