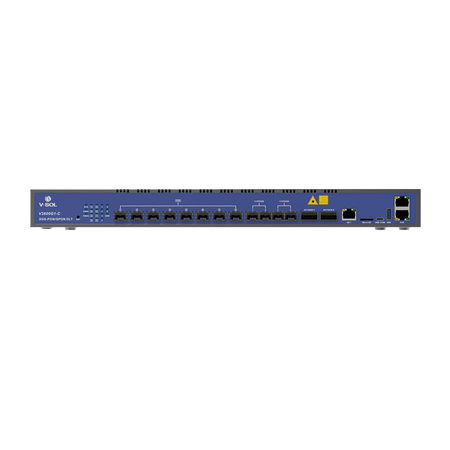

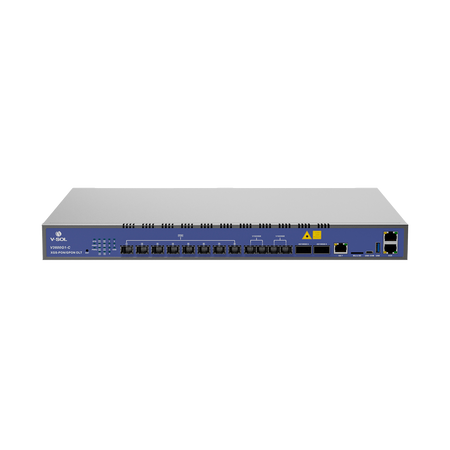

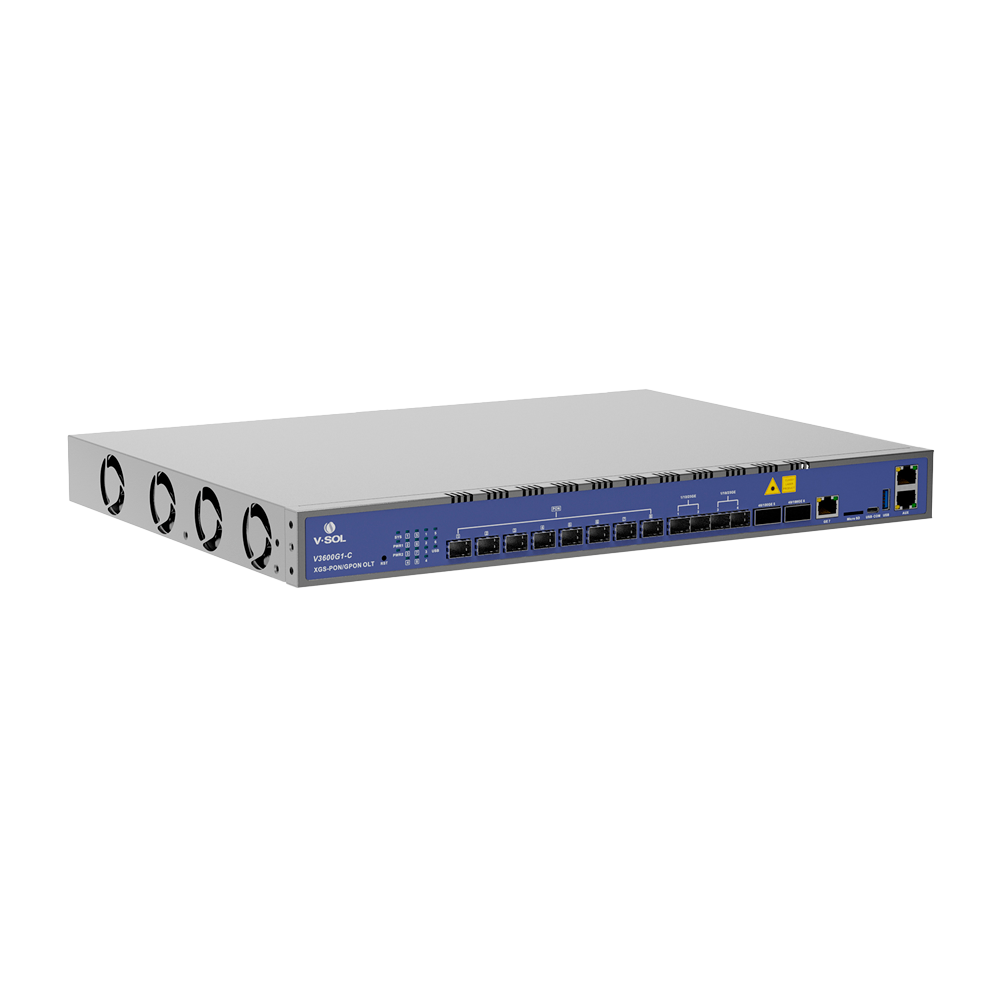

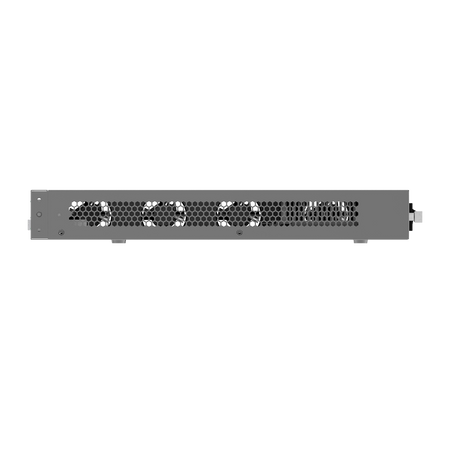

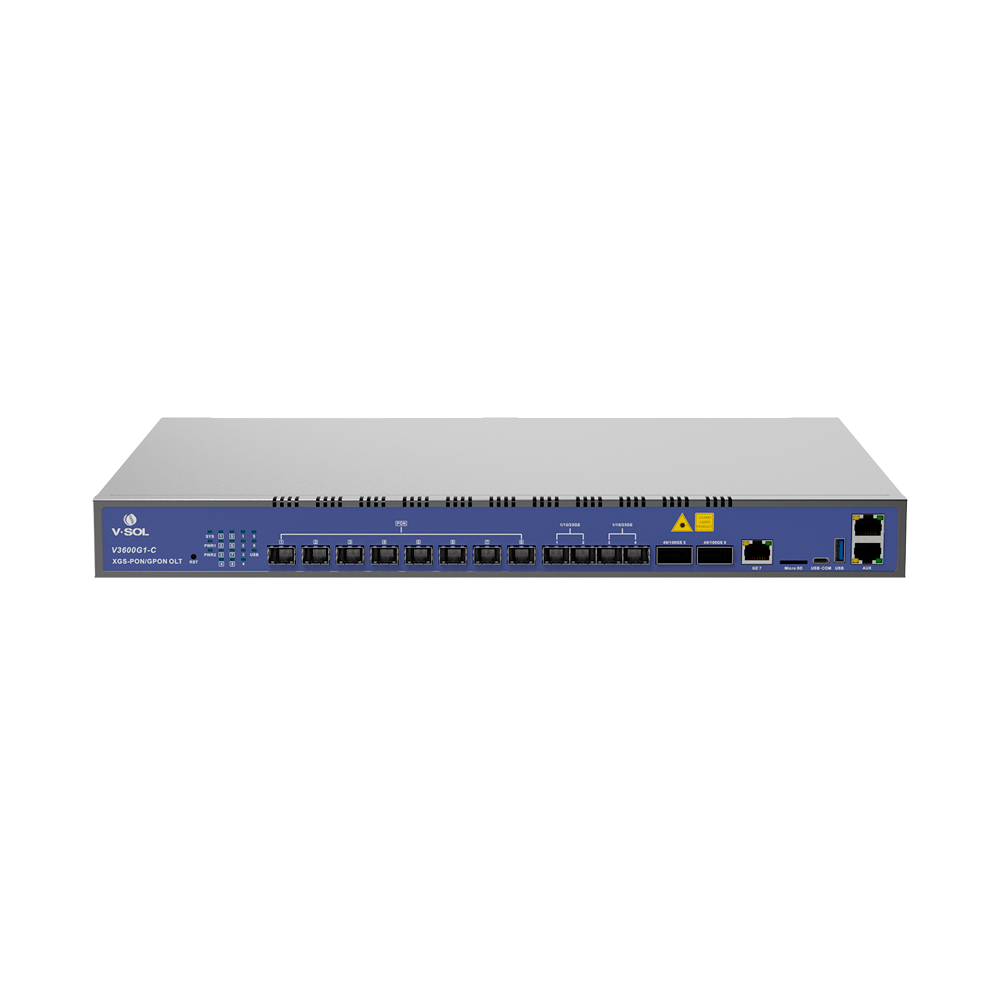

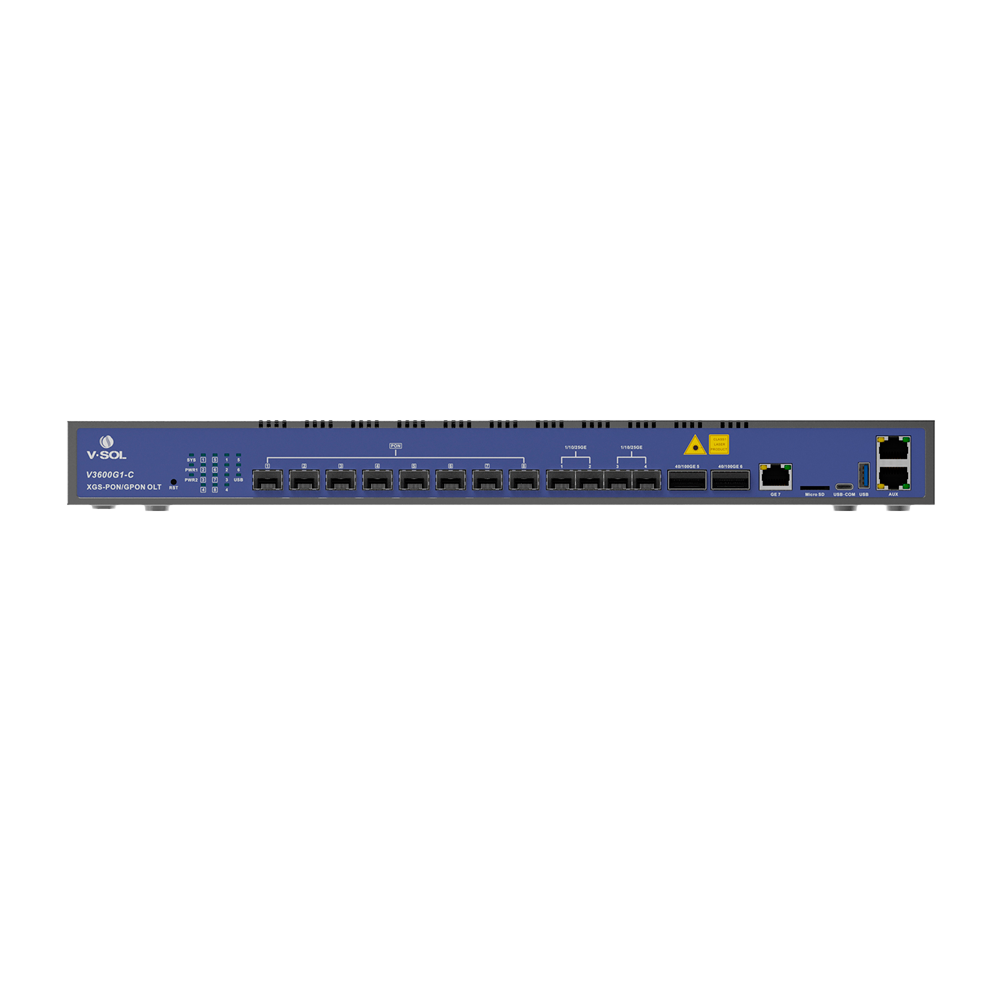

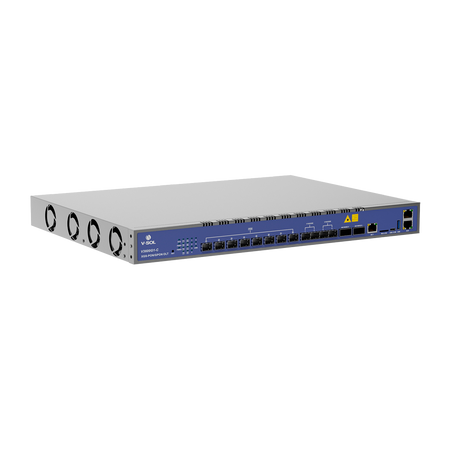

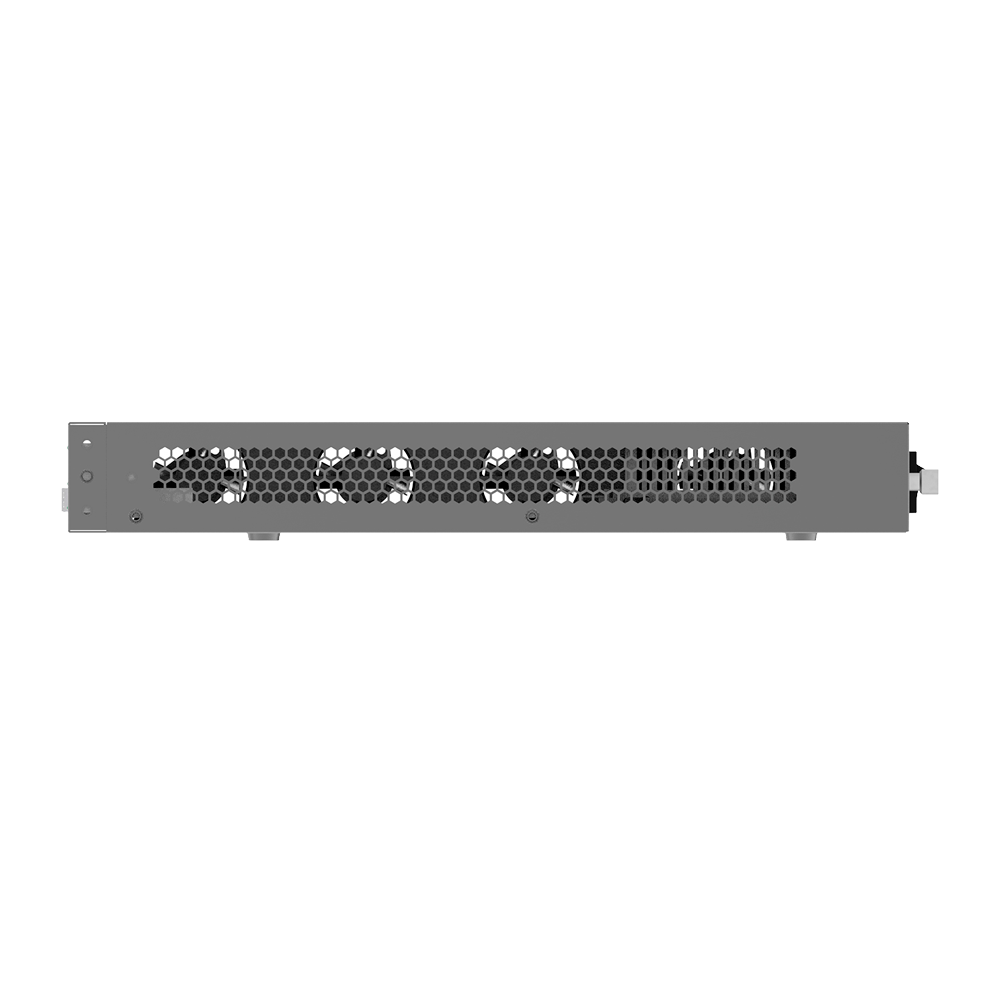

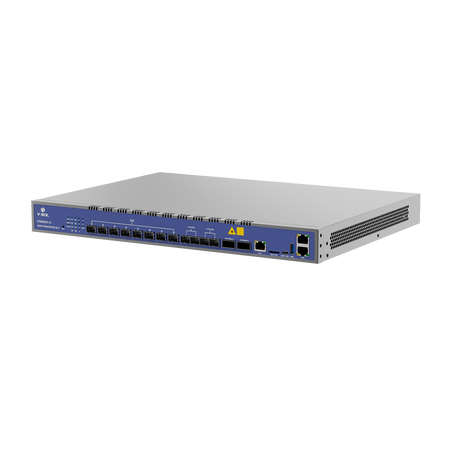

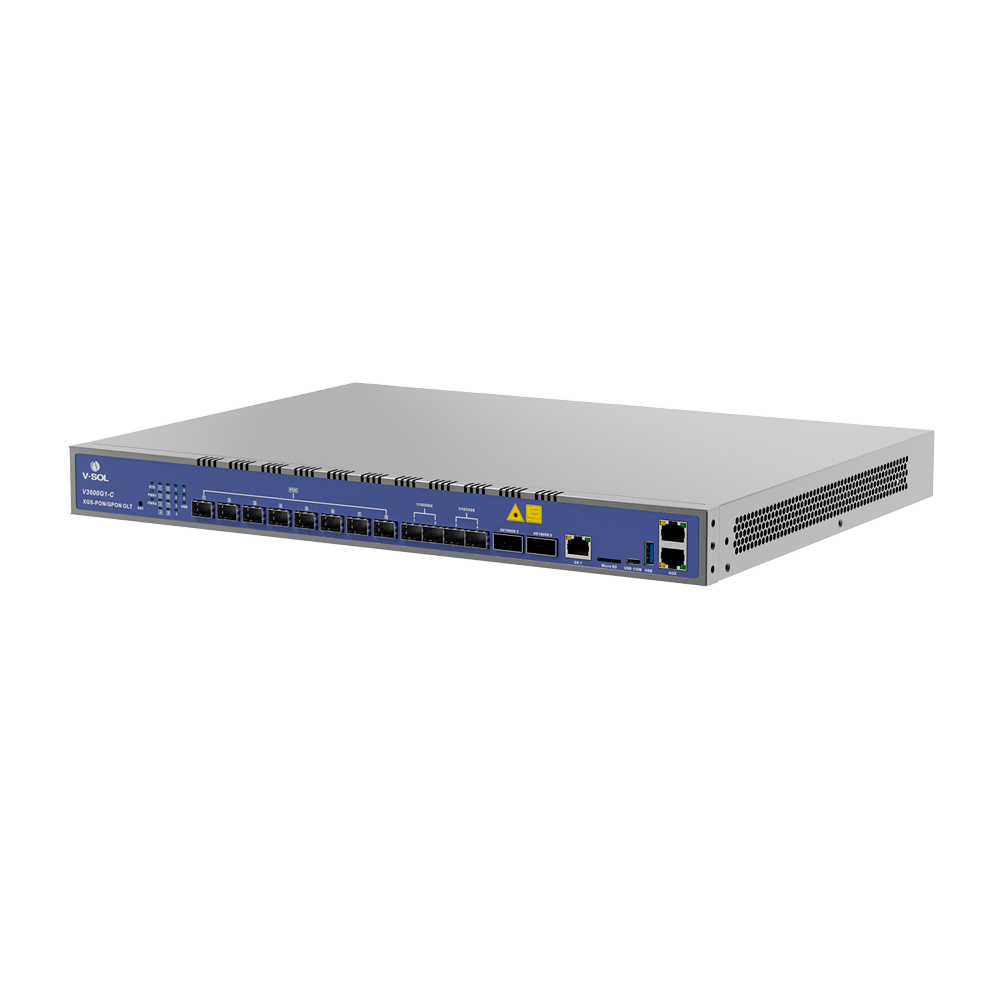

V-SOL 8x GPON XG-PON/XGS-PON OLT
Regular price
€8.762,04
Final price
Regular price
-9%
€9.600,00
Sale price
€8.762,04
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
V-SOL 8x GPON XG-PON/XGS-PON OLT - 1x GE(RJ45) + 4*25GE(SFP28)+2x 100GE(QSFP28) - Up to 256 ONTs per device - Transmission distance up to 20 km - Layer 3 Routing ( NAT, DMZ, ACL, PPPOE, DHCP ) - Layer 2 Switching ( VLAN, MULTICAST, STP )
📋 SPECIFICATIONS:
• Brand: V-SOL
• Case: 1U Rack
• Interfaces: 8x GPON XG-PON/XGS-PON ( GPON 1.25Gbps/2.5Gbps, XG-PON 2.5Gbps/9.95Gbps, XGS-PON 9.95Gbps/9.95Gbps ); 1x GE(RJ45) + 4*25GE(SFP28)+2x 100GE(QSFP28); 1 USB-COM port ( Type C ); 1 USB3.0 port; 1 Auxiliary port; 1 Console port; 1 MicroSD slot
• GPON: GPON port speed: Upload/Download ~ 1.25Gbps/2.5Gbps; XG-PON port speed: Upload/Download ~ 2.5Gbps/9.95Gbps; XGS-PON port speed: Upload/Download ~ 9.95Gbps/9.95Gbps; Fiber type: Single-mode 9/125μm; Connector: SC/UPC, TX: 7.5±0.5dBm, Sen: -32dBm; GPON wavelength: TX 1490nm, RX 1310nm; XG-PON, XGS-PON wavelength: TX 1577nm, RX 1270nm; Wavelength split ratio: 1/256 (up to 256 ONTs, 128 ONTs recommended); maximum transmission distance: 20 KM
• Backplane bandwidth: 1960 Gbps
• Forwarding rate: 566.928 Mbps
• Management Protocols: WEB/Telnet/CLI/SNMP; Port status configuration monitoring and management; ONT online configuration and management; User management; Alarm management
• Layer 2 Switching: Mac address table ( up to 16000 ); Supports Vlan (up to 4096); Port-based storm control; Supports 802.1D and 802.1W ( STP ); Port isolation; Port-based bandwidth limitation; IEEE802.x Flow control; Port monitoring and statistics
• Multicast: IGMP snooping; 1000 L2 Multicast IP groups; 1000 L3 Multicast IP groups
• DHCP: DHCP server, DHCP relay, DHCP snooping; DHCP option82; DHCPv6 server, DHCPv6 relay
• Layer 3 Routing: Dynamic and static ARP table; WAN configuration (DHCP/PPPoE/Static); Static routing, NAT, DMZ; QoS based on DSCP, MAC, IP, Protocol, etc.; Access Control List (ACL)
• GPON functions: Compliant with ITU-T984.x standard (standard for GPON networks); Transmission distance up to 20 km; Data encryption, multicast, VLAN per port, separation, etc.; Automatic ONT detection, link detection, and remote software upgrade; VLAN splitting and user separation to prevent Broadcast storms; Power-off alarm function for easy connection troubleshooting; Broadcast storm resistance function
• Power supply: AC 100 V - 240 V
• Operating temperature: -20°C - 60°C
• Dimensions: 442mm x 200mm x 43.6mm
• Weight: 4.8 kg
📦 INCLUDED:
• V-SOL 8x GPON XG-PON/XGS-PON OLT • AC power cable • User manual • Rack-mount brackets
| Chassis | 1U Rack |
|---|---|
| Interfaces | 8x GPON XG-PON/XGS-PON ( GPON 1.25Gbps/2.5Gbps, XG-PON 2.5Gbps/9.95Gbps, XGS-PON 9.95Gbps/9.95Gbps ) 1x GE(RJ45) + 4*25GE(SFP28)+2x 100GE(QSFP28) 1 USB-COM Port ( Type C ) 1 USB3.0 Port 1 Auxiliary Port 1 Console Port 1 MicroSD Port |
| GPON | GPON port speed: Upload/Download ~ 1.25Gbps/2.5Gbps XG-PON port speed: Upload/Download ~ 2.5Gbps/9.95Gbps XGS-PON port speed: Upload/Download ~ 9.95Gbps/9.95Gbps Fiber Type: Single-mode 9/125μm Connector: SC/UPC, TX: 7.5±0.5dBm, Sen: -32dBm GPON Wavelength: TX 1490nm, RX 1310nm XG-PON, XGS-PON Wavelength: TX 1577nm, RX 1270nm Wavelength splitting ratio: 1/256 (up to 256 ONTs, 128 ONTs recommended) Maximum transmission distance: 20 KM |
| Backplane bandwidth | 1960 Gbps |
| Forwarding speed | 566.928 Mbps |
| Management Protocols | WEB/Telnet/CLI/SNMP Port status configuration monitoring and management Online ONT configuration and management User management Alarm management |
| Layer 2 Switching | MAC address table (up to 16000) Supports Vlan (up to 4096) Port-based storm control Supports 802.1D and 802.1W (STP) Port isolation Bandwidth limitation per port IEEE802.x Flow control Port monitoring and statistics |
| Multicast | IGMP snooping 1000 IP Multicast groups L2 1000 IP Multicast groups L3 |
| DHCP | DHCP server, DHCP relay, DHCP snooping DHCP option82 DHCPv6 server, DHCPv6 relay |
| Layer 3 Routing | Dynamic and static ARP table WAN configuration (DHCP/PPPoE/Static) Static routing, NAT, DMZ QoS based on DSCP, MAC, IP, Protocol, etc. Access Control List (ACL) |
| GPON Functions | Compliant with ITU-T984.x standard (standard for GPON networks) Transmission distance up to 20 km Data encryption, multicast, VLAN per port, separation, etc. ONT auto-discovery, link detection, and remote software upgrade VLAN subdivision and user separation to prevent Broadcast storms Power-off alarm function for easy connection troubleshooting Broadcast storm resistance function |
| Power supply | AC 100 V - 240 V |
| Operating temperature | -20°C - 60°C |
| Dimensions | 442mm x 200mm x 43.6mm |
| Weight | 4.8 kg |
