V-SOL ONT XPON 1x PON 1x GE RJ45 LAN 1x 10GE RJ45 LAN
V-SOL ONT XPON 1x PON 1x GE RJ45 LAN 1x 10GE RJ45 LAN
Regular price
€92,23
Final price
Regular price
-5%
€97,00
Sale price
€92,23
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

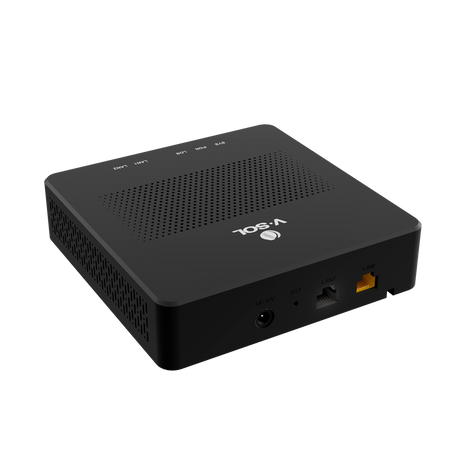

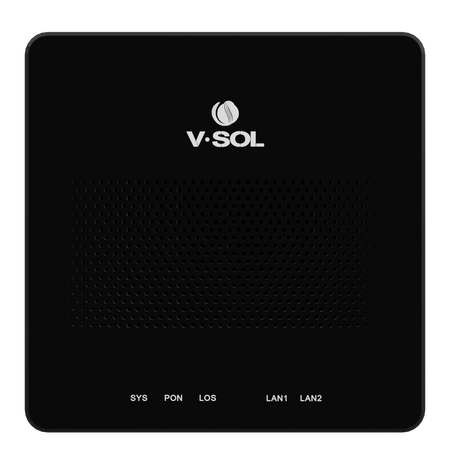

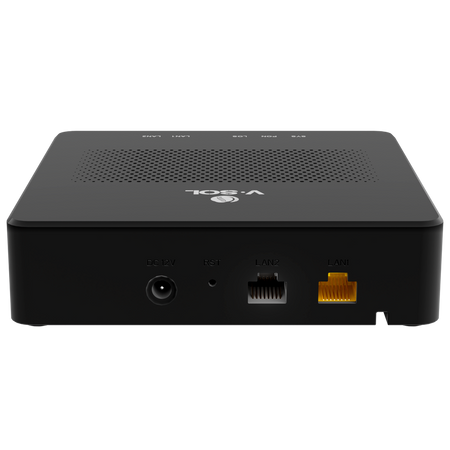

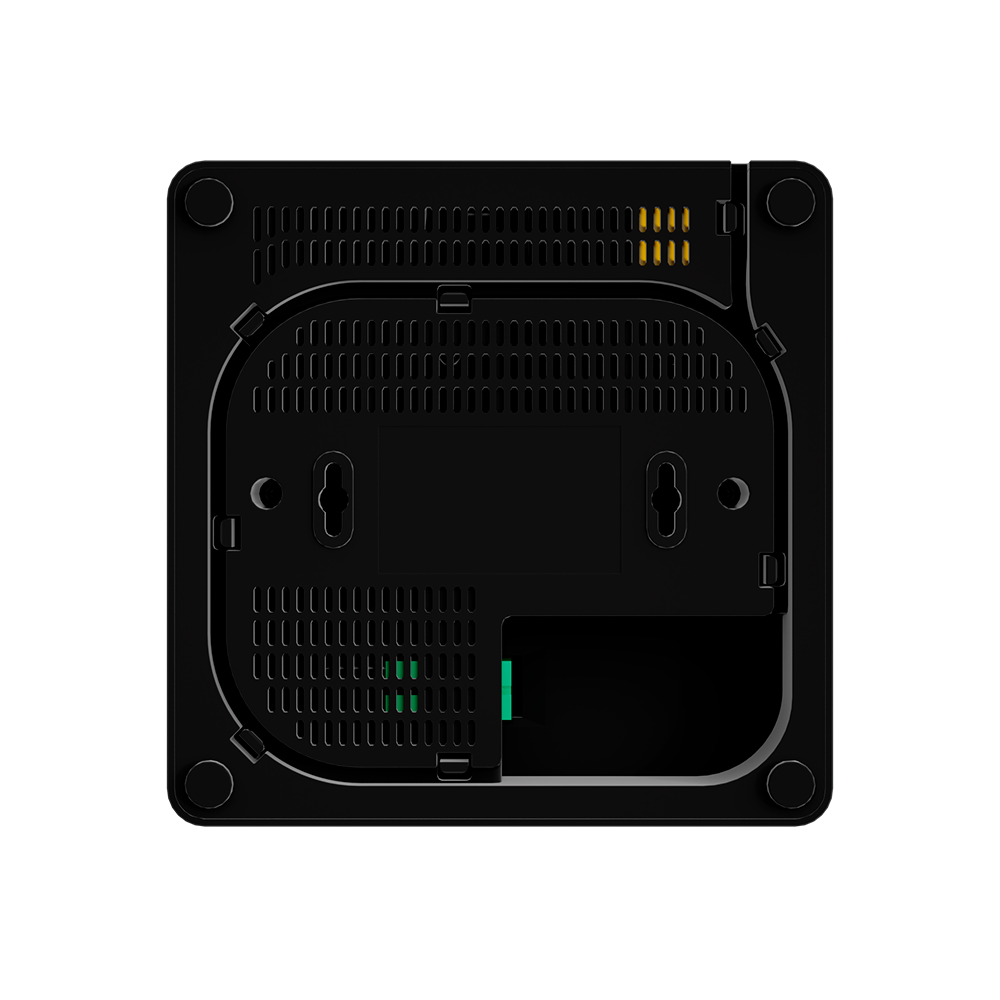

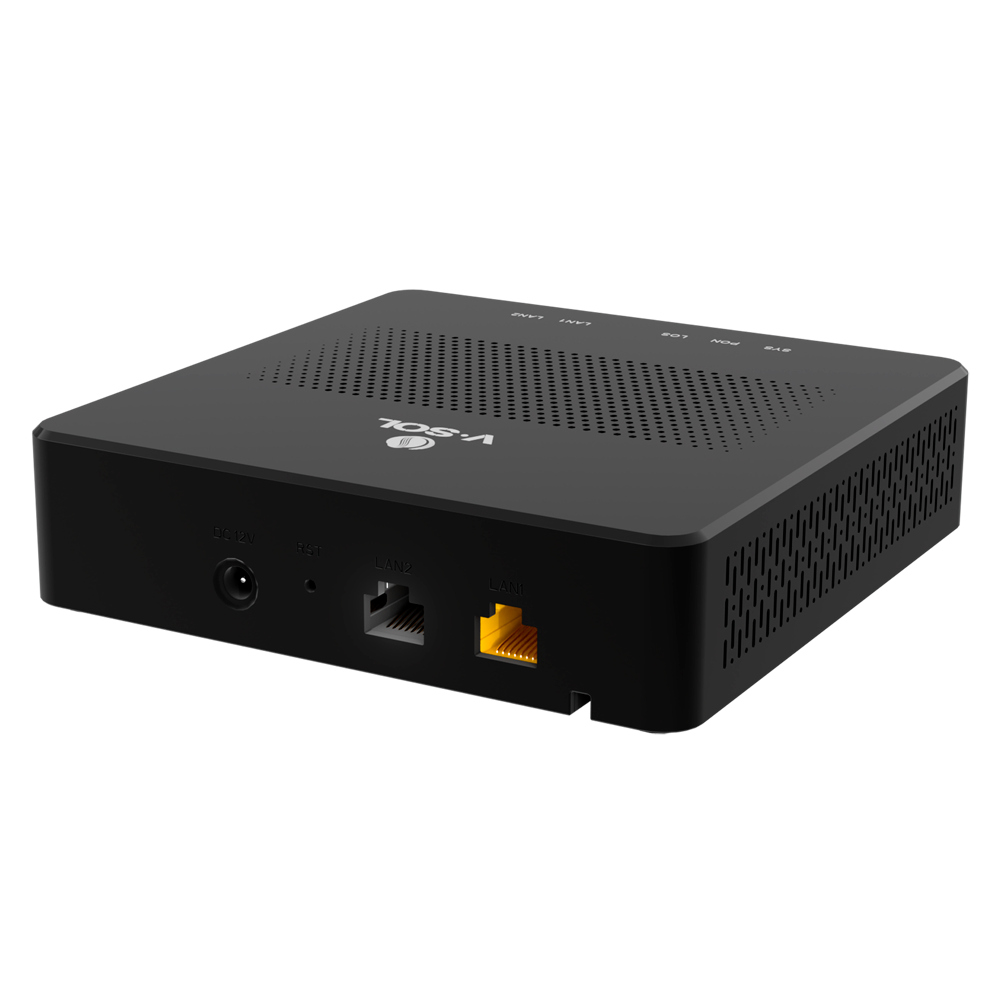

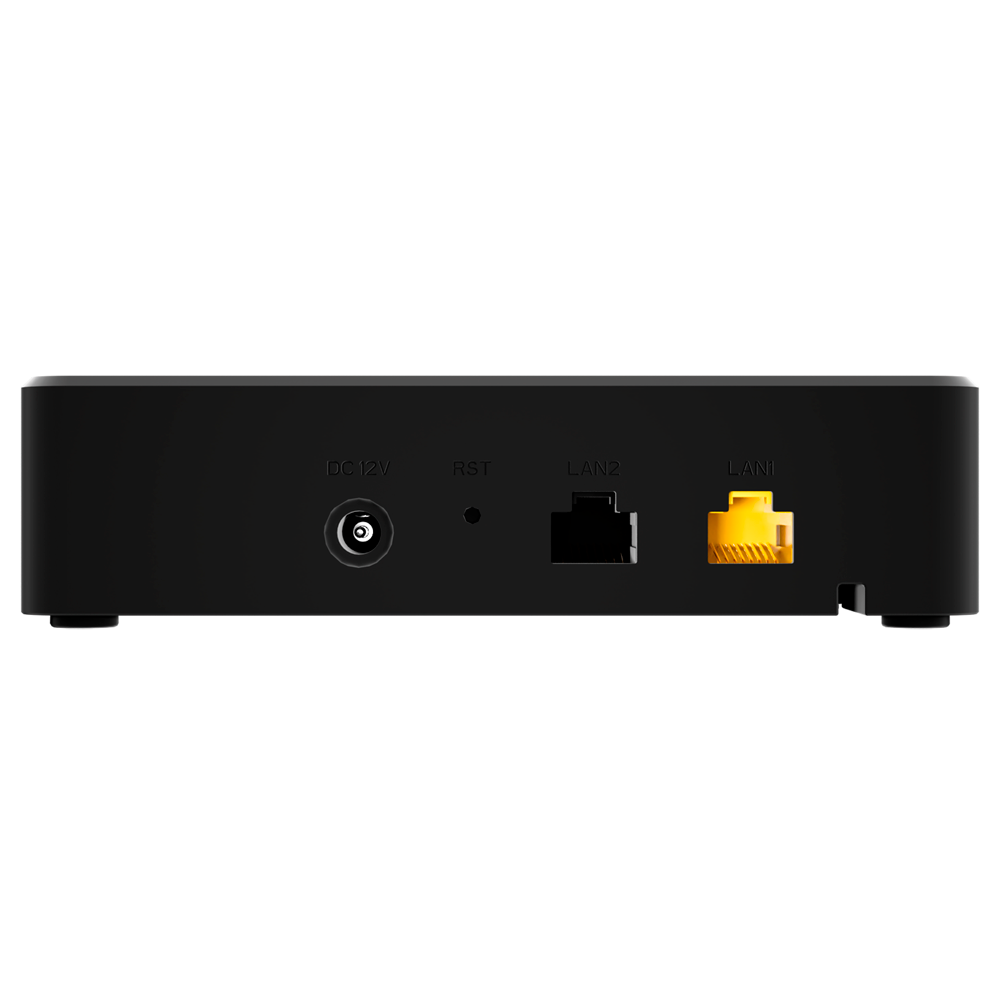

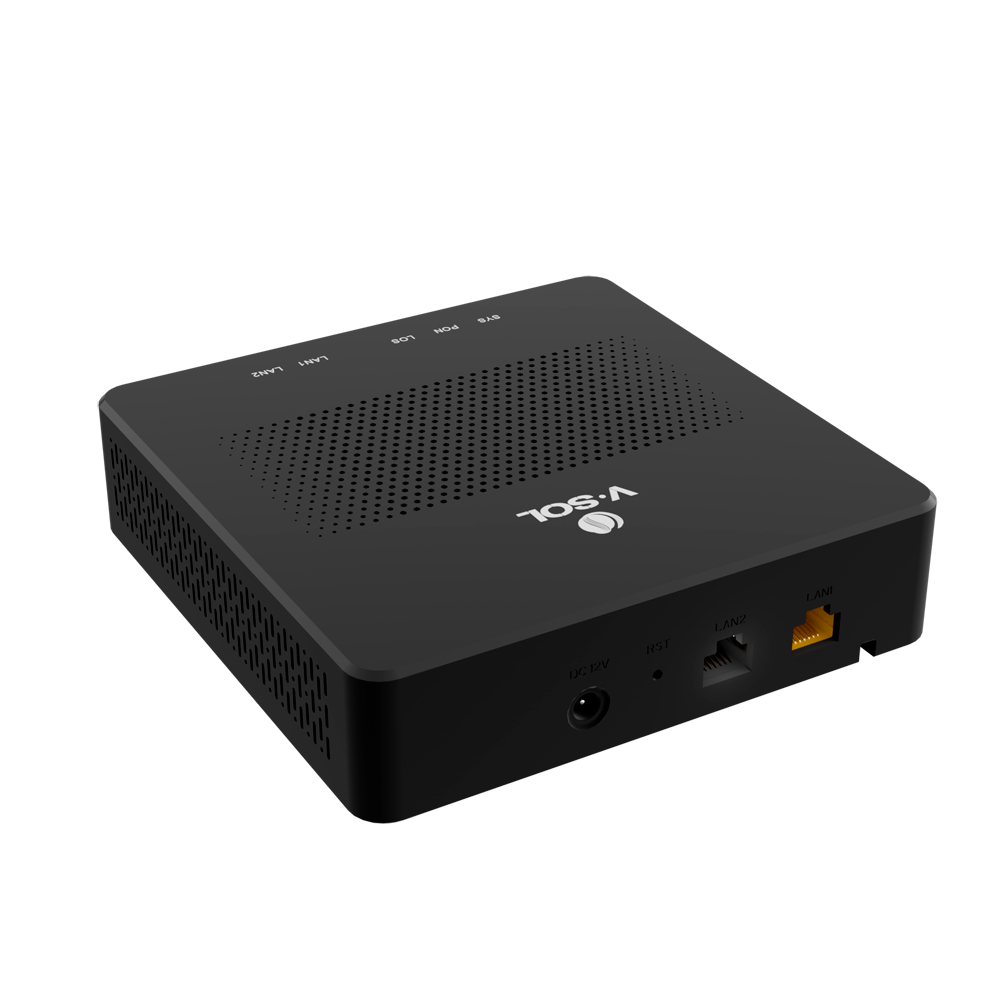

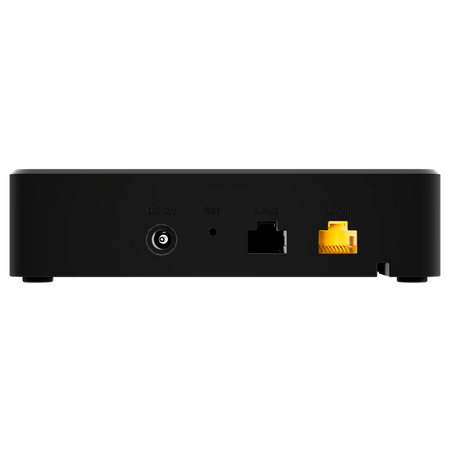

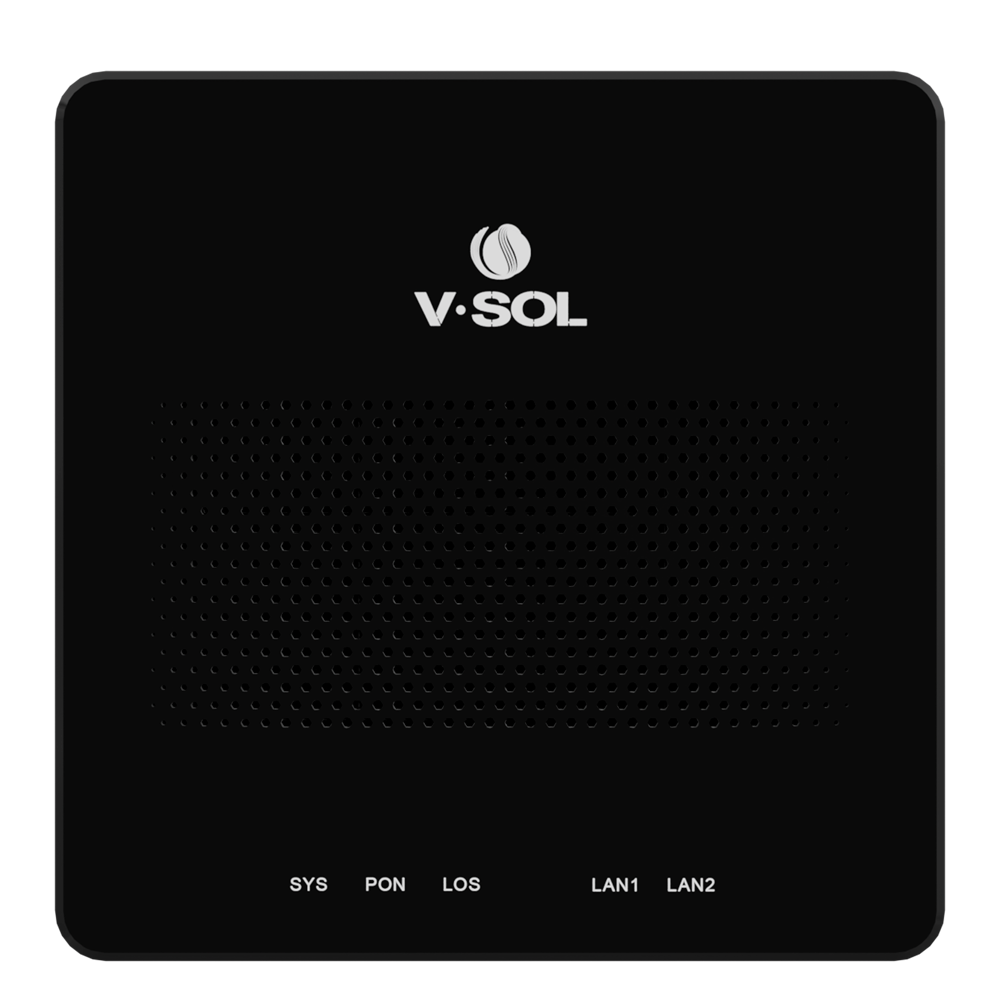

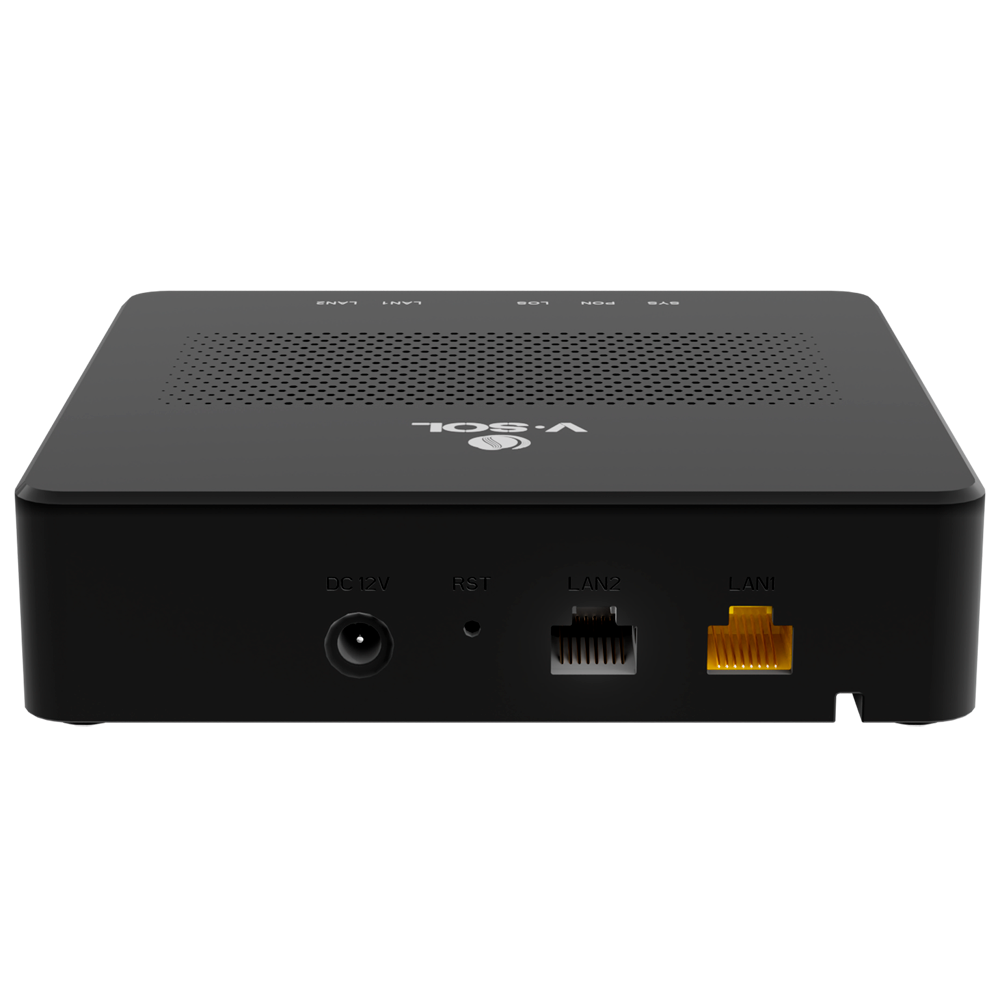

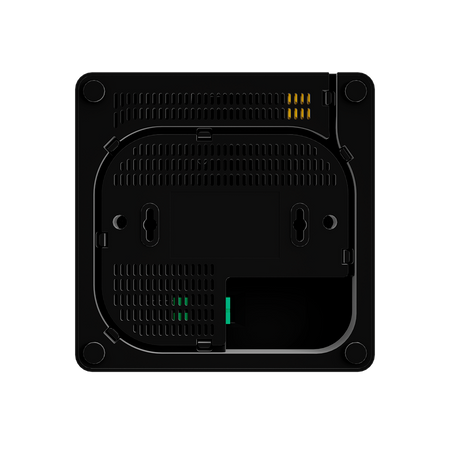

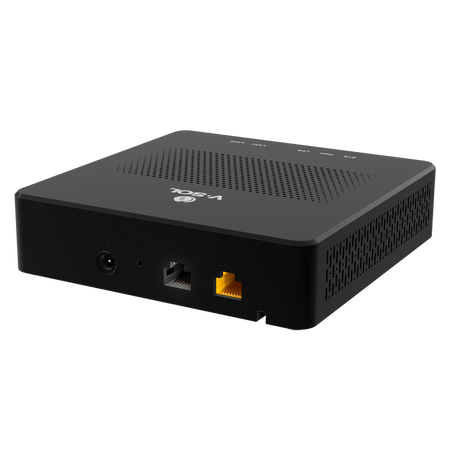

V-SOL XPON ONT - 1X PON, 1x GE RJ45 LAN, 1x 10GE RJ45 LAN - Ideal for home and business FTTH
📋 SPECIFICATIONS:
• Brand: V-SOL
• Interface: 1X PON ( 10GE ) 1x GE RJ45 LAN 1x 10GE RJ45 LAN
• PON: ITU-T G.987(XG-PON); • ITU-T G.9807.1 (XGS-PON); Single-mode SC, SC/APC connector; Transmit optical power: 6dBm(XGS-PON), 5dBm(XG-PON); Receiver sensitivity: -28 dBm; Overload optical power: -8 dBm (GPON); Transmission distance: 20 km; Wavelength: TX 1577 nm, RX 1270 nm
• Management Protocols: OAM/OMCI/Telnet/Web/TR069
• Internet Connection: Bridge mode compatible
• Multicast: IGMP v1/v2/v3; Max number of multicast VLANs: 8; Max number of multicast groups: 64
• QoS: SP, WRR compatible
• Security: Basic firewall functions; Supports IP and port filtering functions
• Color: White
• Dimensions: 140mm x 140mm x 36.5mm
• Weight: 316g
• Operating temp.: 0º C ~ +55º C
• Power Supply: DC 12V 1A (adapter included)
📦 INCLUDED:
• XPON ONT• User manual• AC/DC adapter• UTP cable
| Interface | 1x PON (10GE), 1x RJ45 GE LAN, 1x RJ45 10GE LAN |
|---|---|
| PON | ITU-T G.987 (XG-PON) • ITU-T G.9807.1 (XGS-PON), Single-mode SC, SC/APC connector, Transmission optical power: 6dBm (XGS-PON), 5dBm (XG-PON), Receive sensitivity: -28 dBm, Overload optical power: -8 dBm (GPON), Transmission distance: 20 km, Wavelength: TX 1577 nm, RX 1270 nm |
| Management Protocols | OAM/OMCI/Telnet/Web/TR069 |
| Internet Connection | Bridge mode compatible |
| Multicast | IGMP v1/v2/v3, Maximum number of multicast VLANs: 8, Maximum number of multicast groups: 64 |
| QoS | SP, WRR compatible |
| Security | Basic firewall functions, supports IP and port address filtering functions |
| Color | White |
| Dimensions | 140mm x 140mm x 36.5mm |
| Weight | 316g |
| Operating Temp. | 0º C ~ +55º C |
| Power Supply | DC 12V 1A (adapter included) |
