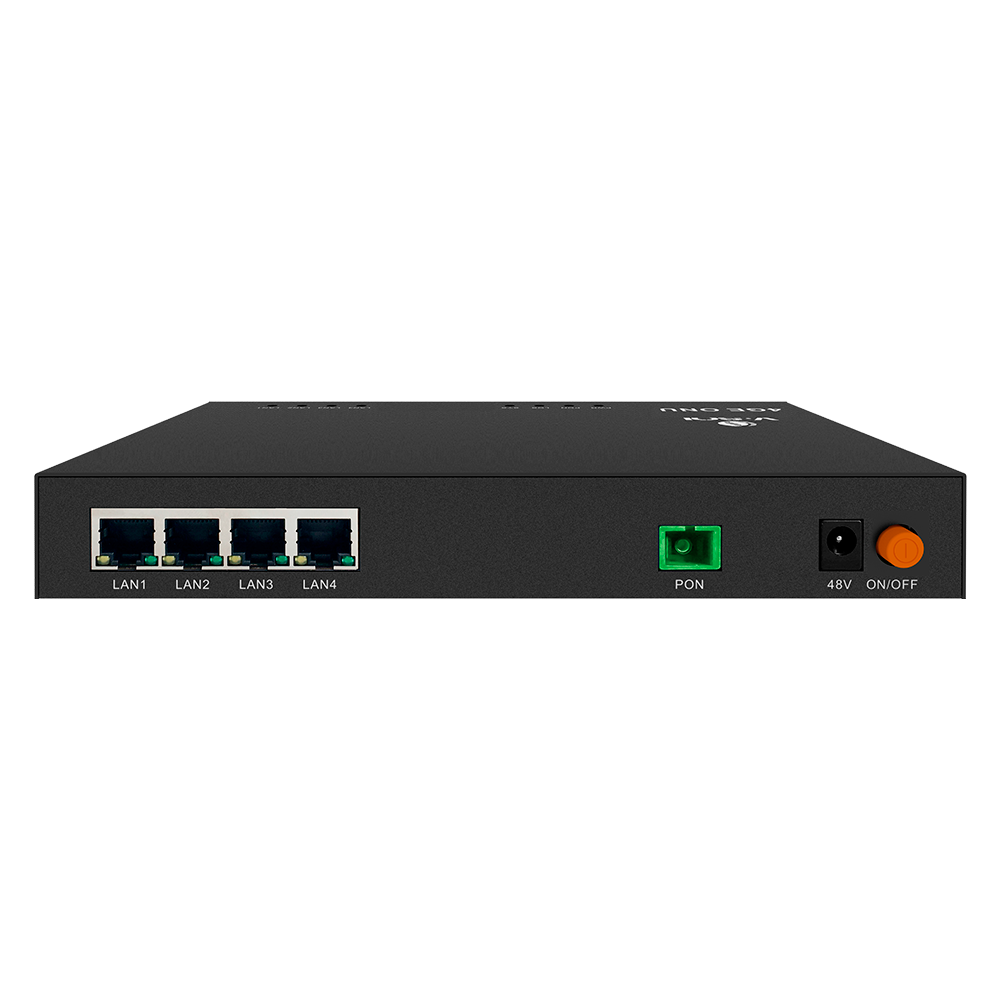

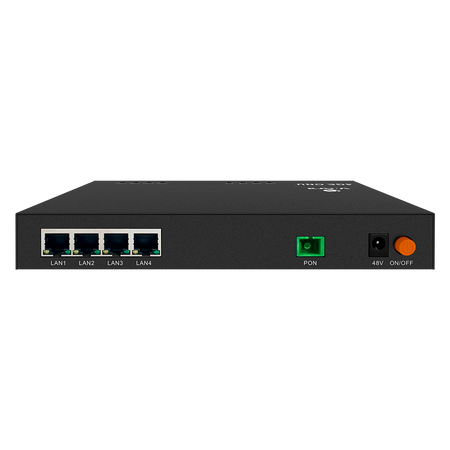

V-SOL 1*XPON+4GE(PoE+) ONU
Regular price
€80,70
Final price
Regular price
€81,00
Sale price
€80,70
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
V-SOL - 1*XPON+4GE(PoE+) ONU - 4x 10/100/1000Mbps PoE+/PoE RJ45 ports, IEEE 802.at/af - Layer 2 features - Ideal for FTTx and video surveillance
📋 SPECIFICATIONS:
• Brand: VSOL
• Interface: 1*XPON + 4x 10/100/1000Mbps RJ45 ( PoE+)
• PON: XPON port (EPON PX20+ and GPON Class B+); Single-mode SC, SC/APC connector; Optical transmission power: 0 to +4 dBm; Receiver sensitivity: -27 dBm; Overload optical power: -3 dBm (EPON) or -8 dBm (GPON); Transmission distance: 20 km; Wavelength: TX 1310 nm, RX 1490 nm
• PoE: 4x PoE+/PoE, IEEE 802.at/af; Up to 30W per port (60W for the whole device)
• Layer 2 features (switching): Port rate limiting; Loop detection; Flow control; Storm control; VLAN (up to 8 VLANs)
• Multicast: IGMPv1/v2/Snooping; Up to 8 multicast VLANs; Up to 64 multicast groups
• QoS: Supports 4 QoS queues (VoIP, IPTV, Internet...); Compatible with SP, WRR, 802.1P
• Management Protocols: OAM/OMCI/Telnet/Web/TR069/ CLI
• Dimensions: 205mm x 125mm x 28mm
• Operating temp.: 0ºC ~ +55ºC
• Power supply: DC 54V 1.11A (adapter included)
| Interface | 1*XPON + 4x RJ45 10/100/1000Mbps (POE+) |
|---|---|
| PON | XPON Port (EPON PX20+ and GPON Class B+) Single-mode SC, SC/APC connector Transmitting optical power: 0 to +4 dBm Receiving sensitivity: -27 dBm Overload optical power: -3 dBm (EPON) or -8 dBm (GPON) Transmission distance: 20 km Wavelength: TX 1310 nm, RX 1490 nm |
| PoE | 4x PoE+/PoE, IEEE 802.3at/af Up to 30 W per port (60W for the whole device) |
| Layer 2 functions (switching) | Port rate limiting Loop detection Flow control Storm control VLAN (up to 8 vlans) |
| Multicast | IGMPv1/v2/Snooping Up to 8 multicast VLANs Up to 64 multicast groups |
| QoS | Supports 4 QoS queues (VoIP, IPTV, Internet...) Compatible with SP, WRR, 802.1P |
| Management Protocols | OAM/OMCI/Telnet/Web/TR069/CLI |
| Dimensions | 205mm x 125mm x 28mm |
| Operating temp. | 0º C ~ +55º C |
| Power supply | DC 54V 1.11A (adapter included) |
