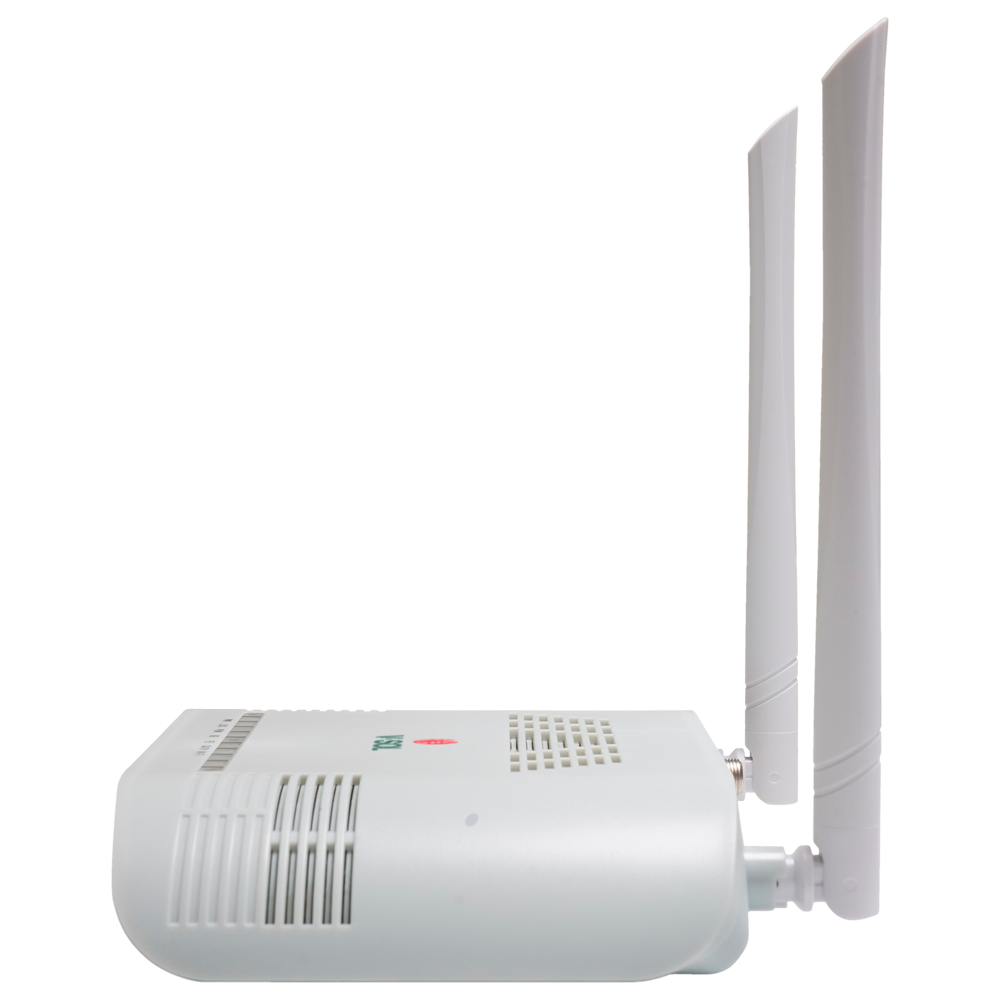

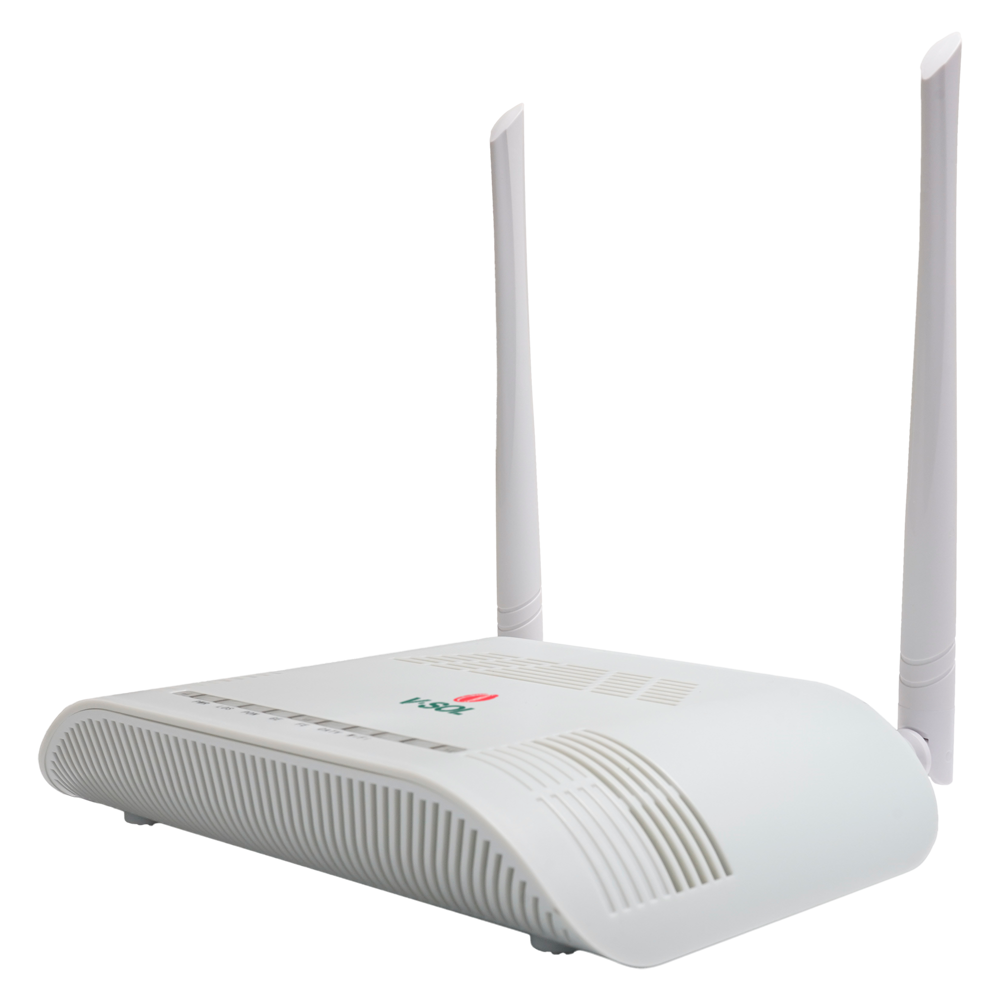

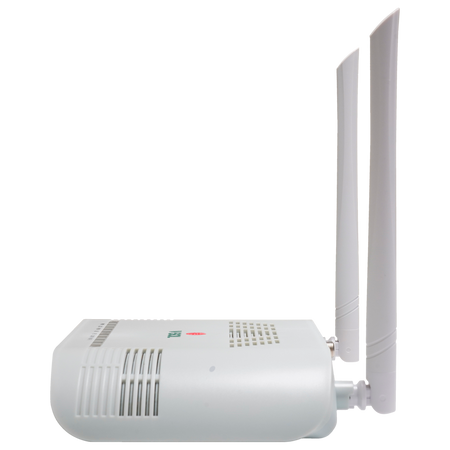

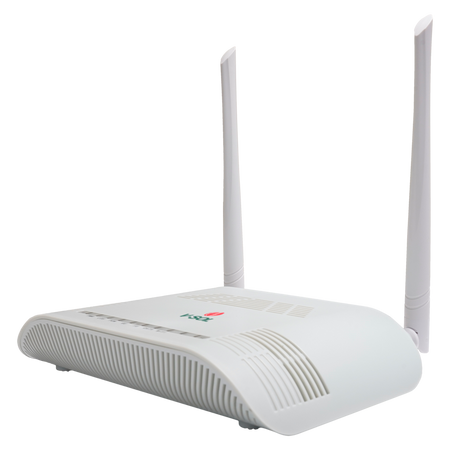

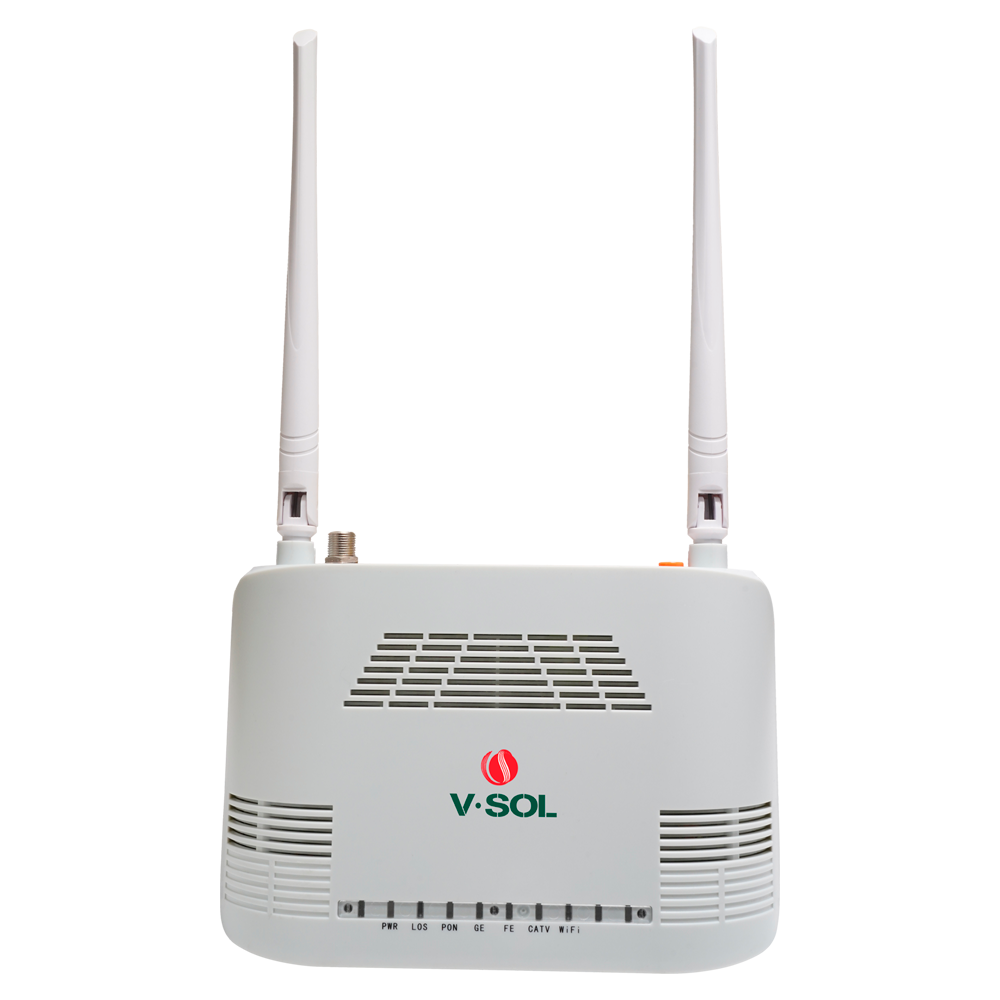

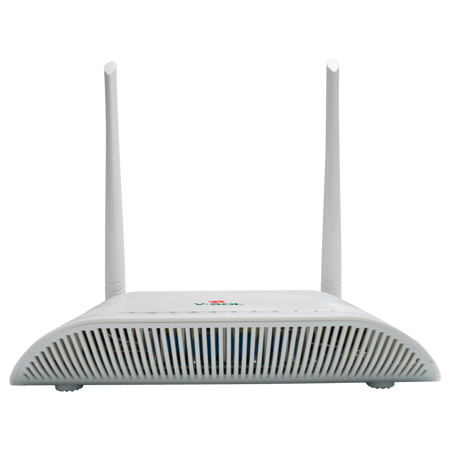

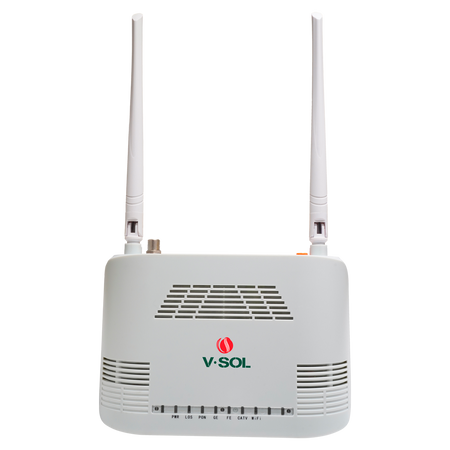

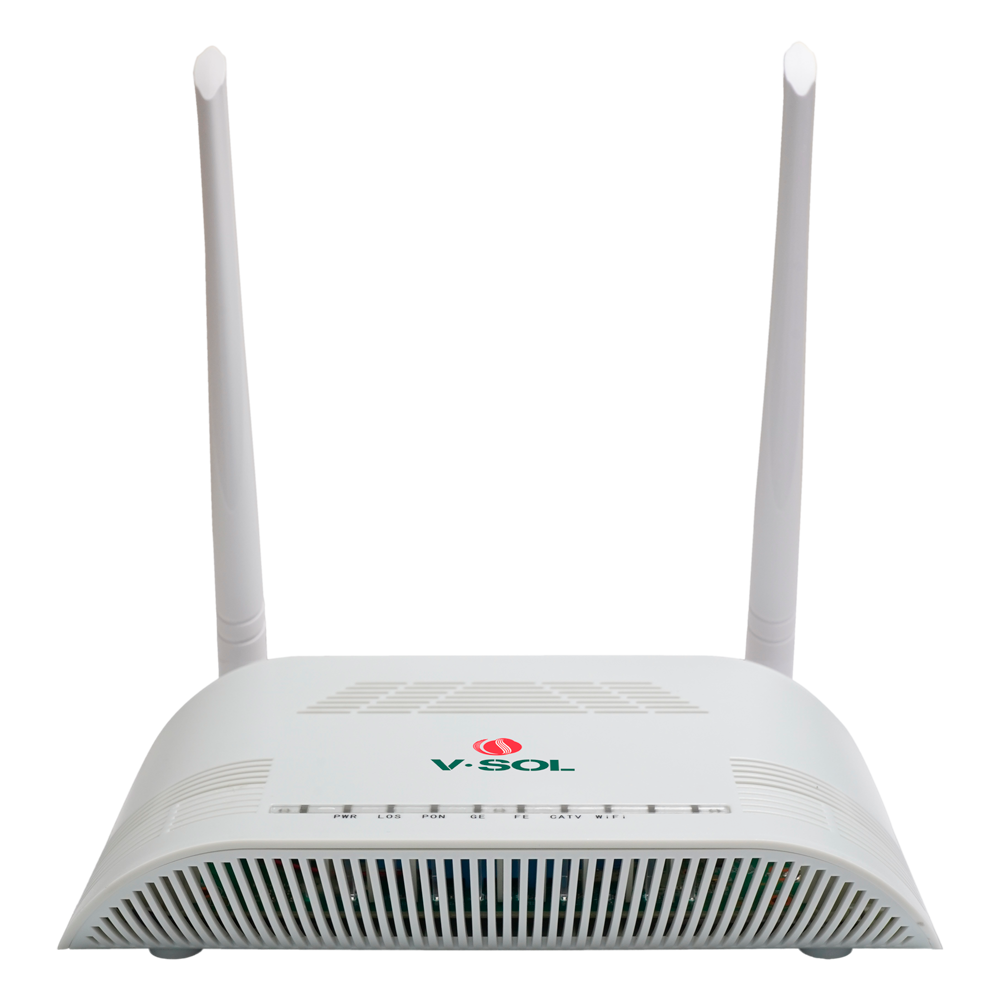

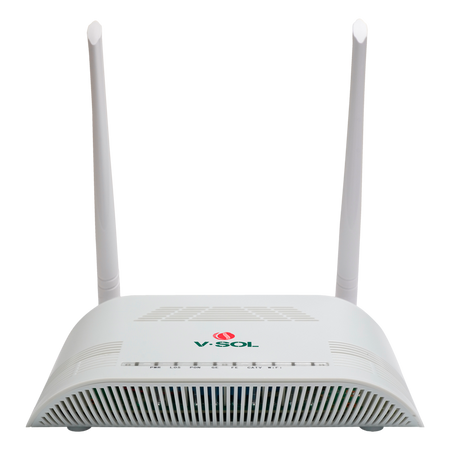

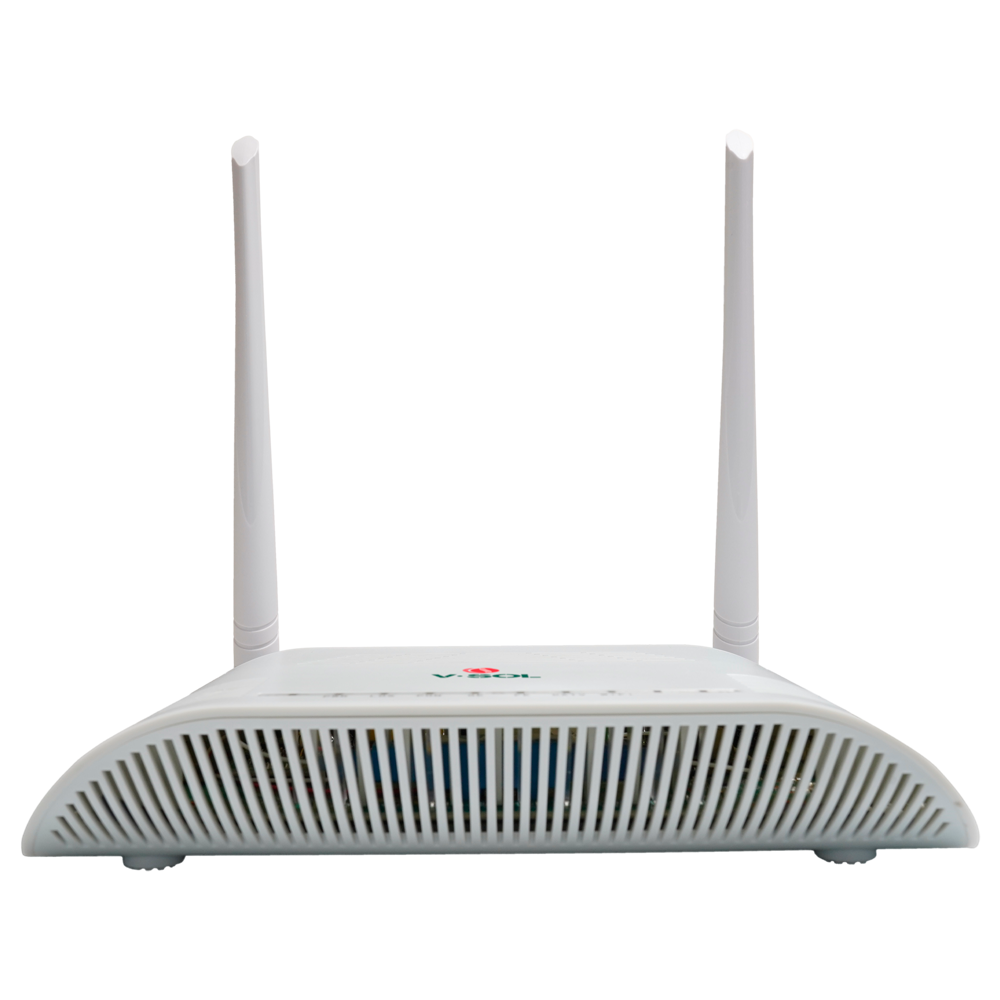

V-SOL Wi-Fi 4 CATV ONT Router
Regular price
€44,74
Final price
Regular price
-7%
€48,00
Sale price
€44,74
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
V-SOL Router ONT Wi-Fi 4 CATV - 1x PON 1x FE RJ45 LAN 1x GE RJ45 LAN 1x CATV - 802.11ac 2x2 dual band 2.4 and 5GHz - Ideal for home and business FTTH
📋 SPECIFICATIONS:
• Brand: V-SOL

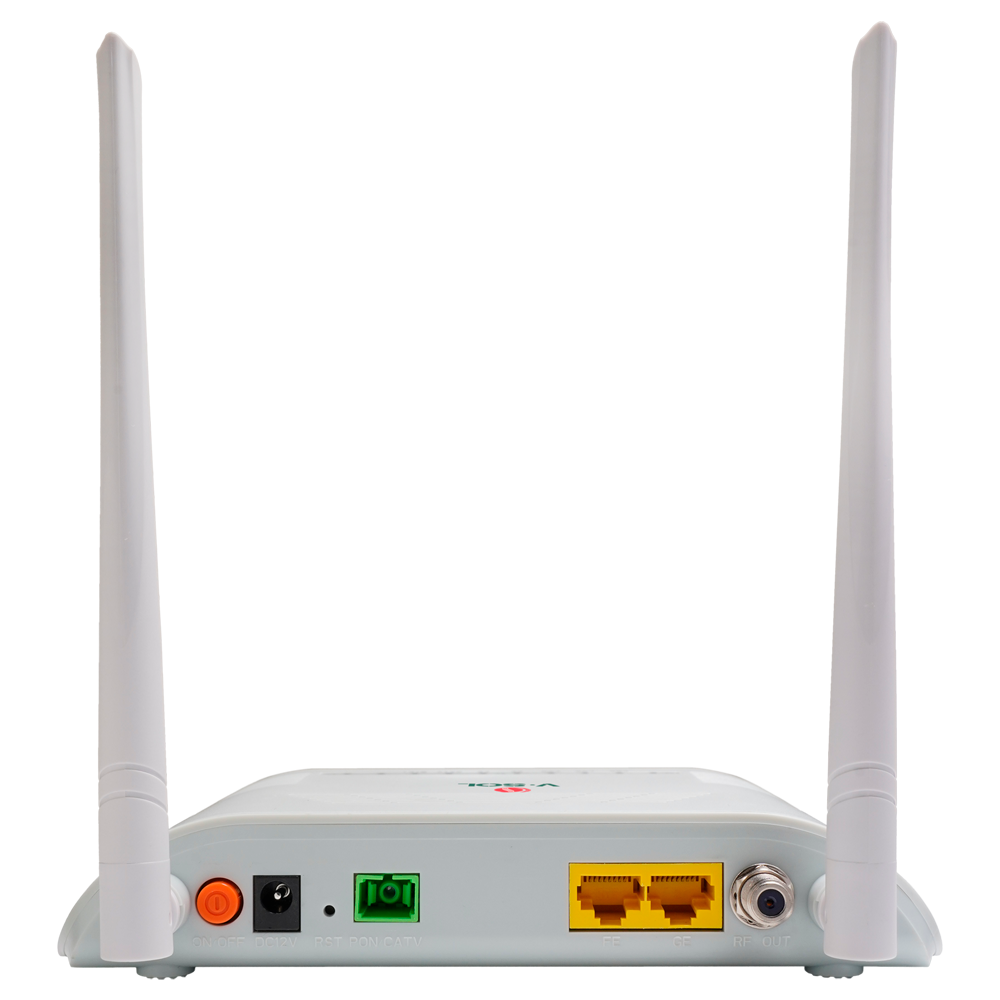

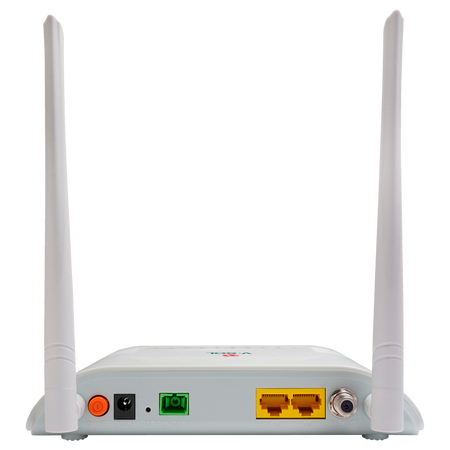

• Interface: 1x PON 1x FE RJ45 LAN 1x GE RJ45 LAN 1x CATV
• PON: XPON port (EPON PX20+ and GPON Class B+); Single-mode SC, SC/APC connector; Transmission optical power: 0 to +4 dBm; Receiving sensitivity: -27 dBm; Overload optical power: -3 dBm (EPON) or -8 dBm (GPON); Transmission distance: 20 km; Wavelength: TX 1310 nm, RX 1490 nm
• CATV: Optical receiving wavelength: 1550 ± 10 nm; Optical input range: +2 ～ -18 dBm; Optical return loss: ≥40 dB; RF frequency range: 47 ～ 1000 MHz; RF output impedance: 75 Ω; RF output level and AGC range:; ≥81 ± 2 dBuv at +1 ～ -10 dBm; ≥79 ± 2 dBuv at 0 ～ -11 dBm; ≥77 ± 2 dBuv at -1 ～ -12 dBm; ≥75 ± 2 dBuv at -2 ～ -13 dBm; ≥73 ± 2 dBuv at -3 ～ -14 dBm; ≥71 ± 2 dBuv at -4 ～ -15 dBm; MER: ≥32dB(-14dBm optical input); Supports remote CATV management
• Wi-Fi antennas: Compliant with IEEE802.11b/g/n/ac; Wi-Fi: 2.4 GHz, 5 GHz 2x2, speed up to 1.167 Gbps, multiple SSIDs; Transmission power: 2.4 GHz: 18 dBm; 5 GHz: 17 dBm; Receiving power: 2.4 GHz: HT40-MCS7 -71 dBm; 5 GHz: VHT80 MCS9 <-63 dBm
• Wi-Fi functions: Integrated 802.11b/g/n/ac; Authentication: WAP-PSK (TKIP)/WAP2-PSK (AES); Multiple SSIDs; Hidden SSIDs; WiFi Mesh; Supports up to 64 device connections
• Management protocols: OAM/OMCI/Telnet/Web/TR069; Supports full HGU function management via VSOL OLT
• Layer 2 functions (switching): Compatible with 802.1D and 802.1ad bridge, 802.1Q VLAN
• Layer 3 functions (routing): IPv4, IPv6 and IPv4/IPv6 dual stack; DHCP/PPPoE/Static; Static routing, DHCP server; NAT/DMZ/DDNS/Virtual server
• Multicast: IGMP v1/v2/v3, IGMP snooping; IGMP proxy; MLD snooping v1/v2; MLD proxy
• QoS: Supports 4 QoS queues (VoIP, IPTV, Internet...); Compatible with SP, WRR, 802.1P and DSCP
• Security: Basic firewall functions; MAC filtering based on MAC or URL; ACL; Compatible with loop detection
• System functions: NTP (Network Time Protocol); Scheduled device reboot; Ping and traceroute diagnostic tools
• Color: White
• Dimensions: 185mm x 120mm x 34mm
• Weight: 290g
• Operating temp.: 0º C ~ +55º C
• Power supply: DC 12V 1A (adapter included)
📦 INCLUDED:
• Wi-Fi 4 CATV Router ONT • User manual • AC/DC adapter • UTP cable
| Interface | 1X PON, 1x FE RJ45 LAN, 1x GE RJ45 LAN, 1x CATV |
|---|---|
| PON | XPON port (EPON PX20+ and GPON Class B+) Single-mode SC, SC/APC connector; Transmit optical power: 0 to +4 dBm; Receiver sensitivity: -27 dBm; Optical overload power: -3 dBm (EPON) or -8 dBm (GPON); Transmission distance: 20 km; Wavelength: TX 1310 nm, RX 1490 nm |
| CATV | Optical receive wavelength: 1550 ± 10 nm; Optical input range: +2 ～ -18 dBm; Optical return loss: ≥40 dB; RF frequency range: 47 ～ 1000 MHz; RF output impedance: 75 Ω; RF output level and AGC range: ≥81 ± 2 dBuv at +1 ～ -10 dBm, ≥79 ± 2 dBuv at 0 ～ -11 dBm, ≥77 ± 2 dBuv at -1 ～ -12 dBm, ≥75 ± 2 dBuv at -2 ～ -13 dBm, ≥73 ± 2 dBuv at -3 ～ -14 dBm, ≥71 ± 2 dBuv at -4 ～ -15 dBm; MER: ≥32dB (-14dBm optical input); Supports CATV remote management |
| WiFi Antennas | Compliant with IEEE802.11b/g/n/ac; Wi-Fi: 2.4 GHz, 5 GHz 2x2, speed up to 1.167 Gbps, multiple SSIDs; Transmit power: 2.4 GHz: 18 dBm, 5 GHz: 17 dBm; Receive power: 2.4 GHz: HT40-MCS7 -71 dBm, 5 GHz: VHT80 MCS9 <-63 dBm |
| WiFi functions | Integrated 802.11b/g/n/ac; Authentication: WAP-PSK (TKIP)/WAP2-PSK (AES); Multiple SSIDs; Hidden SSIDs; WiFi Mesh; Supports up to 64 device connections |
| Management protocols | OAM/OMCI/Telnet/Web/TR069; Supports full HGU function management via VSOL OLT |
| Layer 2 functions (switching) | Compatible with 802.1D and 802.1ad bridge, 802.1Q VLAN |
| Layer 3 functions (routing) | IPv4, IPv6 and IPv4/IPv6 dual stack; DHCP/PPPOE/Static; Static route, DHCP server; NAT/DMZ/DDNS/Virtual server |
| Multicast | IGMP v1/v2/v3, IGMP snooping, IGMP proxy; MLD v1/v2 snooping, MLD proxy |
| QoS | Supports 4 QoS queues (VoIP, IPTV, Internet, etc.); Compatible with SP, WRR, 802.1P and DSCP |
| Security | Basic firewall functions; MAC filtering based on MAC or URL; ACLs; Compatible with loop detection |
| System functions | NTP (Network Time Protocol); Scheduled device reboot; Ping and traceroute diagnostic tools |
| Color | White |
| Dimensions | 185mm x 120mm x 34mm |
| Weight | 290g |
| Operating temp. | 0º C ~ +55º C |
| Power supply | DC 12V 1A (adapter included) |
